Samsung DB10E-TPOE - DB-E Series 10.1" Edge-Lit LED Display
Touch-enabled, small digital signage with Power-over-Ethernet

Samsung DB10D - DB-D Series 10" Edge-Lit LED Display

This product is no longer available, Contact us for Custom Units Available

Overview:

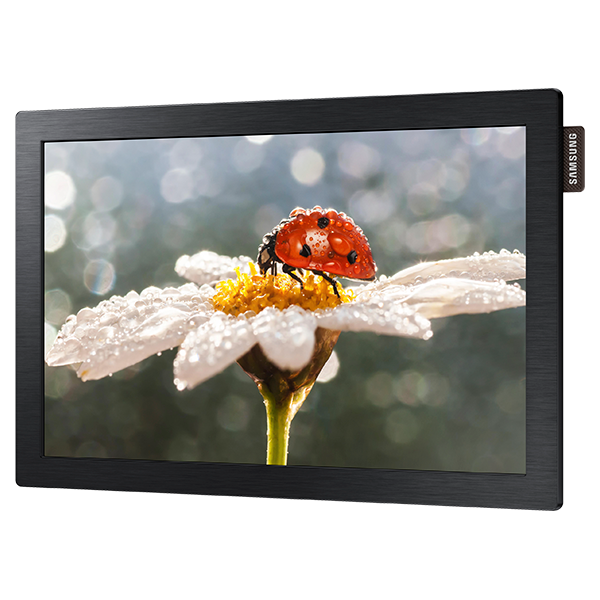

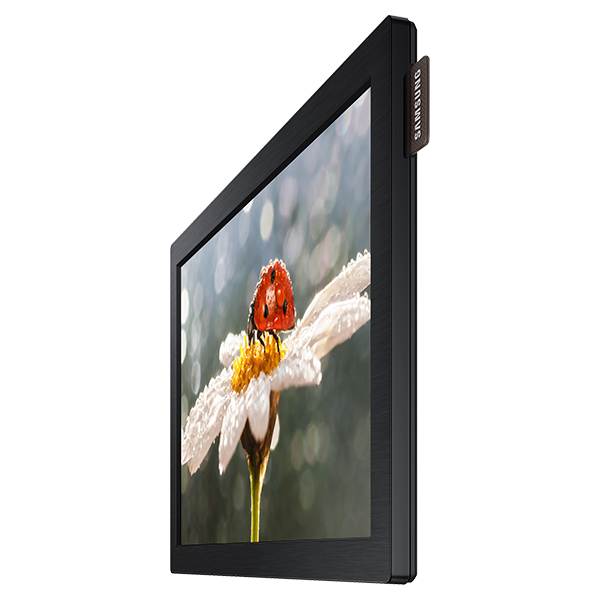

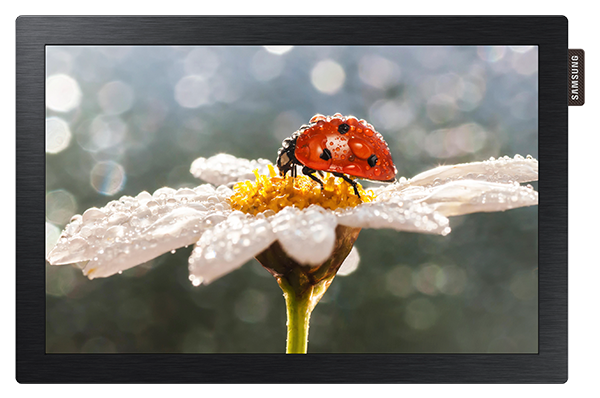

Samsung DB10E-TPOE

Small, Easy-to-Deploy Digital Signage with Power-Over-Ethernet

Highlights

  • 10.1-inch displays that provide tablet convenience in professional-grade devices
  • Power-over-Ethernet (PoE) technology that uses a single cable for both power and data
  • Interactive touchscreen functionality that heighten customer engagement
  • All-in-one display solution featuring embedded MagicInfo Player S3
Touch Screen Touch Screen
PoE PoE(Power Over Ethernet)
16/7 operation 16/7 operation
Built-in MagicInfo S3 Built-in MagicInfo S3

Quad Core CPU Quad Core CPU

Samsung DB10E-TPOE

Features:

Elevate the Customer Experience through Interactive Touch

The Samsung Small Signage DBE-TPOE display transforms customer engagement into a multi-sensory experience. The display’s interactive touch screen with five-point, two-drawing touch capability makes product and service navigation user-friendly and personalized. This helps promote customer engagement, which in turn, drives new revenue opportunities. As a PC-less display, the DBE-TPOE display’s touch function comes fully integrated. Since the DBE-TPOE eliminates the need for a separate PC or content management software, businesses can deploy the integrated solution without incurring additional equipment and installation costs. By combining these professional-grade features with the display’s sleek appearance and uniform bezel design, the DBE-TPOE creates a truly memorable experience for customers.

Interactive Touch

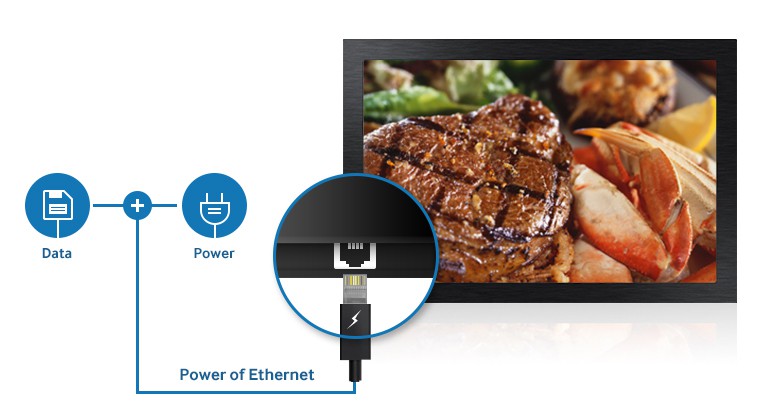

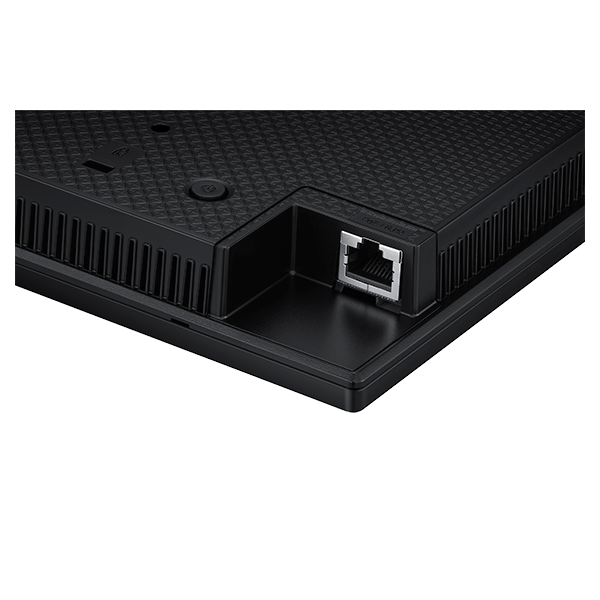

Convenient, POE-Backed Display Connectivity for Space-Conscious Businesses

POE-Backed Display Connectivity

Equipped with a variety of integrated technologies, Samsung Small Signage enables you to deliver interactive and informative content with fewer external resources required. For space-conscious businesses, the DBE-TPOE display offers a minimalistic connection format conducive to multiple device usage. Instead of requiring two separate cables for power and network connectivity, the POE-enabled display just needs one cable to deliver a high-speed network connection while supplying 30W of power at the same time. The elimination of cables and adapters ensures tidy installation, especially when multiple displays are installed in one location. In this way, the DBE-POE minimizes visual distraction and enhances the visual appeal of your business environment and digital signage for customers.

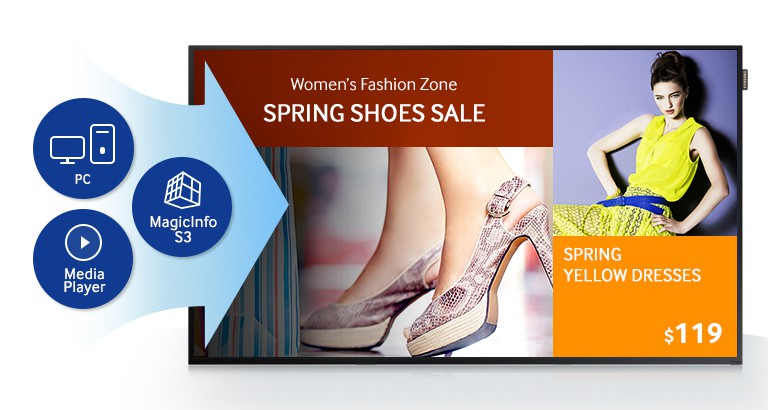

Conveniently and simply manage a rich array of content with an advanced content management platform

Deliver myriad rich content with DBE Series built-in media player and simplified management through 3rd Generation Samsung SMART Signage Platform (SSSP). An internal memory upgrade from 4 GB to 8 GB enhances the displays’ usability. The embedded, all-in-one 3rd Generation SSSP eliminates the need for a separate PC or media player to streamline digital signage operation and improve total cost of ownership (TCO). New MagicInfo S3, a content management solution embedded in 3rd Generation SSSP enables you to create, deploy and manage content more easily than the previous version with an enhanced UI and UX. MagicInfo S3 leverages 3rd Generation SSSP, an open platform that provides compatibility with myriad third-party software for flexibility and ease of use with other applications.

advanced content management platform

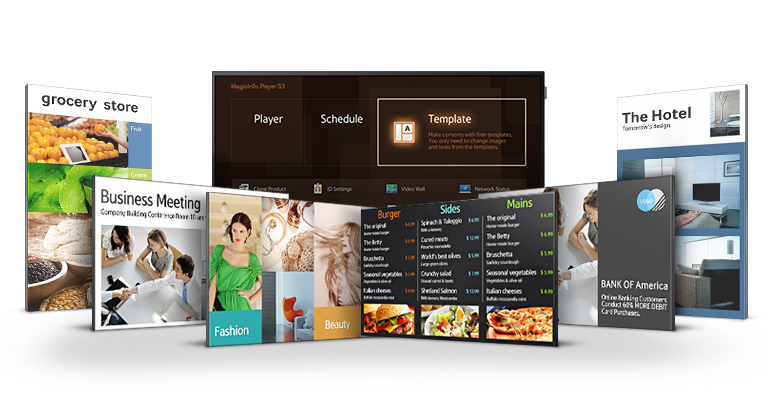

Easily manage digital signage with a simplified Home UI

Easily manage digital signage

Heighten efficiency and productivity with a newly designed Home Menu UI that displays frequently used functions in a new, large-button matrix design. Simplify usage with a selection of customizable menu configurations that allow ready access to repeatedly used menus. Generate content more easily and conveniently than ever with the Home Menu’s newly designed templates for various vertical markets including grocery stores, QSRs, terminals and lobbies. Leverage these sharp, professional template layouts to produce and design content in either portrait or landscape orientation. And, turn the Home Menu into a touch-activated user experience by adding an optional Touch Overlay.

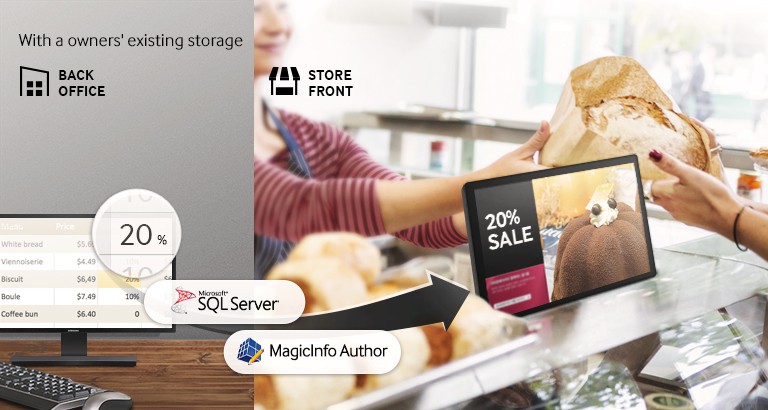

Cost-Efficient Content Management Solution Designed for your Small Business

While small- and mid-sized businesses (SMBs) and small office/home office (SOHO) business owners may not need to connect several displays with real-time or frequently-changing data as larger retail and corporate content managers require, they still value the convenience and efficiency of effective content management. As an alternative to MagicInfo DataLink, Samsung’s Data Module solution is specifically designed with SMB and SOHO users in mind. Instead of requiring a MagicInfo server and DataLink license fee, the embedded Data Module connects with a business owners’ existing local data storage*. Information is then shared automatically from the data storage and transmitted to the MagicInfo Author tool. Using Data Module-capable Samsung Small Signage, SMBs and SOHO business owners can thus share timely and informative content more effectively with a reduced total cost of ownership (TCO).

*Data server must be MS-SQL.
Cost-Efficient Content Management Solution

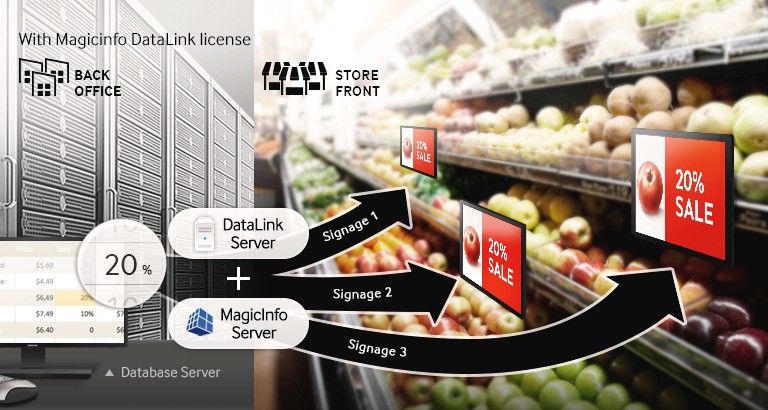

Manage Real-Time, Multi-Display Content Through Data Server Compatibility

Multi-Display Content Through Data Server Compatibility

For retail, corporate and transportation environments where multiple displays are installed and need to be remotely managed, such as QSRs, grocery stores, conference rooms and airport terminals, the time and effort required to update frequently-changing data in real-time can strain business operations and staff effectiveness. As a server-based content management solution, Samsung Small Signage’s MagicInfo DataLink content management program* is ideally suited to address these demanding usage scenarios. The MagicInfo DataLink solution allows content managers to easily and instantly update information across displays based on frequently changing data, such as exchange rates and customer waiting lists, as the DataLink server and MagicInfo Author tool automatically share information from a user-designated administrative server. As a result, you can retrieve, update and transmit content and improve customer awareness and satisfaction with greater convenience and less effort required.

*The MagicInfo DataLink requires a separate license fee, with pricing subject to change.

Specifications:

Samsung DB10E-TPOE - DB-E Series 10.1" Edge-Lit LED Display Specifications
Panel
Diagonal Size 10"
Type 60Hz E-LED BLU
Resolution 1280x800
Pixel Pitch(mm) 0.1695(H) x 0.1695 (V) (TYP.)
Active Display Area(mm) 217.0 (H) x 135.6 (V)
Brightness(Typ.) 400 nit
Contrast Ratio (Typical) 900:1
Viewing Angle (H/V) 178:178
Response Time(G-to-G) 30ms
Display Colors 16.7M
Color Gamut 50%
Haze 2%
Display
Dynamic C/R 50,000:1
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 148.5MHz
Sound
Speaker Type N/A

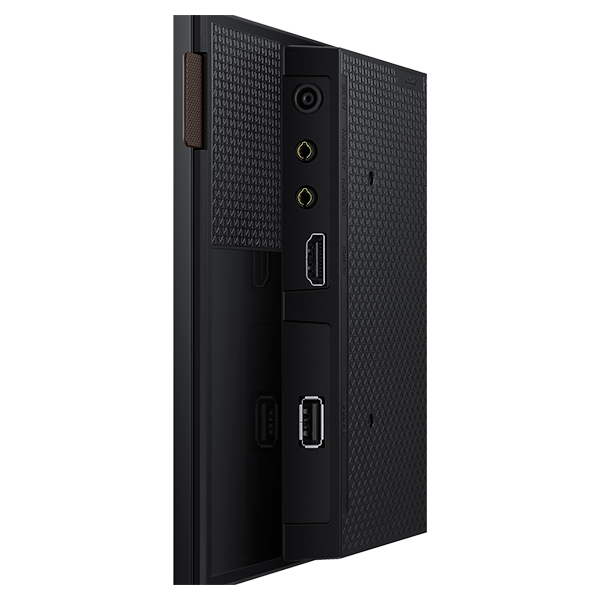

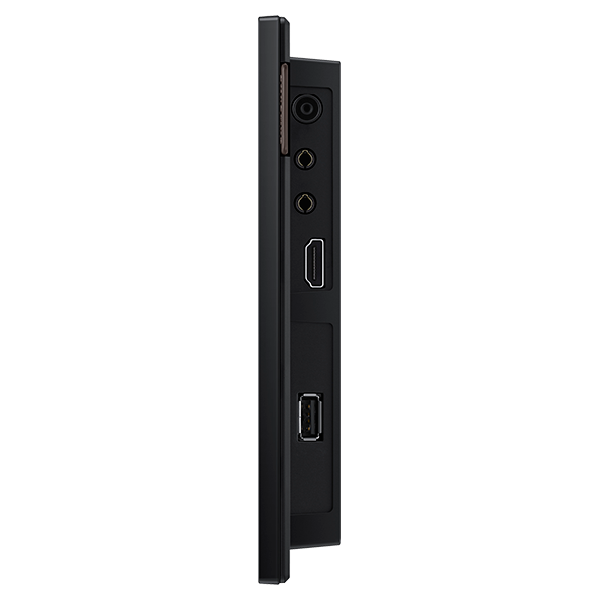

Connectivity
Input
RGB N/A
Video HDMI1 1.4
HDCP HDCP 1.4
Audio N/A
USB USB 2.0 x 1
Output
RGB N/A
Video N/A
Audio Yes
Power Out N/A
External Control RS232C(in) thru stereo jack, RJ45
External Sensor N/A
Tuner N/A
Power
Type Adapter
Power Supply PoE+ (30W) / AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h] TBD
Typical[W/h] TBD
BTU(Max) TBD
Sleep mode 0.5W
Off mode 0.5W
Mechanical Specification
Dimension (mm)
Set 246.8 x 165.2 x 27.9
Package 300.0 x 205.0 x 79.0
Weight (kg)
Set 0.7
Package 1.4

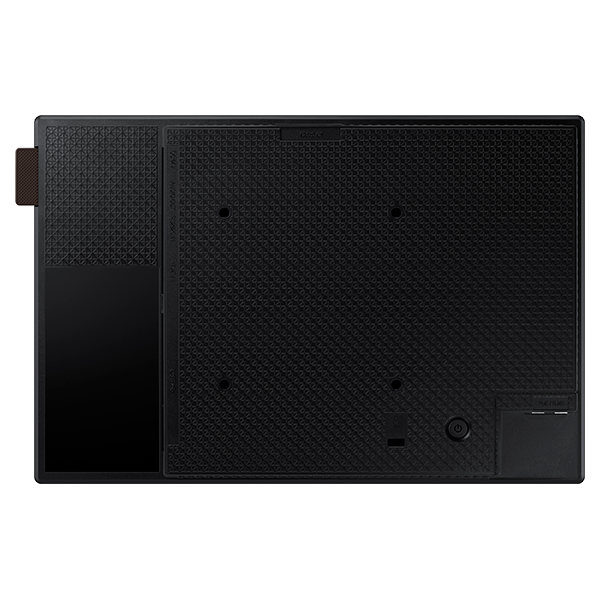

VESA Mount (mm) 75*75
Protection Glass No
Stand Type N/A
Media Player Option Type N/A
Bezel Width (mm) 14.1(top),14.1(side),14.1(bot)
Operation
Recommended Usage Hours 16/7
Operating Temperature 0℃~ 40℃
Operating Humidity 10% ~ 80%
Feature
Key Features Capacitive Touch (5 points, 2drawings) A Small-sized Signage that offers high reliable operation and flexible installation option with an embedded module PoE+. Built-in MagicInfo Player S3, SSSP 3.0
Special Features H/W : Temperature Sensor, Portrait Installation Support, Button Lock, Clock Battery(80hrs Clock Keeping),SD Card Slot, PoE+
S/W : Magic Clone(to USB), Auto Source Switching & Recovery,RS232C/RJ45 MDC,Plug and Play (DDC2B), Image Rotation, Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, Predefined Templates for Vertical Usage,Mobile Control, Event Schedule, Backup Player,
Internal Player
Processor Cortex-A9 1GHz Quad Core CPU
On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 512KB
Clock Speed 1GHz CPU Dual
Main Memory Interface 1.5GB Dual 32bit DDR3-667 (1333MHz)
Graphics 2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
Storage (FDM) 8GB
Multimedia Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
IO Ports USB 2.0
Operating System Samsung Proprietary OS(VDLinux)
Certification
Safety UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 NOM (Mexico) : NOM-019-SCFI-1998 CB (EU) : IEC60950-1, EN60950-1 KC (Korea) : K60950-1 PSB (Singapore) : IEC60950-1 EAC (Russia) : IEC60950-1 S-Mark (Argentina) : IEC60950 SASO (Saudi Arabia) : IEC60950
EMC FCC (USA) : 47 CFR Part 15, Subpart B CE (Europe) : EN55022, EN55024 VCCI (Japan) : VCCI V-3 /2014.04 KC (Korea) : KN22, KN24 BSMI (Taiwan) :CNS 13438(EN 55022) C-Tick (Australia) : AS/NZS CISPR22 : 2009+A1:2010 CCC (China) : GB9254-2008;GB17625.1-2012
Accessory
Included Quick Setup Guide, Warranty Card,Regulatory guide, Power Cord, Adapter, Remote Controller, Batteries, RS232C-Stereo cable, Stand Bar

Documentation:

Samsung DB10E-TPOE datasheet (.PDF)
