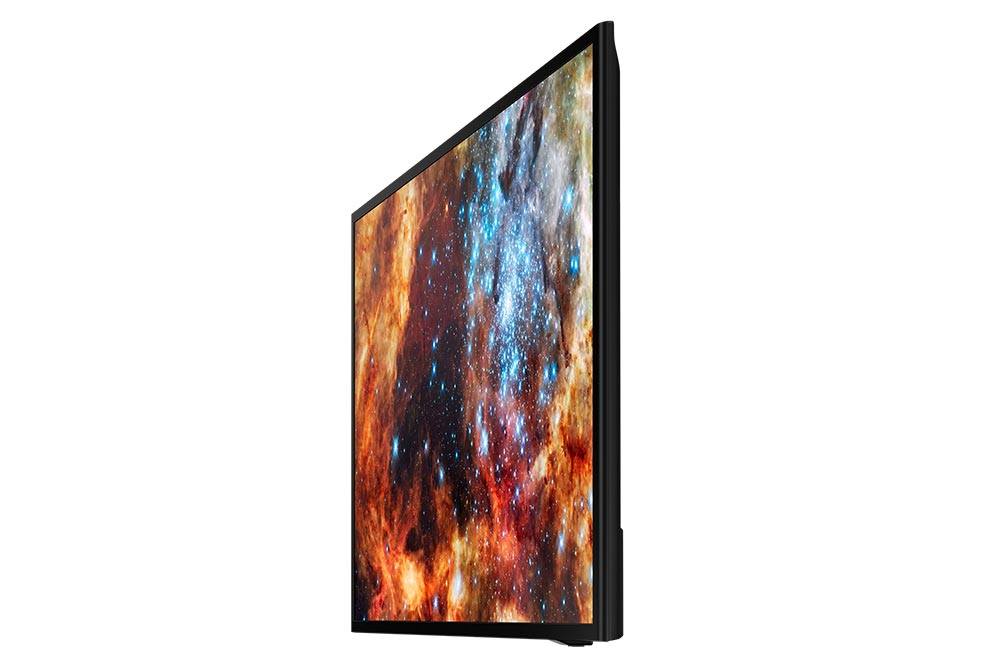

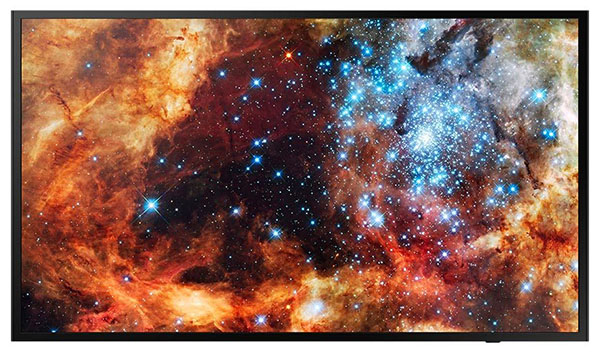

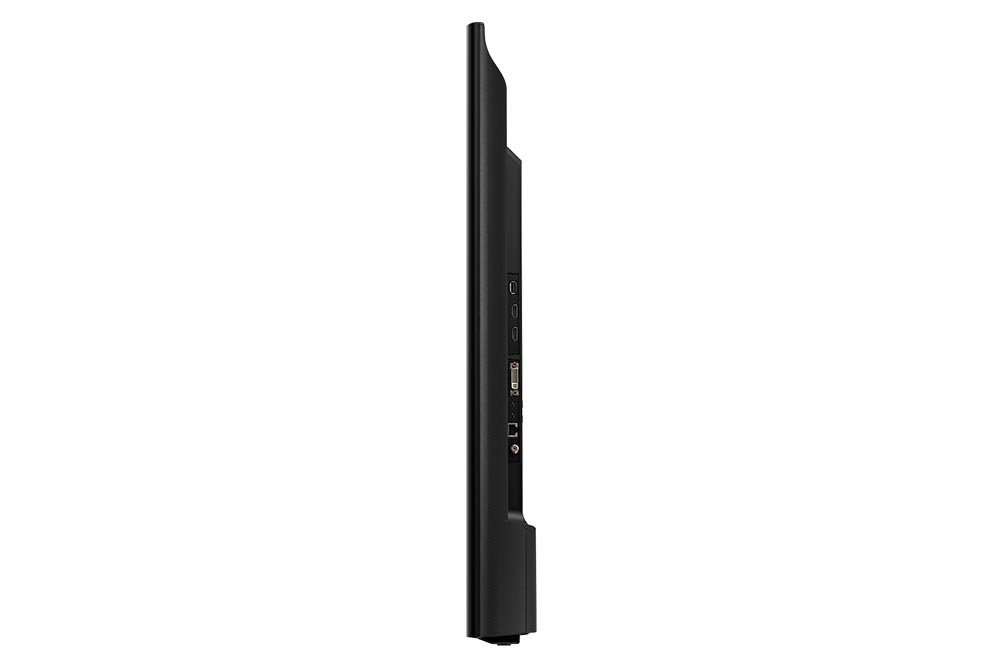

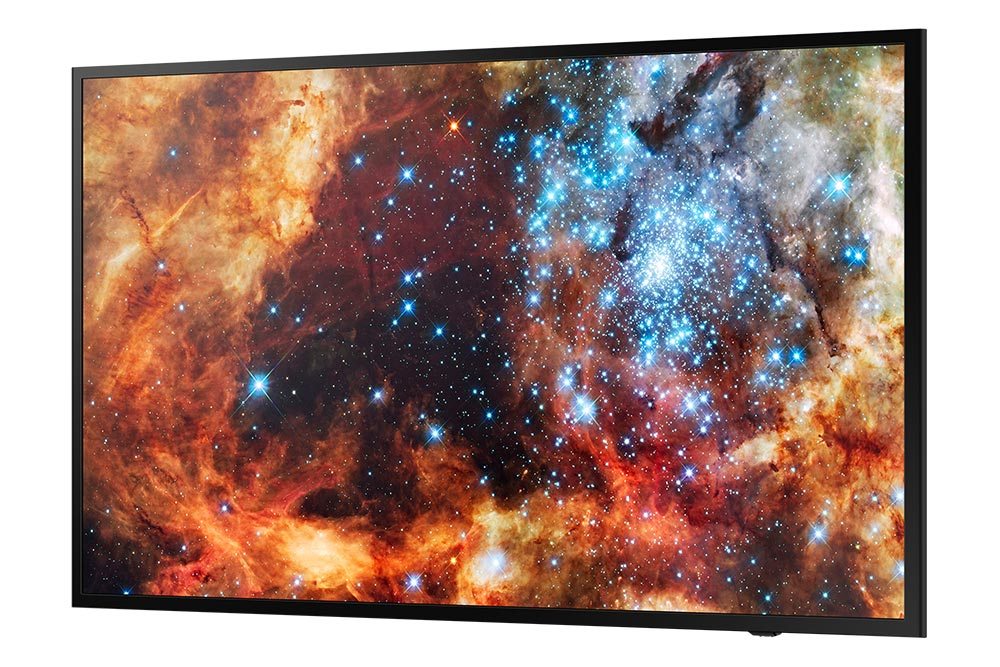

Samsung DB43J - DB-J Series 43" Edge-Lit LED Display for Business
Sleek, professional signage with essential functionalities you need to deliver quality content
This product is no longer available. Please Contact Us for a replacement.
Overview:
Samsung's DB-J Series commercial displays offer advanced display technology in an affordable fashion. Deliver an outstanding visual experience with Full HD resolution and an edge-lit LED panel. Samsung's Smart Signage Platform 5.0 backed by the Samsung Tizen 3.0 operating system delivers a powerful, all-in-one signage solution with an integrated media player, so you don't need an external set-back box or PC.
- High-quality picture with Full HD resolution and an edge-lit LED panel
- Reliable 16/7 operation backed by a 3-year onsite warranty
- All-in-one digital signage solution with an integrated media player and advanced graphic presentation features
- Intuitive, easy-to-use digital signage display with a built-in tuner
In today’s fast-paced business world, managers and key decision-makers cannot afford to lose valuable time creating, scheduling and deploying content. Samsung’s DBJ Series displays alleviate these demands by offering a more efficient process to manage and deliver high-performing messaging. Backed by the powerful TIZEN 3.0 operating system, the DBJ Series displays simplify content management and deployment into a single and secure, all-in-one platform. Here, users can conveniently and securely build and schedule content, along with audience-facing applications that empower more customized messaging. The DBJ Series displays also offer businesses peace of mind, with reliable 16/7 operation delivering content without interruption or periodic maintenance.
Features:
Expand Engagement Potential
The DBJ series elevates audience communication minus the hassle and financial burden. High-quality graphic presentation, 16/7 performance and an easy-to-use content management solution make for a powerful and efficient tool to deliver captivating messages.
Leverage All-in-One Capability
The embedded MagicInfo Player S5 simplifies the content deployment process by providing a convenient solution for seamless content scheduling and eliminating the need for a separate media player.
Enjoy Operational Flexibility
With the TIZEN 3.0 operating system, users receive a host of business-critical capabilities, ranging from advanced graphic presentation, easy open platform application development to remote management.
Protect Valuable Assets
The powerful Knox security platform provides the most rigorous defense possible. A rigid, three-layer architecture offers airtight protection at the application, platform and system layers, restricting access to content and hardware.
Extend Beyond Display
Eliminate the need to have a PC nearby to manage content. All you need is a keyboard and mouse to access and remotely control your off-site PC from the display through a secure connection.
Specifications:
| Samsung DB43J - DB-J Series 43" Edge-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 43" |
| Panel Technology | 60Hz Slim D-LED BLU |
| Resolution | 1920x1080 (Full HD) |
| Pixel Pitch (mm) | 0.16333(H) x 0.49005(V) |
| Active Display Area (mm) | 940.89(H) x 529.25(V) |
| Brightness (Typ.) | 300 nits |
| Contrast Ratio | 3000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Response Time (G-to-G) | 8ms |
| Display Colors | 16.7 M |
| Color Gamut | 72% |
| Haze | 2% |
| Display | |
| Dynamic C/R | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 148.5MHz |
| Sound | |
| Speaker Type | Built in Speaker(10W + 10W) |

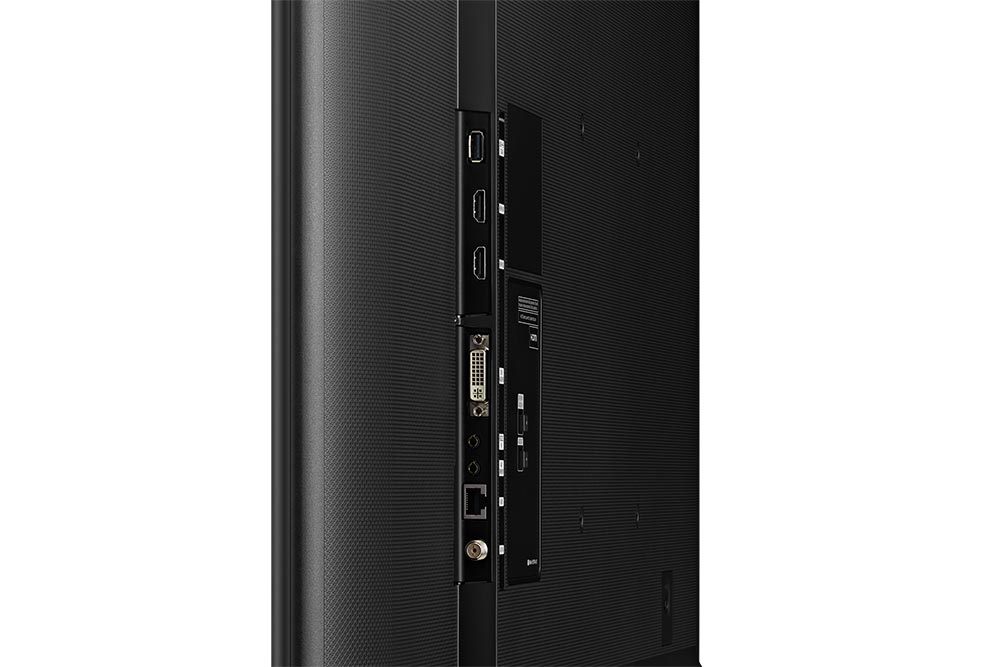

| Connectivity | |
| Input |
|
| Output |
|
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption |
|
| Dimensions | |
| Product Dimensions | 38.79" X 22.62" X 2.89 |
| Packaging Dimensions | 43.27" X 36.46" X 6.14" |
| Bezel Width | 17.3" (Top), 18.3" (Bottom), 21.3" (Side) |
| Weight | |
| Product Weight | 17.42 lbs. |
| Shipping Weight | 25.57 lbs. |
| Environmental Conditions | |
| Recommended Usage Hours | 16/7 |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Key Features | Light Signage with Built-in MagicInfo S5, SSSP 5.0 |
| Special Features | H/W : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W : Magic Clone(to USB), Auto Source Switching & Recovery, Image Rotation, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Player S5, Firmware Update by Network |
| Internal Player |
|
| Certification | |
| Safety | CB (Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB (Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM (Argentina ) : IRAM+IEC60950-1 - SASO (Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 / IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(Korea) : K 60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) : INMETRO+IEC60950-1 - BSMI(Taiwan) : BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA (Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO (Norway) : CE |
| EMC | FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A - KCC/EK (Korea) : Tunerless : KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) - C-Tick (Australia) : AS/NZS CISPR22:2009 - CCC(China) :GB9254-2008, GB17625.1-2012 - GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 |
| Accessories | |
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter |
| Optional Mount | WMN4070SE |
| Optional Stand | STN-L4355F |
| Media Player | SBB (Not attatchable) |
Documentation:
Download the Samsung DB-J 43"/49" Edge-Lit LED Display Datasheet (.PDF)
