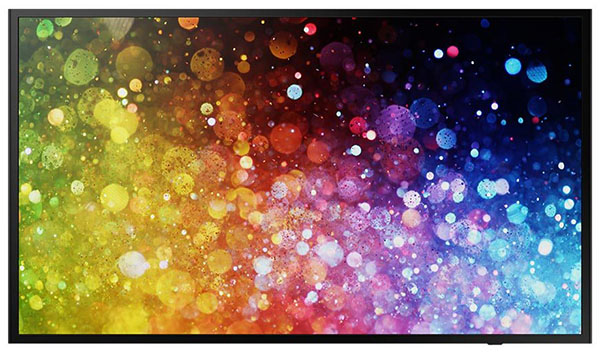

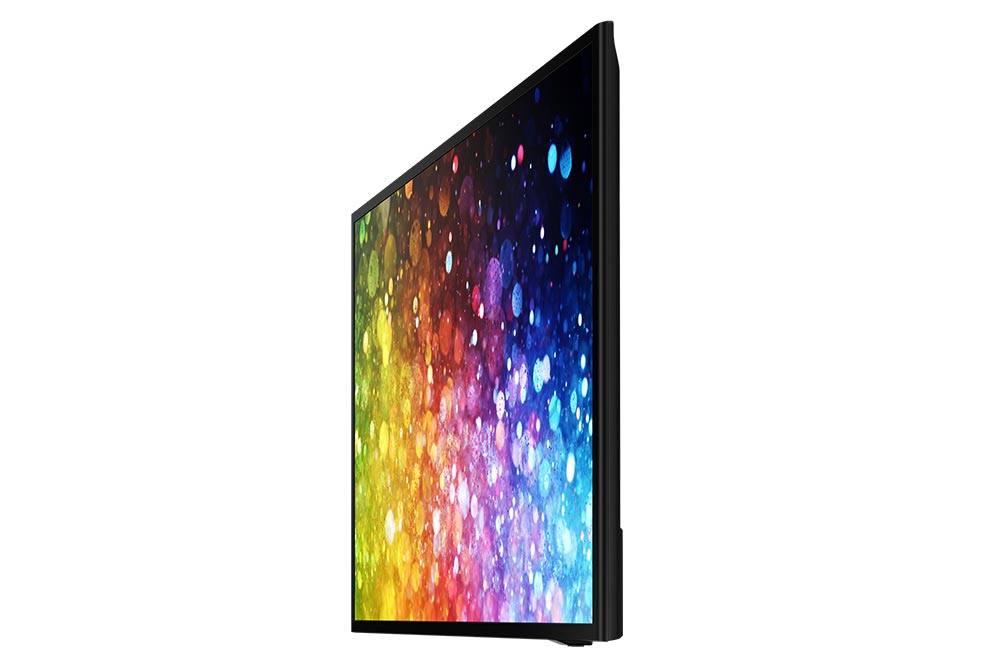

Samsung DC43J - DC-J Series 43" Edge-Lit LED Display for Business
An affordable, high-quality digital signage display featuring Full HD resolution, reliable 16/7 operation and intuitive content management

Samsung DC43J - DC-J Series 43" Edge-Lit LED Display for Business

Samsung Products
Samsung Digital Signage
DC43J - DC-J Series 43" Edge-Lit LED Display for Business
#DC43J
List Price: $885.00
Our Price: $663.00

More pricing below, click here!

Overview:

Samsung's DC-J Series digital signage displays are Samsung's most affordable commercial-grade edge-lit LED displays. They are specially engineered for business applications and are designed for long hours of reliable, continuous operation. It is even easy to play a variety of content on demand with just a USB stick. And they are covered by a 3-year commercial warranty, to give you even more financial peace of mind.

  • Improve retail and business communications through high-quality professional-grade displays
  • Elevate content presentation through FHD picture quality and 300nit brightness
  • Engage key audiences overlong durations with continuous 16/7 performance
  • Manage and adjust content scheduling directly on the display with a remote control
  • Integrate new content directly from connected USB drives
  • Deliverimpactful content at reduced total cost of operation (TCO)

Samsung’s DCJ Series displays combine superior content presentation with reliability, offering business a versatile, cost-effective format to boost engagement and relay timely information. The displays relay audience-ready content with impressive FHD picture quality and continuous 300nit brightness, while also supporting the operational demands of various business environments through 16/7 performance. Each DCJ Series display also offers a multitude of embedded ports that extend connectivity for seamless content sharing, all while maintaining a sleek and stylish design that makes for a welcome addition to any environment.

Features:


Amplify Business Messaging

Amplify Business Messaging

The DCJ series combines FHD resolution, 300nit brightness, and 16/7 reliability to boost engagement and relay timely information with superior content presentation.

Load and Share with Ease

Load and Share with Ease

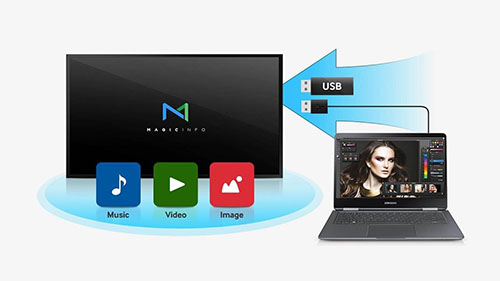

The embedded MagicInfo Lite Player allows users to conveniently load and play a wide range of content types. Simply plug in a USB device to the built-in port or access the internal memory to display the desired content on the screen.


Simplify Content Scheduling

Simplify Content Scheduling

Utilize the Local Schedule Manager to seamlessly play content from the internal memory and/or a USB drive. For added convenience, configure playback settings and create schedules directly through the display with a remote control.

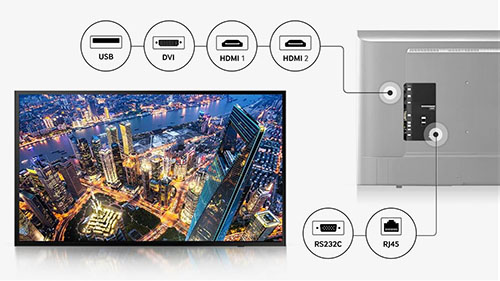

Diversify Connectivity Preferences

Diversify Connectivity Preferences

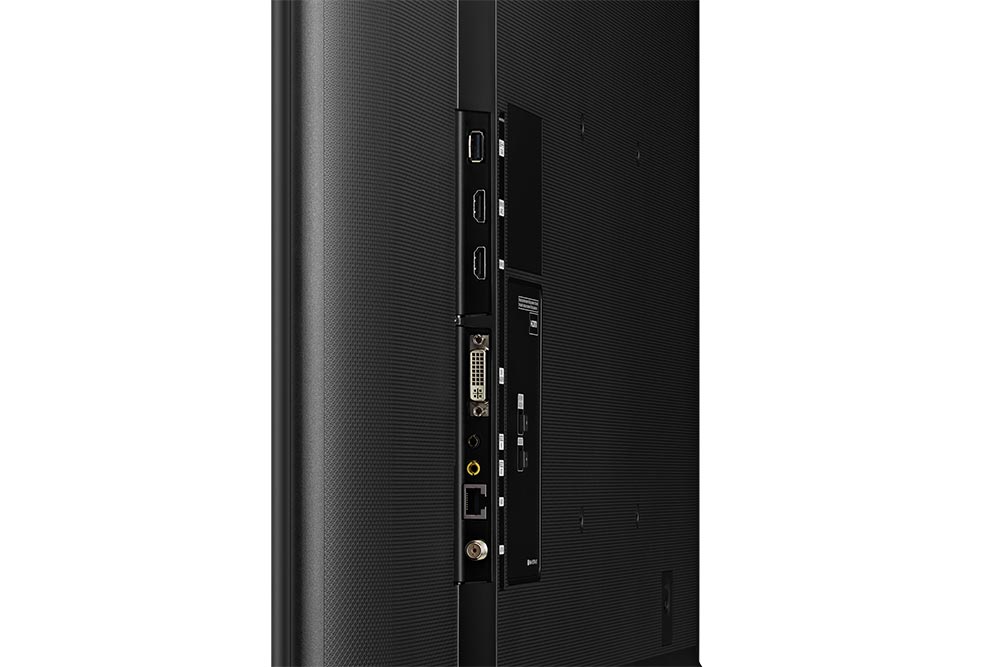

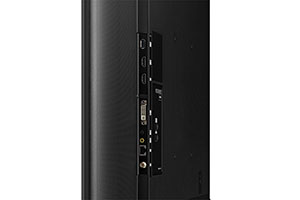

With a versatile interface including USB, DVI, HDMI, RS-232C and RJ45, easily connect and use a wide array of devices with the display.


Specifications:


Samsung DC43J - DC-J Series 43" Edge-Lit LED Display Specifications
Display
Screen Size 43"
Panel Technology 60Hz Slim D-LED BLU
Resolution 1920x1080 (Full HD)
Pixel Pitch (mm) 0.16333(H) x 0.49005(V)
Active Display Area (mm) 940.89(H) x 529.25(V)
Brightness (Typ.) 300 nits
Contrast Ratio 3000:1
Viewing Angle (Horizontal/Vertical) 178° / 178°
Response Time (G-to-G) 8ms
Display Colors 16.7 M
Color Gamut 72%
Haze 2%
Display
Dynamic C/R MEGA
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 148.5MHz
Sound
Speaker Type Built in Speaker(10W + 10W)
Connectivity
Input
  • RGB: DVI-I
  • Video: HDMI 1.4 (2), Component(CVBS Common)
  • HDCP: HDCP 1.4
  • Audio: Stereo Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(Common)
  • USB: USB 2.0 x 1
Output
  • Audio: Stereo Mini Jack
  • External Control: RS232C(in/out) thru stereo jack, RJ45
  • Tuner: Yes (only for NA/KR)
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]: 99
  • Typical[W/h]: (W/W)53, (US)38, (KR)62
  • BTU(Max): 337
  • Sleep mode: less than 0.5W
  • Off mode: 0
Dimensions
Product Dimensions 38.79 X 22.62 X 2.89 in
Packaging Dimensions 43.27 X 36.46 X 6.14 in
Bezel Width 17.3" (Top), 18.3" (Bottom), 21.3" (Side)
Weight
Product Weight 17.42 lbs.
Shipping Weight 25.57 lbs.
Environmental Conditions
Recommended Usage Hours 16/7
Operating Temperature 0°C - 40°C
Operating Humidity 10%~80%
Features
Key Features Slim & Light LFD with Built-in MagicInfo Lite
Special Features H/W: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2) S/W : Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network
Internal Player
  • Processor: MIPS 24K
  • On-Chip Cache Memory: L1 : 16KB/16KB L2 : 128KB
  • Clock Speed: 650MHz
  • Main Memory: Interface 512MB
  • Graphics: N/A
  • Storage (FDM): 179MB
  • Multimedia: N/A
  • IO Ports: N/A
  • Samsung Proprietary OS(VDLinux)
Certification
Safety CB (Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB (Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM (Argentina ) : IRAM+IEC60950-1 - SASO (Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 / IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(Korea) : K 60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) : INMETRO+IEC60950-1 - BSMI(Taiwan) : BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA (Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO (Norway) : CE
EMC FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A - KCC/EK (Korea) : Tunerless : KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) - C-Tick (Australia) : AS/NZS CISPR22:2009 - CCC(China) :GB9254-2008, GB17625.1-2012 - GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card,Power Cord, Remote Controller, Batteries, RS232C(IN) adapter,ANT Shield Box(Only for KR)
Optional Mount WMN4070SE
Optional Stand STN-L4355F
Media Player SBB (Not attatchable)

Documentation:

Download the Samsung DC-J 43"/49" Edge-Lit LED Display Datasheet (.PDF)

Pricing Notes:

Samsung Products
Samsung Digital Signage
DC43J - DC-J Series 43" Edge-Lit LED Display for Business
#DC43J
List Price: $885.00
Our Price: $663.00
Samsung On-site Warranty with SLA
On-site Warranty includes: Next Business Day exchange of the display, on-site tech-assisted exchange of display, Technician removes original unit, installs replacement, and ships non-working unit to Samsung, Coverage for mechanical/electrical breakdown
3 Years On-site Warranty with SLA for 43" Display
#43MN3
Our Price: $200.00
4 Years On-site Warranty with SLA for 43" Display
#43MN4
Our Price: $315.00
5 Years On-site Warranty with SLA for 43" Display
#43MN5
Our Price: $415.00
