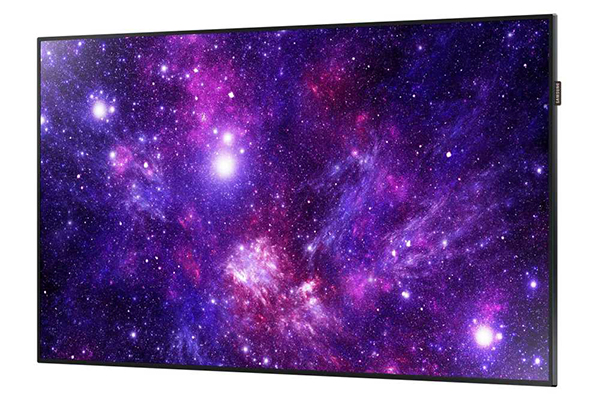

Samsung DC49H - DC-H Series 49" Edge-Lit LED Display
A robust yet cost-effective display that can be trusted to satisfy a range of business needs
This product is no longer available. Please Contact Us for a replacement.
Overview:
The Samsung DC49H means every business can now benefit from the engagement and flexibility that digital signage offers. With the sharp clarity and readability that Samsung is known for, messages will be bright and engaging. You can easily schedule or play a variety of content on demand. Built to commercial quality standards, the Samsung DC49H is a superior alternative to TVs designed for the home. It’s designed for long hours of continuous, reliable operation. And the Samsung DC49H is covered by a 3-year commercial warranty, for even greater financial peace of mind.
- Slim, sleek and lightweight design with narrow bezels and chassis depth
- Full HD resolution for sharp, detail-rich images and crisp, legible type
- Designed from the chassis up to deliver exceptional quality and reliability, backed by a 3-year onsite warranty
- Versatile connectivity options and easy-to-use, intuitive digital signage software with MagicInfo Lite
- Affordable digital signage that supports 16/7 operation and 350-nit brightness
- Streamlined content management with embedded MagicInfo Lite
Features:
Slim, Sleek Design

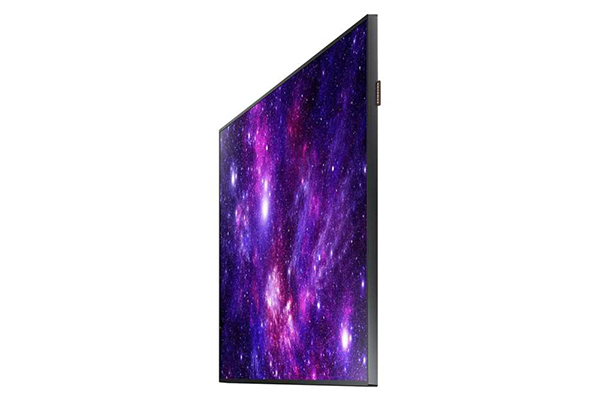

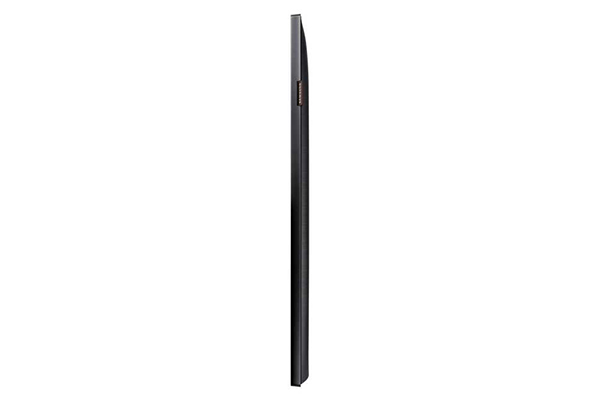

The DC49H features a slim 9.0mm (Top/Side) / 11.0mm (Bottom) bezel width, an ADA-Compliant profile of just 1.9" chassis depth and weighs only 28.8lbs. So it's easy to install and showcases your message in an elegant way.
Our Most Affordable 49" Commercial Display
The DC49H is Samsung’s most affordable 49” commercial-grade digital signage display solution, so you can deliver maximum impact at a minimal cost.
Exceptional Image Quality
Achieve sharp, detail-rich images and crisp, legible type with this slim edge-lit LED display featuring 1920 x 1080 Full HD resolution with 350 nits of brightness and a 5,000:1 contrast ratio.
Reliable 16/7 Operation with a 3-Year Onsite Warranty
Samsung commercial displays are designed from the chassis up to deliver outstanding image quality with exceptional reliability. With the DC49H, you can count on 16/7 run times, backed by a 3-year onsite warranty to secure your investment.
Versatile Connectivity Options

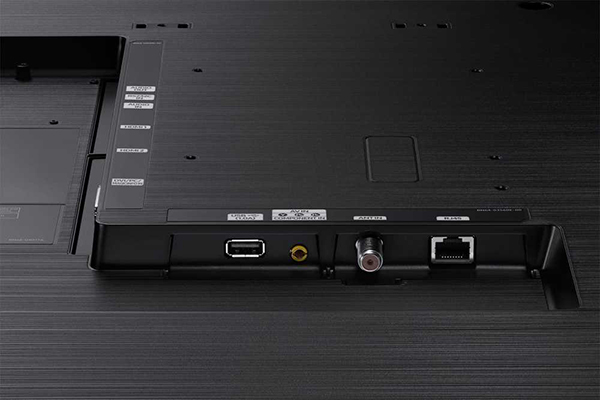

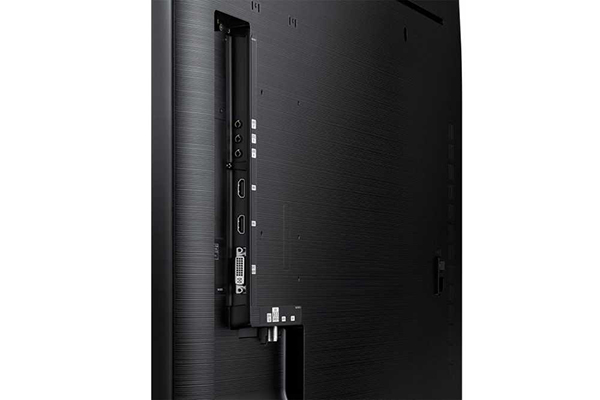

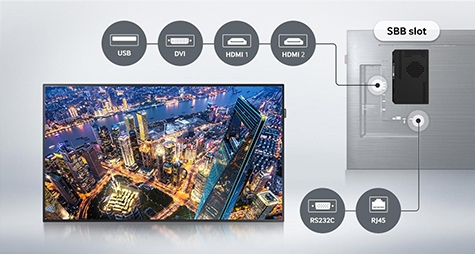

Interfaces include HDMI, DVI-I, Component and Composite input as well as RS-232C and RJ45 for extensive connectivity. You can also attach an Set Back Box media player to transform your display into all-inclusive digital signage.
Easy-to-Use Digital Signage Software with MagicInfo Lite

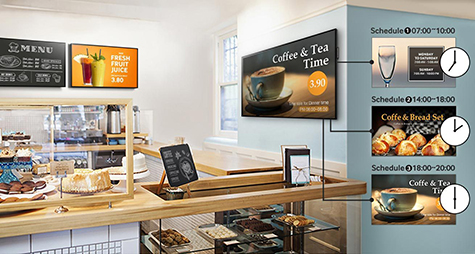

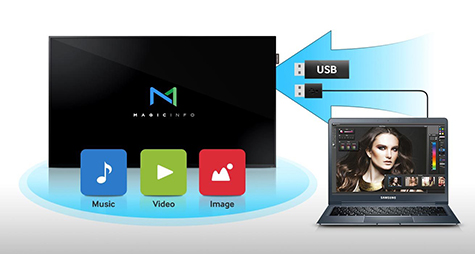

MagicInfo Lite is a simple digital signage solution that supports playback of full screen multimedia content including video, images and photos on demand or from a schedule. You can easily play content stored on the large internal memory or from external USB devices plugged into the built-in port, as well seamlessly transfer files.
Specifications:
| Samsung DC49H - DC-H Series 49" Edge-Lit LED Display Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" |
| Panel Technology | 60Hz E-LED BLU |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch (mm) | 0.186 x 0.559 |
| Active Display Area (mm) | 1073.78 x 604.00 |
| Brightness (Typ.) | 350nit |
| Contrast Ratio | 5000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time (G-to-G) | 8ms |
| Display Colors | 16.7 M |
| Color Gamut | 72% |
| Haze | 2% |
| Display | |
| Dynamic C/R | Mega |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 148.5MHz |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |
| Connectivity | |
| Input | RGB: DVI-I Video: HDMI 1.4 (2), Component (CVBS Common) HDCP: HDCP 1.4 Audio: Stereo mini Jack, RGB/DVI/HDMI/Component Audio (Common) USB: USB 2.0 x 1 |
| Output | RGB: DP1.2 (Loop-out) Audio: Stereo Mini Jack External Control: RS232C (in) thru Stereo Jack, RJ45 Tuner: Yes (only for NA) |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption | Max[W/h]: 99 Typical[W/h]: (W/W)52, (US)45, (KR)66 BTU(Max): 337.59 Sleep mode: 0.5W Off mode: 0 |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Recommended Usage Hours | 16/7 |
| Features | |
| Key Features | Slim & Light LFD with Built-in MagicInfo Lite |
| Special Features | Hardware: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (168hrs Clock Keeping), Built in Speaker (10W x 2) Software: Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network |
| Media Player Type | Processor: MIPS 24K On-Chip Cache Memory: L1 : 16KB/16KB, L2 : 128KB Clock Speed: 650MHz Main Memory Interface: 512MB Storage (FDM): 179MB Operating System: Samsung Proprietary OS(VDLinux) |
| Dimensions | |
| Without Stand (W x H x D) | 43.18" X 24.76" x 1.2" in. |
| Package (WxHxD) | 47.79 " x 28.3" x 6.18" in. |
| Bezel Width (mm) | 9.0 (Top/Side), 11.0 (Bottom) mm |
| Weight | |
| Product Weight | 28.8 lbs |
| Package Weight | 38.4 lbs |
| Service | |
| Standard Warranty | 3 years onsite parts/labor |
| Included in Box | |
| Included in Box | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter |
| Optional Stand | STN-L4655E |
| Optional Mount | WMN4270SD |
| Optional Specialty | CML450H |
| Optional Media Player | SBB |
| Certification | |
| Safety | CB (Europe) : IEC60950-1/EN60950-1 , CCC (China) : GB4943.1-2011 , PSB (Singapore ) : PSB+IEC60950-1 , IRAM (Argentina ) : IRAM+IEC60950-1 , SASO (Saudi Arabia ) : SASO+IEC60950-1 , BIS(India) : IEC60950-1 / IS13252 , NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998 , KC(Korea) : K 60950-1 , EAC(Russia) : EAC+IEC60950-1 , INMETRO(Brazil) : INMETRO+IEC60950-1 , BSMI(Taiwan) : BSMI+IEC60950-1 , RCM(Australia) : IEC60950-1/AS/NZS 60950-1 , CSA (Canada) : cUL , UL(USA) : cUL6095 |
| EMC | FCC (USA) Part 15, Subpart B Class A , CE (Europe) : EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003 , VCCI (Japan) : VCCI V-3 /2010.04 Class A , KCC/EK (Korea) : Tuner : KN13 / KN20,Tunerless : KN22 / KN24 , BSMI (Taiwan) : CNS13438 (ITE EMI) Class A /CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) , C-Tick (Australia) : AS/NZS CISPR22:2009 , CCC(China) :GB9254-2008,GB17625.1-2012 , GOST(Russia/CIS) : GOST R 51317 Series,GOST 22505-97, EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2: |
| Mechanical Specs | |
| VESA Mount | 400x400 |
Images:
Documentation:
Download the Samsung DC49H 49" Edge-Lit LED Display Datasheet (.PDF)
