Samsung DM82E-BR - DME-BR Series 82" Edge-Lit LED E-Board Display
The large 82" display includes a pre-assembled touch overlay.

Samsung DM82E-BR - DME-BR Series 82" Edge-Lit LED E-Board Display

This product is no longer available, replaced by the QB75H-TR - QBH-TR Series 75" Edge-Lit 4K UHD LED Interactive Display

Overview:

Samsung's DM82E-BR is a ready-to-use, all-in-one E-Board display solution. The large 82" display includes a pre-assembled touch overlay. The embedded System-on-Chip (SoC) media player and E-Board software makes it portable, flexible and easy to set up. And with a full range of connectivity options, including Wi-Fi® for seamless connection to mobile devices, you can meet your organization's specific presentation needs.

  • Large 82" screen to maximize readability in meeting rooms or classrooms for corporate and educational organizations
  • Included factory-assembled touch overlay enables interactivity and is easy to install
  • All-in-one, PC-less solution with an embedded media player and E-Board software application
  • Optional MagicIWB I2 presentation solution can be added via select PIM modules for advanced E-Board functionality

Features

Large E-Board for Corporate and Educational Organizations

This all-in-one E-Board display solution provides portability and flexibility while minimizing set-up time in meeting rooms or classrooms. The large 82" screen maximizes readability to facilitate smooth and informative presentations.

Included, Pre-Assembled Touch Overlay

The DM82E-BR comes with a pre-assembled touch overlay to transform your display into an interactive whiteboard with up to 10 simultaneous touchpoints and dual drawing capability. The factory assembly means it takes less time to install, so you can get right to creating more collaborative and dynamic presentations.

All-in-One Solution

Along with the display itself and included touch overlay, this E-Board solution features an embedded System-on-Chip (SoC) media player for a PC-less touch solution. Also included is an E-Board software application. With all of this right out of the box, you'll enjoy portability, flexibility and a simple setup.

Optional Samsung MagicIWB I2 Software

The optional MagicIWB I2 solution can transform a traditional presentation into a dynamic educational experience with on-screen note-taking functionality, video and image capture capability. So you can deliver rich content and interactivity in your meeting rooms or classrooms.

Enhanced System-on-Chip Performance with a Quad Core CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

Full Range of Connectivity Options Including Wi-Fi®

Versatile connectivity options include USB 2.0, HDMI, RJ45, RS232C, Wi-Fi® and more. With Wi-Fi®, enjoy seamless connectivity to mobile devices, for easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.

Edge-Lit LED Technology

Achieve sharp, detail-rich images and crisp, legible type with this edge-lit display featuring 1920 x 1080 Full HD resolution and a 5,000:1 contrast ratio. While LED technology reduces power consumption and heat output.

Specifications:


Samsung DM82E-BR - DME-BR Series 82" Edge-Lit LED E-Board Display Specifications
Display
Screen Size 82"
Brightness 430nit
Response Time 8ms
Panel Technology 120Hz E-LED BLU
Contrast Ratio (Typical) 5000:1
Resolution 1920x1080
Contrast Ratio (Dynamic) 50,000:1
Aspect Ratio 16:9
Viewing Angle (H/V) 178:178
Connectivity

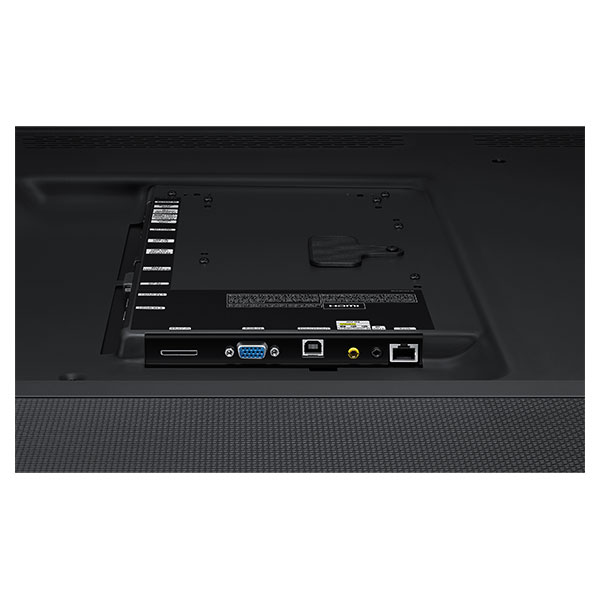

Input RGB - Analog D-SUB, DVI-D, Display Port 1.2, VIDEO - Rear: HDMI1, HDMI2, Front Connectivity Box: HDMI3 Component(CVBS Common), AUDIO - Stereo mini Jack, USB - Rear: USB 2.0 X 1, Touch in X 1, Front Connectivity Box: USB 2.0 X 2, Touch out (USB Upstream)
Output AUDIO - Stereo mini Jack
External Control RS232C(in/out) thru stereo jack, RJ45
Sensor IR, Ambient Light
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/MAX) 329W/h / 495W/h
Power Consumption (Standby) less than 0.5W
Features
Special H/W: Super Clear Coating, Temperature Sensor, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Front Tray Box, S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, Built In MagicInfo Player S3, MagicIWB S2, Magic Presenter, USB Auto Switching, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, MagicPresenter
Built-in Speakers Built in Speaker(10W + 10W)
SMART Signage Platform Yes
Storage 8GB
Built-in Tuner Yes
24/7 Operation Yes
Dimensions
Without Stand (W x H x D) 75.3" x 44.2" x 5.5" (7"- Handle)
Packaging (W x H x D) 81.5" x 50.4" x 20.2"
Bezel Width 51.9mm
Weight
Product Weight 172.4 lb.
Package Weight 208.6 lb.
Included in Box
Included in Box Quick Setup Guide, Regulayory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Pen 1, Pen Tray
Optional Wall Mount Kit WMN8200SD
Optional Stand STN-L7585F
Optional Media Player Embbeded, SBB(Attachable), PIM(Attachable)
Mechancial Specs
Vesa Mount 600x400mm
Operation
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
