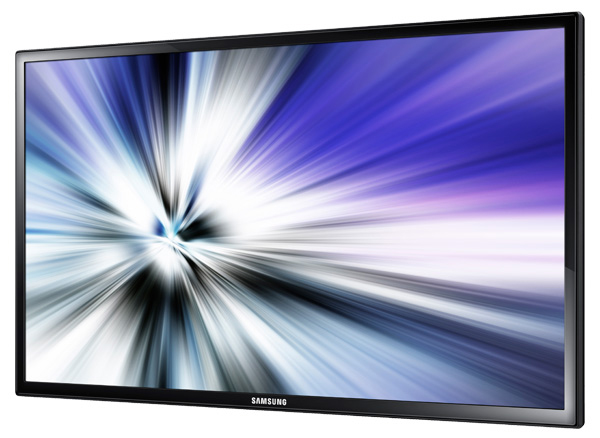

Samsung ED32C - ED-C Series 32" Direct-Lit LED Display
You Only Think LED Isn’t In Your Budget.

Samsung ED32C - ED-C Series 32" Direct-Lit LED Display

This product is no longer available, please contact us for a replacement.

Overview:

Samsung's ED-C Series displays feature direct-lit LED technology to deliver bright, beautiful imagery affordably. Using up to 50% less energy than traditional CCFL, LED can save you money while showcasing a sharp, high-resolution picture with uniform brightness on the 32" screen. And you get the commercial reliability you expect from Samsung along with simple connectivity options for ease of use.

  • Direct-Lit LED Display
  • Simple Connectivity
  • Commercial Reliability
  • High Resolution

Features

Direct-Lit LED Display

Direct-lit LED technology delivers sharp, high-resolution images, along with the uniform brightness typical of traditional CCFL-backlit displays. It also uses less energy, with savings of up to 50% over CCFL. Step up to the performance and efficiency benefits of LED.

Simple Connectivity

A simple feature set and connectivity are perfect for many applications. Inputs include VGA, HDMI and audio out. (There’s an AV audio out if you don’t want to use the built-in 10W x 2 stereo speakers.)

Commercial Reliability

Samsung is the largest manufacturer of LED panels in the world. So while the ED-C Series displays are affordable, they’re also every bit as reliable as our most expensive display panels. It’s why we back them with a 3-year onsite warranty.

Specifications:


Samsung ED32C - ED-C Series 32" Direct-Lit LED Display
Display
Screen Size 32"
Panel Technology 60Hz (Direct-LED Backlight)
Native Resolution 1366 x 768 (16:9)
Brightness (Max) 330 nits
Contrast Ratio (Typical) 4000:1
Viewing Angle 178:178
Orientation Landscape / Portrait
Response Time 8ms
Connectivity
Input VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack)
Output Stereo Mini Jack, RS232C (thru Stereo Jack)
External Control RS232C (in/out) (thru Stereo Jack)
External Sensor N/A
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max) 47W / 77W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 0ºC~ 40ºC
Operating Humidity 10~80%
Features
Special Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel
Tuner N/A
Internal Media Player N/A
VESA Standard Wall Mount Interface 200 x 200mm
Dimensions
Without Stand (W x H x D) 29.0" x 17.1" x 3.7"
Packaging Dimension (W x H x D) 32.5" x 20.9" x 6.4"
Bezel Width 16.3mm (Bottom 20.4mm)
Weight
Product Weight 13.2 lbs.
Shipping Weight 16.7 lbs.
Service
Standard Warranty 3 Year Onsite Parts/Labor
Accessories
Included Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Optional Stand STN-L32D
Optional Mount WMN-4070SD, WMN-250MD
Optional Media Player N/A
Optional Touch Overlay N/A
Green Management
Emission Standard EMC
ENERGY STAR® 5.0 Compliant Yes
RoHS Compliant Yes
Packaging Recyclability Yes

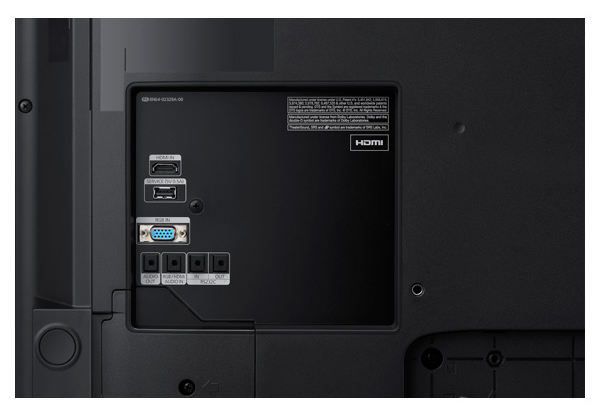

Connectivity
  1. HDMI In
  2. Service
  3. RGB In
  4. Audio Out
  5. RGB / HDMI Audio In
  6. RS232C In
  7. RS232C Out
ED-C Series Connectivity

Compare:


Samsung ED-C Series Commercial Displays
Model Number ED32C ED40C ED46C ED55C ED65C ED75C
Display
Screen Size 32" 40" 46" 55" 65" 75"
Panel Technology 60Hz (Direct-LED Backlight) 60Hz (Direct-LED Backlight) 60Hz (Direct-LED Backlight) 120Hz (Direct-LED Backlight) 120Hz (Direct-LED Backlight) 240Hz (Direct-LED Backlight)
Native Resolution 1366 x 768 (16:9) 1920 x 1080 (16:9) 1920 x 1080 (16:9) 1920 x 1080 (16:9) 1920 x 1080 (16:9) 1920 x 1080 (16:9)
Brightness (Max) 330 nits 350 nits 350 nits 350 nits 320 nits 320 nits
Contrast Ratio (Typical) 4000:1 5000:1 5000:1 5000:1 4000:1 4000:1
Viewing Angle 178:178 178:178 178:178 178:178 178:178 178:178
Orientation Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait
Response Time 8ms 8ms 8ms 8ms 6.5ms 4ms
Connectivity
Input VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack)
Output Stereo Mini Jack, RS232C (thru Stereo Jack) Stereo Mini Jack, RS232C (thru Stereo Jack) Stereo Mini Jack, RS232C (thru Stereo Jack) Stereo Mini Jack, RS232C (thru Stereo Jack) Stereo Mini Jack, RS232C (thru Stereo Jack) Stereo Mini Jack, RS232C (thru Stereo Jack)
External Control RS232C (in/out) (thru Stereo Jack) RS232C (in/out) (thru Stereo Jack) RS232C (in/out) (thru Stereo Jack) RS232C (in/out) (thru Stereo Jack) RS232C (in/out) (thru Stereo Jack) RS232C (in/out) (thru Stereo Jack)
External Sensor N/A N/A N/A N/A Yes Yes
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max) 47W / 77W 76W / 110W 88W / 121W 120W / 165W 180W / 290W 247W / 360W
Power Consumption (Standby) < 0.5W < 0.5W < 0.5W < 0.5W < 1W < 1W
Environmental Conditions
Operating Temperature 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC
Operating Humidity 10~80% 10~80% 10~80% 10~80% 10~80% 10~80%
Features
Special Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel Built-in Speaker (10W + 10W), PIP/PBP, Narrow Beze Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, OPS Compliant Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, OPS Compliant
Tuner N/A N/A N/A N/A N/A N/A
Internal Media Player N/A N/A N/A N/A N/A N/A
VESA Standard Wall Mount Interface 200 x 200mm 200 x 200mm 400 x 400mm 400 x 400mm 400 x 400mm 400 x 400mm
Dimensions
Product Dimension Without Stand (W x H x D) 29.0" x 17.1" x 3.7" 36.4" x 21.3" x 3.7" 41.6" x 24.2" x 3.7" 49.1" x 28.5" x 3.7" 57.8" x 33.4" x 2.6" 65.9" x 37.8" x 2.5"
Packaging Dimension (W x H x D) 32.5" x 20.9" x 6.4" 39.6" x 24.2" x 5.9" 45.4" x 28.5" x 6.5" 54.4" x 33.0" x 6.7" 63.0" x 38.6" x 8.5" 72.9" x 43.3" x 19.2"
Bezel Width 16.3mm (Bottom 20.4mm) 17.4mm (Bottom 20.4mm) 17.4mm (Bottom 20.8mm) 17.0mm (Bottom 21.5mm) 18.0mm (Bottom 23.5mm) 10.9mm (Bottom 16.9mm)
Weight
Product Weight 13.2 lbs. 20.5 lbs. 26.2 lbs. 40.3 lbs. 59 lbs. 63.4 lbs.
Shipping Weight 16.7 lbs. 25.1 lbs. 32.1 lbs. 51.5 lbs. 73.9 lbs. 107.4 lbs.
Service
Standard Warranty 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor
Accessories
Included Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Optional Stand STN-L32D STN-L32D STN-L4055AD STN-L4055AD STN-L4055AD STN-L75E
Optional Mount WMN-4070SD, WMN-250MD WMN-4070SD, WMN-250MD WMN-4270SD, WMN-250MD WMN-4270SD, WMN-250MD WMN-4270SD (Landscape Only)
WMN-4675MD (Portrait Only)
WMN-4277S (Landscape Only)
WMN-4675MD (Portrait Only)
Optional Media Player N/A N/A N/A N/A PIM-BD7, PIM-BQ7P (OPS compliant) PIM-BD7, PIM-BQ7P (OPS compliant)
Optional Touch Overlay N/A N/A N/A N/A CY-TE65LCC CY-TE75LCC
Green Management
Emission Standard EMC EMC EMC EMC EMC EMC
ENERGY STAR® 5.0 Compliant Yes Yes Yes Yes N/A N/A
RoHS Compliant Yes Yes Yes Yes Yes Yes
Packaging Recyclability Yes Yes Yes Yes Yes Yes
Connectivity
  1. HDMI In
  2. Service
  3. RGB In
  4. Audio Out
  5. RGB / HDMI Audio In
  6. RS232C In
  7. RS232C Out
ED-C Series Connectivity

Documentation:

Download the Samsung ED-C Series Commercial Displays Datasheet (.PDF)
