Samsung ED32D - ED-D Series 32" Direct-Lit LED Display
Direct-lit Led Displays That Are Simple, Reliable And Affordable.

Samsung ED32D - ED-D Series 32" Direct-Lit LED Display

This product is no longer available, please contact us for a replacement.

Overview:

The Samsung ED32D commercial grade display features enhanced connectivity options compared to its predecessor model, including DVI, Component and Composite inputs, while maintaining simplicity and ease of use. The 32" direct-lit LED screen showcases superb HD image quality in an affordable fashion, and delivers the commercial reliability you expect from Samsung.

  • Direct-Lit LED Display
  • Enhanced Connectivity Options
  • Our Most Affordable Commercial Grade Series
  • 3-Year Onsite Warranty

Features

Direct-Lit LED Display

Direct-lit LED technology delivers sharp, high-resolution images, along with the uniform brightness typical of traditional CCFL-backlit displays. It also uses less energy, with savings of up to 50% over CCFL. Step up to the performance and efficiency benefits of LED.

Enhanced Connectivity Options

Discover improved connectivity options compared to predecessor models. DVI, Component and Composite inputs, in addition to VGA, HDMI and audio out, maintain simplicity while enhancing versatility to meet your business's digital signage needs.

Commercial Reliability

Samsung stands as the market share leader in digital signage. So while the ED-D Series displays are affordable, they’re also every bit as reliable as our most expensive display panels. We demonstrate our confidence in the quality of our product with a 3-year onsite warranty.

Optional Touch Overlay

The optional touch overlay accessory transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.

Specifications:


Samsun ED32D - ED-D Series 32" Direct-Lit LED Display Specifications
Display
Screen Size 32"
Panel Technology 60Hz LED BLU
Native Resolution 1366x768 (16:9)
Brightness (Max) 330 nits
Contrast Ratio (Typical) 4000:1
Viewing Angle 178° / 178°
Orientation Landscape / Portrait
Response Time 8ms
Connectivity
Input Video:VGA (D-Sub 15 Pin), DVI-D, Component/Composite, HDMI Audio: Stereo Mini Jack
Output Audio: Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack
External Sensor N/A
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max) 47W / 77W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 0ºC~ 40ºC
Operating Humidity 10~80%
Features
Special Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI, No function key
VESA Standard Wall Mount Interface 200 x 200mm
Dimensions
Without Stand (W x H x D) 29" x 17.1" x 3.7"
Packaging Dimension (W x H x D) 32.5" x 20.9" x 6.4"
Bezel Width 16.3mm (Bottom 20.4mm)
Weight
Product Weight 13.2 lbs.
Shipping Weight 16.8 lbs.
Service
Standard Warranty 3 Year Onsite Parts/Labor
Accessories
Included Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Optional Stand WMN4070SD, WMN250MD
Optional Mount STN-L32D, STN-L3240E
Optional Media Player N/A
Optional HDBase-T N/A
Optional Touch Overlay N/A
Green Management
Emission Standard EMC
ENERGY STAR® 5.0 Compliant Yes
RoHS Compliant Yes
Packaging Recyclability Yes

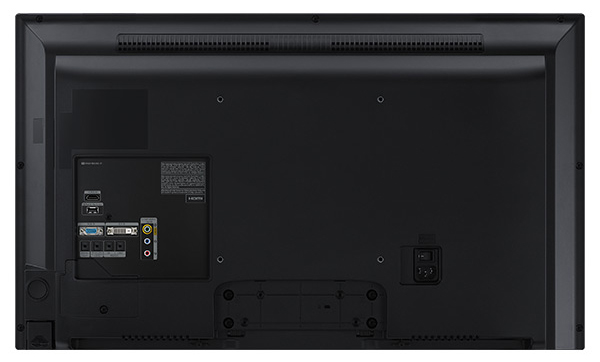

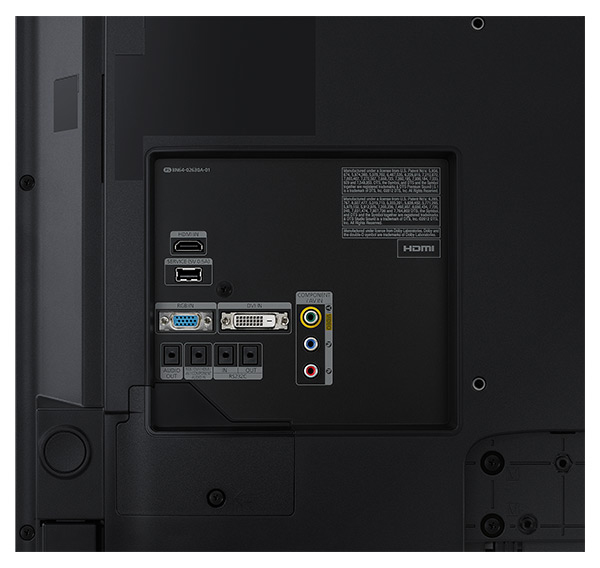

Connectivity
  1. HDMI In
  2. Service
  3. RGB In
  4. DVI In
  5. Component / Composite
  6. Audio Out
  7. RS232C In
  8. RS232C Out
ED-D Series Connectivity

Compare:


Samsung ED-D Series Commercial LED LCD Displays
Model Number ED32D ED40D ED46D ED55D ED65D ED75D
Display
Screen Size 32" 40" 46" 55" 65" 75"
Panel Technology 60Hz LED BLU 60Hz LED BLU 60Hz LED BLU 120Hz LED BLU 60Hz LED BLU 120Hz LED BLU
Native Resolution 1366x768 (16:9) 1920x1080 (16:9) 1920x1080 (16:9) 1920x1080 (16:9) 1920x1080 (16:9) 1920x1080 (16:9)
Brightness (Max) 330 nits 350 nits 350 nits 350 nits 400 nits 320 nits
Contrast Ratio (Typical) 4000:1 5000:1 5000:1 5000:1 4000:1 4000:1
Viewing Angle 178° / 178° 178° / 178° 178° / 178° 178° / 178° 178° / 178° 178° / 178°
Orientation Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait
Response Time 8ms 8ms 8ms 8ms 6.5ms 4ms
Connectivity
Input Video:VGA
(D-Sub 15 Pin),
DVI-D,
Component/
Composite,
HDMI Audio:
Stereo Mini Jack
Video:VGA
(D-Sub 15 Pin),
DVI-D,
Component/
Composite,
HDMI Audio:
Stereo Mini Jack
Video:VGA
(D-Sub 15 Pin),
DVI-D,
Component/
Composite,
HDMI Audio:
Stereo Mini Jack
Video:VGA
(D-Sub 15 Pin),
DVI-D,
Component/
Composite,
HDMI Audio:
Stereo Mini Jack
Video:VGA
(D-Sub 15 Pin),
DVI-D,
Component/
Composite,
HDMI Audio:
Stereo Mini Jack
Video:VGA
(D-Sub 15 Pin),
DVI-D,
Component/
Composite,
HDMI Audio:
Stereo Mini Jack
Output Audio: Stereo Mini Jack Audio: Stereo Mini Jack Audio: Stereo Mini Jack Audio: Stereo Mini Jack Audio: Stereo Mini Jack Audio: Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack RS232C (In/Out) thru Stereo Jack RS232C (In/Out) thru Stereo Jack RS232C (In/Out) thru Stereo Jack RS232C (In/Out) thru Stereo Jack RS232C (In/Out) thru Stereo Jack
External Sensor N/A N/A N/A N/A Yes Yes
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max) 47W / 77W 76W / 110W 88W / 121W 120W / 165W 180W / 290W 247W / 360W
Power Consumption (Standby) < 0.5W < 0.5W < 0.5W < 0.5W < 1W < 1W
Environmental Conditions
Operating Temperature 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC 0ºC~ 40ºC
Operating Humidity 10~80% 10~80% 10~80% 10~80% 10~80% 10~80%
Features
Special Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI, No function key Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI, No function key Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI, No function key Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI, No function key Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI
VESA Standard Wall Mount Interface 200 x 200mm 200 x 200mm 400 x 400mm 400 x 400mm 400 x 400mm 400 x 400mm
Dimensions
Product Dimension Without Stand (W x H x D) 29" x 17.1" x 3.7" 36.4" x 21.3" x 3.7" 41.6" x 24.2" x 3.7" 49.1" x 28.5" x 3.7" 57.8" x 33.4" x 2.55" 66.0" x 37.8" x 2.55"
Packaging Dimension (W x H x D) 32.5" x 20.9" x 6.4" 39.6" x 24.2" x 6" 45.4" x 28.5" x 6.5" 54.4" x 33" x 6.7" 64.0" x 37.6" x 9.3" 72.9" x 43.3" x 19.2"
Bezel Width 16.3mm (Bottom 20.4mm) 17.4mm (Bottom 20.4mm) 17.4mm (Bottom 20.8mm) 17.0mm (Bottom 21.5mm) 18.0mm (Bottom 23.5mm) 10.9mm (Bottom 16.9mm)
Weight
Product Weight 13.2 lbs. 20.5 lbs. 26.2 lbs. 40.3 lbs. 59.1 lbs. 63.5 lbs.
Shipping Weight 16.8 lbs. 25.1 lbs. 32.2 lbs. 51.6 lbs. 74.1 lbs. 107.6 lbs.
Service
Standard Warranty 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor 3 Year Onsite Parts/Labor
Accessories
Included Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Optional Stand WMN4070SD, WMN250MD WMN4070SD, WMN250MD WMN4270SD, WMN250MD WMN4270SD, WMN250MD WMN4675MD WMN4675MD
Optional Mount STN-L32D, STN-L3240E STN-L32D, STN-L3240E STN-L4055AD, STN-L4655E STN-L4055AD, STN-L4655E STN-L4055AD, STN-L6500E STN-L75E
Optional Media Player N/A N/A N/A N/A PIM-BD7, PIM-BQ7P PIM-BD7, PIM-BQ7P
Optional HDBase-T N/A N/A N/A N/A PIM-HDBT PIM-HDBT
Optional Touch Overlay N/A N/A N/A N/A CY-TE65LCC, CY-TE65ECC CY-TE75LCC, CY-TE75ECC
Green Management
Emission Standard EMC EMC EMC EMC EMC EMC
ENERGY STAR® 5.0 Compliant Yes Yes Yes Yes N/A N/A
RoHS Compliant Yes Yes Yes Yes Yes Yes
Packaging Recyclability Yes Yes Yes Yes Yes Yes
Connectivity
  1. HDMI In
  2. Service
  3. RGB In
  4. DVI In
  5. Component / Composite
  6. Audio Out
  7. RS232C In
  8. RS232C Out
ED-D Series Connectivity
