Samsung ED75E - ED-E Series 75" Direct-Lit LED Display
Professional digital signage with superior image quality and touchscreen compatibility
This product is no longer available, replaced by the QB75N - QB-N Series 75" Edge-Lit 4K UHD LED Display
Overview:
The Samsung ED75E commercial grade display is a simple, cost-effective and reliable digital signage solution for your business. It features side connectivity for flexible installation, with DVI, Component and Composite inputs. The large 75" LED screen offers high, full HD image quality, while the 3-year onsite warranty secures your investment and peace of mind.
- Multi-screen splitting for displaying multiple messages and great videoconferencing
- Non-glare panel with 500nit brightness offers improved visibility of your message
- Reliable 24/7 continuous run-time to meet around the clock business operating requirements
- Stunning life-like image quality with 4K UHD resolution
Features:

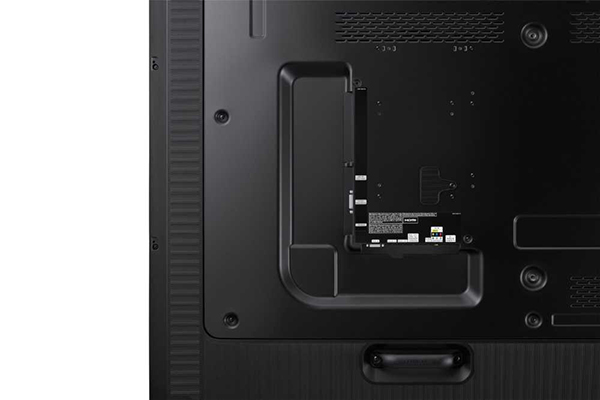

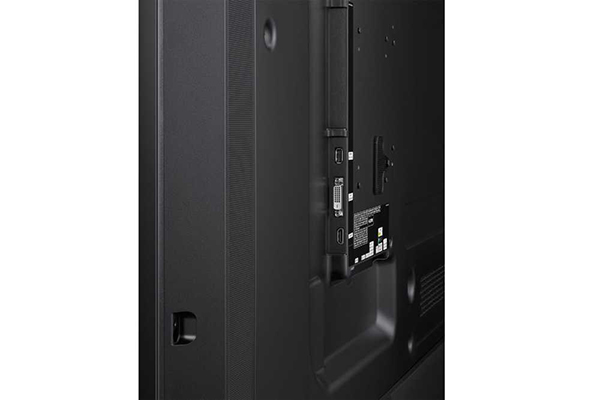

Enhanced Connectivity
Give your business an edge with side connectivity that opens possibilities for installations with less space. With DVI, Component and Composite inputs, you have the connectivity you need to meet your business' digital signage needs.

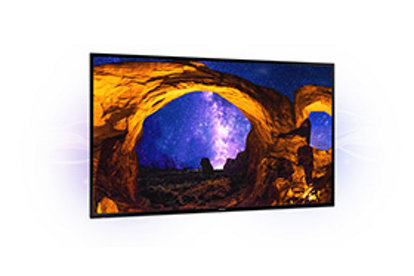

Direct-Lit LED Technology
Direct-lit LED display technology delivers sharp, high-resolution images, while saving energy and reducing costs for your business. Discover the performance and efficiency benefits of LED.

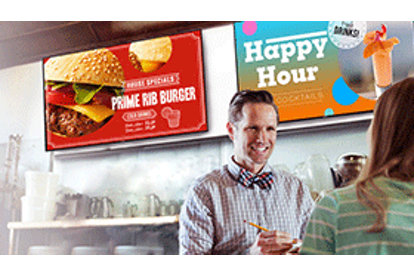

Commercial Grade Reliability
We demonstrate our confidence in the quality of our product with a 3-year onsite warranty to secure your investment. Get commercial grade reliability for your business.

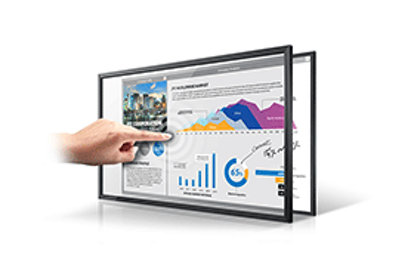

Optional Touch Overlay
The optional touch overlay accessory transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Specifications:
| Samsung ED75E - ED-E Series 75" Direct-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 75" |
| Panel Technology | 120Hz LED BLU |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 400nit |
| Contrast Ratio (Typical) | 5000:1 |
| Contrast Ratio (Dynamic) | Mega. DCR (AV Mode) |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 4ms |
| Connectivity | |
| Input | RGB: Analog D-SUB, DVI-D, Video: CVBS, Component, HDMI, Audio: Stereo mini Jack |
| Output | Audio: Stereo Mini Jack |
| External Control | RS232C(in/out) thru stereo jack |
| Sensor | External |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 215W / 275W |
| Power Consumption (Standby) | less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Special | PIP/PBP, Narrow Bezel, Light Weight, 1 D-Sub & 1 HDMI |
| Speaker Type | 10W + 10W |
| Dimensions | |
| Without Stand (W x H x D) | 66" x 37.8" x 3.5" (except handle 2.3") |
| Package (WxHxD) | 71.3" x 42.7" x 9.8" |
| Bezel Width (mm) | 10.9mm (Bottom 16.9mm) |
| Weight | |
| Product Weight | 75.2 lb. |
| Package Weight | 97.2 lb. |
| Service | |
| Standard Warranty | 3 years onsite parts/labor |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount Kit | WMN6575SD WMN4277SD |
| Optional Stand | STN-L7585F |
| Optional Touch Overlay | CY-TD75LDAF |
| Optional Media Player | SBB-PB28E, SBB-PB32E |
| Mechanical Specs | |
| VESA Mount | 400x400 |

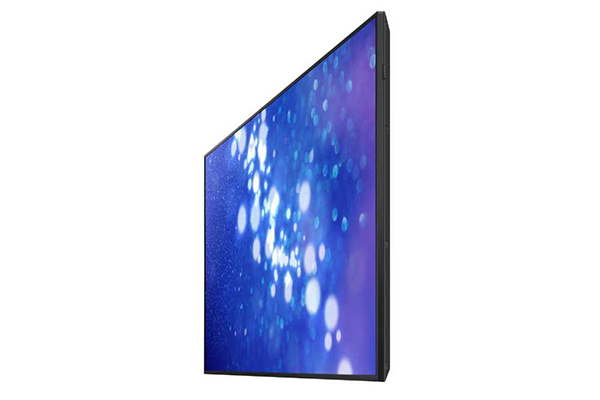

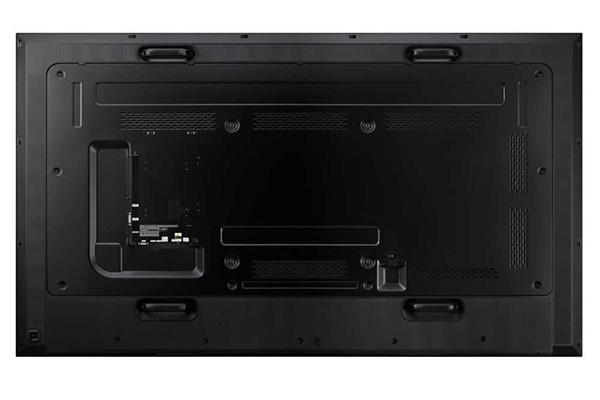

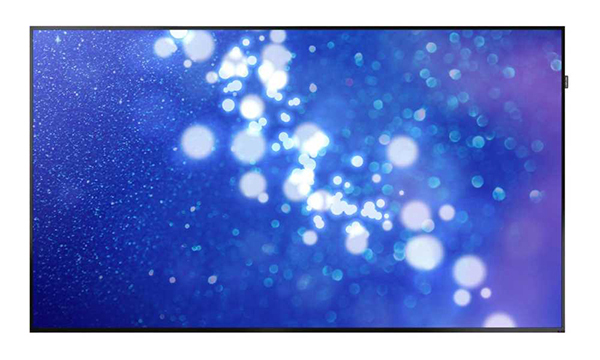

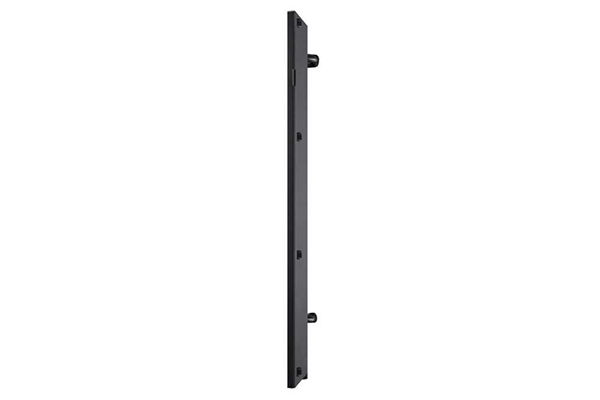

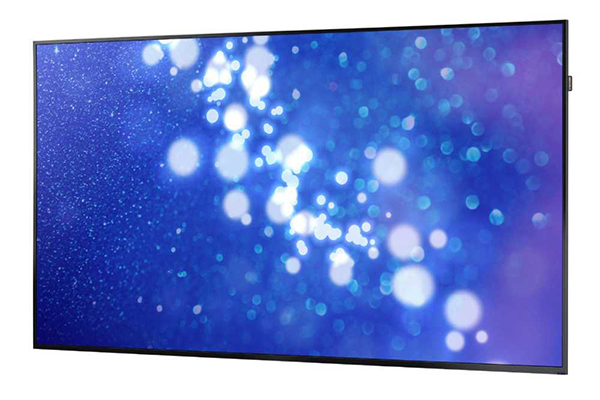

Images:
Documentation:
Download the Samsung EDE Series Direct-Lit LED Displays Datasheet (.PDF)
