Samsung H32B - HB Series 32" HDTV Direct-Lit LED Display
A High-definition TV. A High-resolution Display. You Have Space And Budget For Both.
This product is no longer available, please contact us for a replacement.
Overview:

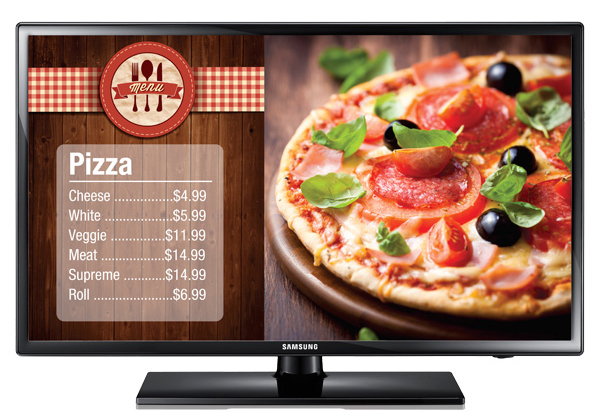

Showcase HDTV and high-resolution video in one budget-friendly commercial display. From sports to current events to your own content highlighting a menu or a retail sale, Samsung's sophisticated H Series HDTV narrow-bezel displays provide for a high-quality look. And with an integrated high-definition TV tuner, you can broadcast TV content in sharp, beautiful high resolution on the 32" screen.
- HDTV Display
- USB Digital Signage Media Player
- Thin Bezels
- RS232 Control
Features
HDTV Display
The built-in TV tuner, embedded speakers and closed captioning provide the option of easily displaying broadcast TV. And the high-definition display is excellent for displaying custom content of any type, either stand-alone or as part of a video wall.
USB Digital Signage Media Player
The USB port makes it easy to play video, pictures and audio from a portable USB flash drive.
Thin Bezels
Thin side bezels of just 17.7 mm (32" model) and 18.5 mm (40"/46" models) add a sophisticated look, enabling a more impactful message.
Direct-Lit LED
The direct-lit LED in the Samsung HDTV Series displays provide the brightness, the color and the energy savings of LED, at a cost affordable to any business.
Specifications:
| Samsung H32B - HB Series 32" HDTV Direct-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 32" Wide |
| Display Type | Direct Lit LED |
| Resolution | 1366 x 768 |
| Aspect Ratio | 16:9 |
| Brightness | 300 nits |
| Contrast Ratio (Typical/Dynamic) | 3500:1/Mega Infinity |
| Viewing Angle (Horizontal/Vertical) | 178˚/178˚ (CR>10) |
| Response Time | 8ms (GTG) |
| Connectivity | |

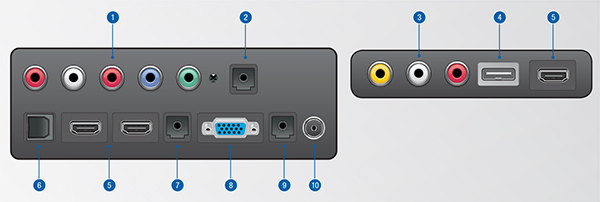

| Input | HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In |
| Output | Digital Audio Out (Optical), Audio Out |
| External Control | RS232 thru Stereo Jack |
| Power | |
| Voltage | AC 100 - 240 VAC (+/- 10 %), 60/50 Hz |
| Power Supply Type | Built-In |
| Power Consumption (Typical/Max) | 40W/54W |
| Power Consumption (Standby) | < 0.3W |
| Environmental | |
| Operating Temperature | 0°C~ 40°C |
| Operating Humidity | 10~80% |
| Features | |
| Specia | Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock |
| Tuner | ATSC/NTSC/QAM |
| Media Player | USB Auto Play (Movie, Picture, Audio, No scheduling) |
| VESA Standard Wall Mount Interface | 200 x 200mm |
| Dimensions | |
| Packaging Dimensions (without stand) | 29.1" x 17.2" x 3.7" |
| Product Dimensions (W x H x D) | 35.5" x 20.9" x 6.4" |
| Bezel Width | 17.7mm L/R/T (21.2mm Bottom) |
| Weight | |
| Product Weight | 13.9 lbs. |
| Shipping Weight | 17.2 lbs. |
| Service | |
| Standard Warranty | 2 Years Onsite Parts/Labor |
| Accessories | |
| Included | Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail) |
| Green Management | |
| Energy Star V 5.3 Compliant | Yes |
| Emission Standard | FCC |
| Packaging Recyclability | Packing Materials Recyclable |
| RoHS Compliant | Yes |
| Connectivity | |
|
 |
Compare:
| H Series HDTV Commercial Displays | |||
|---|---|---|---|
| Model Number | H32B | H40B | H46B |
| Display | |||
| Screen Size | 32" Wide | 40" Wide | 46" Wide |
| Display Type | Direct Lit LED | Direct Lit LED | Direct Lit LED |
| Resolution | 1366 x 768 | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness | 300 nits | 300 nits | 300 nits |
| Contrast Ratio (Typical/Dynamic) | 3500:1/Mega Infinity | 3500:1/Mega Infinity | 3500:1/Mega Infinity |
| Viewing Angle (Horizontal/Vertical) | 178˚/178˚ (CR>10) | 178˚/178˚ (CR>10) | 178˚/178˚ (CR>10) |
| Response Time | 8ms (GTG) | 8ms (GTG) | 8ms (GTG) |
| Connectivity | |||
| Input | HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In | HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In | HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In |
| Output | Digital Audio Out (Optical), Audio Out | Digital Audio Out (Optical), Audio Out | Digital Audio Out (Optical), Audio Out |
| External Control | RS232 thru Stereo Jack | RS232 thru Stereo Jack | RS232 thru Stereo Jack |
| Power | |||
| Voltage | AC 100 - 240 VAC (+/- 10 %), 60/50 Hz | AC 100 - 240 VAC (+/- 10 %), 60/50 Hz | AC 100 - 240 VAC (+/- 10 %), 60/50 Hz |
| Power Supply Type | Built-In | Built-In | Built-In |
| Power Consumption (Typical/Max) | 40W/54W | 44W/87W | 53W/95W |
| Power Consumption (Standby) | < 0.3W | < 0.3W | < 0.3W |
| Environmental | |||
| Operating Temperature | 0°C~ 40°C | 0°C~ 40°C | 0°C~ 40°C |
| Operating Humidity | 10~80% | 10~80% | 10~80% |
| Features | |||
| Special | Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock | Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock | Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock |
| Tuner | ATSC/NTSC/QAM | ATSC/NTSC/QAM | ATSC/NTSC/QAM |
| Media Player | USB Auto Play (Movie, Picture, Audio, No scheduling) | USB Auto Play (Movie, Picture, Audio, No scheduling) | USB Auto Play (Movie, Picture, Audio, No scheduling) |
| VESA Standard Wall Mount Interface | 200 x 200mm | 200 x 200mm | 200 x 400mm |
| Dimensions | |||
| Packaging Dimensions (without stand) | 29.1" x 17.2" x 3.7" | 36.5" x 21.7" x 3.7" | 41.7" x 24.6" x 3.7" |
| Product Dimensions (W x H x D) | 35.5" x 20.9" x 6.4" | 43.5" x 25.2" x 6.5" | 48.7" x 28.5" x 6.5" |
| Bezel Width | 17.7mm L/R/T (21.2mm Bottom) | 18.5mm L/R/T (29.3mm Bottom) | 18.5mm L/R/T (29.7mm Bottom) |
| Weight | |||
| Product Weight | 13.9 lbs. | 24.2 lbs. | 30.8 lbs. |
| Shipping Weight | 17.2 lbs. | 29.5 lbs. | 35.4 lbs. |
| Service | |||
| Standard Warranty | 2 Years Onsite Parts/Labor | 2 Years Onsite Parts/Labor | 2 Years Onsite Parts/Labor |
| Accessories | |||
| Included | Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail) | Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail) | Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail) |
| Green Management | |||
| Energy Star V 5.3 Compliant | Yes | Yes | Yes |
| Emission Standard | FCC | FCC | FCC |
| Packaging Recyclability | Packing Materials Recyclable | Packing Materials Recyclable | Packing Materials Recyclable |
| RoHS Compliant | Yes | Yes | Yes |
| Connectivity | |||
|
|
||
Images:
Documentation:
Download the Samsung H Series HDTV Commercial Displays Datasheet (.PDF)
