Samsung ML32E - ML-E Series 32" Direct-Lit LED Mirror Display for Business
Innovative, sophisticated mirror videowall displays

ML32E - ML-E Series 32" Direct-Lit LED Mirror Display for Business

This product is no longer available, replaced by the ML55E - ML-E Series 55" Direct-Lit LED Mirror Display

Overview:

Dazzle your customers with these innovative, sophisticated mirror videowall displays. Samsung's ML-E Series are pre-assembled at the factory with mirror glass and a metallic side frame for an easy-to-install, cost-efficient solution. Featuring enhanced System-on-Chip (SoC) performance with a Proximity Sensor, plus a seamless design with high reflectance and image transmittance, they move intuitively between an impressive mirror effect and vibrant content to attract and keep customer attention.

  • Innovative yet cost-efficient mirror displays with 300nits brightness and 24/7 runtime
  • Enhanced System-on-Chip (SoC) performance with a Proximity Sensor
  • High reflectance and image transmittance deliver an impressive mirror effect and vibrant content
  • Seamless front glass design and metallic side frame are pre-assembled at the factory for easy installation

Features:

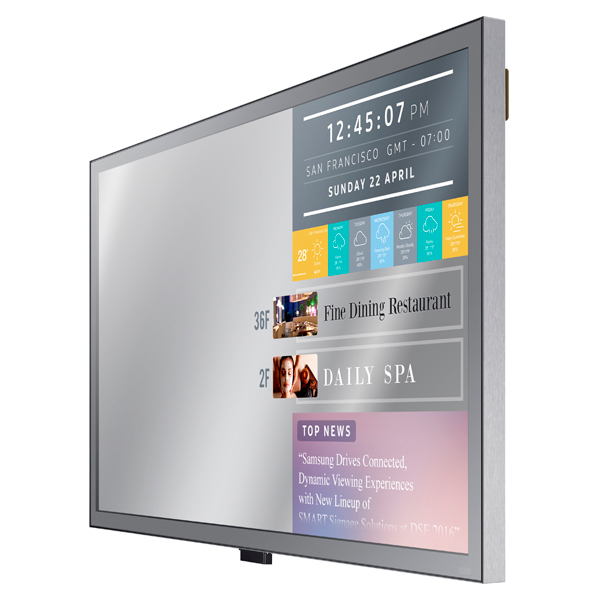

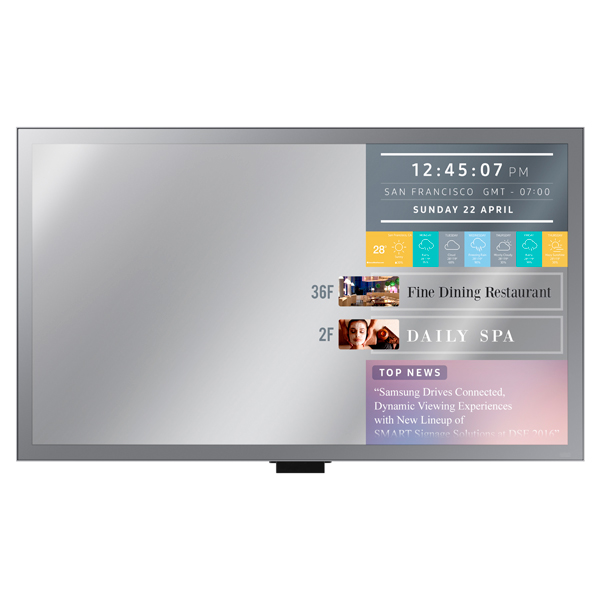

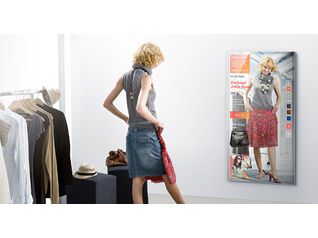

Create beautiful mirror videowalls

Dazzle Your Customers

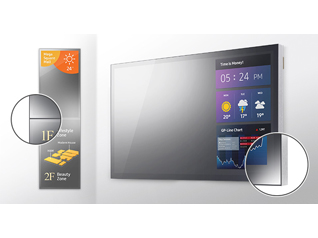

Create beautiful mirror videowalls thanks to the elegant, virtually bezel-free design that allows your customers to focus on your content. The high reflectance and image transmittance of the display deliver an impressive mirror effect and vibrant quality that is sure to dazzle.

Entice your customers from a distance

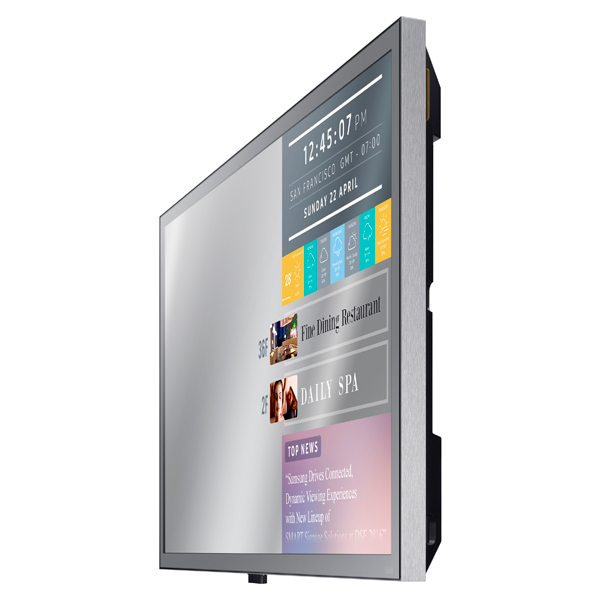

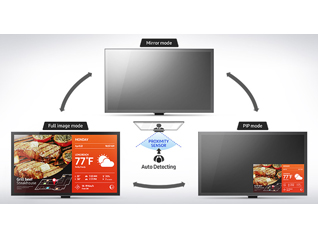

Move Intuitively Between Mirror and Content

Entice your customers from a distance and keep their attention up close thanks to enhanced System-on-Chop (SoC) performance with a Proximity Sensor that kicks in from 2-4 feet away and allows the display to move intuitively between mirror and content. Plus, a variety of seamless transition options including full image shrinking to small image and vice versa let you dynamically stylize your message.


Easy Installation

Install with Ease

These displays are pre-assembled at the factory with mirror glass and a metallic side frame for easy installation. And they are cost-efficient to serve as an innovative replacement of traditional mirrors or static signage.

built for 24/7 commercial use

Attract Around the Clock

ML-E Series displays are built for 24/7 commercial use. With innovative cooling technologies, they’ll perform reliably all day and all night. So you can catch customers' eyes around the clock.


variety of connectivity options

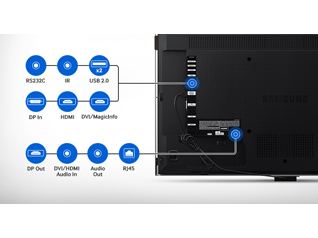

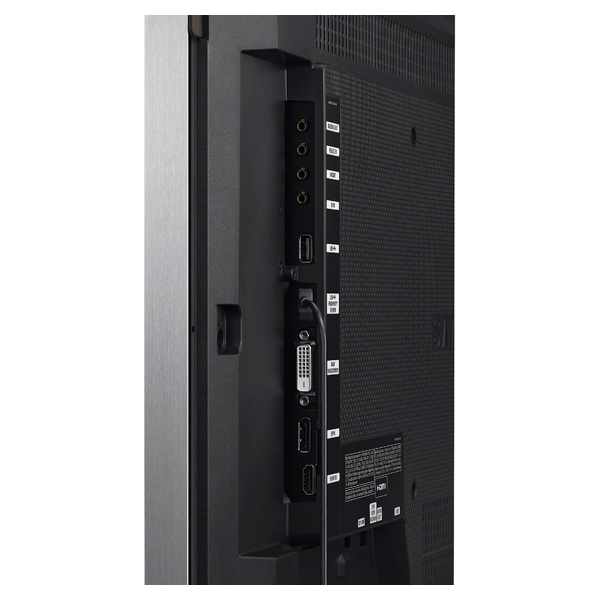

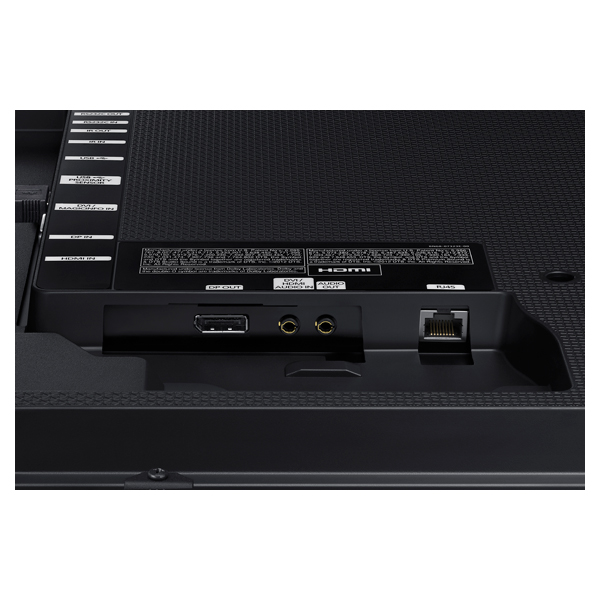

Connect to a Variety of Sources

A variety of connectivity options meet your business needs including HDMI, DVI, D-Sub, Component/Composite inputs and RS232-C/RJ45 controls.

Reduce Power Consumption

Reduce Power Consumption

Direct-lit LED display technology delivers sharp, high-resolution images, while saving energy and reducing costs for your business. Discover the performance and efficiency benefits of LED.


Specifications:

ML32E - ML-E Series 32" Direct-Lit LED Mirror Display Specifications
Panel
Screen Size 32"
Panel Technology 60Hz D-LED BLU
Resolution 1920x1080
Aspect Ratio 16:9
Brightness 300nit
Contrast Ratio (Typical) 3500:1
Contrast Ratio (Dynamic) 50,000:1
Viewing Angle (H/V) 178/178
Response Time 8 ms
Connectivity
Input RGB In: DP1
Video In: HDMI
Audio In: Stereo Mini Jack, DVI Audio (Common)
USB: USB 2.0 X 2
Output Audio: Stereo mini Jack
External Control RS232C(in/out) thru stereo jack, RJ45
Sensor IR, Proximity Sensor
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) Max:77W, Typical:55W
Power Consumption (Standby) 0.33 W
Environmental Conditions
Operating Temperature 0°C~ 40°C
Operating Humidity 10~80 %
Features
Special HARDWARE: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 1), WiFi Module Embedded
SOFTWARE: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
Media Player Type Embbeded, SBB(Not Attachable)
24/7 Opertation Yes
Wi-Fi Yes
Videowall/Thin Bezel Yes
Built-in Speakers 10W x1
Dimensions
Without Stand (W x H x D) 29.14" x 17.07" x 2.26"
Packaging (W x H x D) 32.17" x 19.8" x 5.75"
Bezel Width 0.04" (Black Printing Line 0.8")
Weight
Product Weight 17.42 lbs.
Package Weight 21.6 lbs.
Included in Box
Included in Box Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
Optional Wall Mount Kit WMN4070SD
Optional Stand STN-L3240E
Optional Media Player SBB (Optional)
Green Management
Energy Star® Certified ENERGY STAR 7.0
ROHS Compliant Yes
Emission Standard EMC
Packaging Recyclability Packing Materials Recyclable
Mechancial Specs
Vesa Mount 200 x 200 mm
Operation
Operating Temperature 0°C - 40°C
Operating Humidity 10 - 80%

Documentation:

Samsung MLE Series Datasheet (.PDF)
