Deliver the unmatched, luxury experience your guests expect with 3840 x 2160 4K UHD resolution. Offering four times the pixels of Full HD, the NT670U Series showcases content in stunning, lifelike detail. The result is fine-tuned color of incredible nuance and realism.
Direct-lit LED technology provides the brilliance and energy savings advantages of LED technology, along with the uniform brightness of CCFL displays. And it does it all with an efficiency that makes it a more affordable technology. In fact, it's possible to upgrade your rooms to LED technology for a cost comparable to CCFL technology.
Samsung’s software-based DRM technology is integrated into the entire Samsung Hotel TV line. Samsung LYNK offers a robust solution to unlock premium HDTV content from content providers such as cable, satellite and VOD providers, with maximum efficiency and security.

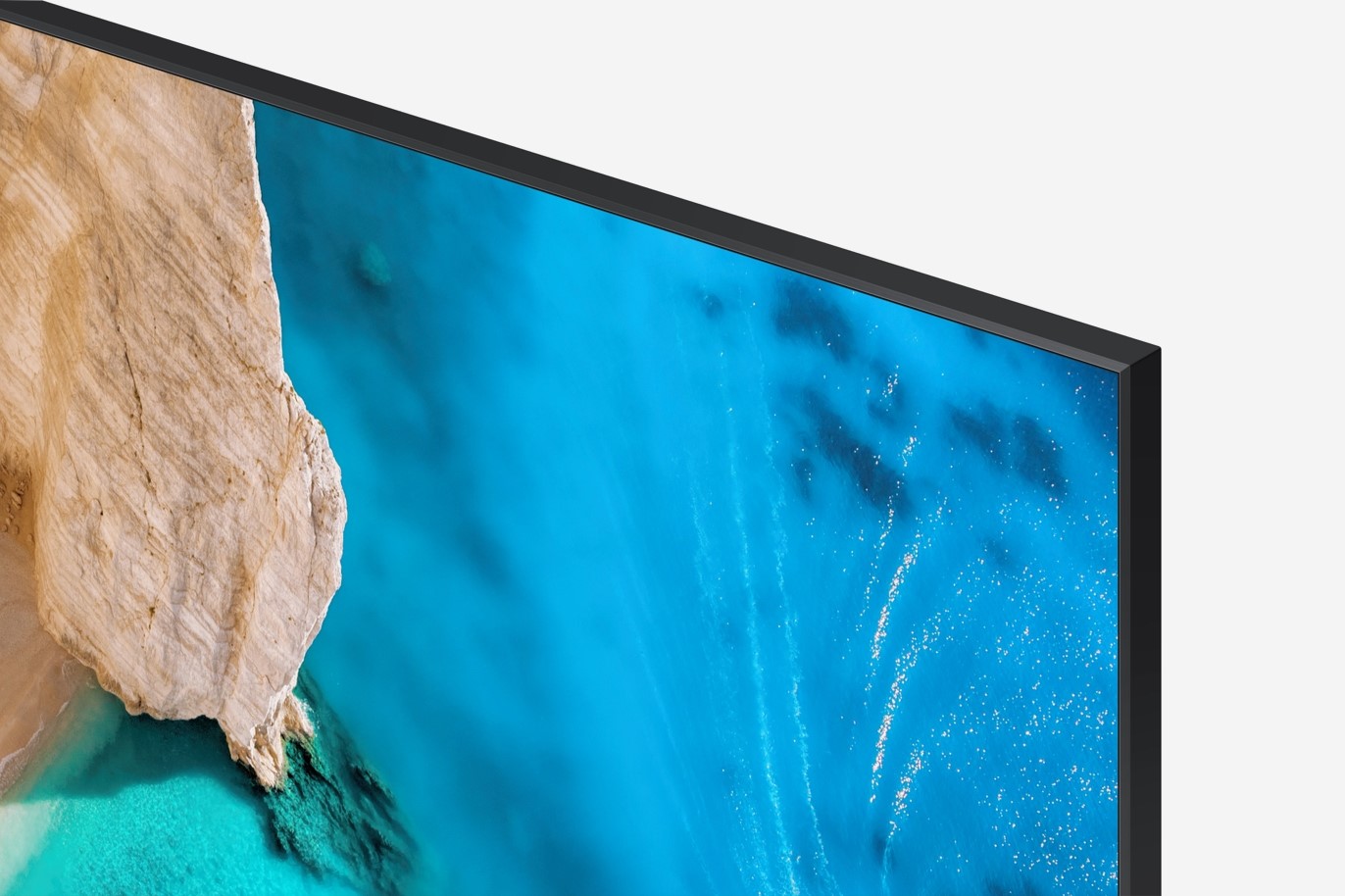

With no bezel on the top and sides, the NT670U adds a sophisticated, elegant feel that complements any room or public space décor.
|
NT670U Series Key Specifications |
|||||
|---|---|---|---|---|---|
|
HG43NT670UFXZA |
HG50NT670UFXZA |
HG55NT670UFXZA |
HG65NT670UFXZA |
||
|
Display |
Backlight |
LED |
LED |
LED |
LED |
|
Resolution |
3,840 x 2,160 |
3,840 x 2,160 |
3,840 x 2,160 |
3,840 x 2,160 |
|
|
Screen Size Class (Diagonal) |
43" |
50" |
55" |
65" |
|
|
Audio |
Dolby Digital Plus |
Yes |
Yes |
Yes |
Yes |
|
Sound Output (RMS) |
20W |
20W |
20W |
20W |
|
|
Speaker Type |
2CH |
2CH |
2CH |
2CH |
|
|
Video |
Auto Motion Plus |
Yes |
Yes |
Yes |
Yes |
|
Color |
PurColor |
PurColor |
PurColor |
PurColor |
|
|
Contrast |
Mega Contrast |
Mega Contrast |
Mega Contrast |
Mega Contrast |
|
|
Contrast Enhancer |
Yes |
Yes |
Yes |
Yes |
|
|
Film Mode |
Yes |
Yes |
Yes |
Yes |
|
|
HDR (High Dynamic Range) |
HDR |
HDR |
HDR |
HDR |
|
|
HDR10+ |
Yes |
Yes |
Yes |
Yes |
|
|
HLG (Hybrid Log Gamma) |
Yes |
Yes |
Yes |
Yes |
|
|
Motion Rate |
120 |
120 |
120 |
120 |
|
|
Natural Mode Support |
Yes |
Yes |
Yes |
Yes |
|
|
Picture Engine |
UHD Mastering Engine |
UHD Mastering Engine |
UHD Mastering Engine |
UHD Mastering Engine |
|
|
PQI (Picture Quality Index) |
1300 |
1300 |
1300 |
1300 |
|
|
Viewing Angle (H / V) |
178˚ / 178˚ |
178˚ / 178˚ |
178˚ / 178˚ |
178˚ / 178˚ |
|
|
Input and Output |
HDMI (Side / Rear) |
3/0 |
3/0 |
3/0 |
3/0 |
|
USB (Side / Rear) |
2/0 |
2/0 |
2/0 |
2/0 |
|
|
Digital Audio Out (Optical) (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
Ant In (Terrestrial or Cable/Satellite) (Side / Rear) |
(1/1) Common for Terrestrial/0 |
(1/1) Common for Terrestrial/0 |
(1/1) Common for Terrestrial/0 |
(1/1) Common for Terrestrial/0 |
|
|
Ex-Link (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
HDMI A / Return Ch. Support |
Yes |
Yes |
Yes |
Yes |
|
|
Anynet+ (HDMI-CEC) |
Yes |
Yes |
Yes |
Yes |
|
|
Data (RJ12) (Side / Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
|
RJP (Remote Jackpack) (Side / Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
|
Features |
Accessibility |
US English |
US English |
US English |
US English |
|
Auto Channel Search |
Yes |
Yes |
Yes |
Yes |
|
|
Auto Power Off |
Yes |
Yes |
Yes |
Yes |
|
|
Caption (Subtitle) |
Yes |
Yes |
Yes |
Yes |
|
|
Connect Share (HDD) |
Yes |
Yes |
Yes |
Yes |
|
|
ConnectShare (USB 2.0) |
Yes |
Yes |
Yes |
Yes |
|
|
Digital Clean View |
Yes |
Yes |
Yes |
Yes |
|
|
EPG |
Yes |
Yes |
Yes |
Yes |
|
|
Game Mode |
Yes |
Yes |
Yes |
Yes |
|
|
OSD Language |
English, Spanish, French |
English, Spanish, French |
English, Spanish, French |
English, Spanish, French |
|
|
USB HID Support |
Yes |
Yes |
Yes |
Yes |
|
|
V-Chip |
Yes |
Yes |
Yes |
Yes |
|
|
System |
Digital Broadcasting |
ATSC / ClearQAM |
ATSC / ClearQAM |
ATSC / ClearQAM |
ATSC / ClearQAM |
|
Analog Tuner |
Yes |
Yes |
Yes |
Yes |
|
|
Hospitality Features |
Auto Source Mode |
Yes |
Yes |
Yes |
|
|
Energy Saving Mode (BLU Control) |
Yes |
Yes |
Yes |
Yes |
|
|
Hospitality Home Menu |
Home Menu 2017 |
Home Menu 2017 |
Home Menu 2017 |
Home Menu 2017 |
|
|
Hospitality Plug & Play (Easy Set-up) |
Yes |
Yes |
Yes |
Yes |
|
|
Hotel Channel List |
Yes |
Yes |
Yes |
Yes |
|
|
Channel Menu Display |
Yes |
Yes |
Yes |
Yes |
|
|
Logo Display with Time Out Setting (BMP/Movie) |
Yes |
Yes |
Yes |
Yes |
|
|
Mixed Channel List (ATSC, DVB-T / T2 / C / S2, Analog) |
Yes |
Yes |
Yes |
Yes |
|
|
Music Mode (Input: PC/AV/Component/HDMI) |
Yes |
Yes |
Yes |
Yes |
|
|
My Channel |
Yes |
Yes |
Yes |
Yes |
|
|
On/Off Timer (Schedule) |
Yes |
Yes |
Yes |
Yes |
|
|
Power On Mode |
Yes |
Yes |
Yes |
Yes |
|
|
RJ12/IR Pass Through |
Yes |
Yes |
Yes |
Yes |
|
|
Samsung LYNK DRM |
Yes |
Yes |
Yes |
Yes |
|
|
Samsung LYNK REACH (RF) |
REACH 4.0 |
REACH 4.0 |
REACH 4.0 |
REACH 4.0 |
|
|
Screwed Remote Battery Cover |
Yes |
Yes |
Yes |
Yes |
|
|
Security Mode |
Yes |
Yes |
Yes |
Yes |
|
|
Smoovie Compatibility |
Yes |
Yes |
Yes |
Yes |
|
|
Soundbar Compatibility |
Yes |
Yes |
Yes |
Yes |
|
|
USB Cloning |
Yes |
Yes |
Yes |
Yes |
|
|
Welcome Message |
Yes |
Yes |
Yes |
Yes |
|
|
Clock Back Up Supply |
Yes |
Yes |
Yes |
Yes |
|
|
S/W EPG (Solution EPG) |
Yes |
Yes |
Yes |
Yes |
|
|
Wake-up Timer (Alarm) |
Yes |
Yes |
Yes |
Yes |
|
|
Design |
Stand Type |
Square |
Square |
Square |
Slim Feet |
|
Swivel (Left / Right) |
Yes (20/20, 60/60, 90/90) |
Yes (20/20, 60/60, 90/90) |
Yes (20/20, 60/60, 90/90) |
N/A |
|
|
Front Color |
Black |
Black |
Black |
Black |
|
|
Bezel Type |
3 Bezel-less |
3 Bezel-less |
3 Bezel-less |
3 Bezel-less |
|
|
VESA |
VESA Screw Size |
M8 |
M8 |
M8 |
M8 |
|
VESA Screw Depth |
20-22 mm |
20-22 mm |
20-22 mm |
20-22 mm |
|
|
VESA Mount |
200 x 200 mm |
200 x 200 mm |
200 x 200 mm |
400 x 300 mm |
|
|
Eco |
Eco Sensor |
Yes |
Yes |
Yes |
Yes |
|
ENERGY STAR (Latest effective version) |
Yes |
Yes |
Yes |
Yes |
|
|
Power |
Power Consumption (Max) |
105W |
135W |
135W |
190W |
|
Power Consumption (Standby) |
0.5W |
0.5W |
0.5W |
0.5W |
|
|
Power Consumption (Typical) |
51W |
61W |
62W |
80W |
|
|
Power Supply (V) |
AC110-120V 50 / 60Hz |
AC110-120V 50 / 60Hz |
AC110-120V 50 / 60Hz |
AC110-120V 50 / 60Hz |
|
|
Dimensions(W x H x D) |
Package Dimension (W x H x D) |
1183 x 670 x 143 mm / 46.6" x 26.4" x 5.6" |
1357 x 780 x 152 mm / 53.4" x 30.7" x 6.0" |
1467 x 843 x 158 mm / 57.8" x 33.2" x 6.2" |
1606 x 963 x 184 mm / 63.2" x 37.9" x 7.2" |
|
Set Dimension with Stand (W x H x D) |
963.9 x 610.9 x 226.5 mm / 37.9" x 24.1" x 8.9" |
1116.8 x 696.8 x 226.5 mm / 44.0" x 27.4" x 8.9" |
1230.5 x 759.8 x 226.5 mm / 48.4" x 29.9" x 8.9" |
1449.4 x 906.6 x 282.1 mm / 57.1" x 35.7" x 11.1" |
|
|
Set Dimension without Stand (W x H x D) |
963.9 x 558.9 x 59.6 mm / 37.9" x 22.0" x 2.3" |
1116.8 x 644.2 x 59.9 mm / 44.0" x 25.4" x 2.4" |
1230.5 x 707.2 x 59.9 mm / 48.4" x 27.8" x 2.4" |
1449.4 x 830.3 x 59.9 mm / 57.1" x 32.7" x 2.4" |
|
|
Weight |
Package Weight |
15.0 kg / 33.1 lbs. |
19.3 kg / 42.5 lbs. |
22.8 kg / 50.3 lbs. |
29.5 kg / 65.0 lbs. |
|
Set Weight with Stand |
11.8 kg / 26.0 lbs. |
15.1 kg / 33.3 lbs. |
17.5 kg / 38.6 lbs. |
21.4 kg / 47.2 lbs. |
|
|
Set Weight without Stand |
8.6 kg / 19.0 lbs. |
11.9 kg / 26.2 lbs. |
14.3 kg / 31.5 lbs. |
21.1 kg / 46.5 lbs. |
|
|
Accessory |
Power Cable |
Yes |
Yes |
Yes |
Yes |
|
Batteries (for Remote Control) |
Yes |
Yes |
Yes |
Yes |
|
|
Data Cable |
Yes |
Yes |
Yes |
Yes |
|
|
Quick Install Guide |
Yes |
Yes |
Yes |
Yes |
|
|
Remote Controller Model |
TM1240A |
TM1240A |
TM1240A |
TM1240A |
|
|
Security Screws (Stand Base) |
Yes |
Yes |
Yes |
N/A |
|
|
Stand Mount Kit |
Yes |
Yes |
Yes |
N/A |
|
|
Mini Wall Mount Supported |
Yes |
Yes |
Yes |
N/A |
|
|
VESA Wall Mount Supported |
Yes |
Yes |
Yes |
Yes |
|
