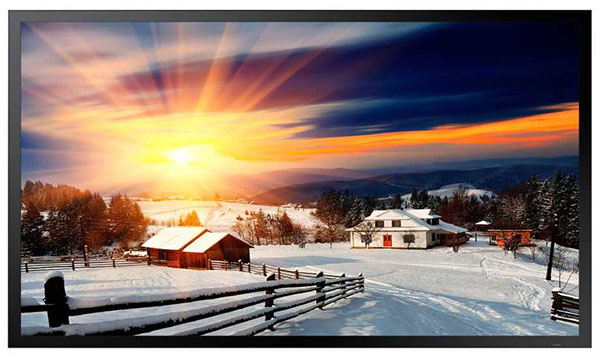

Samsung OH55F - OH-F Series 55" High Brightness Outdoor Display for Business
A powerful all-inclusive signage solution for outdoor business messaging

Samsung OH55F - OH-F Series 55" High Brightness Outdoor Display for Business

Samsung Products
Samsung Digital Signage
OH55F - OH-F Series 55" High Brightness Outdoor Display for Business
#OH55F
List Price: $11,076.92
Our Price: $7,097.00

More pricing below, click here!

Overview:

Samsung's OH-F Series are completely integrated, self-contained outdoor displays that are certified to withstand the elements and provide excellent visibility around the clock, in any light. They are fully equipped for outdoor placements and feature an innovative cooling system so there's no need for a supplemental heating or air conditioning unit. All in an ultra-slim design with an embedded power box and durable Magic Glass that protects against vandalism and graffiti.

  • Find convenience in an all-in-one solution with an embedded power box and network hub

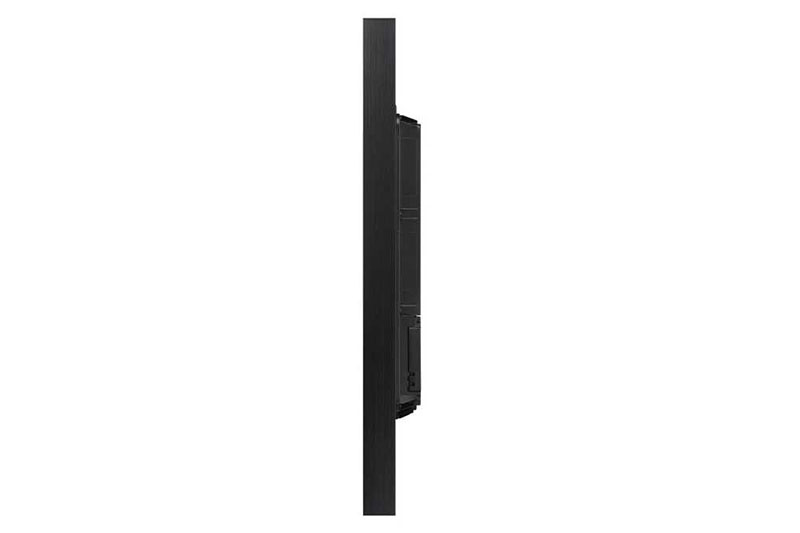

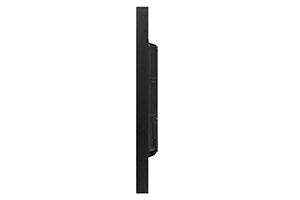

  • Clearly showcase featured content through an ultra-slim depth (85 mm.) design
  • Validate overall endurance with IK10 certifi cation
  • Ensure 24/7, IP56-certifi ed durability in extreme weather environments
  • Leverage a fi lter-less self-cooling system for easy maintenance and reduced TCO
  • Deliver excellent visibility in direct sunlight through high 2,500nit brightness and anti-refl ection glass
  • Achieve convenient content management through an advanced, TIZEN-powered platform

Samsung’s OHF Series SMART Signage delivers an all-inclusive engagement solution that is completely equipped for virtually any outdoor environment. Featuring a slim depth (85 mm.) design, along with the added convenience of an embedded power box, the OHF Series displays ensure durability, fl exibility and 24/7 performance even in extreme temperatures. And with 2,500 nit brightness, a 5,000:1 contrast ratio and anti-refl ection glass, businesses can ensure their messages are showcased almost anytime or anywhere.

Features:


Outdoor signage with simplified installation and upkeep, plus an all-encompassing array of pre-assembled features

Outdoor signage with simplified installation and upkeep, plus an all-encompassing array of pre-assembled features

OHF Series is conveniently and easily installed, designed and operated with a thin, all-in-one solution, which comes in a package which includes ingress protection, anti-reflection technology, an embedded power box, vandalism protection and a highly efficient cooling system. In addition, the embedded power box helps to condense operational components to the point where an ultra slim depth of 85mm can be attained, while the functionality of embedded network hub allow for simple connection and easy installation.

Robust IK10* level of endurance against external impacts

Robust IK10* level of endurance against external impacts

Advanced display protection is provided through the 5 mm (0.19 in.) tempered Magic Glass featuring durability that is IK10-certified (European strength test), further referencing its robust level of strength that can endure external impacts. In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.
*IK rating refers to the degree of resistance against external impacts on a scale of 0 to 10, where 10 indicates the highest level of protection.

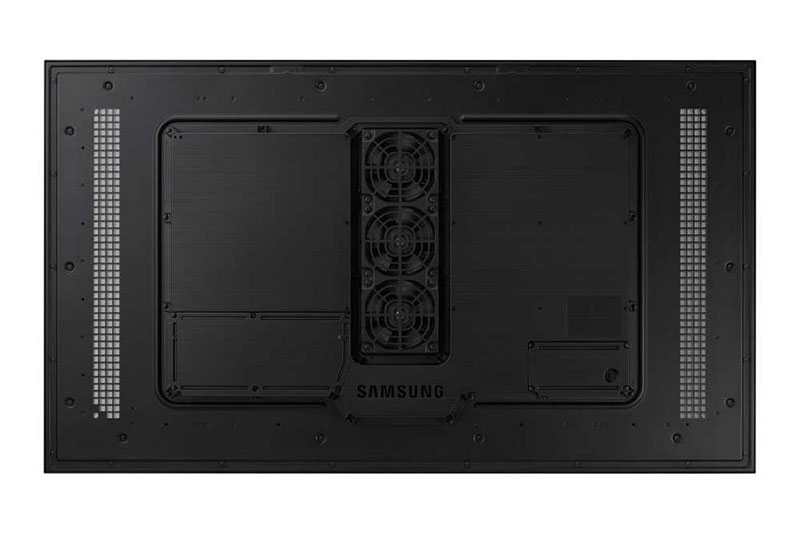

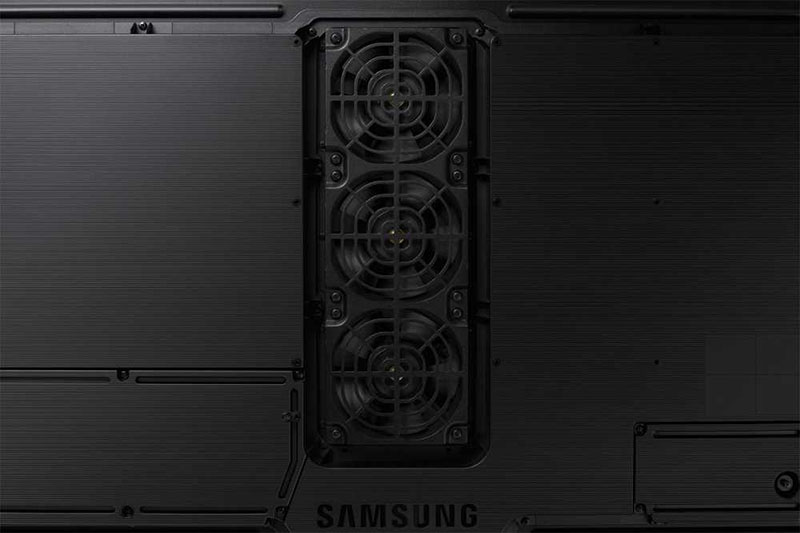

Possessing a self-cooling system with no need for filter or maintenance

Possessing a self-cooling system with no need for filter or maintenance

Samsung's OHF Series comes complete with an advanced cooling system with heat exchanger, supported by advanced thermal control functionality. This enhances the overall efficiency in terms of both management and cost through its filter-less system. The system revolutionizes outdoor signage design, abandoning the thick enclosures to accommodate a full display package.

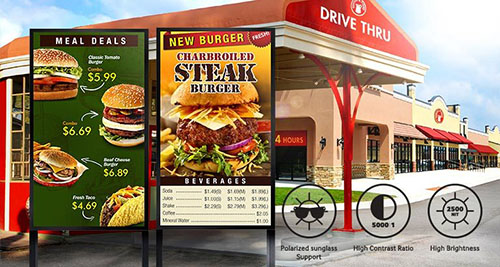

Captivate audiences with excellent visibility

Captivate audiences with excellent visibility

  • High Visibility
    OHF Series displays feature innovative Magic Glass, TUV Certified Image Quality and an Auto Brightness Sensor to optimize brightness in order to optimally convey messaging to virtually any viewer. These powerful displays also feature circular polarizing technology that eliminates display blindness caused by polarized sunglasses. OHF Series captivate viewers with superior messaging clarity delivered with high 2,500 nit brightness and 5,000:1 high contrast ratio.
  • Reflection Prevention
    Greater content visibility is achieved under a combination of high brightness, lower reflection and high contrast ratio. The Magic Glass of the OHF Series that is in front of the displays’ LCD panels removes the protection glass reflection, making the displayed images richer and clearer under direct sunlight.

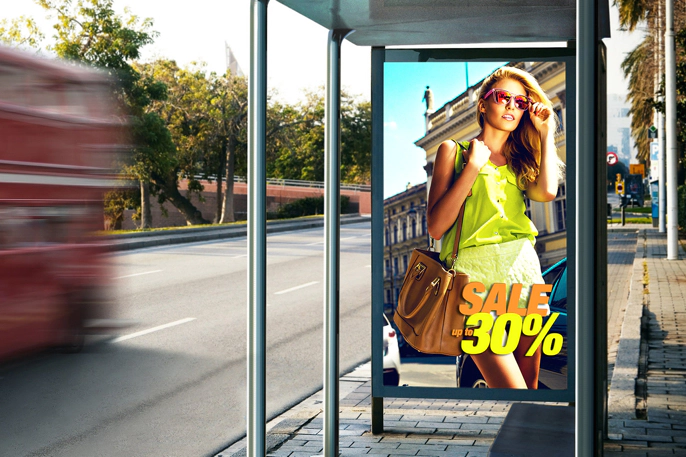

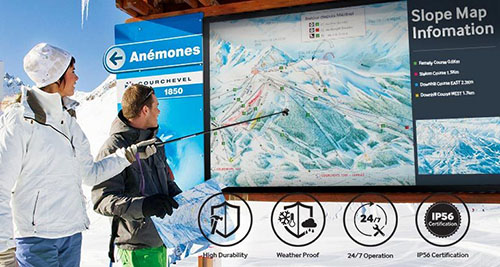

Operate reliably in virtually any environment

Operate reliably in virtually any environment

To deal with dust, moisture and other environmental variables that can damage your outdoor signage and impede operation, OHF Series ensure a high level of ingress defense with IP56 level protection that extends throughout the entire display.
As heat is a major factor due to outdoor signage being exposed to sunlight, operation of OHF Series has been made possible in temperatures that range from -30°C (-22°F) to 50°C (122°F) through a self-cooling system, allowing for a level of durability that can sustain 24/7 operations while negating the need for additional air conditioning systems.

Offering robust options for content creation, management tools

Offering robust options for content creation, management tools

Samsung’s MagicInfo Player S4 empowers users with a new graphic engine applied to their signage that boosts the overall display performance while ensuring seamless transition of content. It also operates as an advanced content management solution that can allow you to play media files, set and edit media playback schedules, and much more. MagicInfo Player S4 is robust enough to enable large organizations to manage multiple digital signage through an integrated single server and also remotely monitor and manage it from a centralized location.

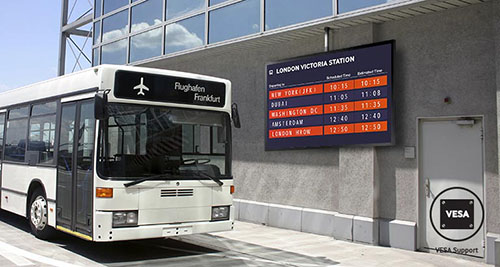

VESA-compliant for simplified mounting

VESA-compliant for simplified mounting

The OHF Series comes complete with additional brackets (optional), in order to accommodate Standard VESA usage. Due to being VESA-compliant, the OHF series gives you the power and flexibility to mount your display according to your needs and without having to purchase a specific brand or model of wall mount. (Only applicable to 46” and 55”)


Specifications:


Samsung OH55F - OH-F Series 55" High Brightness Outdoor Display Specifications
Display
Screen Size 55"
Panel Technology 120Hz D-LED Local Dim. BLU
Resolution 1920x1080 (Full HD)
Pixel Pitch (mm) 0.63mm(H) X 0.63mm(V)
Active Display Area (mm) 1209.60(H) x 680.40(V)
Brightness (Typ.) 2,500 cd/m2
Contrast Ratio 4000:1
Viewing Angle (Horizontal/Vertical) 178° / 178°
Display Colors 8 bit - 16.7M
Color Gamut 72%
Operation Hour 24/7
Haze 0%
Display
Dynamic C/R 100,000:1
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 148.5MHz
Sound
Speaker Type N/A
Connectivity
Input
  • RGB: N/A
  • Video: HDMI 1.4 (2), HDBaseT (LAN Common)
  • HDCP: HDCP 2.2
  • Audio: N/A
  • USB: USB 2.0 x 1
Output
  • Audio: Stereo Mini Jack
  • External Control: RS232C (In/Out), RJ45(In/Out), HDBaseT
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]: 554
  • Typical[W/h]: W/W(EU) 193 US/KOR/Etc. 440 ※ Etc: CHINA, TAIWAN, BRA, CIS
  • BTU(Max): 1889.14
  • Sleep mode: less than 0.5W
  • Off mode: Less than 0.5W
Mechanical Spec
Product Dimensions 1260.6 x 731.4 x 85.0 mm
Packaging Dimensions 1358 x 845 x 230 mm
Product Weight 52.6kg
Shipping Weight 58.1kg
Mounting Hole 1186 x 560 (Basic) 1200 x 400 (VESA Bracket Option)
Protection Glass Yes (5T Tempered Glass)
Bezel Width 24.9 / 24.9 / 24.9 / 24.9 mm
Environmental Conditions
Recommended Usage Hours 24/7
Operating Temperature -30°C - 50°C
Operating Humidity 10%~80%
IP Certificate IP56
Features
Key Features Power-box Integrated, IP56 Outdoor, Built-in MagicInfo Player S4, SSSP 4.0
Special Features IP56 Certified for Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock
Internal Player
  • Processor: Cortex-A12 1.3GHz Quad Core CPU
  • On-Chip Cache Memory: L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed: 1.3GHz CPU Quad
  • Main Memory: Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
  • Graphics: 2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES
  • Storage (FDM): 8GB (3.75GB Occupied by O/S, 4.25GB Available)
  • Multimedia: Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
  • IO Ports: USB 2.0
  • Tizen 2.4 (VDLinux)
Certification
Safety CB : IEC60950-1/EN60950-1 (EN) UL : cUL60950-1 (GO)
EMC CE : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 (EN) FCC : Part 15, Subpart B Class A (GO)
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Pricing Notes:

Samsung Products
Samsung Digital Signage
OH55F - OH-F Series 55" High Brightness Outdoor Display for Business
#OH55F
List Price: $11,076.92
Our Price: $7,097.00
Samsung On-site Warranty with SLA
On-site Warranty includes: Next Business Day exchange of the display, on-site tech-assisted exchange of display, Technician removes original unit, installs replacement, and ships non-working unit to Samsung, Coverage for mechanical/electrical breakdown
3 Years On-site Warranty with SLA for 55" - 65" Display
#65MN3
Our Price: $250.00
4 Years On-site Warranty with SLA for 55" - 65" Display
#65MN4
Our Price: $400.00
5 Years On-site Warranty with SLA for 55" - 65" Display
#65MN5
Our Price: $525.00
