Samsung OH55A-S
Deliver bright and brilliant messages, built for the outdoors


This product is Built to Order, please Contact Us for more details

Samsung OH55A-S - OHA Series


Samsung Products
Samsung OH55A
#OH55A-S
Our Price: $6,154.00
Samsung OH55A
No WIFI
#OH55A
Get a Quote!

Overview:

Deliver bright and brilliant messages, built for the outdoors: When it comes to providing concise communication for customers, Samsung’s OH55A-S features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH55A-S is packed with robust hardware, ensuring longevity and flexibility.

  • UL-verified for outdoor visibility with greater brightness than 3,500nit and 24/7 performance
  • Enhanced visibility with anti-reflection technology by Magic Protection Glass
  • Prevent humidity for optimal performance with hidden fans in the downside of the display
  • An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection

Samsung OH55A-S - OHA Series

Features:

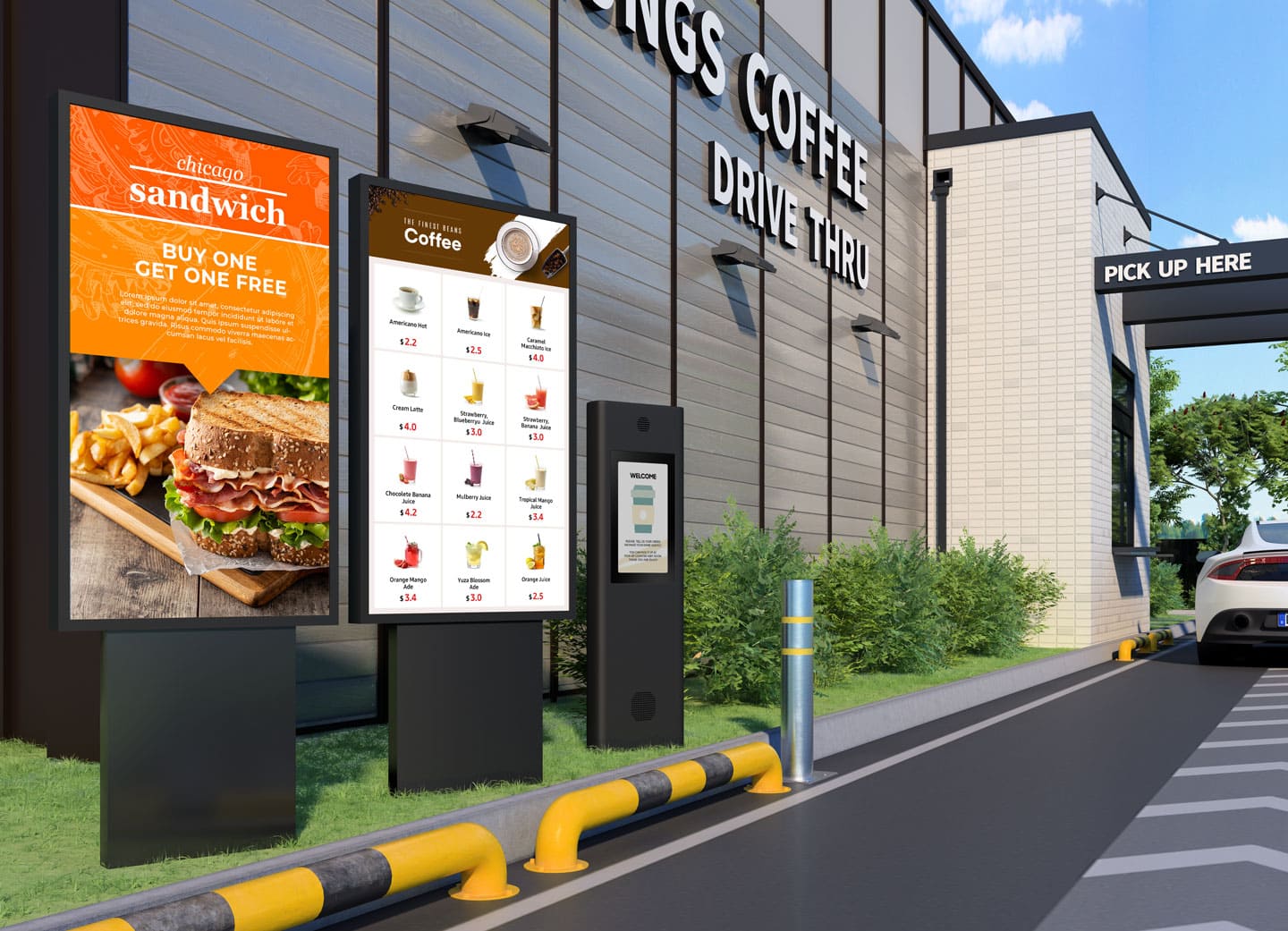

Outdoor signage

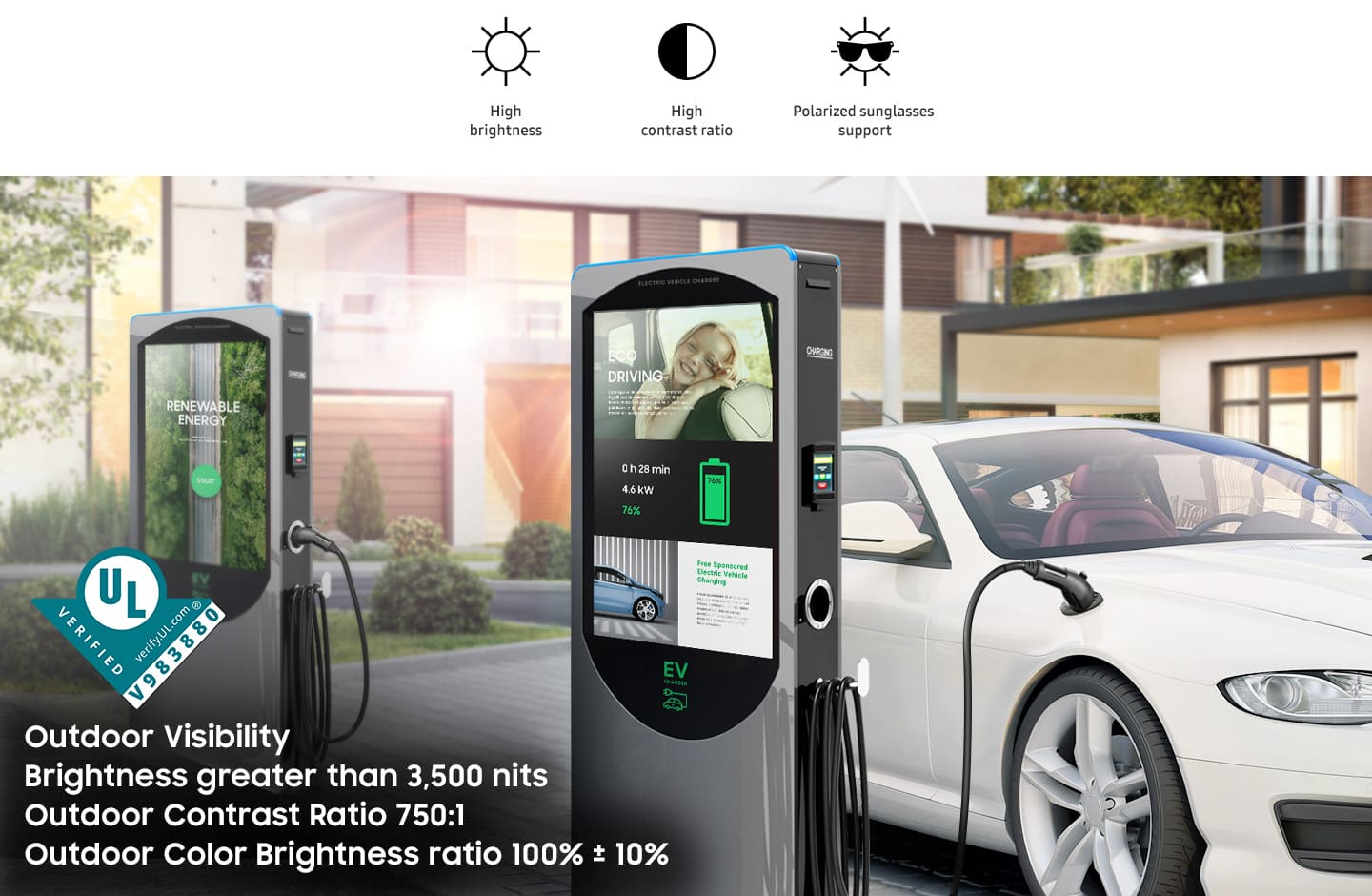

Clear and vivid anytime, anywhere

The OH55A-S is UL-verified for outdoor visibility with brightness levels over 3,500nits. Its 24/7 performance and polarization technology eliminate display blindness from polarized lenses and delivers continuously crisp content with a built-in auto brightness sensor that adapts to external lighting.

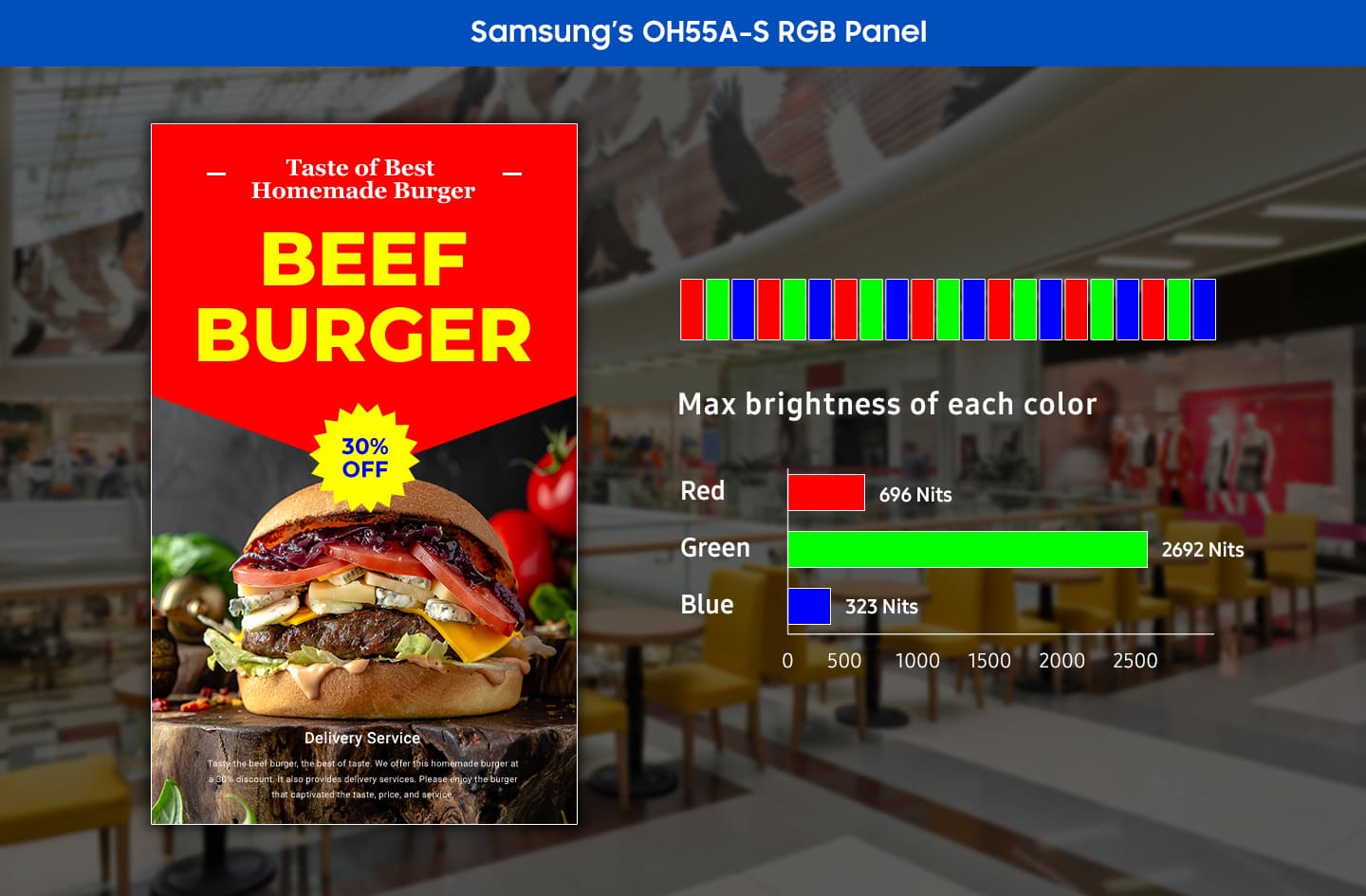

Bright and vivid colors for accurate communication and delivery

The OH55A-S delivers advanced color accuracy and brightness, creating vivid content through enhanced color reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OH55A-S’s uncompromised picture quality will be sure to capture customer attention.


Outdoor signage

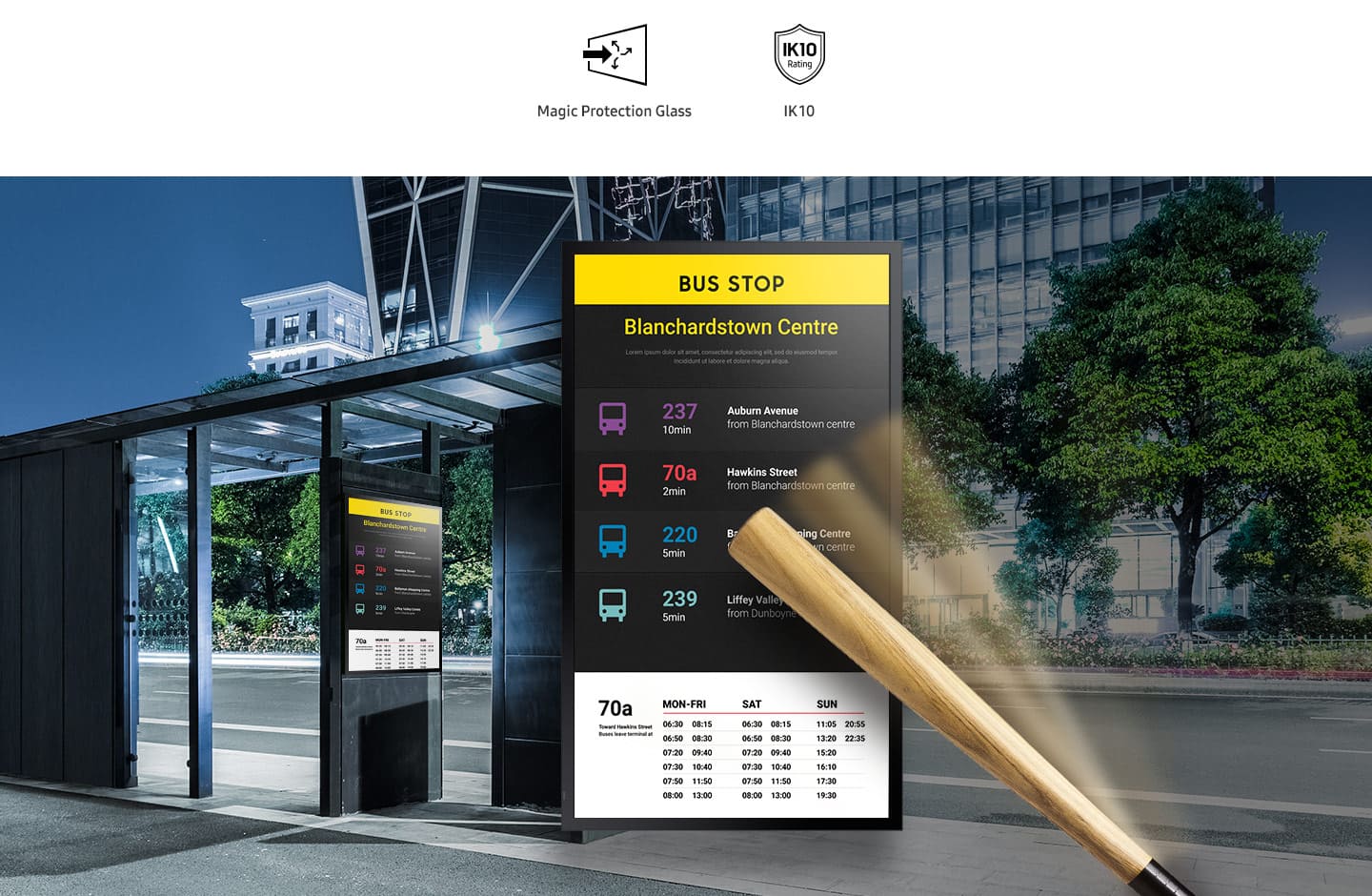

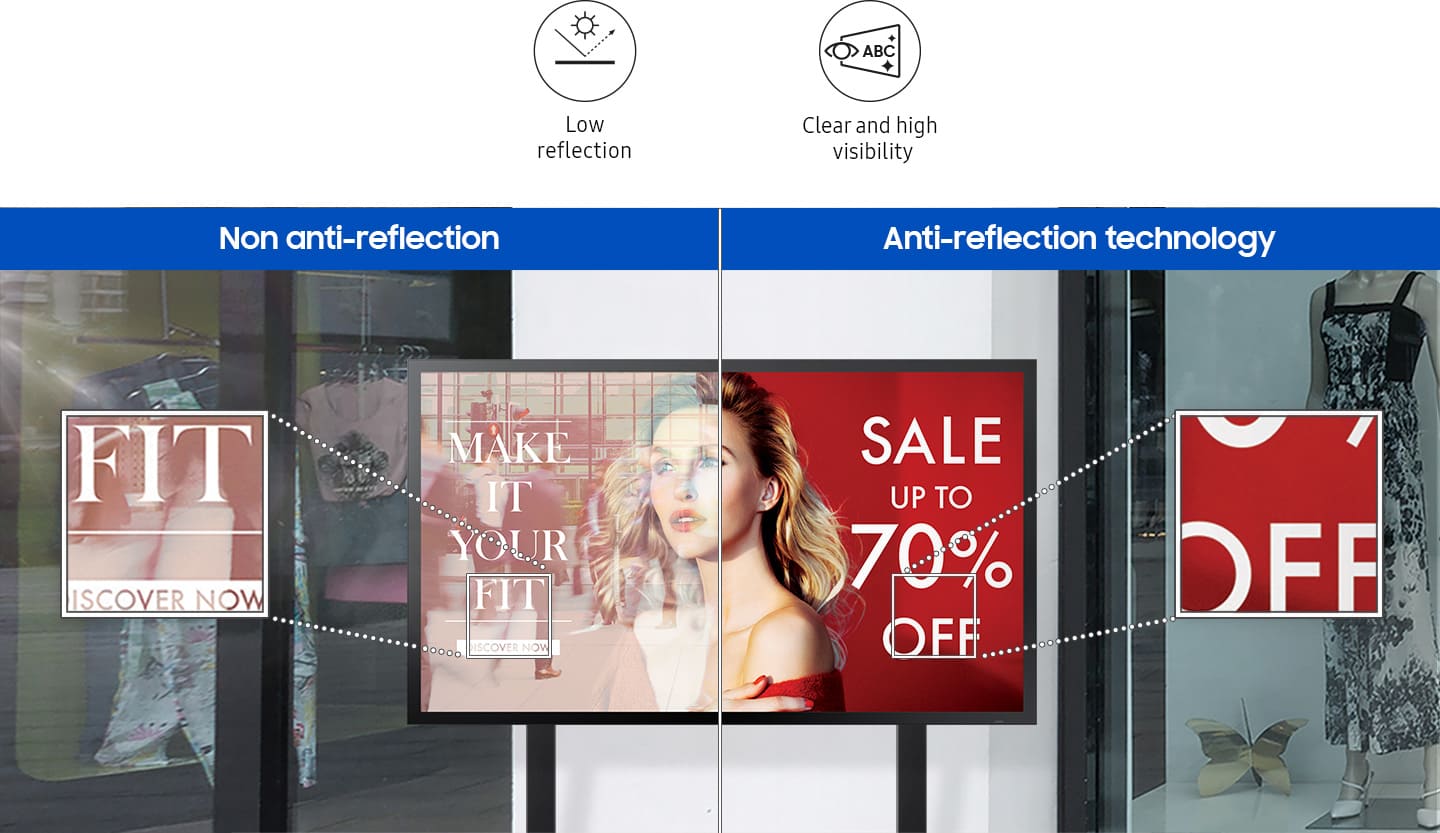

Enhanced visibility with anti-reflection technology

Samsung OH55A-S is enhanced by Magic Protection Glass, which utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a total reflections rate of lower than 1.5%, ensuring clearer images and text for every viewer.Samsung OH55A-S is enhanced by Magic Protection Glass, which utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a total reflections rate of lower than 1.5%, ensuring clearer images and text for every viewer.

Optimized protection in a variety of outdoor conditions

With certified IP56-rated protection, OH55A-S delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance.


Outdoor signage

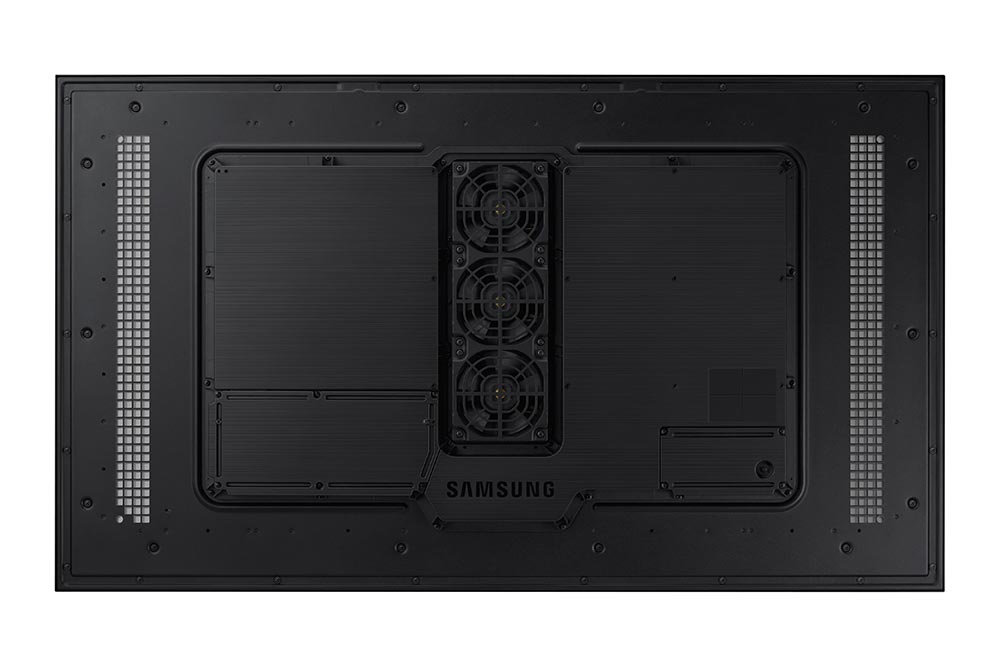

Prevent humidity for optimal performance with newly added fans

With four newly added, hidden fans in the downside of the display, the OH55A-S reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans enable seamless operation.

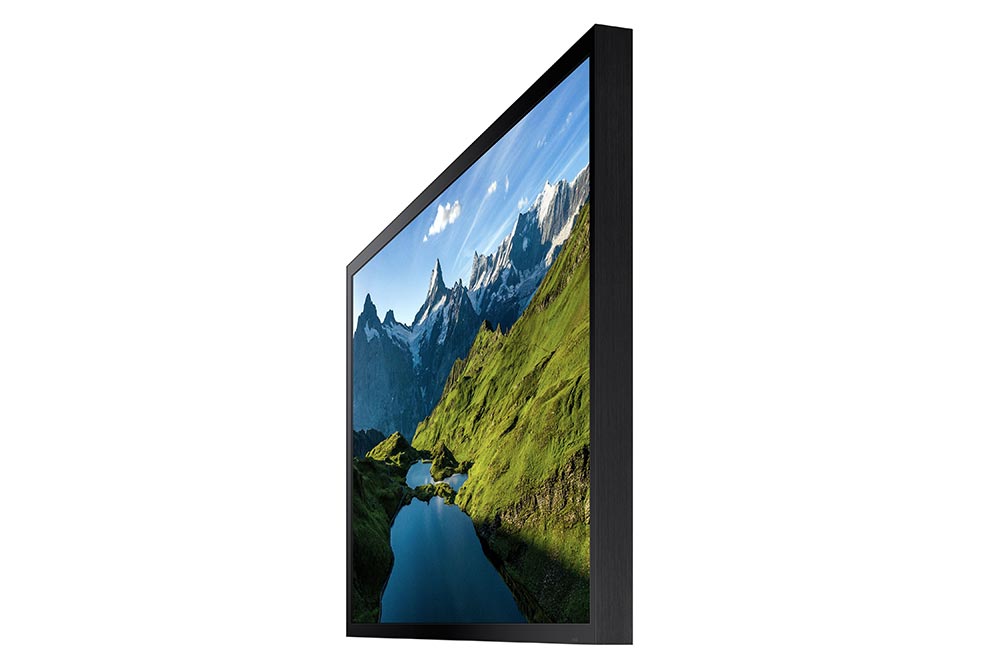

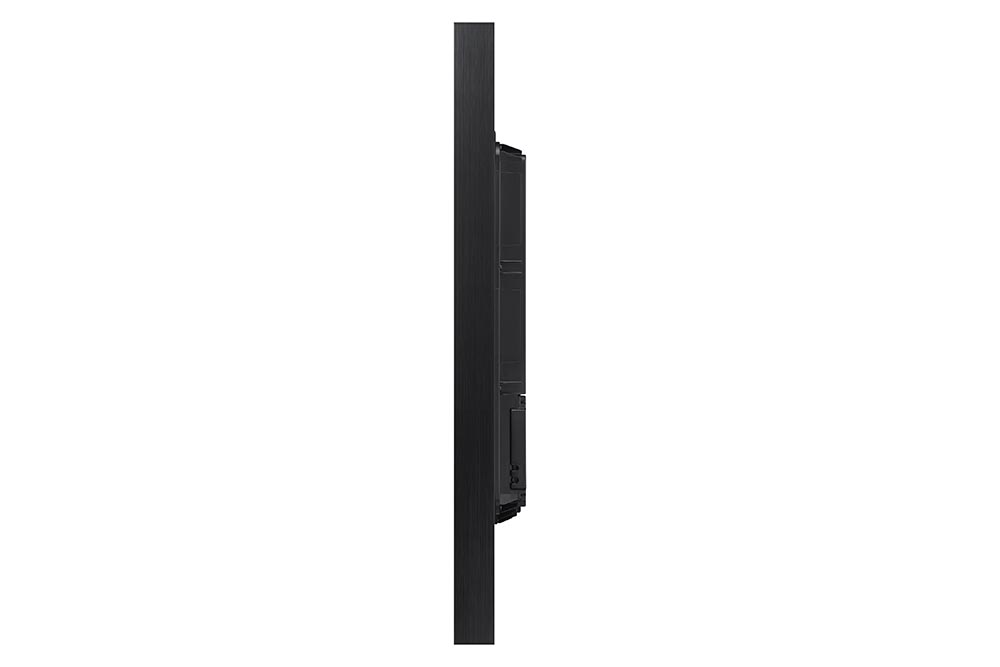

Powerful performance with slim design

A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.


Outdoor signage

Smooth and seamless content playback

The embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers.

Powerful, protective security

The OH55A-S uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimization of security attacks.


Specifications:


Samsung OH55A-S Specifications
Display
Screen Size 55"
Type 120Hz E-LED BLU
Resolution 1920x1080 (Full HD)
Pixel Pitch (mm) 0.630 x 0.630
Active Display Area (mm) 1209.60(H) x 680.40(V)
Brightness (Typ.) 3500(peak 4,000) nit
Contrast Ratio 6000:1
Viewing Angle (Horizontal/Vertical) 178° / 178°
Response Time(G-to-G) 6 ms
Display Colors 8 bit - 16.7M
Color Gamut 72%
Operation Hour 24/7
Haze 0%
Display
Dynamic C/R MEGA
H-Scanning Frequency 30~136kHz(HDMI)
V-Scanning Frequency 24~75Hz(HDMI)
Maximum Pixel Frequency 594MHz
Connectivity
Input
  • RGB: N/A
  • Video:HDMI 2.0 (2), HDBaseT(LAN Common)
  • HDCP: HDCP 2.2
  • USB: 1
Output
  • Audio: Stereo Mini Jack
  • External Control: RS232C (In/Out), RJ45(In/Out), HDBaseT
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]: 530
  • Typical[W/h]: 274 ※ IEC 62087 measurement standard
  • BTU(Max): 1809
  • Sleep mode: less than 0.5W
Mechanical Spec
Product Dimensions 1260.6 x 731.4 x 85.0 mm
Packaging Dimensions 1358 x 845 x 230 mm
Product Weight 46.1 kg
Shipping Weight 52.6kg
Protection Glass Yes (5T Tempered Glass)
Bezel Width 24.9 / 24.9 / 24.9 / 24.9 mm
Environmental Conditions
Operating Temperature -30°C - 50°C
Operating Humidity 10 % ~ 100 % (Non-condensing)
Features
Key Features Power-box Integrated, IP56 Outdoor, Built-in MagicInfo Player S7, SSSP 7.0
Orientation Landscape / Portrait
Remote Control N/A
Special Features IP56 Rated Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock
Internal Player
  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB / L1 Data Cache : 32KB / L2 Cache : 2MB
  • Clock Speed: 1.7GHz CPU Quad
  • Main Memory: Interface 2.5GB / LPDDR4 1.5GHz 64bit
  • Graphics: Graphic resolution : 1920x1080 / Output resolution : 1920x1080 - Supports OpenGL ES
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: Video Decoder FHD MFD : VP8, H.264, AVS+(60Hz)UHD MFD : HEVC, H.264, VP95K HEVC Decoder, SHVC(ATSC3.0)AVS2.0 HEVC / AVS2.0 1xUHD120p (DP_NR off, FRC bypass) Audio Decoder - AC3 (DD), MPEG
  • IO Ports: USB 2.0
  • Tizen 5.0 (VDLinux)
Certification
Safety 60950-1
EMC Class A
IP Rating IP56
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries
