Samsung 24-inch Touch-Enabled LED FHD Display
Enhanced communication in a compact display

Samsung QB24R-T



Samsung Products
Samsung Digital Signage
Samsung QB24R-T - 24 in. Touch-Enabled EDGE LED FHD Display, 250 NIT
#QB24R-T
Our Price: $747.00

Overview:

Businesses no longer just need large size displays, they often also need smaller displays for a variety of environments and uses. Samsung’s QB24R / QB24R-T small display enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the display improves the operational effi ciency of content, while also ensuring reliable performance for any business use. The QB24R-T specifically, is a touch-enabled small display which provides a unique store experience and improves customer engagement.

  • 24” FHD, non-glare display delivering clear content.
  • Compact and slim design enabling effi cient use of space.
  • Embedded MagicINFO S player to support seamless content playback.
  • Rigid 3-layered Knox security system preventing any unauthorized access.
  • Center IR and built-in Wi-Fi allowing convenient remote device control and management.
  • EMC Class B and IP5x rating to ensure safe and reliable operation.

Industry trend

As creating differentiated brick-and-mortar locations continues to increase in popularity, providing a unique in-store experience is critically important for elevating a brand and driving sales. Therefore, businesses are finding new and effective ways to engage customers by making the most of every customer touch point. That means small sized displays are being adapted as common tools within various environments. More personalized, intimate content can reach the right audience at optimal points in time, increasing engagement and sales opportunities. Efficient content management and reliable performance ensure businesses can operate the displays without any hassle.

Introducing Samsung Small Displays

Samsung is introducing the two latest versatile, small sized displays, the QB24R and touch-enabled QB24R-T. Designed for professional use, Samsung’s QB24R Series delivers clear content using the embedded MagicINFO S media player, supported by reliable 16/7 operation and industry standard certification to ensure safe operation, reliable performance and eliminate any hassle.

QB24R : Small Display

The QB24R, FHD resolution display delivers clear and vibrant content, all in a slim and compact design. It can easily be applied to any business environment, such as a tool to display schedules, information and promotions in corporate lobbies, elevators and in front of meeting rooms and classrooms. To engage customers more directly, the QB24R can also be used as a store shelf display to promote a specific or targeted item, in addition to showing promotions at the point of sale (POS) or counter.

QB24R-T : Touch Display

With integrated capacitive touch functionality, the QB24R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action. QB24R-T is optimized for any interaction opportunities such as healthcare, check-in at the gym, an automotive showroom, as well as any retail or restaurant environment where businesses would want to offer a personalized service while also acquiring customer data.

Features:

Crisp and visible content

The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Slim, smart design

The compact and slim design of the QB24R allows for effi cient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB24R allows effi cient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

The QB24R is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Specifications:

Model

QB24R

QB24R-T















Panel

Diagonal Size

Class

24

24

Measured

23.8

23.8

Type

ADS

ADS

Resolution

FHD (1920 x 1080)

FHD (1920 x 1080)

Pixel Pitch (mm)

0.2745 x 0.2745

0.2745 x 0.2745

Active Display Area

527.04 (H) x 296.46 (V)

527.04 (H) x 296.46 (V)

Brightness(Typ.)

250

250 (w/o Glass)

Contrast Ratio (Typ.)

1000:1

1000:1 (w/o Glass)

Viewing Angle(H/V)

178/178

178/178

Response Time (G to G)

14ms (Typ.)

14ms (Typ.)

Display Colors

16.7 M (real 6bit, dither 8bit)

16.7 M (real 6bit, dither 8bit)

Color Gamut

72%

72%

Operation Hour

16/7

16/7

Haze

25%

10%



Display

Dynamic C/R

MEGA

MEGA

H-Scanning Frequency

56 ~ 84.5kHz

56 ~ 84.5kHz

V-Scanning Frequency

48 ~ 75HZ

48 ~ 75HZ

Maximum Pixel Frequency

594MHz

594MHz

Sound

Speaker Type



Built in Speaker (5W)

Built in Speaker (5W)

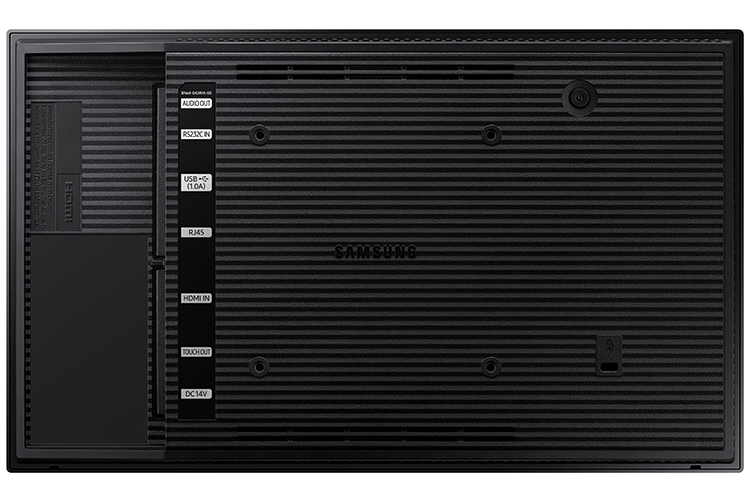

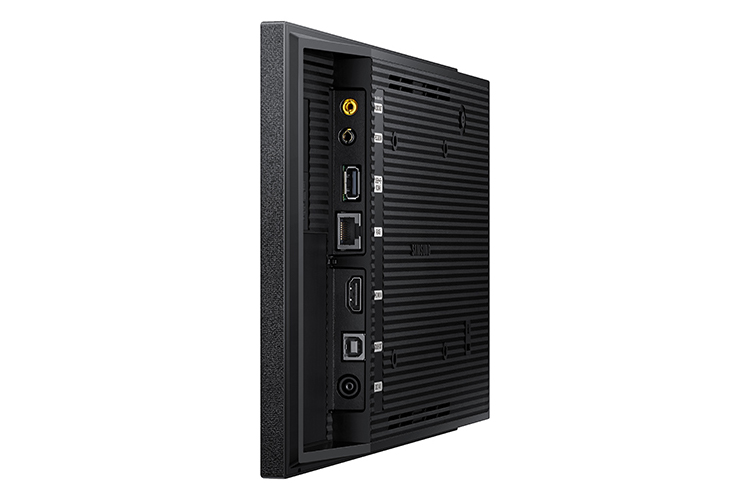

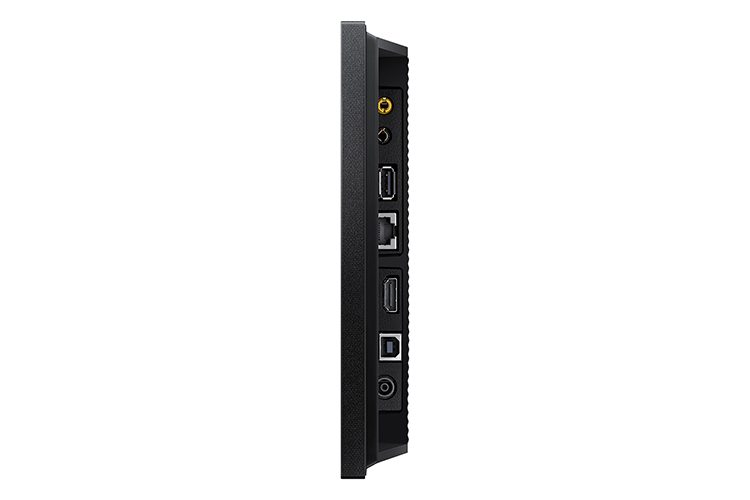

Connectivity



RGB

N/A

N/A



INPUT

VIDEO

HDMI 1.4 (1)

HDMI 1.4 (1)

HDCP

HDCP 2.2

HDCP 2.2

AUDIO

N/A

USB 2.0 x 1

N/A

USB 2.0 x 1

USB





OUTPUT

RGB

N/A

N/A

VIDEO

N/A

N/A

AUDIO

Stereo Mini Jack

Stereo Mini Jack

Power Out

N/A

Power Out - N/A / Touch Out - x1

USB

N/A

N/A

EXTERNAL CONTROL

RS232C (in) thru stereo jack, RJ45

RS232C (in) thru stereo jack, RJ45

EXTERNAL SENSOR

N/A

N/A

Tuner

N/A

N/A









Power

Type

Internal

Internal

Power Supply

AC 100 - 240 V, 50/60 Hz

AC 100 - 240 V, 50/60 Hz



Max[W/h]

38.5

38.5



Power Consumption

Typical[W/h]

25

28

Rating[W/h]

35

35

BTU(Max)

131.3

131.3

Sleep mode

0.5

0.5

Off mode

N/A

N/A







Mechanical Spec

Dimension(mm)

Set

547.9 x 334.4 x 31.8

547.9 x 334.4 x 34.6

Package

620 x 419 x 122

620 x 419 x 122

Weight (kg)

Set

3.0

4.0

Package

4.1

5.2

VESA Mount

100 x 100

100 x 100

Protection Glass

N/A

2.0T

Stand Type

N/A

N/A

Bezel Width (Top/Side/Bot) (mm)

17.9mm (U/B), 9.4mm (L/R)

17.9mm (U/B), 9.4mm (L/R)

Operation

Operating Temperature

0℃~ 40℃

0℃~ 40℃

Humidity

10 ~ 80%

10 ~ 80%

























Feature



Key

Small Signage Display Slim & Light Signage with

Built-in MagicInfo S6, SSSP 6.0

Small Touch Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0





Special



H/W

Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker (5W1ch), IP5x Rating, Wi-Fi/BT

Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker (5W1ch), IP5x Rating, Wi-Fi/BT,

10 Point Touch (Max)



S/W

Auto Source Switching & Recovery,

LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Auto Source Switching & Recovery,

LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)















Internal Player (Embedded H/W)

Processor

Cortex A72 1.7GHz Quad-Core CPU

Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory

L1 Instruction Cache : 48KB L1 Data Cache : 32KB

L2 Cache : 2MB

L1 Instruction Cache : 48KB L1 Data Cache : 32KB

L2 Cache : 2MB

Clock Speed

1.7GHz

1.7GHz

Main Memory Interface

2.5GB LPDDR4 1.5GHz 64bit

2.5GB LPDDR4 1.5GHz 64bit



Graphics

Graphic resolution : 1920 x 1080

Output resolution : 1920 x 1080 (Scale up from graphic processing result.)

Graphic resolution : 1920 x 1080

Output resolution : 1920 x 1080 (Scale up from graphic processing result.)



Storage (FDM)

8GB

(3.88GB Occupied by O/S, 4.12GB Available)

8GB

(3.88GB Occupied by O/S, 4.12GB Available)



Multimedia

*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports

USB 2.0

USB 2.0

Operating System

Tizen 4.0 (VDLinux)

Tizen 4.0 (VDLinux)





Certification

Safety

60950-1

60950-1

EMC

Class B

Class B

Environment

ENERGY STAR 8.0, Epeat

ENERGY STAR 8.0, Epeat



Security

802.1 x (WPA2 Enterprise)

: EAP-TLS, EAP-TTLS, EAP-PEAP

802.1 x (WPA2 Enterprise)

: EAP-TLS, EAP-TTLS, EAP-PEAP







Accessories



Included

Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

N/A

Quick Setup Guide, Warranty Card,

Power Cord, Remote Controller, Batteries, USB Cable

N/A



Stand

Optional

Mount

N/A

N/A

Specialty

N/A

N/A

Media Player

N/A

N/A

Documentation:

Download the Samsung SMART Signage Small Display Series Datasheet (.PDF)
