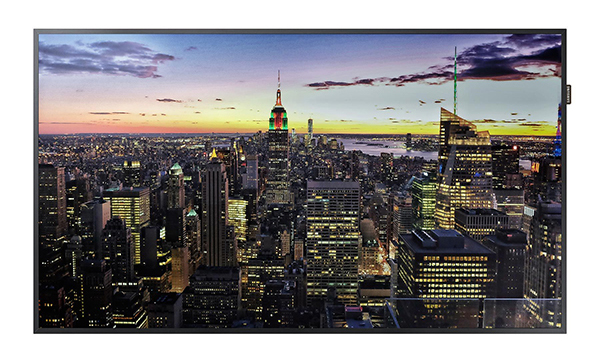

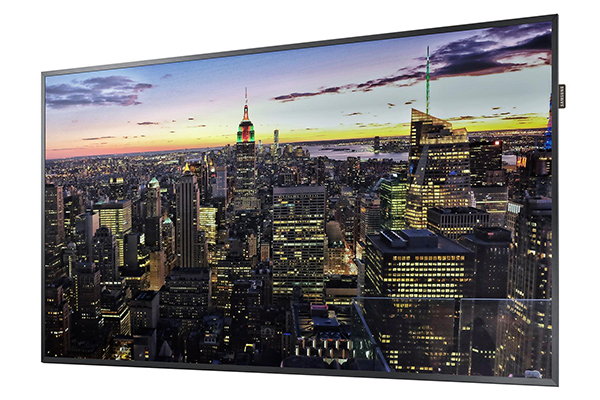

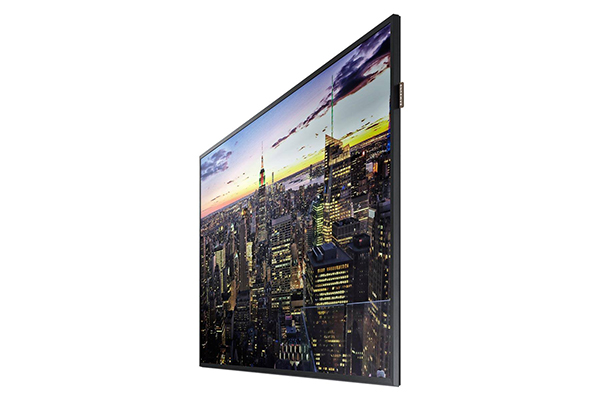

Samsung QB65H - QB-H Series 65" Edge-Lit 4K UHD LED Display
UHD Signage that features ultra-realistic picture quality and business-ready functionalities
This product is no longer available. Please Contact Us for a replacement.
Overview:
Samsung's QBH series displays deliver content with visual impact while also improving operational efficiency. Through high picture quality, the displays foster an inviting and memorable viewing environment. The displays feature a host of business-ready functionalities while also protecting business data through enhanced security.
- UHD displays with non-glare panel that offers hyper-realistic, immersive visual experience
- Integrated TIZEN 3.0 operating system that improves overall business performance
- Reinforced security measures that protect business and customer data
Features:
Deliver Impactful Content through an All-Inclusive Display
Samsung’s QBH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.

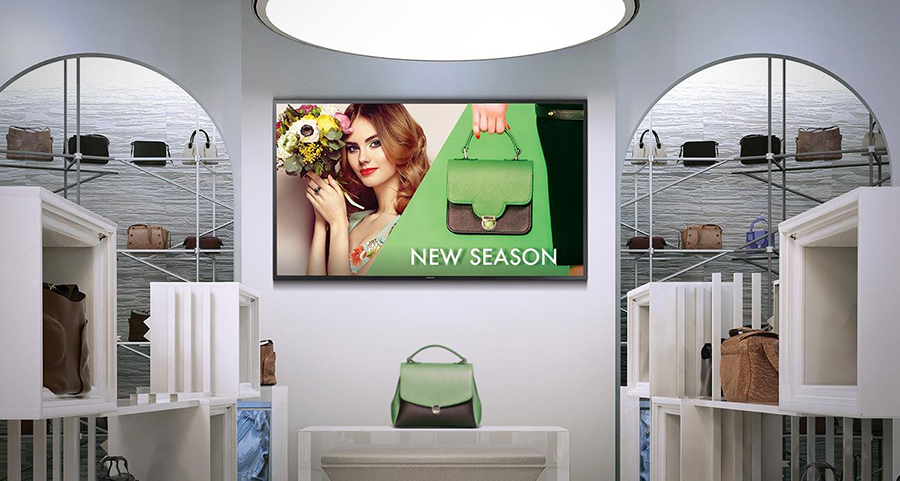

Enliven Commercial Content with UHD Picture Quality
Featuring state-of-the-art UHD picture quality, the QBH Series displays empower users to deliver more impactful messaging. Each QBH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QBH Series ideal for any commercial setting.
Enjoy Greater Operational Flexibility with the TIZEN OS
The QBH Series displays are among the first in Samsung’s lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management. Not only do the QBH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.

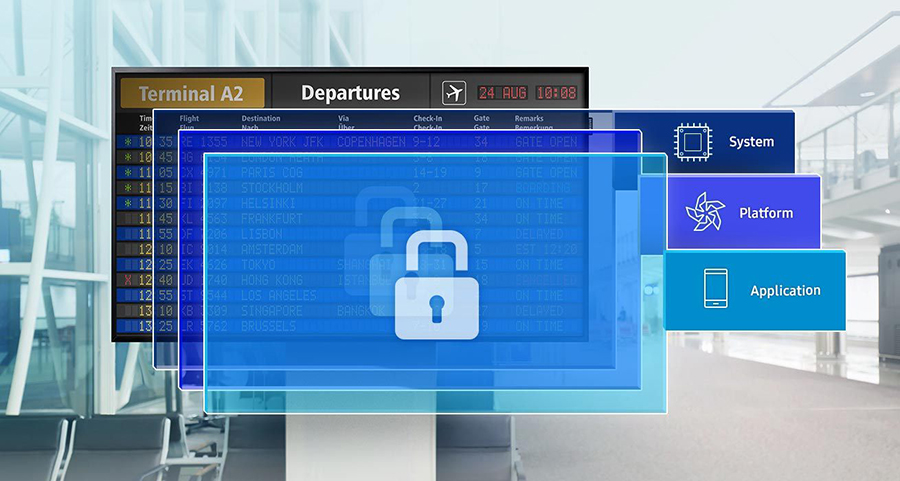

Protect Business and Customer Data through Extensive Security
For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung’s QBH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.
Enjoy a Consistent, Accelerated Refresh Rate through Versatile Connectivity
An upgrade on more limited alternatives, the QBH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source.
Specifications:
| Samsung QB65H - QB-H Series 65" Edge-Lit 4K UHD LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 65" |
| Panel Technology | 60Hz E-LED BLU |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch (mm) | 0.105 x 0.315 (mm) |
| Active Display Area (mm) | 1428.48(H) x 803.52(V) |
| Brightness | 300nit |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 8ms (Typ) |
| Display Colors | 16.7M (True Display) 1.07B (Ditherd 10bit) |
| Color Gamut | 72% |
| Haze | 2% |
| Dynamic C/R | Mega |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 594MHz |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |

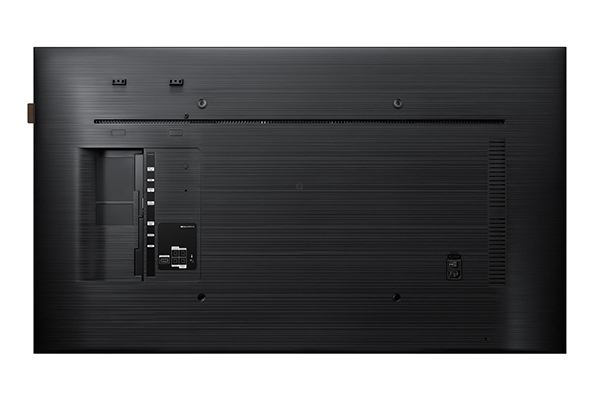

| Connectivity | |

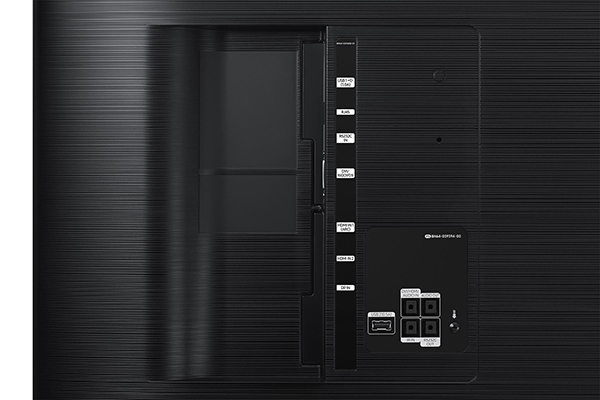

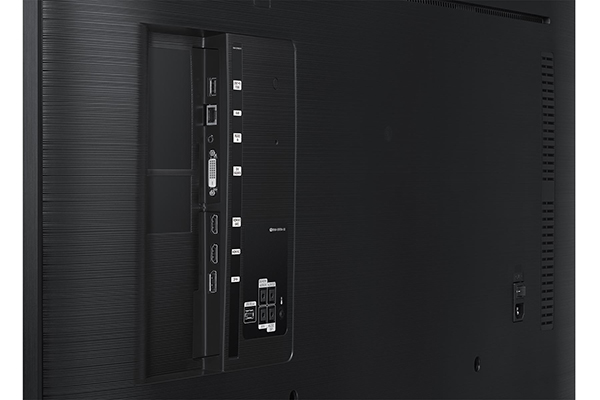

| Input | RGB: DVI-D, Display Port 1.2 (1) Video: HDMI 2.0 (2) HDCP: HDCP2.2 Audio: Stereo mini Jack, DVI, HDMI USB: USB 2.0 x 2 |
| Output | Audio: Stereo mini Jack |
| External Control | RS232C(in/out), RJ45 |
| Sensor | IR |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption | Max [W/h]: 165 Typical [W/h]: 122 BTU (Max): N/A Sleep mode: less than 0.5W Off mode: less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Recommended Usage Hours | 16/7 |
| Features | |
| Special Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0 |
| Special | Hardware: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi Software: Auto Source Switching & Recovery,LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Dimensions | |

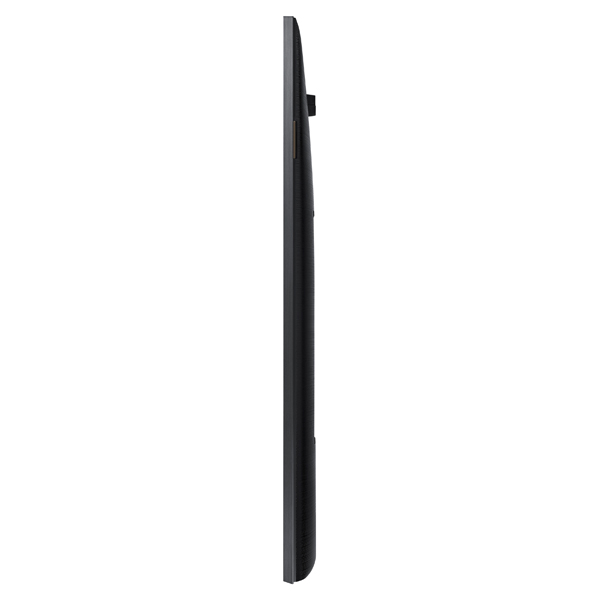

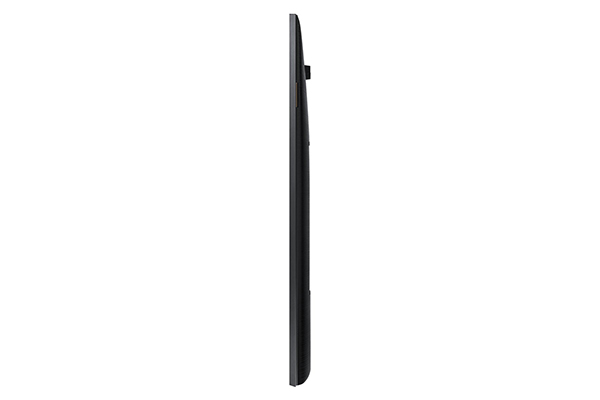

| Without Stand (W x H x D) | 1456.1 X 835.6 X 37.6 mm |
| Package (WxHxD) | 1571 X 956 X 212 mm |
| Weight | |
| Product Weight | 22.8 kg |
| Package Weight | 32.4 kg |
| Bezel Width | 12.2/12.2/12.2 |
| Service | |
| Standard Warranty | 3yr Onsite (Parts/Labor/Backlight) |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount Kit | WMN6575SD |
| Optional Stand | STN-L6500E |
| Optional Specialty | CLM450D |
| Optional Media Player | SBB |
| Green Management | |
| ENERGY STAR Certified | ENERGY STAR 7.0 |
| Safety | 60950-1 |
| Emission Standard | EMC Class A |
| Packaging Recyclability | Packing Materials Recyclable |
| Mechanical Specs | |
| VESA Mount | 400x400 |
