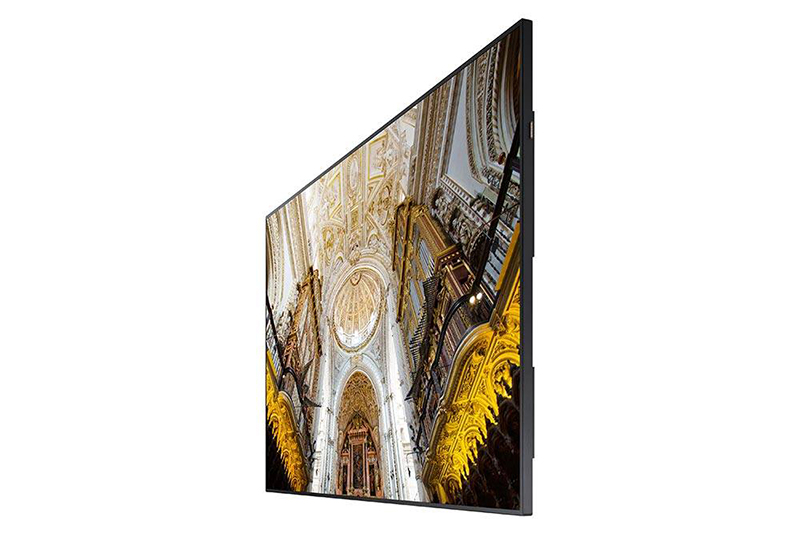

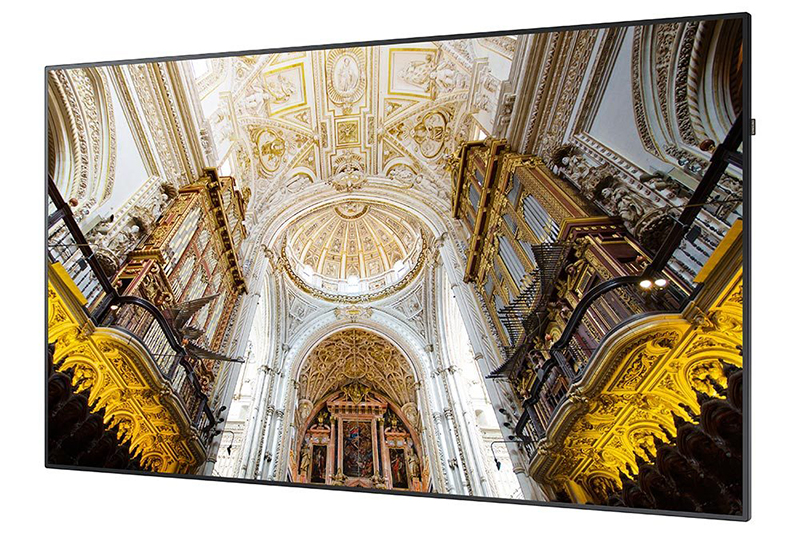

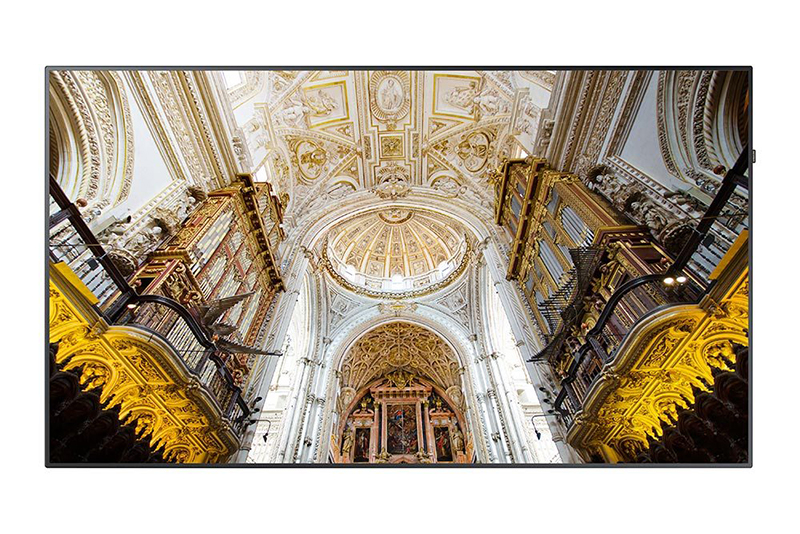

Samsung QB98R - QB-R Series 98" Edge-Lit BLU 4K UHD Commercial Display
UHD display that engages customers with lifelike images through innovative and unique picture-enhancing features
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Through intelligent UHD upscaling technology, Samsung’s QHR series performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. As an added benefi t, the QHR series also features reliable, non-glare panels that provide better visibility from all angles. Backed by Tizen 4.0, the QHR series provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifi es wall mounting and ensures seamless installation.
- Engage audiences with eye-catching 700 nit brightness and ultra-high-defi nition resolution.
- Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features.
- Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades.

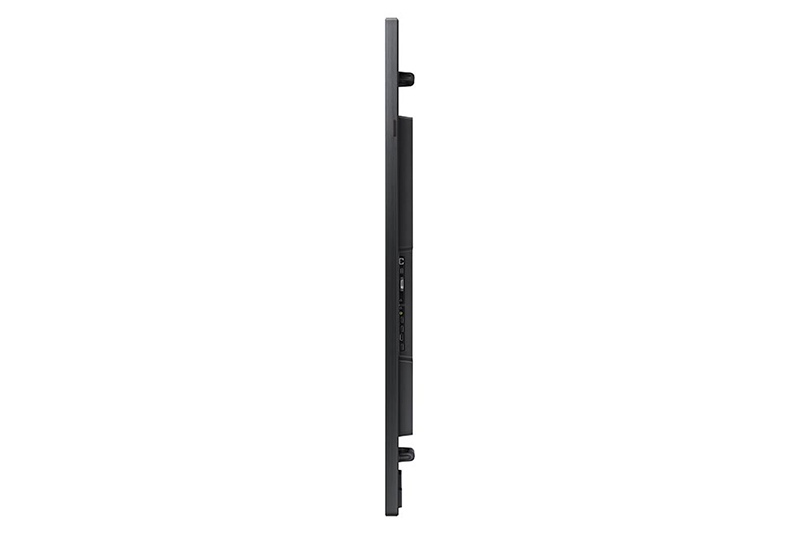

- New symmetrical, slim design simplifi es installation and complements any environment.
- Secure, PC-free operation through Knox and rigid three-layer protection.
- Reliable, non-glare panels provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7.
Features:
Time to upscale your display
Samsung’s new QB98R displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling all in a slim design.
Incredible 4K picture quality
Samsung’s new QB98R provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.
Intelligent UHD upscaling
Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.
Perfect view with non-glare display
The QB98R features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

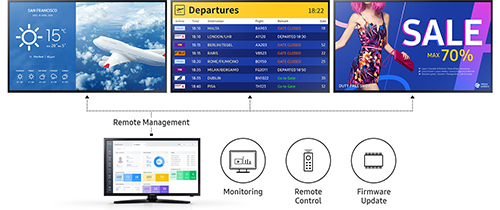

Maintain Continuous Display Performance
Beyond security and content management, QB98R users can trust the displays’ remote management for fast, efficient issue mitigation. Users can monitor and diagnose irregularities – both on their own and with help from Samsung’s 24/7 Network Operations Center – from any location.
WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QB98R displays help businesses move into the future of retail.

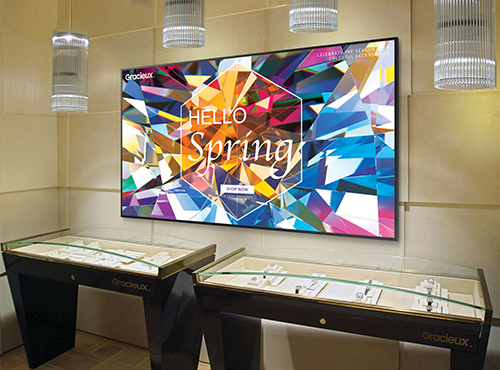

* Image is for illustrative purposes only, specific application or program may have to be developed for the depicted usage scenario.
Specifications:
Samsung QB98R - QB-R Series 98" Edge-Lit BLU 4K UHD Commercial Display Specifications | |
---|---|
Panel | |
Screen Size | 98" |
Type | Edge LED BLU |
Resolution | UHD 3840 x 2160 (16:9) |
Brightness (Typical) | 350 nits |
Contrast Ratio (Typical) | 4000:1 |
Viewing Angle (H/V) | 178/178 |
Response Time (G to G) | 6ms |
Display Colors | 16.7M |
Color Gamut | 72% |
Operation Hour | 24/7 |
Anti-Glare Panel | Yes |
Sound | |
Speaker Type | Built in Speaker (10W + 10W) |
Connectivity | |
Input | RGB: DVI-D, Display Port 1.2 (1) Video: HDMI 2.0 (2) HDCP: HDCP2.2 Audio: Stereo mini Jack, DVI, HDMI USB: USB 2.0 x 2 |
Output | RGB: HDMI 2.0 (Loop-out) Audio: Stereo mini Jack |
External Control | RS232C(in/out) thru stereo jack, RJ45 |
External Sensor | IR |
Wi-Fi / Bluetooth | Yes / Yes |
Tuner | N/A |
Power | |
Type | Internal |
Power Supply | AC 100 - 240 V (+/- 10 %), 50/60 Hz |
Power Consumption | Max / Typical / Rating: 528 / 372 / 480 W Sleep mode: 0.5 W |
Environmental Conditions | |
Operating Temperature | 0℃~ 40℃ |
Operating Humidity | 10~80% |
Features | |
Key | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 |
Special | Hardware: Temperature Sensor, Pivot Display, Clock Battery (168 Hrs. Clock Keeping), Built-In Speaker (10W 2ch), Video Wall Daisy Chain (HDCP 2.2:4 EA, HDCP 1.4:7 EA), Wi-Fi / Bluetooth Software: Auto Source Switching and Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting) |
Internal Player (Embedded H/W) | |
Processor | Cortex A72 1.7GHz Quad-Core CPU |
On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
Clock Speed | 1.7GHz |
Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit |
Graphics | Graphic resolution : 1920 x 1080 Output resolution : 3840 x 2160 (Scale up from graphic processing result.) |
Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
Multimedia | Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG |
IO Ports | USB 2.0 |
Operating System | Tizen 4.0 (VDLinux) |
Mechanical Spec | |
Without Stand (W x H x D) | 86.39" x 49.21" x 2.82" (w/o handle) 86.39" x 49.21" x 2.96" (w/ handle) |
Package (WxHxD) | 98.43" x 63.70" x 32.09" |
Product Weight | 169.98 lbs |
Package Weight | 329.37 lbs |
VESA Mount (mm) | 900 x 600 |
Bezel Width (mm) | 15.2 (Top, Side) 15.2 (Bottom) |
Certification | |
Safety | 60950-1 |
EMC | Class A |
Environment | N/A |
Service | |
Standard Warranty | 3yr Onsite (Parts/Labor/Backlight) |
Accessories | |
Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
Optional | Mount: WMN9500SD |
Pricing Notes:
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
