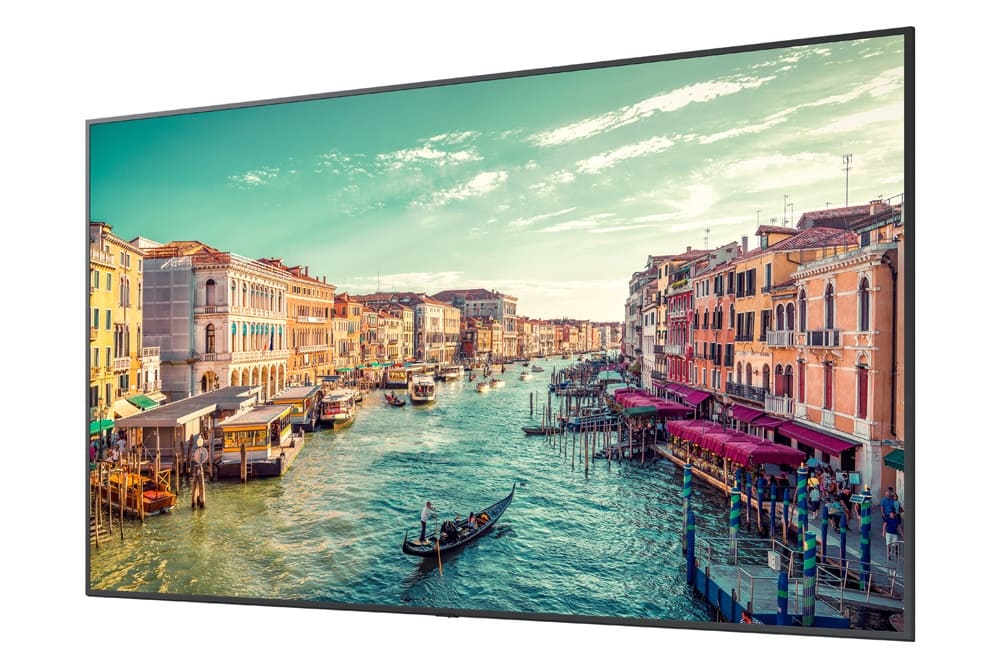

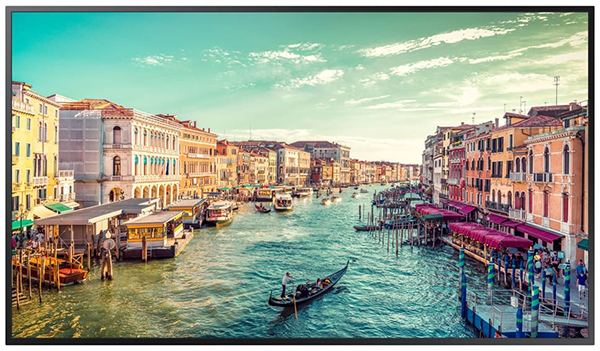

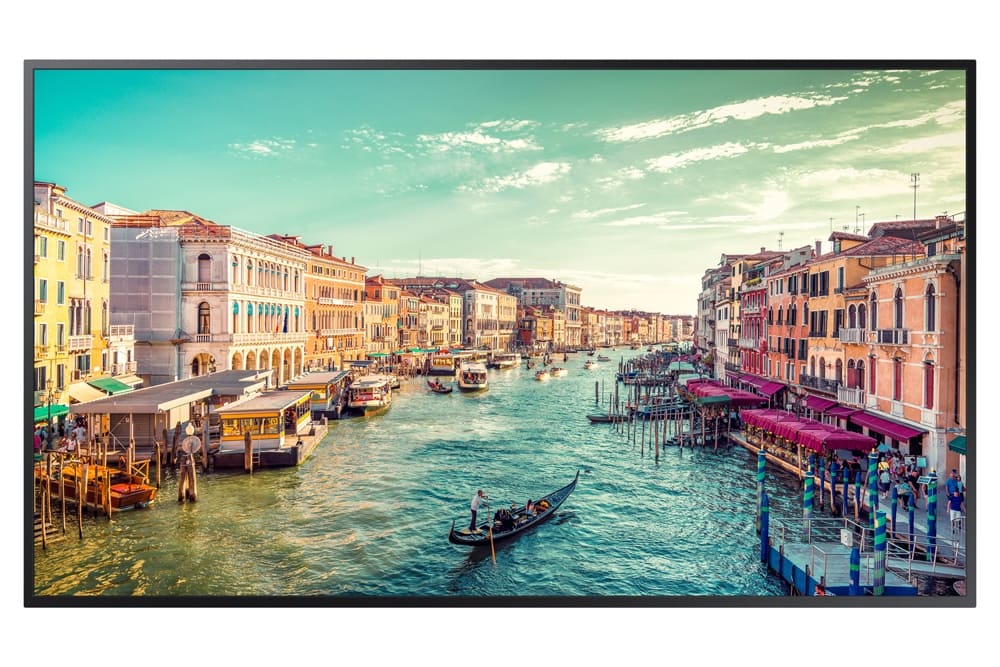

Samsung QE82R - QE-R Series 82" Edge-Lit 4K UHD QLED Display
Flawless UHD resolution with Dynamic Crystal Color
Overview:

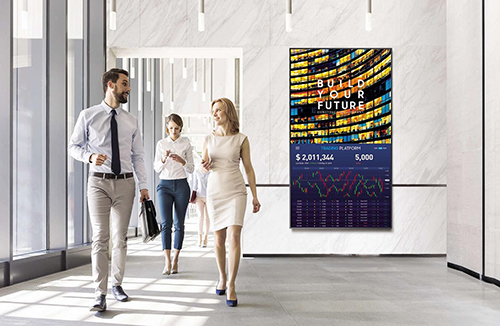

Samsung's QE82R is an affordable 82" 4K UHD commercial display featuring vivid and lifelike colors in a slim and symmetrical design. It's ideal for retail applications and meeting rooms with support for portrait and landscape viewing and embedded Wi-Fi and Bluetooth for expanded connectivity. Plus, Samsung's SMART Signage Platform 7.0 and embedded MagicINFO Player S7 media player allow for easy content management and playback, without the need for an external set-back box or PC.
- Slim 4K UHD display with Dynamic Crystal Color for crystal clear, lifelike color
- Fully compatible with Cisco WebEx® Room Kit products to provide the ultimate conferencing solution
- Intelligent UHD upscaling enhances your standard and high definition content to the best possible picture quality
- All-in-one digital signage solution featuring an integrated media player and System-on-Chip (SoC) technology
Features:
Communicate effectively with a connected display
Samsung QER displays feature flawless UHD resolution with Dynamic Crystal Color. QER displays also include a new enhanced solution supporting secure Remote Access and wireless connectivity to help make communication more effective and give businesses a secure solution for meeting spaces.

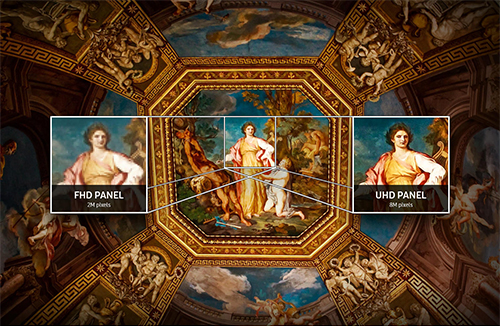

Incredible 4K picture quality
Samsung’s new QER series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

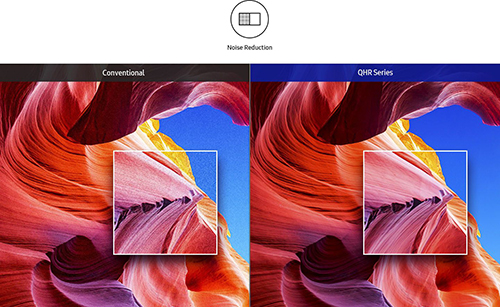

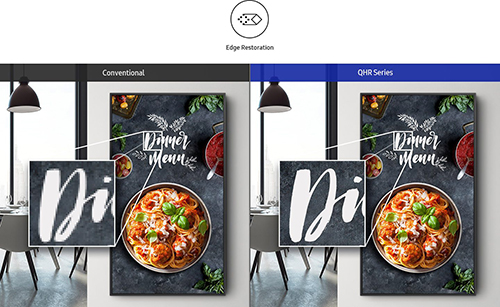

Intelligent UHD upscaling
Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.

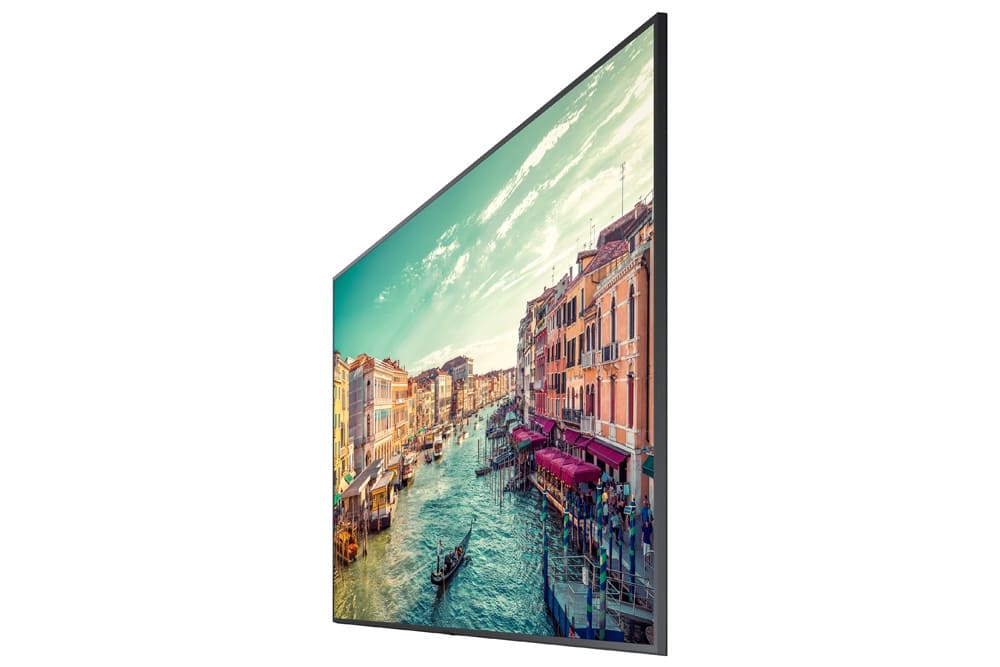

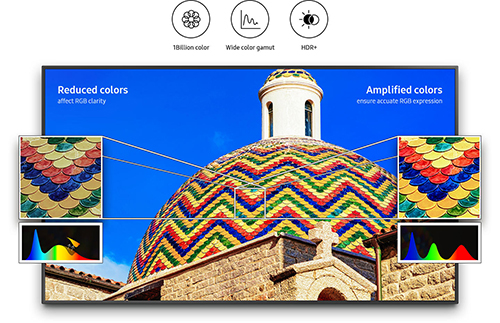

Dynamic Crystal Color
The QER series features Dynamic Crystal Color, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades.

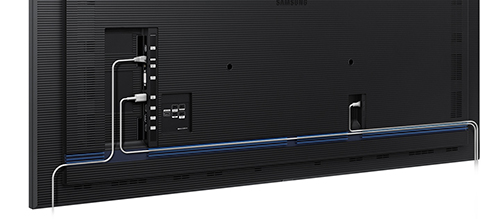

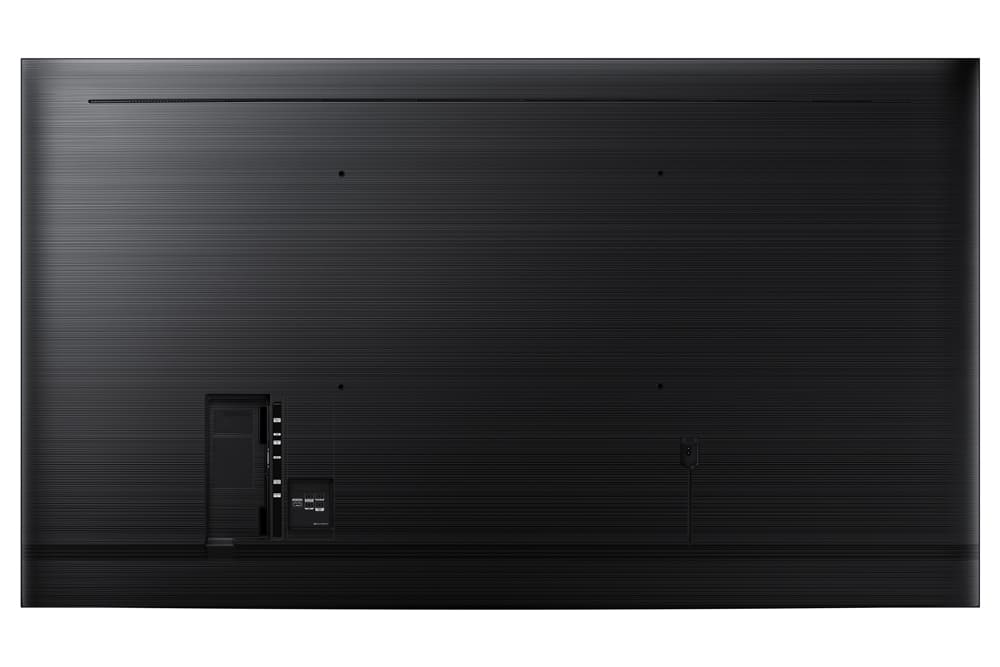

Clean cable management
With QER's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

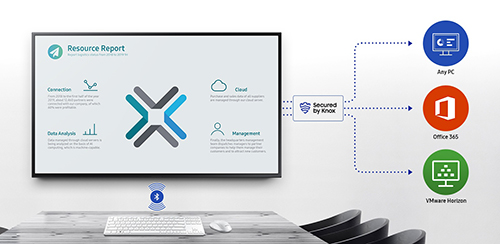

Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

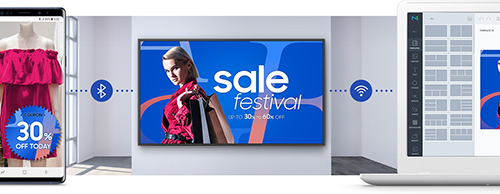

WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QER series displays help businesses move into the future of retail.
Specifications:
| Samsung QE82R - QE-R Series 82" Edge-Lit 4K UHD QLED Display Specifications | |
|---|---|
| Panel | |
| Screen Size | 82" |
| Type | Edge Slim |
| Resolution | UHD (3840 x 2160) |
| Pixel Pitch (mm) | 0.47025 x 0.47025 |
| Active Display Area | 1805.76(H) x 1015.74(V) |
| Brightness (Typical) | 350nit |
| Contrast Ratio (Typical) | 6000:1 |
| Viewing Angle (H/V) | 178/178 |
| Response Time (G to G) | 6ms (Typ.) |
| Display Colors | 16.7M |
| Color Gamut | 72% |
| Operation Hour | 16/7 |
| Haze | 2% |
| Display | |
| Dynamic C/R | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 594MHz |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |

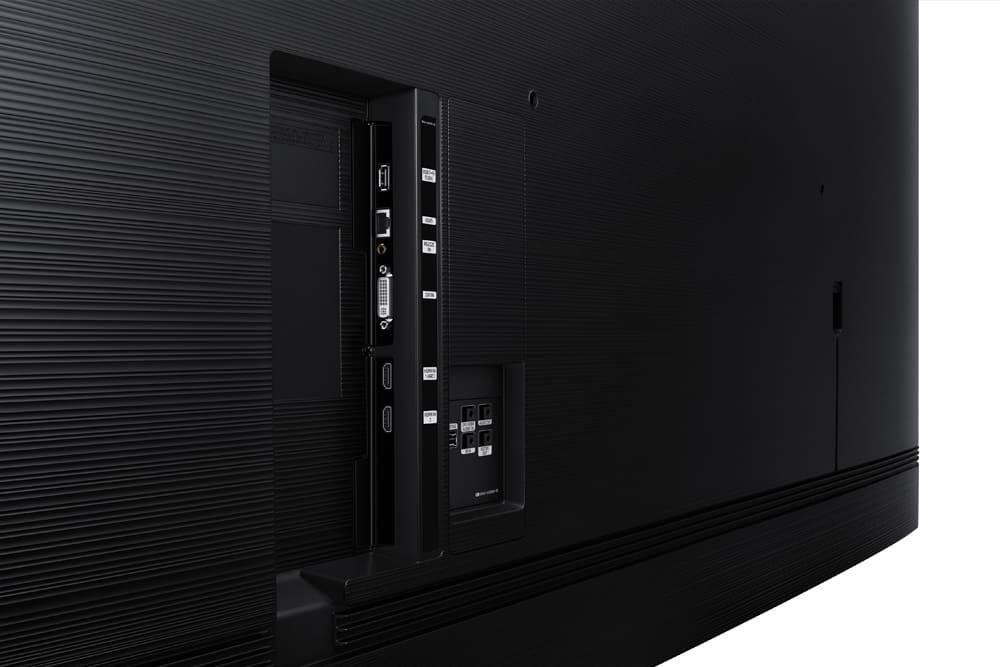

| Connectivity | |
| Input | RGB: DVI-D Video: HDMI 2.0 (2) HDCP: HDCP2.2 Audio: Stereo Mini Jack, DVI/HDMI/Audio(Common) USB: USB 2.0 x 2 |
| Output | Audio: Stereo mini Jack |
| External Control | RS232C(in/out) thru stereo jack, RJ45 |
| External Sensor | IR |
| Tuner | N/A |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption | Max [W/h]: 231 Typical [W/h]: 173 Rating [W/h]: 210 BTU (Max): 787.7 Sleep mode: 0.5 Off mode: N/A |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Key | UHD Signage Display, Slim & Light Signage with Built-in MagicInfo S7, SSSP 7.0 |
| Special | Hardware: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch),Wi-Fi/BT Software: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Internal Player (Embedded H/W) | |
| Processor | Coretex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| Clock Speed | 1.7GHz |
| Main Memory Interface | 2.5GB LPDDR4 1.6GHz 64bit |
| Graphics | Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.) |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG |
| IO Ports | USB 2.0 |
| Operating System | Tizen 5.0 (VDLinux) |
| Mechanical Spec | |
| Without Stand (W x H x D) | 1838 x 1052.4 x 61.2 mm |
| Package (WxHxD) | 2039 x 1224 x 260 mm |
| Product Weight | 46.8 kg |
| Package Weight | 60.6 kg |
| VESA Mount | 600 x 400 |
| Protection Glass | N/A |
| Stand Type | No |
| Bezel Width (Top/Side/Bot) (mm) | 10.8mm(U/L/R), 10.9mm(B) |
| Certification | |
| Safety | 60950-1 |
| EMC | Class A |
| Environment | ENERGY STAR 8.0, Epeat |
| Service | |
| Standard Warranty | 3yr Onsite (Parts/Labor/Backlight) |
| Accessories | |
| Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
| Optional | Stand: No Mount: WMN8200SE Media Player: N/A |
Pricing Notes:
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
