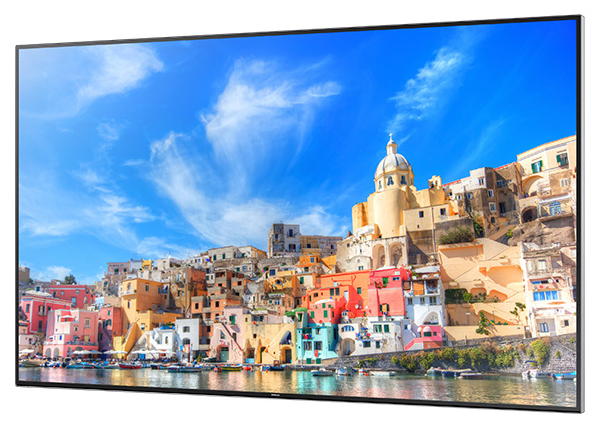

Samsung QM85D - QM-D Series 85" Slim Direct-Lit UHD LED Display
A Superior Perspective Gives You A Distinct Advantage.
This product is no longer available, replaced by the QM85N - QM-N Series 85" Edge-Lit 4K UHD LED Display
Overview:
With stunning 4K quality our 85" UHD QM-D Series display provides high pixel density, fine detail and exceptional stopping power. You can even display Full HD content in 4K via UHD upscaling. Whether it’s in your retail space, corporate boardroom or public area, you can make every impression count.
- Life-Like Image Quality with UHD Resolution
- Multi-Screen Splitting for Great Videoconferencing
- Full 60Hz Content Playback Utilizing DisplayPort 1.2
- Commercial Durability for Your Business
Features
Stunning (4K) UHD Picture
3840 x 2160 resolution (4x the number pixels of Full HD 1080p) delivers life-like image quality. Experience a high-impact way to communicate in retail spaces, hospitality, corporate boardrooms, healthcare environments and more.
Impactful 85" Screen
The QM85D features a big, beautiful 85" UHD panel, for engaging images and messages that cannot be ignored. Imagine the possibilities.
Upscaling Technology
Even if you don’t have the best quality content, the QM85D upconverts low-resolution content to create the sharpest images possible. You can even display Full HD content in 4K via UHD upscaling.
Multi-Screen Delivers Multiple Messages
The Picture by Picture function allows you to display up to 4 content feeds at once, each supporting Full HD 1080p resolution. It’s ideal for retail, videoconferencing and command control applications.
Best of InfoComm
NewBay Media’s first annual Best of Show Awards honored outstanding products exhibited at InfoComm 2014. Samsung’s new QMD Series was awarded Best of Show by Digital Signage Magazine for offering a slim, full-featured and dependable choice for customers looking to make the step up from HD to UHD.
Specifications:
Samsung QM85D - QM-D Series 85" Slim Direct-Lit UHD LED Display Specifications | |
---|---|
Display | |
Screen Size | 85" |
Brightness | 450nit |
Panel Technology | Slim Direct-LED Backlight |
Contrast Ratio (Typical) | 5000:1 |
Resolution | 3840x2160 |
Viewing Angle (H/V) | 178°/178° |
Aspect Ratio | 16:9 |
Response Time | 6ms |
Connectivity | |

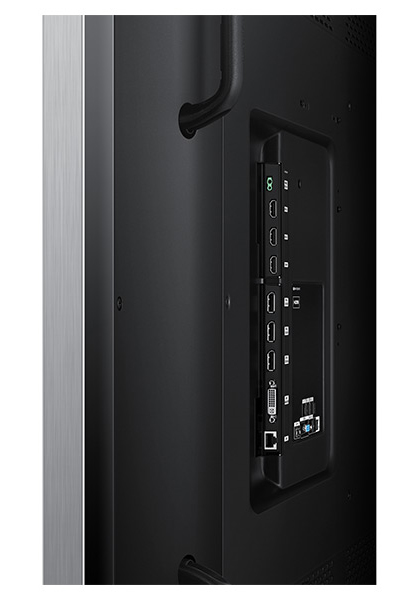

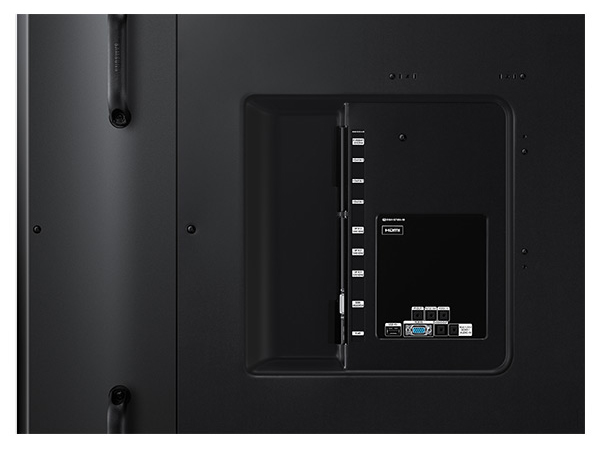

Input | RGB: VGA (D-Sub 15 pin), DVI-D, Display Port 1.2 (2x), Display Port 1.1, VIDEO: HDMI 1.4 (3x), AUDIO: Stereo mini Jack |
Output | Stereo mini Jack |
External Control | RS232C(in/out), RJ45 |
Sensor | IR |
Power | |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption (Typical/Max) | 375W / 495W |
Power Consumption (Standby) | < .5W |
Environmental Conditions | |

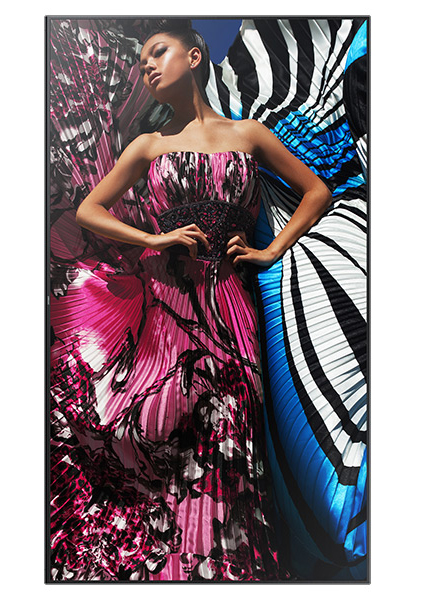

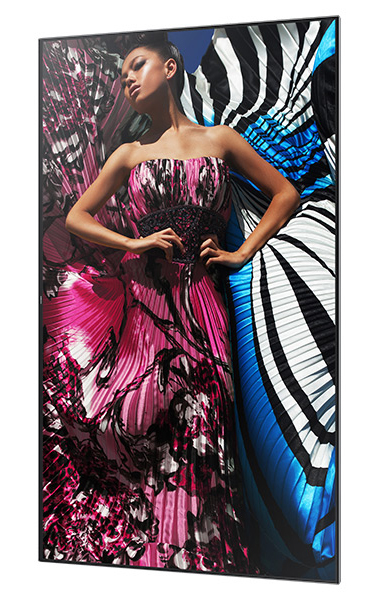

Special | H/W: Temperature Sensor, Pivot Display, Clock Battery (80hrs Clock Keeping), USB S/W: FHD 4 PBP Support (2/3/4 PBP), Auto Source Switching & Recovery, LFD Home UI, Remote F/W update (MDC, MagicInfo Server) Button Lock, DDC CI, DHCP with RJ45 MDC, Urgent Message by MDC, Hot key option |
Vesa Standard Wall-Mount Interface | 600x400 |
Plug & Play | Yes (Initial Setting) |
Built-In Speakers | 15W 2ch. |
Dimensions | |

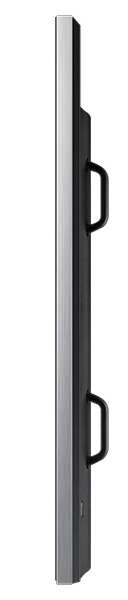

Without Stand (W x H x D) | 74.9" x 42.9" x 4.1" |
Packaging (W x H x D) | 80.7" x 49.8" x 18.6" |
Bezel Width | 13.2 (Top/Side) / 19.3 (Bottom) |
Weight | |
Set | 122.6 lb. |
Package | 157.8 lb. |
Service | |
Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) |
Accessories | |
Included In Box | Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries |
Optional Media Player | SBB-CF7, SBB-DA |
Optional Wall Mount | WMN-5770D |
Optional Stand | STN-L7585F |
Optional Touch Overlay | CY-TQ85LDAH |
Optional Media Player | SBB-CF7, SBB-DA |
Green Management | |
Energy Star Certified | Yes |
ROHS Compliant | Yes |
Emission Standard | EMC Class A |
Packaging Recyclability | Packing Materials Recyclable |

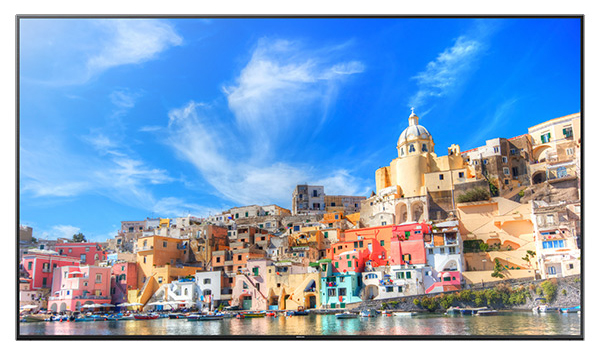

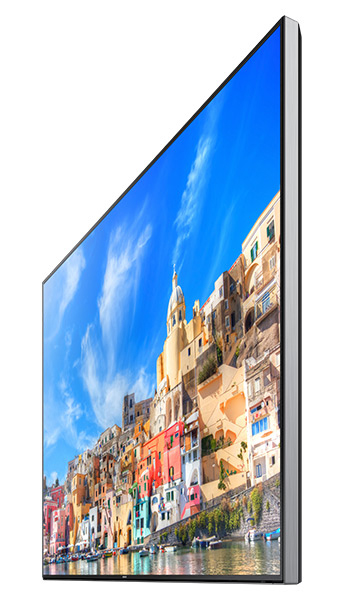

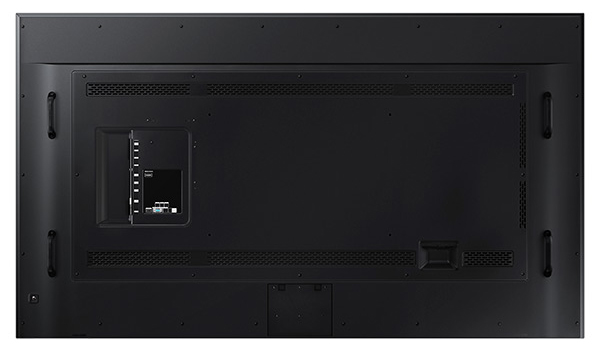

Images:
Documentation:
Download the Samsung QM85D Commercial UHD 4K LED LCD Display Datasheet (.PDF)
