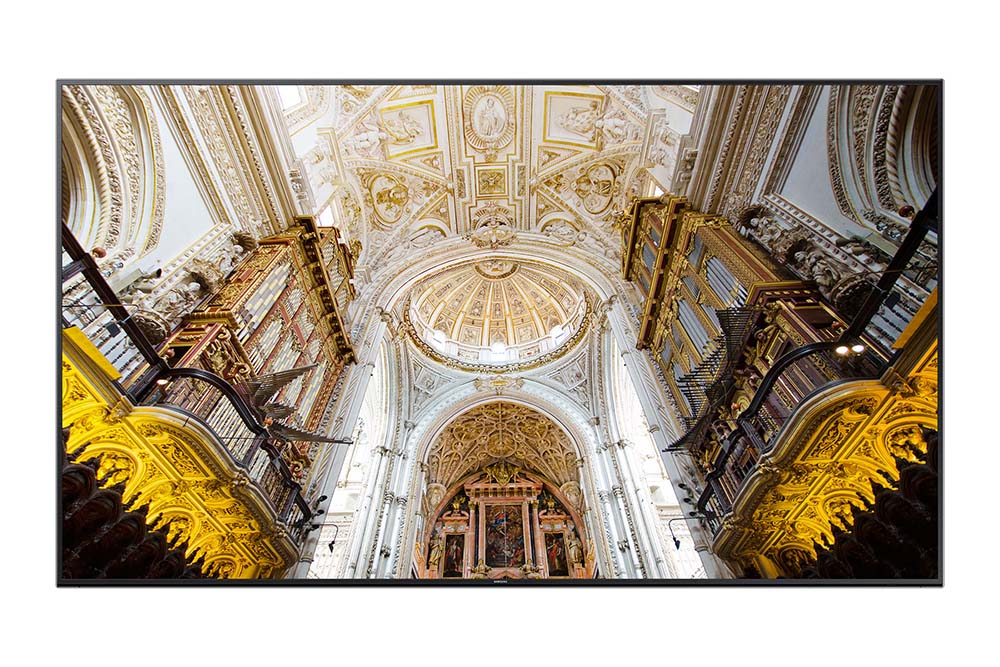

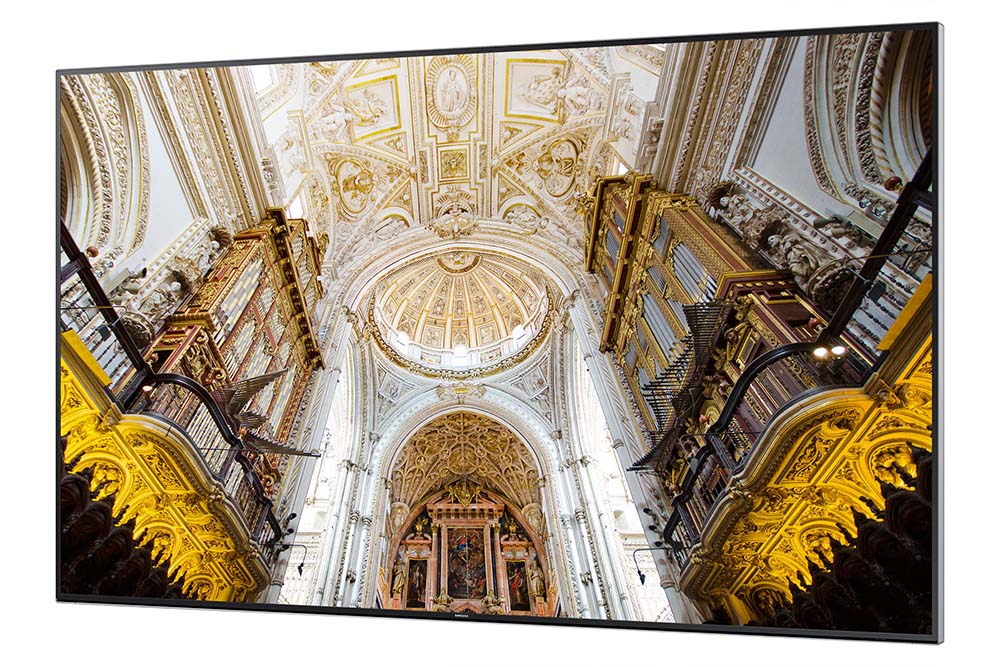

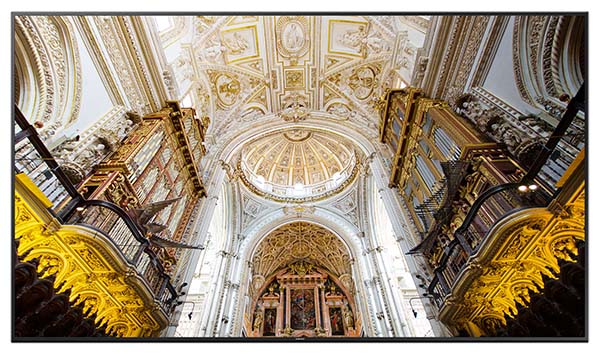

Samsung QM85N - QM-N Series 85" Edge-Lit 4K UHD LED Display for Business
UHD Signage that features ultra-realistic picture quality and business-ready functionalities

Samsung QM85N - QM-N Series 85" Edge-Lit 4K UHD LED Display for Business

Samsung Products
Samsung Digital Signage
QM85N - QM-N Series 85" Edge-Lit 4K UHD LED Display for Business
#QM85N
Our Price: $6,506.00

More pricing below, click here!

Overview:

With stunning 4K UHD quality our QM-N Series delivers an all-in-one digital signage solution with exceptional stopping power. Built to run around the clock, you can deliver your message 24/7. IP5X certification protects against dust ingress, while a non-glare, 500nit panel helps to ensure clear visibility of your content.

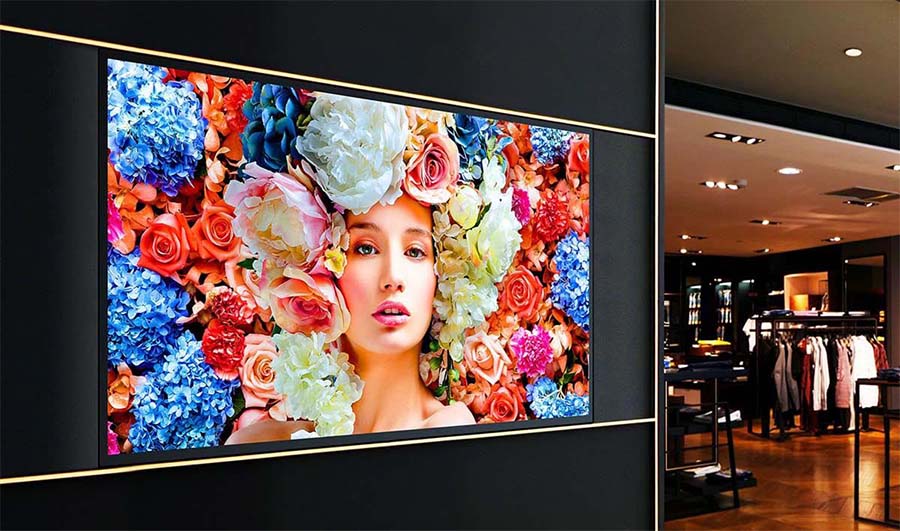

  • Revitalize customer engagement in retail and transportation settings
  • Elevate content quality through a unique combination of picture-enhancing features
  • Facilitate secure, PC-free meetings through rigid three-layer protection
  • Manage performance and identify potential disruptions with detailed remote monitoring
  • Maintain content integrity through dust- and glare-resistant exterior glass

Samsung’s QMN Series displays deliver content with added precision and visual impact while also improving operational effi ciency. Through advanced UHD picture quality, the QMN Series displays foster an inviting and memorable viewing environment in any indoor setting. Additionally, Backed by the powerful TIZEN operating system the QMN Series displays feature a host of business-ready functionalities while also protecting business and customer data through enhanced security measures.

As businesses seek to extend viewer engagement and reinforce their own branding, many see advanced digital signage as a versatile and effective solution. Businesses want to showcase content as crisply and clearly as possible, with new innovations such as UHD picture quality offering customers something new and exciting. Beyond graphic precision and accuracy, businesses also seek new technologies that make their lives easier. This flexibility ranges from features that expand operational capabilities and reduce maintenance to the maximization of data security and protection.

Whether for a retailer promoting new sales or a transportation hub keeping travelers on schedule, clear information delivery drives success. Samsung’s QMN Series help businesses achieve these goals by leveraging Samsung’s Intelligent Picture Quality technology to elevate content delivery in any setting. This refined presentation transforms content from any source to UHD-level quality, and optimizes on-screen text and imagery with crisp edges and fine detail. Recent advancements have made our signage offerings even stronger and empower businesses to develop and deploy content with the confidence that it will perform continuously.

Features:

Deliver Clear Messaging that Resonates

Deliver Clear Messaging that Resonates

Whether for a retailer promoting new sales or a transportation hub keeping travelers on schedule, clear information delivery drives success. Samsung’s QMN Series help businesses achieve these goals through compelling UHD picture quality, extensive connectivity and ongoing 24/7 performance.


Share Intelligent, High-Quality Content

Share Intelligent, High-Quality Content

Intelligent Picture Quality

The QMN Series displays leverage Samsung’s Intelligent Picture Quality technology to elevate content delivery in any setting. This refined presentation transforms content from any source to UHD-level quality, and optimizes on-screen text and imagery with crisp edges and fine detail.


Streamline Operational Efficiency

Streamline Operational Efficiency

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performance, allows for painless content management and ensures seamless content transition and playback.

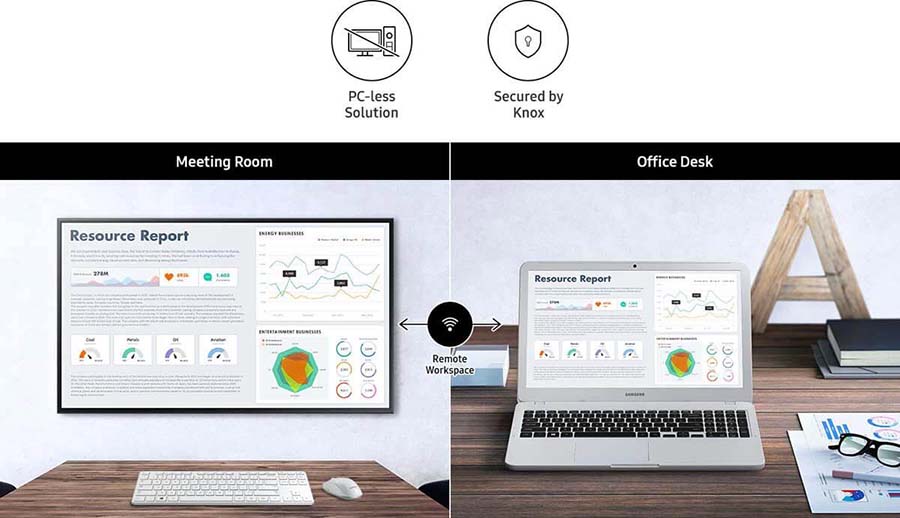

Empower Secure and Remote Collaboration

Empower Secure and Remote Collaboration

Samsung’s KNOX platform provides rigid three-layer protection while also securing and controlling USB and user network exchange through dedicated signage device management. With added security, businesses can facilitate remote, PC-free meetings without risk or complexity.


Maintain Continuous Display Performance

Maintain Continuous Display Performance

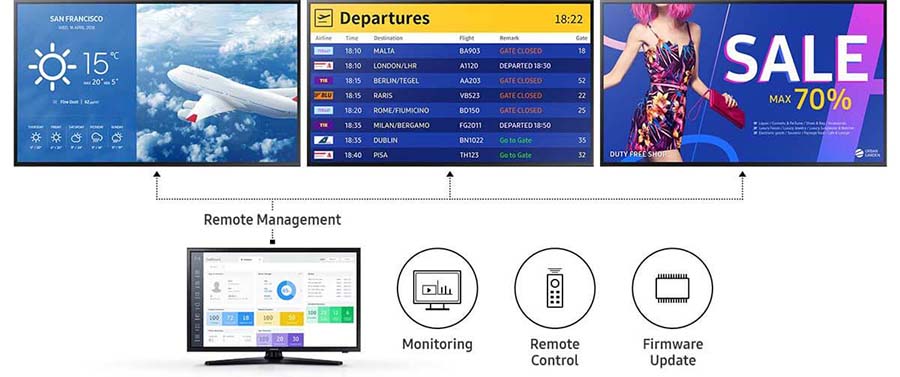

Beyond security and content management, QMN Series users can trust the displays’ remote management for fast, efficient issue mitigation. Users can monitor and diagnose irregularities – both on their own and with help from Samsung’s 24/7 Network Operations Center – from any location.


Enjoy Convenient Display Management

Enjoy Convenient Display Management

The QMN Series’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. Each display receives signals on individual panels via Central IR, and users can navigate the IR functionality from various locations to further augment uninterrupted performance.


Shield Content From Outside Interference

Shield Content From Outside Interference

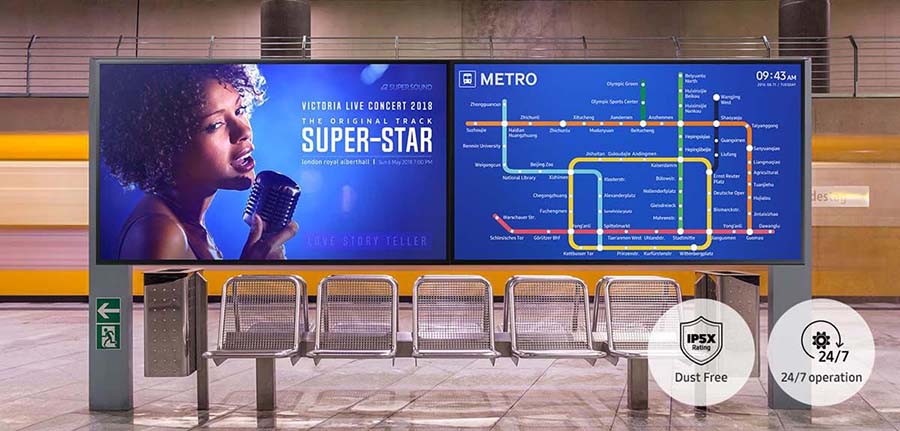

The QMN Series’ durable, IP5x-validated design ensures continuous, glare-free content delivery regardless of environmental conditions. As a result, transportation hubs and other arenas susceptible to dust, dirt and lighting exposure can activate and run the displays without an external enclosure.


Accelerate Multi-Screen Content Delivery

Accelerate Multi-Screen Content Delivery

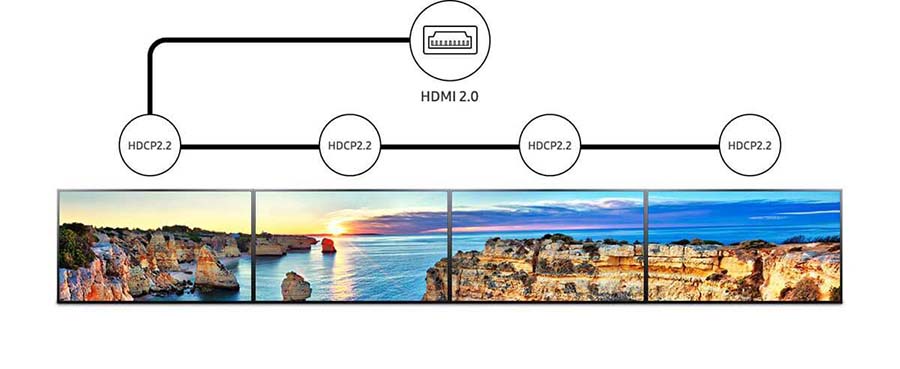

For added flexibility, the QMN Series offers users HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source. Additionally, users can configure UHD daisy chains up to 2x2 in size through the HDMI 2.0 port.

Specifications:

Samsung QM85N - QM-N Series 85" Edge-Lit 4K UHD LED Display Specifications
Display
Screen Size 85"
Panel Technology 120Hz Slim Direct LED BLU
Resolution 3840 x 2160 (4K UHD)
Aspect Ratio 16:9
Pixel Pitch (mm) 0.4875 x 0.4875 (mm)
Active Display Area (mm) 1872.0(H) x 1053.0(V)
Brightness 500nit
Contrast Ratio (Typical) 3000:1
Viewing Angle (H/V) 178º/178º
Response Time 8ms (Typ)
Display Colors 16.7M (True Display) 1.07B (Ditherd 10bit)
Color Gamut 72%
Haze 44%
Display
Dynamic C/R Mega
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 594MHz
Sound
Speaker Type Built in Speaker (10W + 10W)

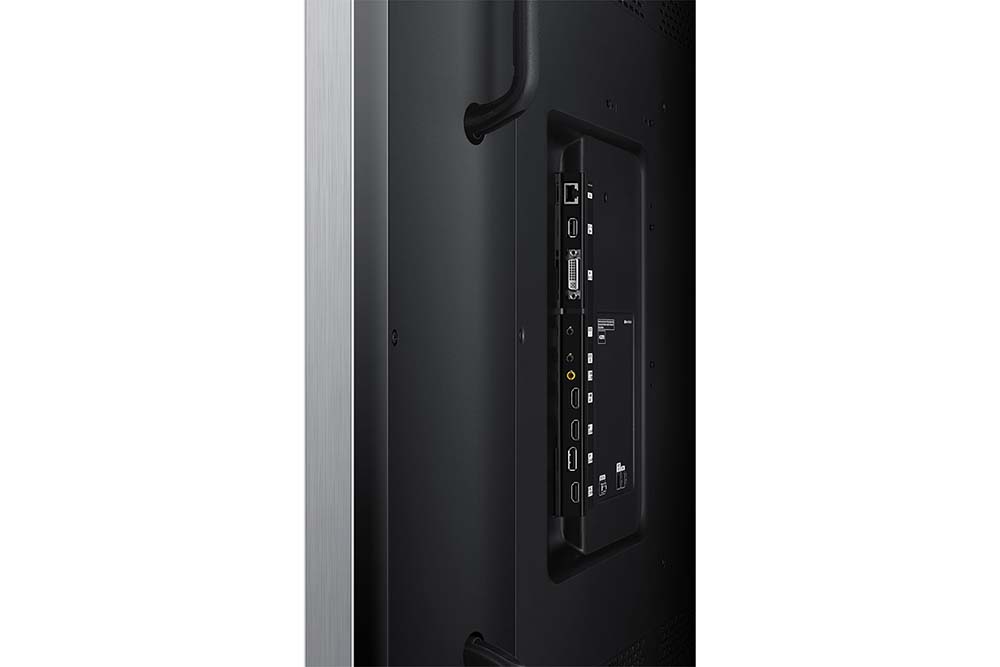

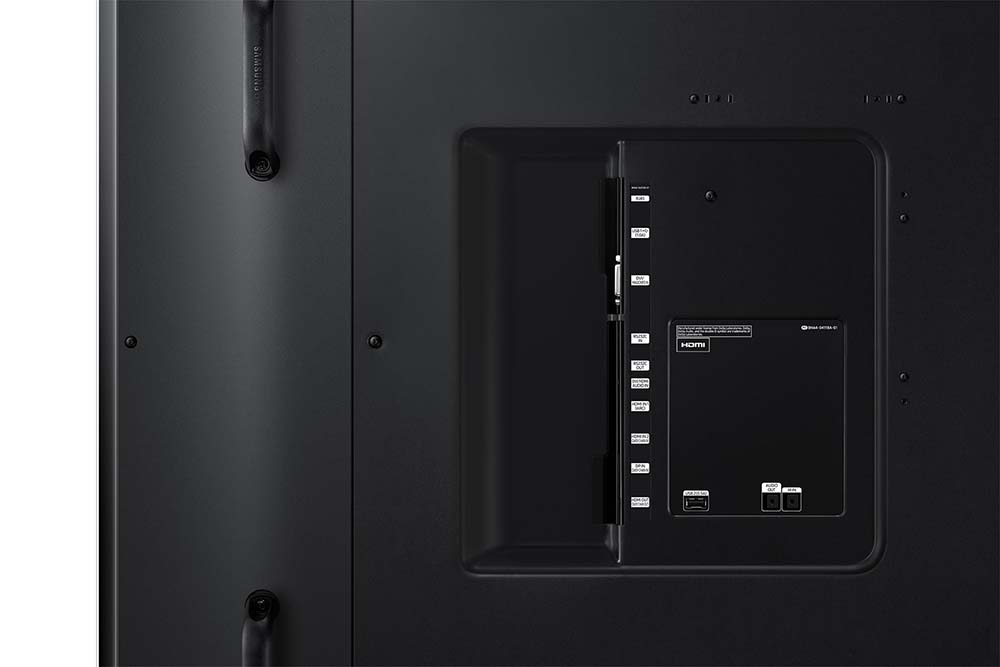

Connectivity
Input RGB: DVI-D, Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2
Output RGB: HDMI 2.0 (Loop-out)
Audio: Stereo mini Jack
External Control RS232C(in/out) thru stereo jack, RJ45
Sensor IR
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption Max [W/h]: 495
Typical [W/h]: 362
Rating [W/h]: 450
Sleep mode: less than 0.5W
Off mode: N/A
Mechanical Specification

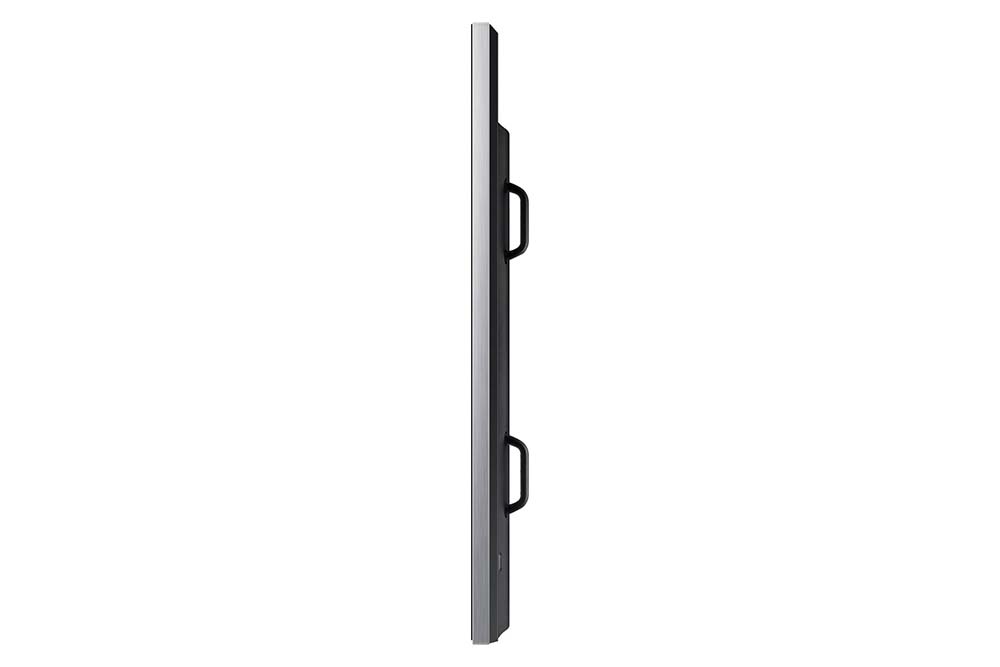

Without Stand (W x H x D) 1903.4 x 1090.5 x 105.1 mm
Package (WxHxD) 2050 x 1265 x 472 mm
Product Weight 50.7 kg
Package Weight 66.0 kg

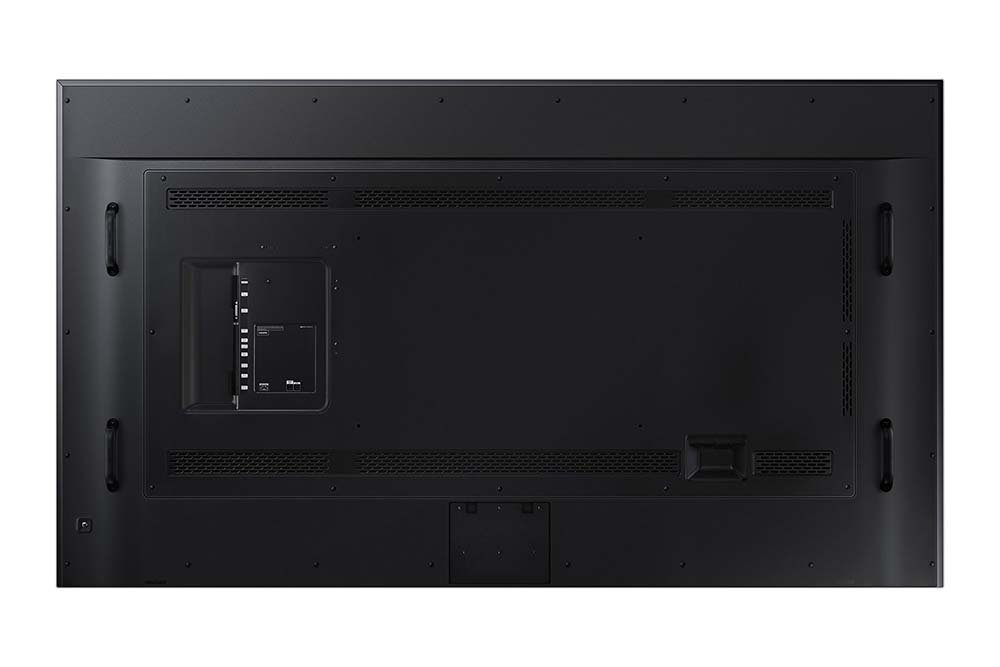

VESA Mount (mm) 600x400
Stand Type Foot Stand (Optional)
Bezel Width 16.2mm (Top, Side) / 19.3mm (Bottom)
Environmental Conditions
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
Recommended Usage Hours 24/7
Features
Special Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Special Hardware: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT
Software: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed: 1.7GHz
  • Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit
  • Graphics: Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
  • IO Ports: USB 2.0
  • Tizen 4.0 (VDLinux)
Certification
Safety 60950-1
EMC Class A
Accessories
Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional Mount: WMN8200SD
