Samsung QM98F - QM-F Series 98" Edge-Lit 4K UHD LED Display
High brightness commercial displays feature an ultra-slim and narrow design
This product is no longer available, replaced by the QM98N - QM-N Series 98" Edge-Lit 4K UHD LED Display
Overview:
With stunning 4K UHD quality our QM-F Series commercial displays provide high pixel density, fine detail and exceptional stopping power. All with multi-screen support and reliable 24/7 continuous use to meet around the clock operating requirements from retail spaces and public areas to corporate boardrooms and more. And a non-glare panel with 500nit brightness offers improved visibility of your message.
- Multi-screen splitting for displaying multiple messages and great videoconferencing
- Non-glare panel with 500nit brightness offers improved visibility of your message
- Reliable 24/7 continuous run-time to meet around the clock business operating requirements
- Stunning life-like image quality with 4K UHD resolution
Features:
Multi-Screen Delivers Multiple Messages
The Picture by Picture function allows you to display up to 4 content feeds at once, each supporting Full HD 1080p resolution. It’s ideal for displaying multiple messages in retail advertising or for videoconferencing in corporate scenarios.
Non-Glare Panel for Improved Visibility
The non-glare panel features 500nit brightness to improve visibility of your message.
Reliable 24/7 Around the Clock Operation
Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation. So your business can meet 24/7 operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.
Stunning 4K UHD Picture Quality
3840 x 2160 UHD resolution (4x the number pixels of Full HD 1080p) delivers life-like image quality. Experience a high-impact way to communicate in retail spaces, hospitality, corporate boardrooms, healthcare environments and more.
Impactful 98" Screen
The QM98F features a big, beautiful 98" UHD panel, for engaging images and messages that cannot be ignored. Imagine the possibilities.
Specifications:
| Samsung QM98F - QM-F Series 98" Edge-Lit 4K UHD LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 98" |
| Panel Technology | 60Hz E-LED BLU |
| Resolution | 3840x2160 |
| Aspect Ratio | 16:9 |
| Brightness | 500nit |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 8ms |
| Connectivity | |

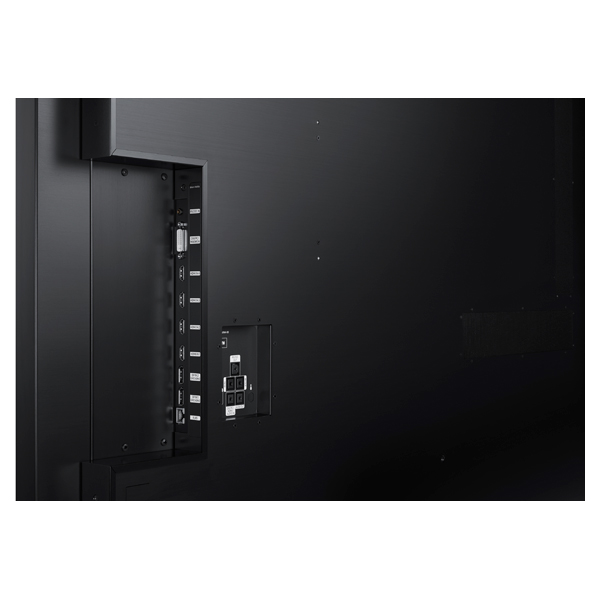

| Input | RGB:DVI-I(D-Sub Common), Display Port 1.2 (2) Video: HDMI (4) Audio - Stereo Mini Jack USB (S/W update only) |
| Output | Audio: Stereo Mini Jack |
| External Control | RS232C(in/out), RJ45 |
| Sensor | IR |
| Power | |
| Power Supply | AC 100 - 240 V (+/- 10 %), 50/60 Hz |
| Power Consumption (Standby) | less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |

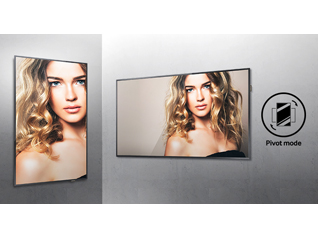

| Special | Hardware: Temperature Sensor,Pivot Display, Clock Battery(80hrs Clock Keeping), IP5x Software: FHD 4 PBP Support (2/3/4 PBP), Auto Source Switching & Recovery, LFD Home UI, Button Lock, DHCP with RJ45 MDC, Hot key option |
| Plug & Play | Yes (Initial Setting) |
| 24/7 Operation | Yes |
| Built-In Speakers | Built in Speaker(10W + 10W) |
| Dimensions | |
| Without Stand (W x H x D) | 86.3" x 49.2" x 2.8" |
| Packaging (W x H x D) | 96.6" x 58.3" x 23.8" |
| Bezel Width | 15.2 (Top/Side), 15.2(Bottom) |
| Service | |
| Standard Warranty | 3yr Onsite (Parts/Labor/Backlight) |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount Kit | WMN9500SD |
| Optional Media Player | SBB-DA/DI |
| Green Management | |
| ENERGY STAR® Certified | ENERGY STAR 7.0 |
| ROHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Packing Materials Recyclable |
| Mechanical Specs | |
| VESA Mount | 900x600 |

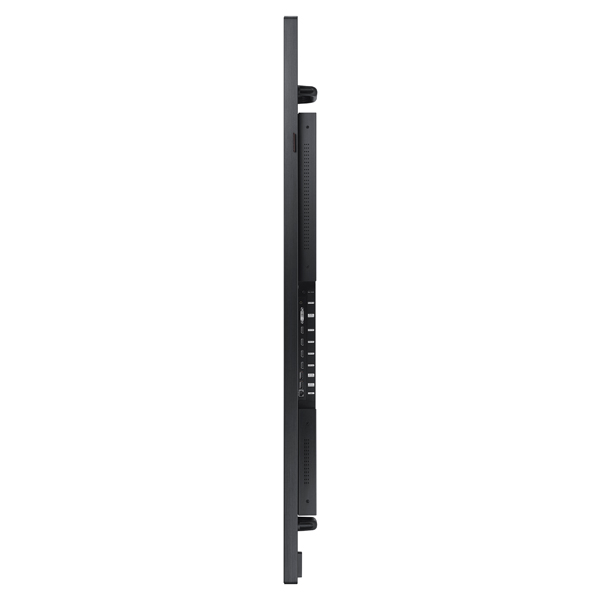

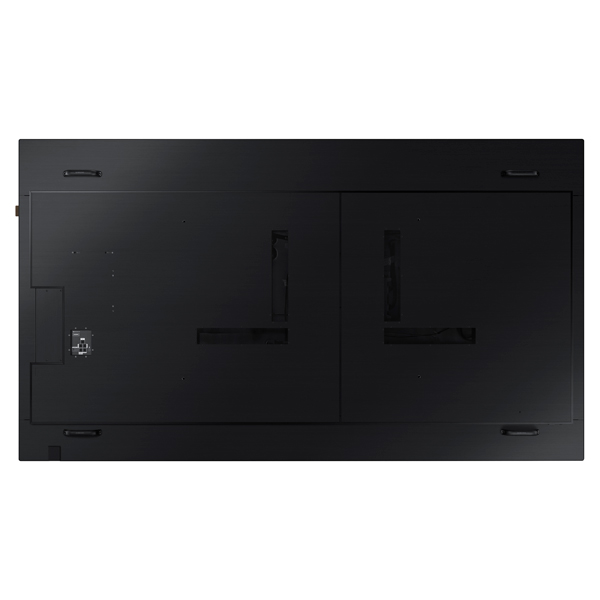

Images:
Documentation:
Download the Samsung QMF Series Commercial LED LCD Displays Datasheet (.PDF)
