Samsung SH37R-B
Stretch Professional Display for Business

This product is Built to Order, please Contact Us for more details

Samsung SH37R-B

Samsung Products
Samsung-SHR-B Series
Our Price: $1,964.00


Stretch your messaging reach:

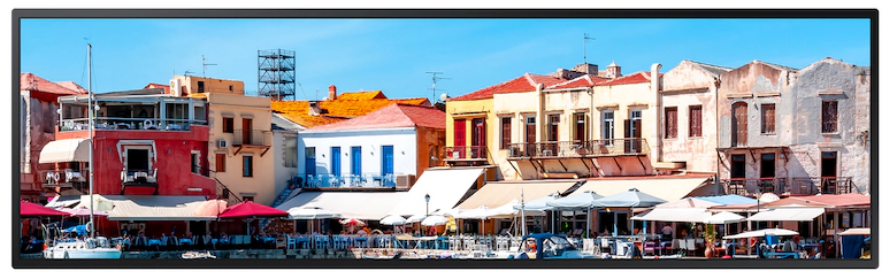

Deliver impactful messages in places you never could before. The Samsung SH37R-B stretched widescreen delivers an impactful message in a bright, beautiful 36" by 11" display. You can take full advantage of narrow areas, whether horizontal or vertical. And with 700 nits brightness, your message will stand out, even in brightly lit environments. Connect with your customers in unexpected new ways, with the Samsung SHR-B stretched widescreen signage display.

  • Widescreen 16:4.5 stretched display
  • Provide excellent visibility 24/7 through non-glare panel and 700 nit brightness in any lighting condition
  • Powerful all-in-one digital signage solution.

Maximize space and optimize content

Digital signage today needs to be versatile and cost effective with an emphasis on maximizing space efficiency. Samsung SHR-B displays with 16:4.5 wide screen stretched display offer the ability to effectively communicate information in small, narrow spaces.

Samsung SH37R-B


Eye-Catching Stretched Display

700-nit brightness and a non-glare panel makes messages easier to see

Samsung SHR-B displays deliver vibrant, realistic images offering an unparalleled visual experience. Featuring brightness levels of up to 700 nits and a non-glare panel these displays deliver the clearest, richest images regardless of lighting conditions.

Slim, Narrow Design

Maximize viewer engagement in a minimum amount of space

Samsung SHR-B displays feature a slim profile with a depth of only 1.7 inches. You can install the slim, light display in areas where space is limited, and content will blend seamlessly with the environment.

Built for 24/7 Use

Customize content from portrait to landscape

Samsung SHR-B displays offer pivoting capability, along with automatic image rotation software. You don’t have to rotateyour content separately in editing software.

Simple Content Management

Daisy chain multiple displays

Due to the relative novelty of UHD in commercial display settings, SHR displays currently offer support for UHD streaming. With UHD resolution content on multiple displays, made possible with daisy chain, users can deliver eye-catching messages in complete clarity for greater impact.


Powerful, all-in-one solution

With the embedded media player, there’s no separate PC required, no extra mounting or cabling, and no additional external hardware requiring maintenance. Just plug in the displays and go.

Robust content management and monitoring

Our leading-edge digital signage platform makes content management easier, more flexible and more robust. Use the data capture tools to inform content creation and automated, targeted distribution. Easily create content with included templates. And manage it all from a single source.

Reliable operation and 3 Year limited warranty

The SHR-B series is engineered for dependable 24/7 operation and the IP5x Dust-Proof Certification ensures that the display is completely protected from dust, eliminating the risk of performance degradation and a 3 year limited warranty provides peace of mind.


Samsung SH37F - SHF Series 37" Edge-Lit LED Stretched Display Specifications
Screen Size 37"
Panel Technology 60Hz E-LED BLU
Resolution 1920 X 540
Aspect ratio 16:4.5
Brightness 700nit
Contrast Ratio (Typical) 4000:1
Viewing Angle (H/V) 178º/178º
Pixel Pitch(mm) 0.47(H) x 0.47(V)
Active Display Area(mm) 904.32 (H) x 254.34 (V)
Response Time 6.5 ms
Display Colors 8bit - 16.7M
Color Gamut 72%
Operation Hour 24/7
Haze 28%
H-Scanning Frequency 33.6 ~ 36.6kHZ
V-Scanning Frequency 47 ~ 63HZ
Maximum Pixel Frequency 48MHz
Input RGB: Display Port 1.2
VIDEO: HDMI 2.0 (2)
USB: USB 2.0 x 1
Output RGB: HDMI 2.0 (1)
AUDIO: Stereo Mini Jack
External Control RS232C(in/out), RJ45
Sensor IR
Type Internal
Power Supply AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max)
  • Max[W/h]: 70
  • Typical[W/h]: 52
  • BTU (Max): 239
  • Sleep mode: less than 0.5W
  • Off mode: less than 0.5W
Mechanical Specs
Set Dimension (mm) 923.3 X 277.6 X 44.8
Package Dimension (mm) 1112 x 363 x 122
Set Weight (kg) 6.3
Package Weight (kg) 8.8
VESA Mount 400x200 (mm)
Bezel Width (mm) 7.9 (Side), 9.8 (Top/Bottom)
Environmental Conditions
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
Key Features Slim and Light LFD with Built-in MagicInfo Player S6, SSSP 6.0 WiFi Module Embedded
Orientation Landscape/Portrait
System On Chip Yes
Wi-Fi Yes
Special Features HARDWARE: Temperature Sensor, Portrait Installation Support, Clock Battery (168hrs Clock Keeping), Video Wall Daisy Chain (HDCP2.2:4EA, HDCP1.4:7EA), Shock and Vibration certificated (IEC 61373)
SOFTWARE: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug&Play (Initial Setting)
Internal Player
  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed: 1.7GHz
  • Main Memory Interface: 2.5GB 64-bit LPDDR4 (1.5GHz)
  • Graphics Graphic resolution: 1920x540 Output resolution : 1920x540 - Supports OpenGL ES
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
  • IO Ports: USB 2.0
  • Operating System: Tizen 4.0 (VDLinux)
Included in Box QSG, Warranty Card, Regulatory Guide, Power Cord, Batteries, Remote Control, External remote control sensor(IR)
Safety 60950-1
EMC Class A

Pricing Notes:

  • Pricing and product availability subject to change without notice.
  • On-site Warranty includes:
    • Next Business Day exchange of the display
    • Includes on-site tech-assisted exchange of display
    • Technician removes original unit, installs replacement, and ships non-working unit to Samsung
    • Coverage for mechanical/electrical breakdown
    • 3,4,5 year terms available
