Samsung SH37R
Maximize space and optimize content
Overview:
Engage customers with powerful content in a slim, versatile package:
Digital signage today needs to be versatile and cost effective with an emphasis on maximizing space efficiency. Samsung SHR displays with 16:4.5 wide screen stretched display offer the ability to effectively communicate information in small, narrow spaces.
- Widescreen 16:4.5 stretched display
- Provide excellent visibility 24/7 through non-glare panel and 700 nit brightness in any lighting condition
- Allow display flexibility and customize content from portrait to landscape
Features:
Deliver sharp images in various lighting conditions
Samsung SHR displays deliver vibrant, realistic images offering an unparalleled visual experience. Featuring brightness levels of up to 700nit, these displays deliver the clearest, richest images regardless of lighting conditions.
Maximize viewer engagement in a minimum amount of space
Samsung SHR displays feature a slim profile with a depth of only 44.8mm which allows you to maximize available space. This enables the display to be installed in areas where space is limited and allows content to blend seamlessly.

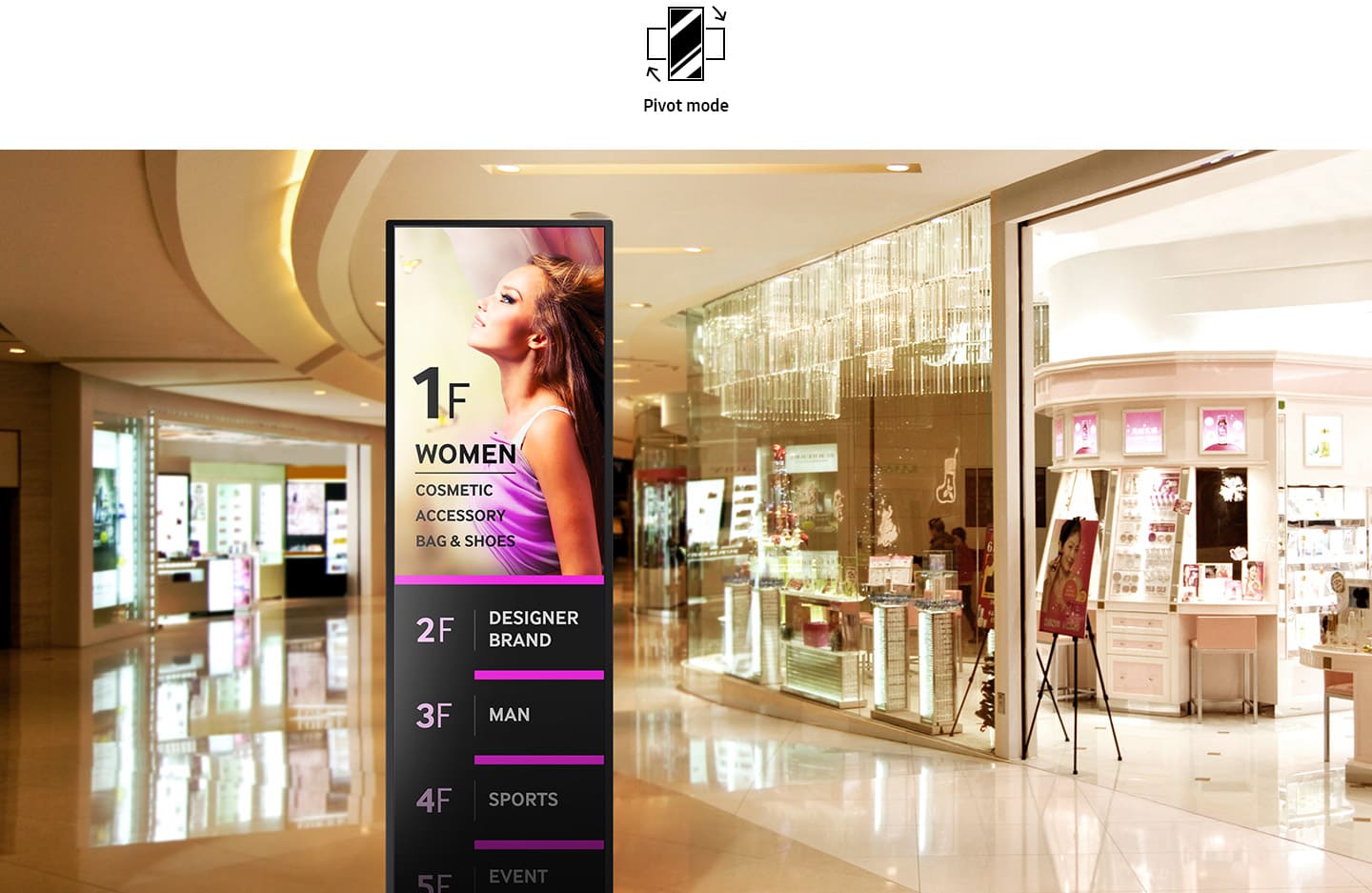

Customize content from portrait to landscape
Samsung SHR displays offer pivoting capability along with image rotation software that can change image orientation from portrait to landscape for greater display flexibility. Images do not require rotation in image editing software to make them appear correctly in a different orientation.
Daisy chain multiple displays
Due to the relative novelty of UHD in commercial display settings, SHR displays currently offer support for UHD streaming. With UHD resolution content on multiple displays, made possible with daisy chain, users can deliver eye-catching messages in complete clarity for greater impact.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Specifications:
| Samsung SH37F - SHF Series 37" Edge-Lit LED Stretched Display Specifications | |
|---|---|
| Display | |
| Screen Size | 37" |
| Type | 60Hz E-LED BLU |
| Resolution | 1920 X 540 |
| Pixel Pitch(mm) | 0.47(H) x 0.47(V) |
| Active Display Area(mm) | 904.32 (H) x 254.34 (V) |
| Brightness | 700nit |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 6.5 ms |
| Display Colors | 8bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 24/7 |
| Haze | 28% |
| Display | |
| H-Scanning Frequency | 33.6 ~ 36.6kHZ |
| V-Scanning Frequency | 47 ~ 63HZ |
| Maximum Pixel Frequency | 48MHz |
| Connectivity | |
| Input | RGB: Display Port 1.2 VIDEO: HDMI 2.0 (2) HDCP: HDCP 2.2 USB: USB 2.0 x 1 |
| Output | RGB: HDMI 2.0 (1) AUDIO: Stereo Mini Jack |
| External Control | RS232C(in/out), RJ45 |
| External Sensor | IR |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) |
|
| Mechanical Specs | |
| Set Dimension (mm) | 923.3 X 277.6 X 44.8 |
| Package Dimension (mm) | 1112 x 363 x 122 |
| Set Weight (kg) | 6.3 |
| Package Weight (kg) | 8.8 |
| VESA Mount | 400x200 (mm) |
| Bezel Width (mm) | 7.9 (Side), 9.8 (Top/Bottom) |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Key Features | Slim and Light LFD with Built-in MagicInfo Player S6, SSSP 6.0 WiFi Module Embedded |
| Orientation | N/A |
| Remote Control | N/A |
| Special Features | H/W:Temperature Sensor, Portrait Installation support, Clock Battery(168hrs Clock Keeping),Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), Shock and Vibration certificated(IEC 61373) S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Internal Player | |
| Items |
|
| Accessory | |
| Included in Box | QSG, Warranty Card, Regulatory Guide, Power Cord, Batteries, Remote Control, External remote control sensor(IR) |
| Certification | |
| Safety | CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE |
| EMC | FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 |
Images:

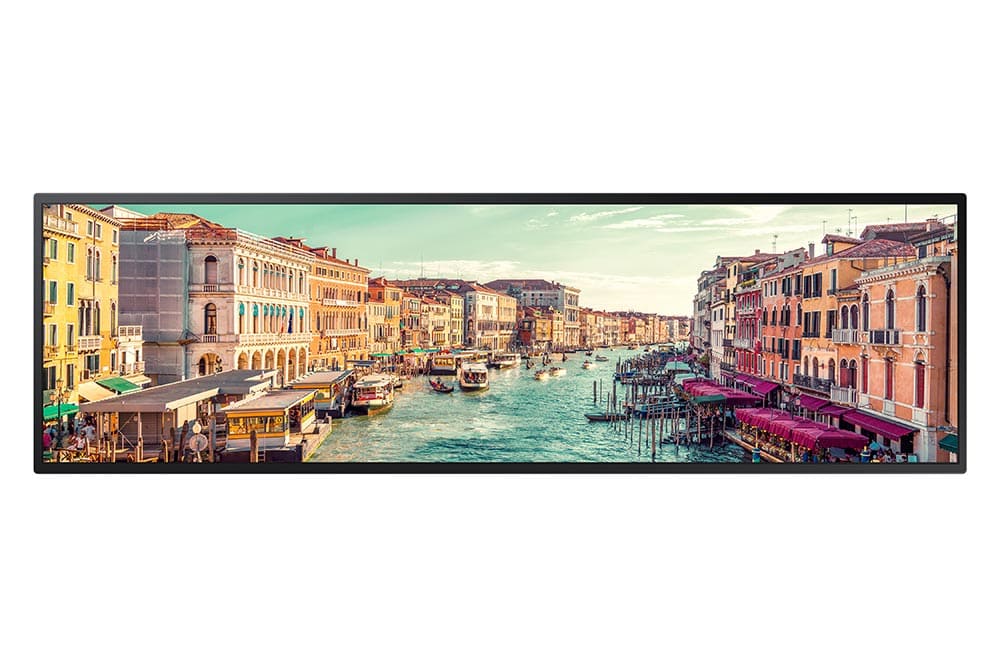

| Front View |

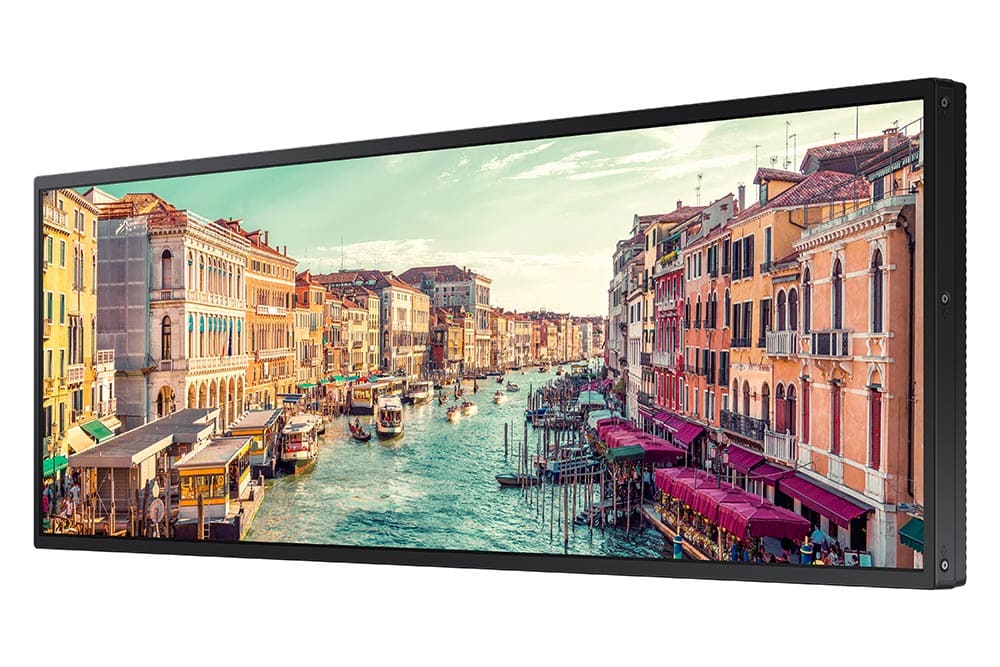

Angle View |

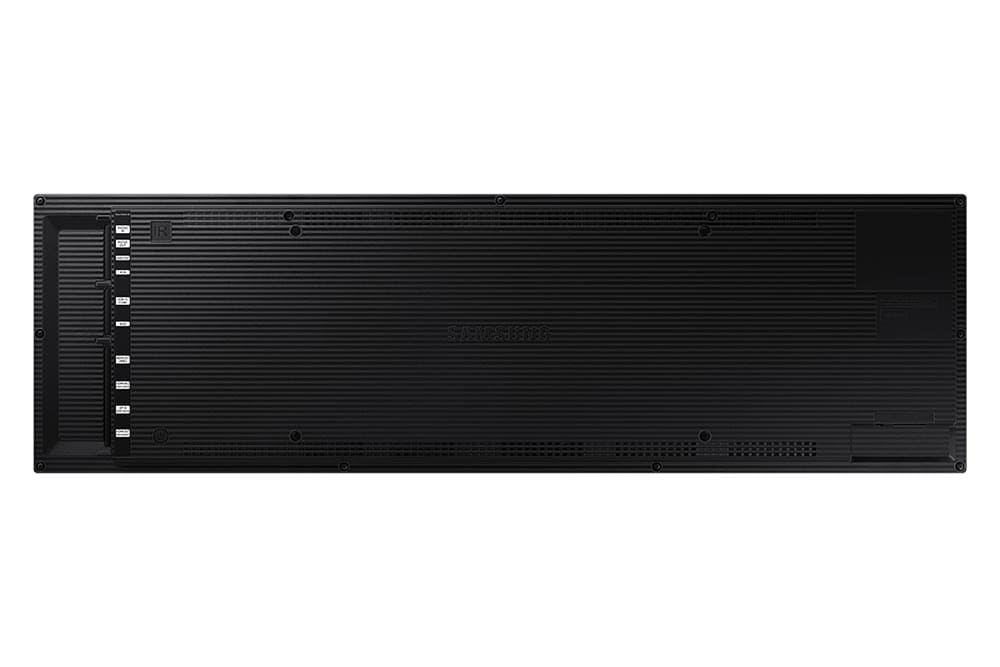

Back View |

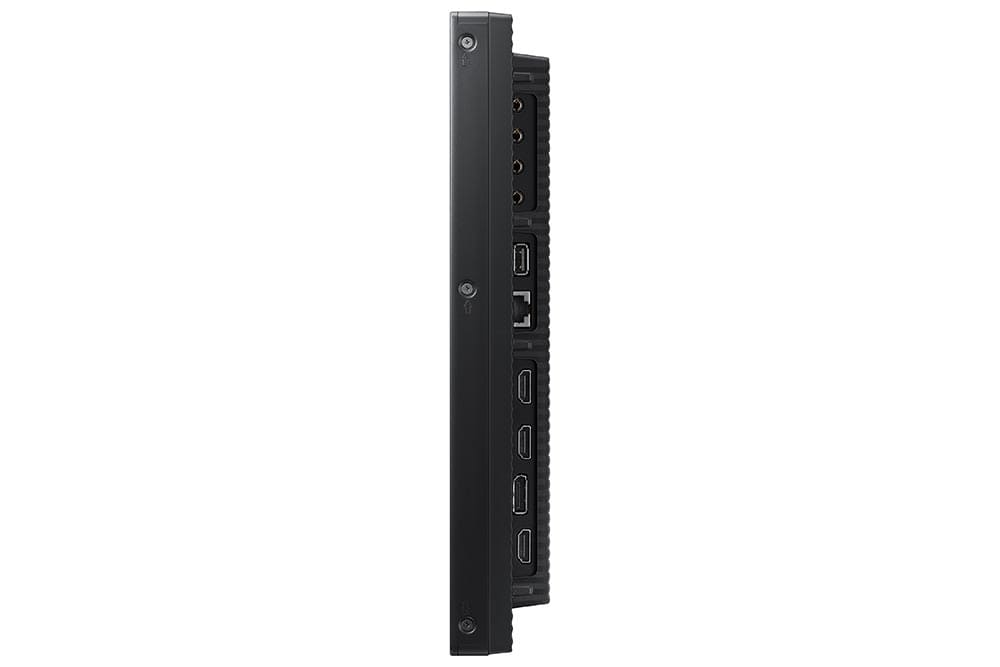

Side View |
Documenation:
Download the Samsung SH37R Data Sheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
