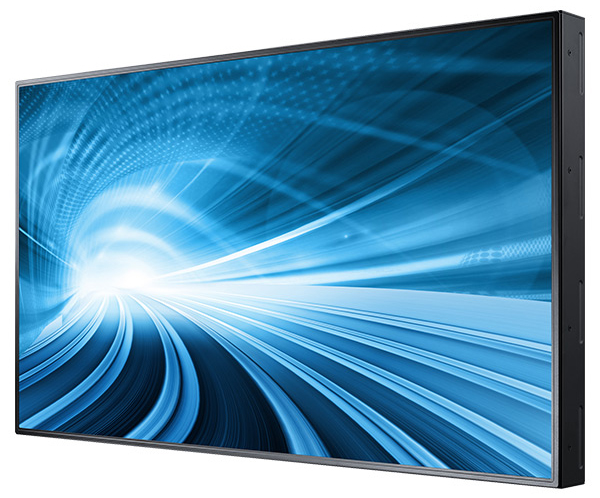

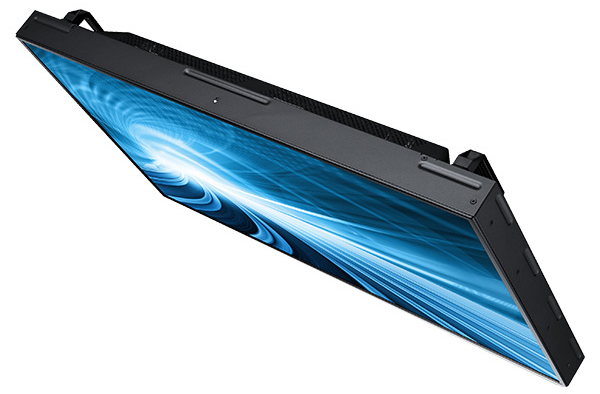

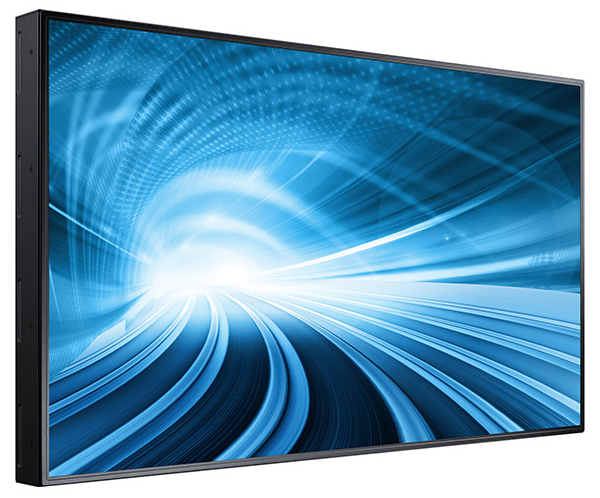

Samsung SL46B - SL-B Series 46" High Brightness Display
High brightness for exceptional clarity, even in bright lighting conditions.
This product is no longer available, please contact us for a replacement.
Overview:
Samsung's SL46B semi-outdoor display features high brightness for exceptional clarity, even in bright lighting conditions. Combined with innovative cooling technology for 24/7 operation and a host of other useful features, you can deliver high quality content consistently and efficiently. All in a seamless, unobstructed fashion thanks to slim bezels for video wall installations.
- Exceptional High Brightness
- Optimized for 24/7 Business Operation
- Full HD 1920 x 1080 Resolution
- Built-in Speakers
Features
Exceptional High Brightness
The high brightness panel on these semi-outdoor LFDs is much brighter than conventional screens. Enjoy a clear image with enhanced visibility and readability even in bright lighting conditions, so your messages can shine and attract more attention.
Optimized for 24/7 Business Operation
Display your message 24 hours a day, 7 days a week. Innovative cooling technology improves heat dissipation while lowering internal temperatures, so you can run this LFD 24/7 over longer periods without requiring costly servicing or maintenance.
Full HD 1920 x 1080 Resolution
This semi-outdoor LFD is naturally eye catching and demands attention. The rich color and dramatic depth of detail contained in the images provides the perfect platform for a high visibility, high impact digital display.
Built-in Speakers
Powerful built-in speakers allow you message to be heard loud and clear while saving you the cost and space of having to purchase and install separate speakers. So you can maximize impact through great image quality combined with ultra-crisp audio.
Multi-Display Control
An upgraded multi-display control solution enables control over a large number of displays through their embedded RJ45 or RS232C interfaces. A professional Display Port interface enables high performance control without the need for a distributor over longer distances.
Connect Up to 100 Displays at Once
Deliver your customers the best across multi screens. Digital loop out produces a single image without loss of quality, and there’s no need for a separate video signal distributor. It’s easy to install and a cost-effective way to connect up to 100 displays at once.
Embedded Media Player
Built within a microchip the built-in media player has a CPU with a powerful processing speed and an impressive cache size. This means you can store and play advertisements, instructional films and animatics quickly and conveniently to elevate your display capabilities.
Slim Bezel Maintains Image Smoothness
Allow your content to shine through in seamless, unobstructed fashion. The slim bezel of just 12mm removes any distractions from your sight to provide a greater surface area, which can be useful when creating a video wall in a shop window and other venues.
High Performance Optional PC
Customise the content of your LFD solution with the optional Slide-in-Module (SIM) feature to meet your unique business needs. Run content from a PC quickly and easily by simply sliding the PC in and out of the display without having to dismantle the unit from the wall.
Specifications:
Samsung SL46B - SL-B Series 46" High Brightness Display Specifications | |
---|---|
Display | |
Screen Size | 46" |
Contrast Ratio (Typical) | 4,000:1 |
Resolution | 1920x1080 |
Contrast Ratio (Dynamic) | 10,000:1 |
Aspect Ratio | 16:9 |
Viewing Angle (H/V) | 178/178 |
Brightness | 1500 cd/m2 |
Response Time | 8ms |
Connectivity | |

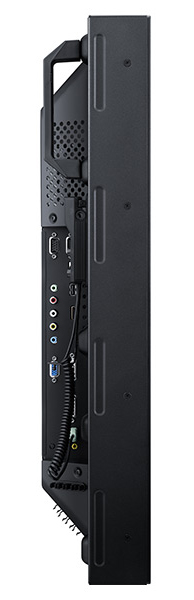

Input | USB, HDMI, CVBS, Component(by D-SUB), RCA(L/R), Stereo mini Jack |
Output | Stereo MINI Jack |
External Control | RJ45, RS232C(in/out) |
Sensor | Attached |
Power | |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption (Typical/Max) | 356/440 |
Power Consumption (Standby) | less than 1W |
Environmental Conditions | |
Operating Temperature | 0℃~ 30℃ (Direct Sunlight) |
Operating Humidity | 10~80% |
Features | |
Special | Plug and Play, MagicInfo Lite, Slide in Module, Digital Daisy Chains, Built in Speakers, Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Pivot Display, Button Lock, Smart Scheduling |
Media Player Type | Internal Player (Embedded H/W): Cortex-A8 Single Core CPU with NEON DSP, L1 (I/D) : 32KB / 32KB L2 (Unified) : 512KB, Up to 800MHz, Dual 32bit DDR3-667 (1333MHz), 2D & 3D Graphics Engine, Up to 1920x1080. 32bpp, Supports OpenGL ES, 4GB (1.2GB Occupied by O/S), Video Decoder: MPEG-1/2, H.264/AVC (Dual), VC-1, JPEG, PNG, Audio DSP (Decoder): AC3 (DD), MPEG, DTS and etc., PCIEx 2.0, USB 2.0, Linux |
Vesa Standard Wall-Mount Interface | 600 x 400mm |
24/7 Operation | Yes |
Outdoor | Yes |
Dimensions | |
Without Stand (W x H x D) | 41.3" x 23.7" x 4.9" |
Packaging (W x H x D) | 45.1" x 28.6" x 11.8" |
Bezel Width | 11mm |
Weight | |
Set | 59.1 lb. |
Package | 71.7 lb. |
Accessories | |
Included In Box | Quick Setup Guide, Warranty Card, Application CD, Power Cord, Remote Controller, Batteries, D-Sub cable |
Emission Standard | FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea) :KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548 (CISPR22), CCC(China) :GB 9254-2008, GB 17625.1-2003 |
