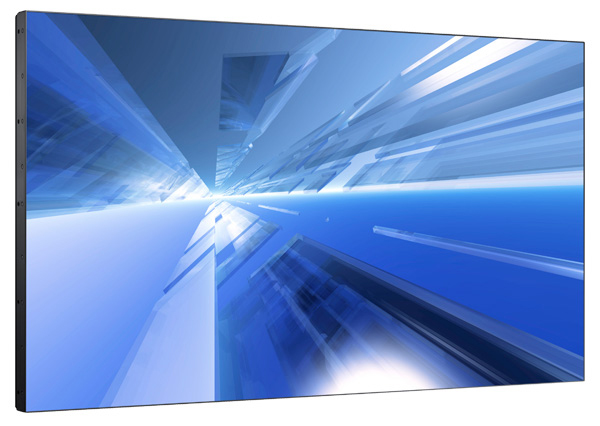

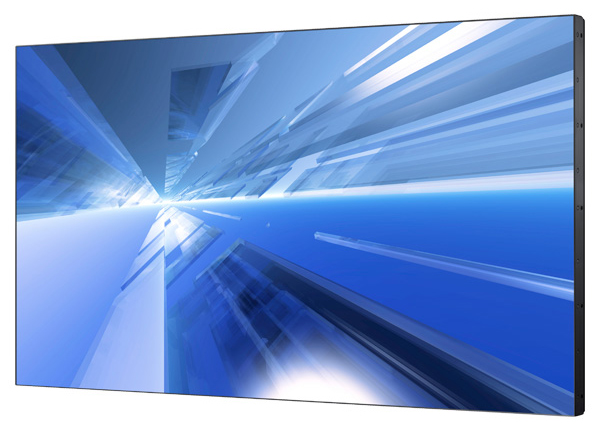

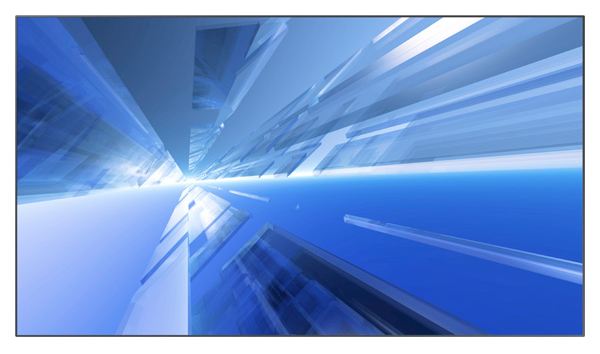

Samsung UD55C-B - UD-C-B Series 55" Direct-Lit LED Display
Deliver Optimal Uniformity And Impressive Images Right Out Of The Box.
This product is no longer available, replaced by the UD55E-B - UD-E-B Series 55" Direct-Lit LED Display
Overview:
Samsung's UDC-B Series delivers sharp, bright, impactful messages with ultra high-definition resolution and easy content sharing across multiple devices at an affordable price. Factory tuned with advanced color calibration, enjoy optimal uniformity and impressive image quality on the 55" display. And with Samsung's Advanced Color Management solution, you can fine-tune images to your unique specifications with ease.
- Advanced Color Calibration
- Advanced Color Management
- DisplayPort 1.2
- Sharp, Bright, Impactful
Features
Advanced Color Calibration
UD-C Series displays are factory tuned for Brightness, Color Temperature and Gamma. They deliver optimal uniformity and impressive images right out of the box.
Advanced Color Management
Fine-tune images through Samsung’s new Advanced Color Management solution. A user-friendly interface makes detailed color adjustments simple.
DisplayPort 1.2
This digital loop-out feature lets you easily share content with multiple screens while still achieving ultra high-definition resolution. It’s an easy and cost-effective way to connect multiple displays.
Specifications:
| Samsung UD46C - UD-C Series 46" Direct-Lit LED Display | |
|---|---|
| Display | |
| Screen Size | 55" |
| Panel Technology | 60Hz (Direct-LED Backlight) |
| Resolution | 1920 x 1080 |
| Brightness | 500 nits |
| Contrast Ratio (Typical) | 3,500:1 |
| Viewing Angle (Horizontal/Vertical) | 178˚/178˚ |
| Orientation | Landscape/Portrait |
| Response Time | 8ms |

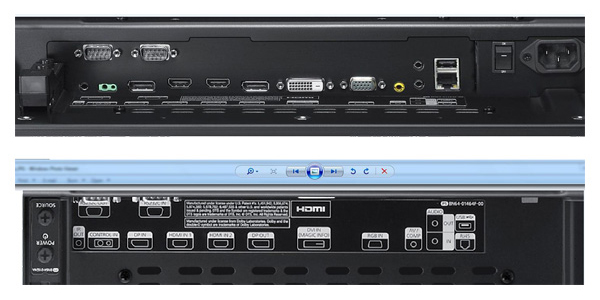

| Connectivity | |
| Input | VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack |
| Output | DVI-D (Loop out), Stereo Mini Jack |
| External Control | RS232C (in/out), RJ45 |
| Response Time | Detachable Type (IR, Ambient) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 150W / 165W |
| Power Consumption (Standby) | < 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Special | ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update |
| Tuner | N/A |
| Internal Media Player | N/A |
| VESA Standard Wall Mount Interface | 600 x 400mm |
| Dimensions | |
| Product Dimensions (without stand) | 47.8" x 27.0" x 4.5" |
| Packaging Dimensions | 56.7" x 34.3" x 14.8" |
| Bezel Width | 3.7mm(U/L), 1.8mm(R/B) |
| Weight | |
| Product Weight | 53.5 lbs. |
| Shipping Weight | 77.2 lbs. |
| Service | |
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | |
| Included | Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Mount | WMN-4675MD |
| Optional Stand | MID-UD55FS |
| Optional Media Player | SBB-C, SBB-CD7, SBB-CQ7 |
| Green Management | |
| Emission Standard | EMC |
| ENERGY STAR® 6.0 Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Recyclability | Packing Materials Recyclable |
| Connectivity | |
|
 |
Compare:
| Samsung UDC Series Commercial LED LCD Displays | ||||
|---|---|---|---|---|
| Model Number | UD46C | UD55C | UD46C-B | UD55C-B |
| Display | ||||
| Screen Size | 46" Direct-lit LED Backlit LCD | 55" Direct-lit LED Backlit LCD | 46" Direct-lit LED Backlit LCD | 55" |
| Panel Technology | S-PVA (60Hz) | S-PVA (60Hz) | S-PVA (60Hz) | 60Hz (Direct-LED Backlight) |
| Resolution | 1920 x 1080 Full HD | 1920 x 1080 Full HD | 1920 x 1080 Full HD | 1920 x 1080 |
| Brightness | 700 nits | 700 nits | 450 nits | 500 nits |
| Contrast Ratio (Typical) | 3500:1 | 3500:1 | 3500:1 | 3,500:1 |
| Viewing Angle (Horizontal/Vertical) | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Orientation | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait |
| Response Time | 8ms | 8ms | 6.5ms | 8ms |
| Connectivity | ||||
| Input | VGA (D-sub 15 pin), DVI-D, DisplayPort 1.2, Composite, HDMI (x2), Component, Stereo Mini Jack | VGA (D-sub 15 pin), DVI-D, DisplayPort 1.2, Composite, HDMI (x2), Component, Stereo Mini Jack | VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack | VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack |
| Output | DisplayPort 1.2, Stereo Mini Jack | DisplayPort 1.2, Stereo Mini Jack | DVI-D (Loop out), Stereo Mini Jack | DVI-D (Loop out), Stereo Mini Jack |
| External Control | RS232C (In/Out), RJ45 | RS232C (In/Out), RJ45 | RS232C (in/out), RJ45 | RS232C (in/out), RJ45 |
| Response Time | Detachable Type (IR, Ambient) | Detachable Type (IR, Ambient) | Detachable Type (IR, Ambient) | Detachable Type (IR, Ambient) |
| Power | ||||
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 120W / 165W | 160W / 220W | 113W / 130W | 150W / 165W |
| Power Consumption (Standby) | < 0.5W | < 0.5W | < 0.5W | < 0.5W |
| Environmental Conditions | ||||
| Operating Temperature | 0°C - 40°C | 0°C - 40°C | 0°C - 40°C | 0°C - 40°C |
| Operating Humidity | 10%~80% | 10%~80% | 10%~80% | 10%~80% |
| Features | ||||
| Special | Advanced Color Management, Magic Clone, Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention (Haze 44%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping), Built-in MagicInfo (Lite, Premium-S, VideoWall-S) | Advanced Color Management, Magic Clone, Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention (Haze 44%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping), Built-in MagicInfo (Lite, Premium-S, VideoWall-S) | Auto Source Switchinig & Recovery, Lamp Error Detection, Anti Retention (Haze 11%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Button Lock, DVI Digital Daisy Chain, Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping) | ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update |
| Tuner | N/A | N/A | N/A | N/A |
| Internal Media Player | Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB (2) | Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB (2) | N/A | N/A |
| VESA Standard Wall Mount Interface | 600 x 400mm | 600 x 400mm | 600 x 400mm | 600 x 400mm |
| Dimensions | ||||
| Product Dimensions (without stand) | 40.3" x 22.8" x 3.8" | 47.8" x 27" x 3.8" | 40.3" x 22.8" x 3.8" | 47.8" x 27.0" x 4.5" |
| Packaging Dimensions | 49.4" x 31.4" x 14.0" | 57.1" x 35.6" x 15.2" | 49.4" x 31.4" x 14.0" | 56.7" x 34.3" x 14.8" |
| Bezel Width | 3.5mm (U/L), 1.8mm (R/B) | 3.7mm (U/L), 1.8mm (R/B) | 3.7mm (U/L), 2.0mm (R/B) | 3.7mm(U/L), 1.8mm(R/B) |
| Weight | ||||
| Product Weight | 40 lbs. | 52.8 lbs. | 40 lbs. | 53.5 lbs. |
| Shipping Weight | 77 lbs. | 91.5 lbs. | 68.6 lbs. | 77.2 lbs. |
| Service | ||||
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | ||||
| Included | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Mount | WMN-4675MD | WMN-4675MD | WMN-4675MD | WMN-4675MD |
| Optional Stand | MID-UD46FS | MID-UD55FS | MID-UD46FS | MID-UD55FS |
| Optional Media Player | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 |
| Green Management | ||||
| Emission Standard | EMC | EMC | EMC | EMC |
| ENERGY STAR® 6.0 Compliant | Yes | Yes | Yes | Yes |
| RoHS Compliant | Yes | Yes | Yes | Yes |
| Packaging Recyclability | Packing Materials Recyclable | Packing Materials Recyclable | Packing Materials Recyclable | Packing Materials Recyclable |
| Connectivity | ||||
|
 |
|||

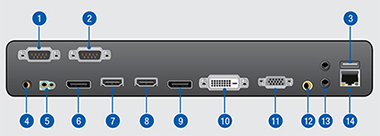

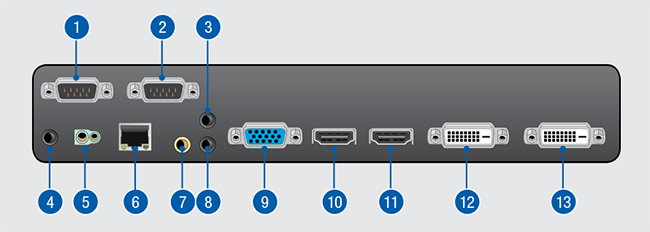

| Connectivity UD46C-B and UD55C-B Only |
||||
|
 |
|||
Images:
Documentation:
Download the Samsung UDC Series Commercial LED LCD Displays Datasheet (.PDF)
