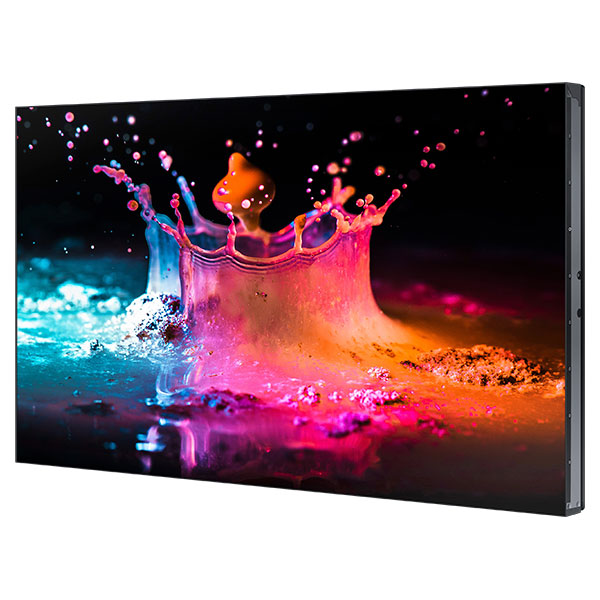

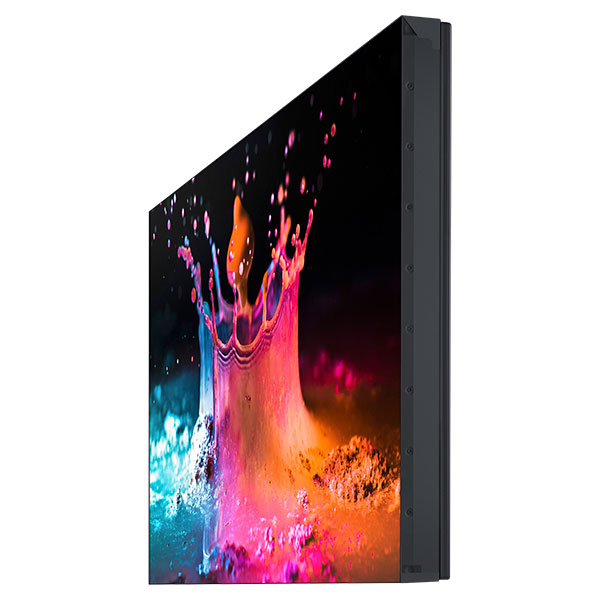

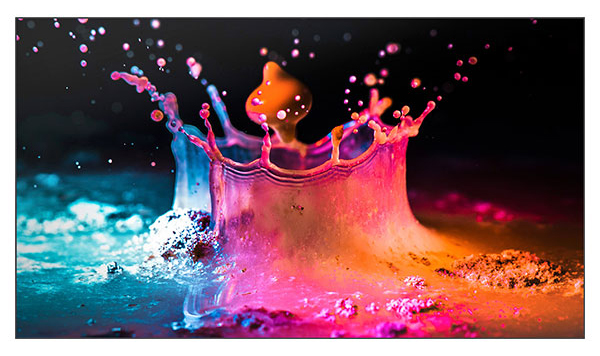

Samsung UD55E-B - UD-E-B Series 55" Direct-Lit LED Display for Business
Daisy chain multiple displays with Display Port 1.2 digital loop-out to achieve 4K UHD (3840x2160) resolution.
Sorry, this product is no longer available, please contact us for a replacement.
Create beautiful video walls in an affordable fashion. The UD55E-B features an ultra-thin bezel for virtually seamless matrices. Factory calibration provides brightness and color uniformity across multiple displays. And you can achieve 4K UHD resolution when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, without the cost of external processing scalers and distribution boxes.
- Daisy chain multiple displays with Display Port 1.2 digital loop-out to achieve 4K UHD (3840x2160) resolution
- Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) allow you to create virtually seamless video walls
- Factory-tuned for brightness and color uniformity right out of the box, with Advanced Color Management for customization
- Cost-effective video wall display solution built for 24/7 around the clock operation
Samsung's factory calibration ColorExpert technology helps to minimize color difference across mulitple displays. Factory-tuned for brightness, color temperature and gamma, you can experience color uniformity right out of the box for consistent video wall matrices.
Advanced Color Management (ACM)
The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.
Ultra-Narrow 3.5mm Bezels
The UD55E-B features incredibly thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless video walls with elegance and sophistication.
Beautiful Video Walls
Create elaborate, stunning video walls. And when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, you can achieve 4K UHD (3840x2160) resolution. So you can deliver exceptional content with fine detail for a stunning, impactful experience.
Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal, and vice versa, when you connect and split-screen multiple displays in a video wall matrix.
Save installation time for multiple displays with Magic Clone. Simply enter your display settings the first time, save the setting information to a USB or external HDD and plug in the external device to the other sets to install them equally.
Reliable 24/7 Operation
Innovative Samsung cooling technologies on these video wall displays allow your installation to be shown with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements.
|Samsung UD55E-B - UD-E-B Series 55" Direct-Lit LED Display for Business Specifications|
|Panel Technology||D-LED DID|
|Contrast Ratio (Typical)||4000:1|
|Resolution||1920 x 1080|
|Viewing Angle (H/V)||178°/178°|

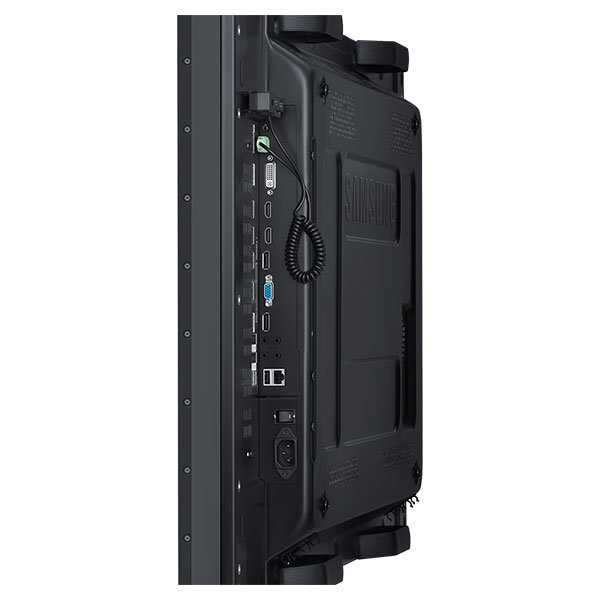

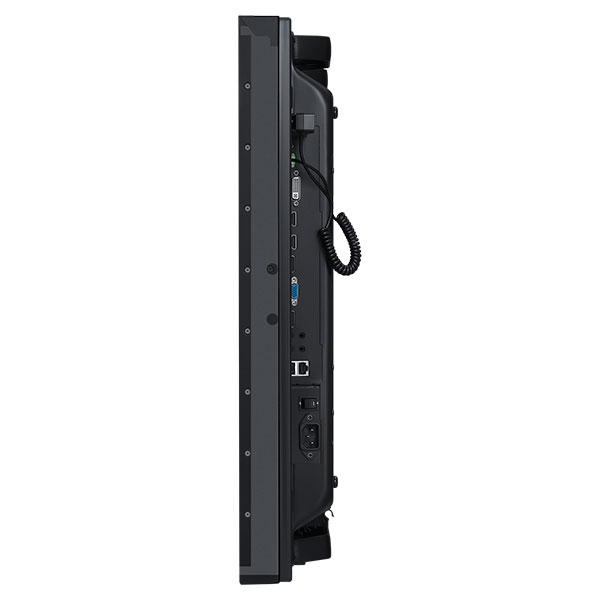

|Input||RGB: Analog D-SUB, DVI-D, Display Port 1.2, VIDEO: HDMI1,HDMI2, AUDIO: Stereo mini Jack, USB: Only for F/W upgrades|
|Output||RGB: DP1.2(Loop-out), AUDIO: Stereo mini Jack|
|External Control||RS232C(in/out), RJ45|
|Sensor||Detachable type(IR, Ambient)|
|Power Supply||AC 100 - 240 V~ (+/- 10 %), 50/60 Hz|
|Power Consumption (Typical/Max)||136W / 198W|
|Power Consumption (Standby)||< 0.5W|
|Special||Hardware: Haze 44%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(OSD), Video Wall Daisy Chain, Pivot Display, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Clock Battery(80hrs Clock Keeping)
Software: ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Image Rotation, Smart F/W update,

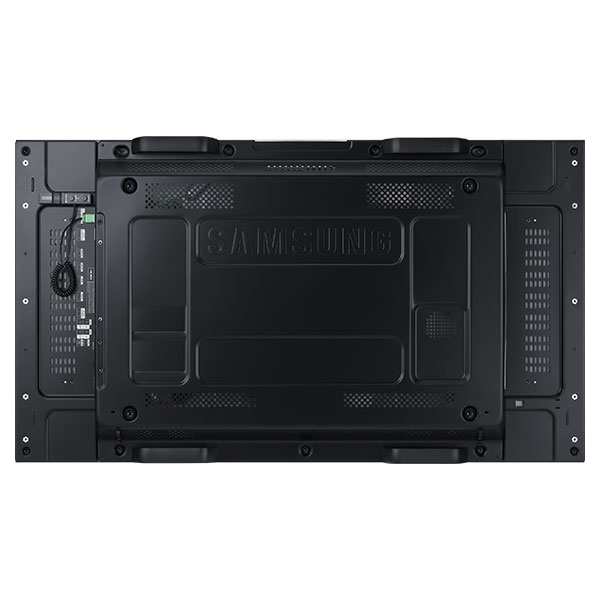

|Vesa Standard Wall-Mount Interface||600 x 400 mm|
|Video Wall/Thin Bezel||Yes|
|Without Stand (W x H x D)||47.8" x 26.9" x 3.8"|
|Packaging (W x H x D)||57.1" x 35.6" x 15.2"|
|Bezel Width||2.3mm(U/L), 1.2mm(R/B)|
|Product Weight||51.3 lb.|
|Package Weight||81.2 lb.|
|Included in Box|
|Included in Box||Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries,|
|Optional Wall Mount Kit||WMN-55VD|
|Optional Media Player||SBB-DA, SBB-DI, SBB-B32D|
|Energy Star Certified||Yes|
|Packaging Recyclability||Yes, Packing Materials|
|Operating Temperature||0℃~ 40℃|
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
