Samsung UD55E-S - UD-E-S Series 55" Direct-Lit LED Display for Broadcast Studios and Business
Low panel color temperature (3,200K - 6,500K) in sync with most broadcast cameras and lighting.
This product is no longer available, replaced by the UH55F-E - UHF-E Series 55" Ultra Narrow Bezel Videowall Display
Overview:
Specially designed for TV broadcast studios, the color temperature of the UD55E-S panel is in sync with most broadcast cameras and lighting. So you can be confident that the image in the studio will reflect for viewers at home. And a higher color accuracy for off-axis viewing provides an added convenience in the studio. All while saving the time and cost of synchronization.
- Low panel color temperature (3,200K - 6,500K) in sync with most broadcast cameras and lighting
- High color accuracy for off-axis viewing maintains a sharp image throughout the studio
- Advanced factory calibration provides color and brightness uniformity across multiple displays right out of the box
- Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) for virtually seamless video walls, with reliable 24/7 operation
Features
Color Temperature Sync and Factory Calibration
The UD55E-S display panel features a low color temperature (3,200K - 6,500K) that is in sync with most broadcast cameras and lighting. A high color accuracy for off-axis viewing provides added convenience. And advanced factory calibration provides color and brightness uniformity for multiple displays right out of the box, perfect for video wall matrices.
Advanced Color Management (ACM)
The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.
Ultra-Narrow 3.5mm Bezels
The UD55E-S features incredibly thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless video walls with elegance and sophistication.
Embedded System-on-Chip (SoC) Technology
The Samsung SMART Signage Platform (SSP) helps to reduce the cost and complexity of installation and maintenance by streamlining hardware and software requirements. With embedded System-on-Chip (SoC) technology, you can eliminate the need for external media players and seamlessly display content across your video walls.
Achieve UHD Resolution
Create elaborate, stunning video walls. And when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, you can achieve 4K UHD (3840x2160) resolution. So you can deliver exceptional content with fine detail for a stunning, impactful experience.
Image Rotation
Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal, and vice versa, when you connect and split-screen multiple displays in a video wall matrix.
Magic Clone
Save installation time for multiple displays with Magic Clone. Simply enter your display settings the first time, save the setting information to a USB or external HDD and plug in the external device to the other sets to install them equally.
Specifications:
| Samsung UD55E-S - UD-E-S Series 55" Direct-Lit LED Display for Broadcast Studios and Business Specifications | |
|---|---|
| Display | |
| Screen Size | 55" |
| Brightness | 700 nits |
| Panel Technology | D-LED DID |
| Contrast Ratio (Typical) | 4000:1 |
| Resolution | 1920 x 1080 |
| Viewing Angle (H/V) | 178°/178° |
| Aspect Ratio | 16:9 |
| Response Time | 8ms |
| Connectivity | |
| Input | RGB: Analog D-SUB, DVI-D, Display Port 1.2, VIDEO: HDMI1,HDMI2, Component(CVBS Common), AUDIO: Stereo mini Jack, USB: USB 2.0 x 1 |
| Output | RGB: DP1.2(Loop-out), AUDIO: Stereo mini Jack |
| External Control | RS232C(in/out), RJ45 |
| Sensor | Detachable type(IR, Ambient) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 217W / 297W |
| Power Consumption (Standby) | < 0.5W |
| Features | |
| Special | Hardware: Haze 44%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting MST 2x2 UHD Resolution), Clock Battery(80hrs Clock Keeping), Panel designed for Broadcasting(2,800K~6,500K color temperature and accurate off-axis color viewing) Software: ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Smart Scheduling, Smart F/W update, Built In MagicInfo(MagicInfo Player S3) |
| Vesa Standard Wall-Mount Interface | 600 x 400 mm |
| 24/7 Operation | Yes |
| Video Wall/Thin Bezel | Yes |
| Smart Signage Platform | Yes |
| Media Player Type | Cortex-A9 1GHz Quad Core CPU, 1.5GB, DDR3-933, 8GB, USB 2.0, Samsung Proprietary OS (VDLinux) |
| Dimensions | |
| Without Stand (W x H x D) | 47.8" x 26.9" x 3.8" |
| Packaging (W x H x D) | 57.1" x 35.6" x 15.2" |
| Bezel Width | 2.3mm(U/L), 1.2mm(R/B) |
| Weight | |
| Product Weight | 51.3 lb |
| Package Weight | 81.2 lb. |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries, |
| Optional Wall Mount Kit | WMN-55VD (Videowall Mount) |
| Optional Stand | MID-UD55DS (Videowall Floor Stand) |
| Optional Media Player | SBB-DA, SBB-DI, SBB-B32D |
| Green Management | |
| Energy Star Certified | Yes |
| ROHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Yes, Packing Materials |
| Operation | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |

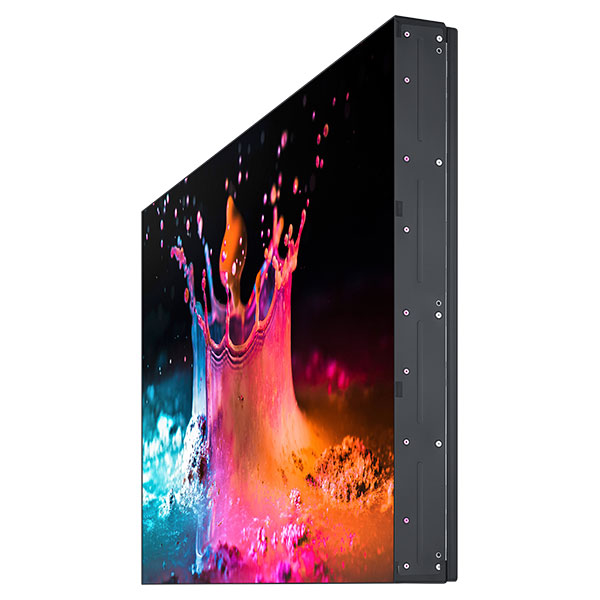

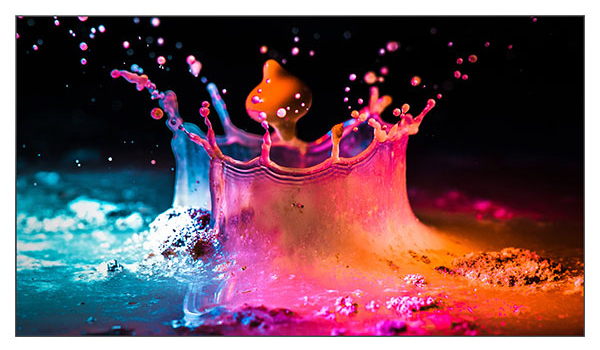

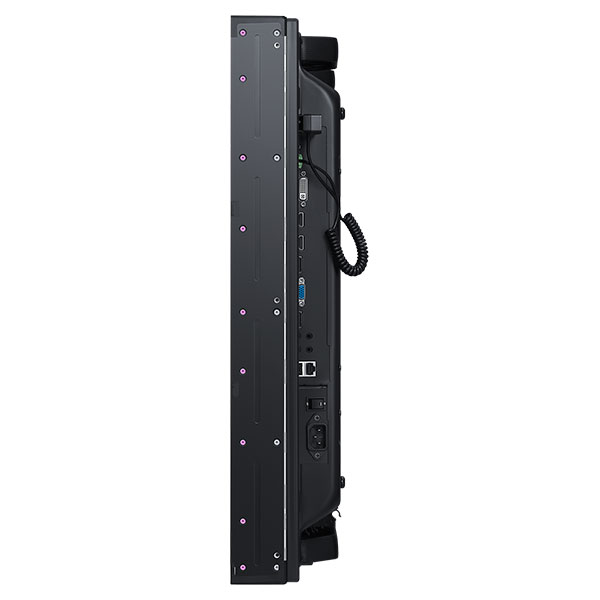

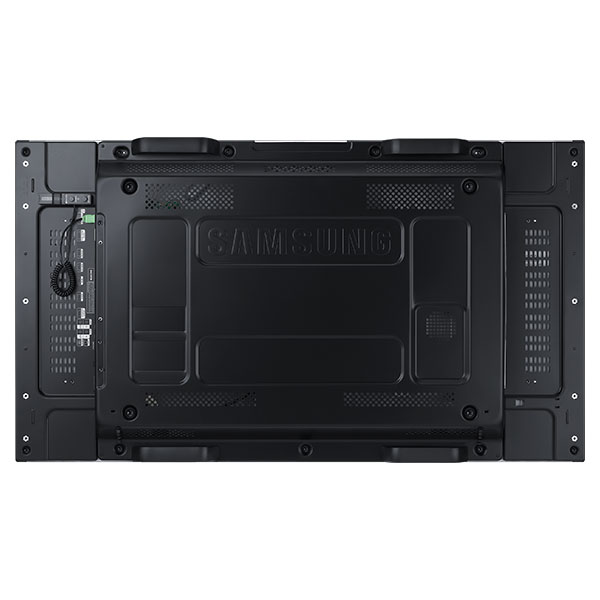

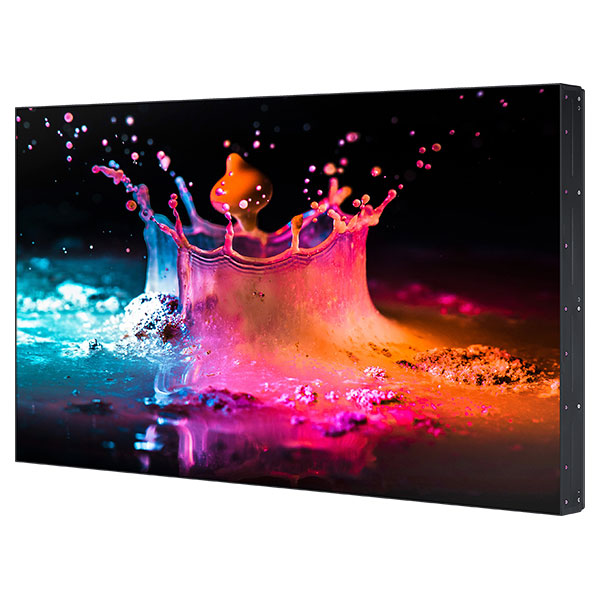

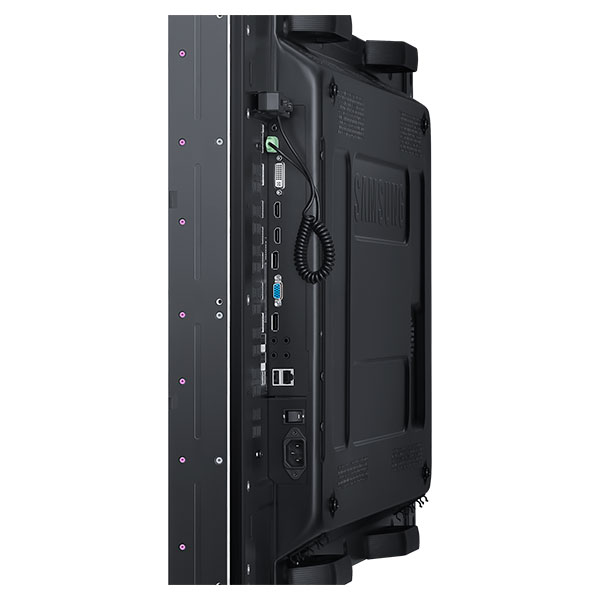

Images:
