Samsung UE46D - UE-D Series 46" Edge-Lit LED Display
Picture-perfect Displays For A Perfect Videowall Solution.
This product is no longer available, replaced by the UH46F5 - UHF Series 46" Slim Depth Videowall Display
Overview:
The Samsung UE46D features a stylishly thin chassis with a slim 11mm bezel to bezel (BtB) spec, combined with an upgraded Samsung SMART Signage Platform. Create beautiful video walls in full HD with no PC, DVD or SBB required. Built-in WiFi allows for easy mobile control and increased Daisy Chain capability, while compatibility with our predecessor UE46C model provides versatile options.
- Edge-Lit LED 46" Display with Narrow Bezels at 11mm BtB
- Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
- Stylish, Ultra-Slim 1.2" Chassis Design
- PC-Less Videowalls and Built-in WiFi
Features
Edge-Lit LED Display

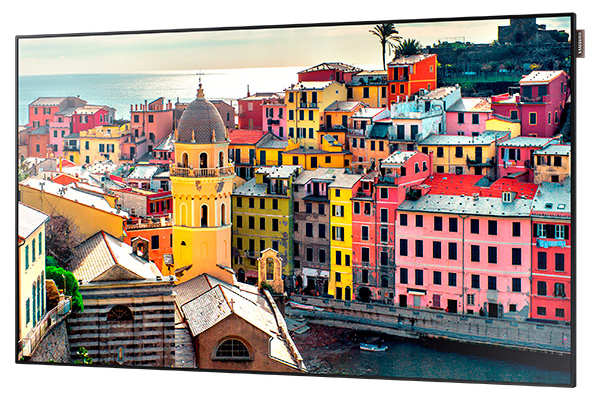

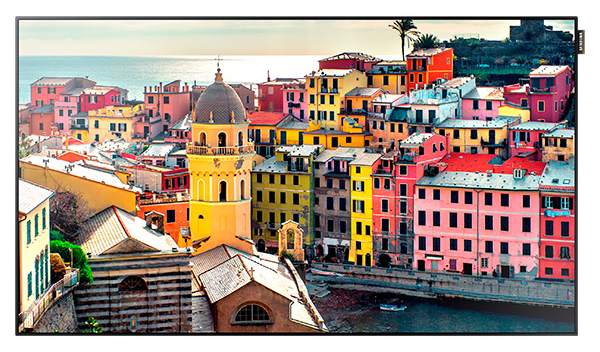

The edge-lit 46" display of the UE46D features full HD resolution to deliver sharp, detail-rich images and crisp type. The narrow bezels, at 11mm BtB, elegantly complement the visuals thanks to minimal distraction.
Enhanced SSP with Quad Core Processor
Experience 2x SoC performance thanks to SSP with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.

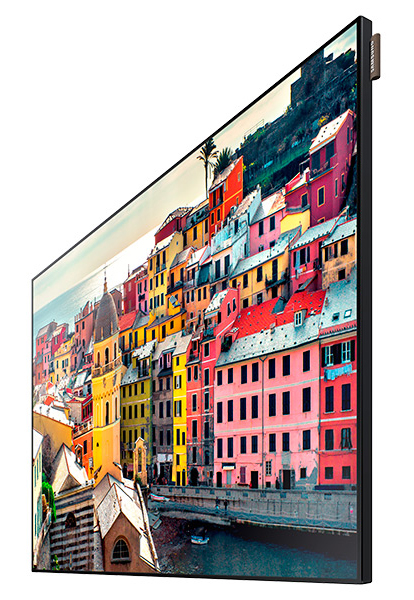

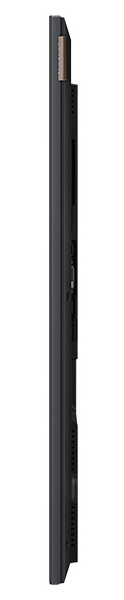

Ultra-Slim 1.2" Chassis
A stylishly thin chassis helps to create sophisticated videowalls that can inspire your audience. The ultra-slim design also helps to simplify installation while meeting ADA compliance requirements.
PC-Less Videowalls
Create beautiful video walls with no PC, DVD or SBB. Use only USB with Display Port 1.2 Loop In/Out. Users can benefit from the simplified process and less equipment requirements for videowall installation and content playing.
Built-In Wi-Fi
Experience easy mobile control and increased Daisy Chain capability thanks to built-in Wi-Fi. Use AllShare® Cast (sold separately) over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.
UE46C Compatibility
The UE46D features a new design that is compatible with our predecessor UE46C model to provide businesses with versatile options for videowall creation. Enjoy bezel, depth and VESA compatibility.
Specifications:
Samsung UE46D - UE-D Series 46" Edge-Lit LED Display Specifications | ||
---|---|---|
Display | ||
Screen Size | 46" | |
Panel Technology | 120Hz E-LED BLU | |
Resolution | 1920 x 1080 (16:9) Full HD | |
Brightness | 450 nits | |
Contrast Ratio | 4000:1 | |
Viewing Angle (Horizontal/Vertical) | 178° / 178° | |
Orientation | Landscape / Portrait | |
Response Time (G-to-G) | 8ms | |
Connectivity | ||

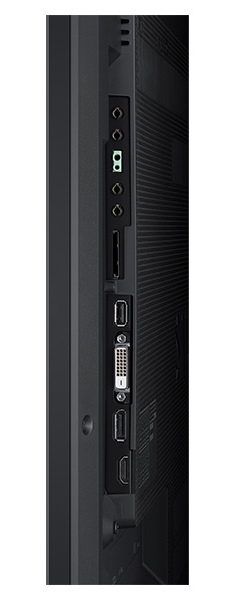

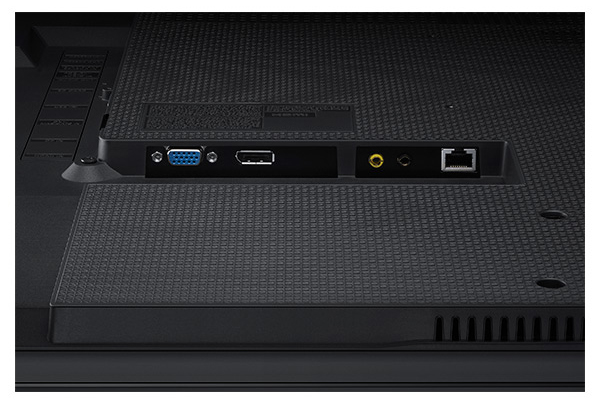

Input | Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack | |
Output | Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack | |
External Contro | RS232C (In/Out) thru Stereo Jack, RJ45 | |
Power | ||
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | |
Power Consumption (Typical/Max | 115W / 132W | |
Power Consumption (Standby) | < 0.5W | |
Environmental Conditions | ||
Operating Temperature | 0°C - 40°C | |
Operating Humidity | 10%~80% | |
Features | ||
Key | LED Slim Videowall | |
Special | Hardware | Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2ch) |
Software | Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player | |
Internal Media Player | Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS | |

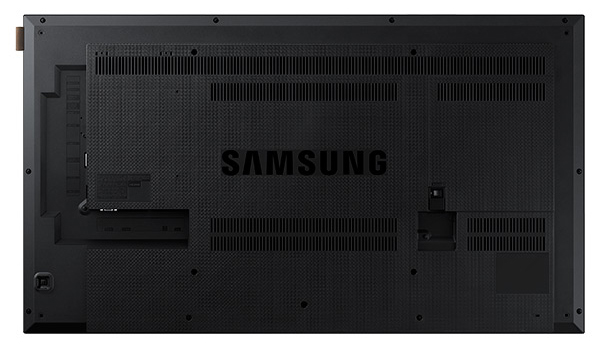

VESA Standard Wall Mount Interface | 400 x 400mm | |
Dimensions | ||
Product Dimensions (without stand) | 40.6" 23.0" x 1.2" | |
Packaging Dimensions | 43.7" x 26.3" x 5.1" | |
Bezel Width | 5.5mm | |
Weight | ||
Product Weight | 22 lbs. | |
Shipping Weight | 28 lbs. | |
Service | ||
Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) | |
Accessories | ||
Included | Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries | |
Optional Mount | WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M) | |
Optional Stand | STN-L4055AD, STN-L4655E | |
Optional Media Player | SBB-C, SBB-CD7, SBB-CQ7 | |
Green Management | ||
Emission Standard | EMC | |
ENERGY STAR® 6.0 Compliant | Yes | |
RoHS Compliant | Yes | |
Packaging Recyclability | Packing Materials Recyclable | |
Connectivity | ||
|
Compare:
Samsung UE-D Series Commercial LED LCD Displays | |||
---|---|---|---|
Model Number | UE46D | UE55D | |
Display | |||
Screen Size | 46" | 55" | |
Panel Technology | 120Hz E-LED BLU | 120Hz E-LED BLU | |
Resolution | 1920 x 1080 (16:9) Full HD | 1920 x 1080 (16:9) Full HD | |
Brightness | 450 nits | 450 nits | |
Contrast Ratio | 4000:1 | 4000:1 | |
Viewing Angle (Horizontal/Vertical) | 178° / 178° | 178° / 178° | |
Orientation | Landscape / Portrait | Landscape / Portrait | |
Response Time (G-to-G) | 8ms | 8ms | |
Connectivity | |||
Input | Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack | Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack | |
Output | Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack | Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack | |
External Contro | RS232C (In/Out) thru Stereo Jack, RJ45 | RS232C (In/Out) thru Stereo Jack, RJ45 | |
Power | |||
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | |
Power Consumption (Typical/Max) | 115W / 132W | 130W / 154W | |
Power Consumption (Standby) | < 0.5W | < 0.5W | |
Environmental Conditions | |||
Operating Temperature | 0°C - 40°C | 0°C - 40°C | |
Operating Humidity | 10%~80% | 10%~80% | |
Features | |||
Key | LED Slim Videowall | LED Slim Videowall | |
Special | Hardware | Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2ch) | Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker (10W x 2ch) |
Software | Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player | Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player | |
Internal Media Player | Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS | Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS | |
VESA Standard Wall Mount Interface | 400 x 400mm | 400 x 400mm | |
Dimensions | |||
Product Dimensions (without stand) | 40.6" 23.0" x 1.2" | 48.1" x 27.3" x 1.2" | |
Packaging Dimensions | 43.7" x 26.3" x 5.1" | 52.8" x 31.5" x 5.7" | |
Bezel Width | 5.5mm | 5.5mm | |
Weight | |||
Product Weight | 22 lbs. | 29.3 lbs. | |
Shipping Weight | 28 lbs. | 38.6 lbs. | |
Service | |||
Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) | |
Accessories | |||
Included | Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries | |
Optional Mount | WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M) | WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M) | |
Optional Stand | STN-L4055AD, STN-L4655E | STN-L4055AD, STN-L4655E | |
Optional Media Player | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 | |
Green Management | |||
Emission Standard | EMC | EMC | |
ENERGY STAR® 6.0 Compliant | Yes | Yes | |
RoHS Compliant | Yes | Yes | |
Packaging Recyclability | Packing Materials Recyclable | Packing Materials Recyclable | |
Connectivity | |||
|
Images:
Documentation:
Download the Samsung UE-D Series Commercial LED LCD Displays Datasheet (.PDF)
