Samsung UH55F-E - UHF-E Series 55" Ultra Narrow Bezel Videowall Display
Videowall Display featuring ultra-narrow 1.7mm bezels and 4K UHD capability
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Create amazing videowalls to make your message stand out. The UH55F-E features an ultra-narrow 1.7mm bezel for virtually seamless matrices. The non-glare panel offers improved visibility and it's built for 24/7 runtime. Plus, you can achieve 4K UHD resolution when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, without the cost of external processing scalers and distribution boxes.
- Ultra-narrow bezels at 1.7mm bezel-to-bezel allow you to create virtually seamless videowalls
- Non-glare, high brightness panel offers improved visibility in bright ambient light
- Reliable 24/7 continuous run-time to meet around the clock business operating requirements

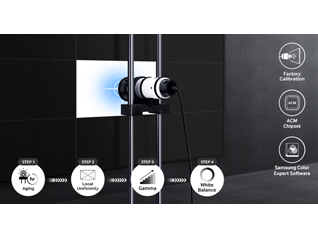

- Factory calibrated for uniform brightness and color across multiple displays
Features:

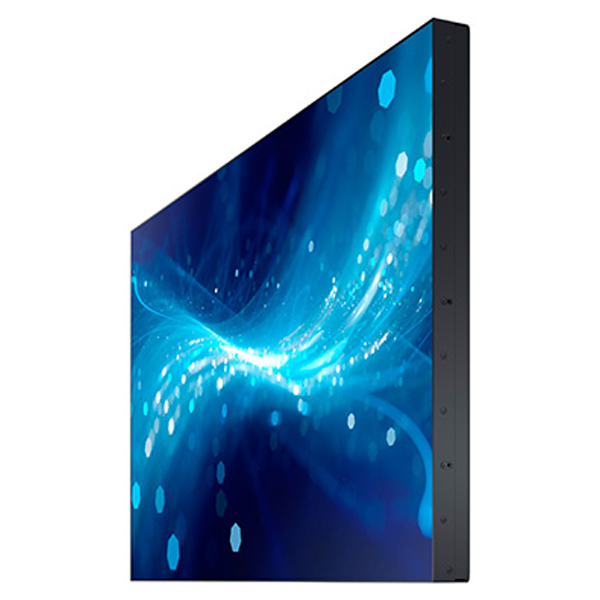

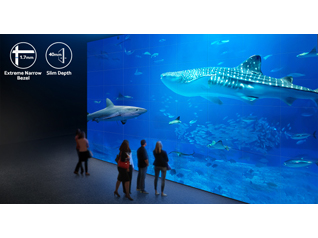

Ultra-Narrow 1.7mm Bezels
The UH55F-E features incredibly thin bezels at a mere 1.7mm bezel-to-bezel and 1.96mm active-to-active. So you can create virtually seamless videowalls with elegance and sophistication.

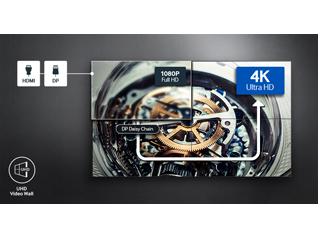

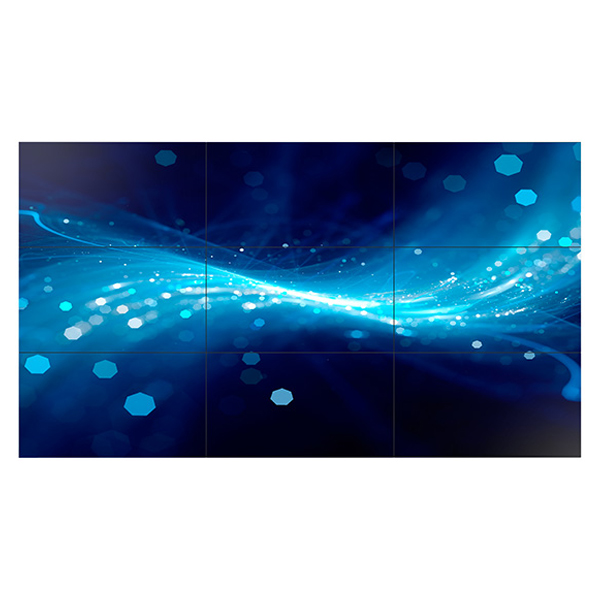

Amazing Videowalls
Create elaborate, stunning videowalls. You can daisy chain up to 25 displays with the Display Port 1.2 digital loop-out feature to achieve 4K UHD (3840x2160) resolution. So you can deliver exceptional content with fine detail for an impactful experience.

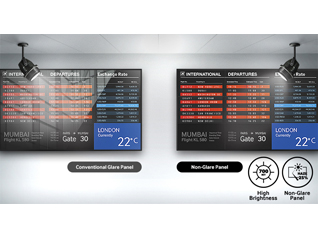

Non-Glare, High Brightness Panel for Improved Visibility
The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.
Built for 24/7 Use
These displays are built for 24/7 continuous use. So you can meet around the clock operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.
Advanced Color Management (ACM)
The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.
Image Rotation
Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal, and vice versa, when you connect and split-screen multiple displays in a videowall matrix.
Specifications:
Download the Samsung UHF-E/UMH-E Series Extreme Narrow Bezel Videowall Display Datasheet (.PDF)
| Samsung UH55F-E - UHF-E Series 55" Ultra Narrow Bezel Videowall Display Specifications | |
|---|---|
| Display | |
| Screen Size | 55" |
| Panel Technology | D-LED DID |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Brightness | 700nit |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 8ms |

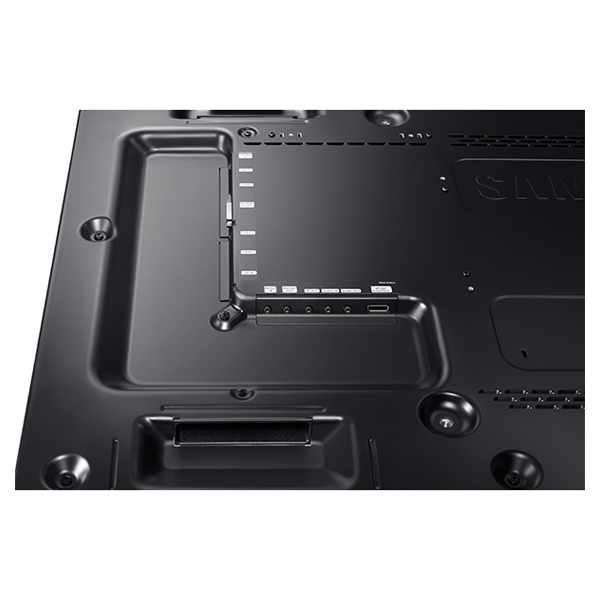

| Connectivity | |
| Input | RGB: DVI-D, Display Port 1.2 VIDEO: HDMI (2) AUDIO: Stereo Mini Jack USB: Only F/W upgrade |
| Output | AUDIO: Stereo Mini Jack |
| External Control | RS232C(in/out), RJ45 |
| Sensor | Detachable Type(IR) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Standby) | less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Special | ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 11%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Videowall(15x15(OSD)), Videowall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping) |
| Media Player Type | Cortex-A9 1GHz Quad Core CPU, 1.5GB DDR3, 8GB FDM, USB 2.0, Samsung Proprietary OS (VDLinux) |
| Plug & Play | Yes |
| 24/7 Operation | Yes |
| Videowall/Thin Bezel | Yes |
| Dimensions | |
| Without Stand (W x H x D) | 40.3" x 22.7" x 1.8" |
| Packaging (W x H x D) | 46.1" x 28.8" x 10.9" |
| Bezel Width | 0.13" (U/L), 0.08" (R/B) |
| Weight | |
| Product Weight | 29.1 lbs. |
| Package Weight | 42.3 lbs. |
| Service | |
| Standard Warranty | 3yr Onsite (Parts/Labor/Backlight) |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries |
| Optional Wall Mounting Kit | WMN-46VD |
| Optional Stand | SBB-DA / SBB-DI / SBB-SS08E |
| Optional Media Player | SBB-DA / SBB-SS08E |
| Green Management | |
| ROHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Packing Materials Recyclable |
| Mechanical Specs | |
| VESA Mount | 400x400 (mm) |
Images:
Pricing Notes:
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
