Samsung 470 Series 43" Hospitality TV
Overview:
Samsung's 470 Series Hospitality TVs feature direct-lit LED technology to affordably provide an exceptional in-room experience for your guests. LED uses up to 50% less energy, helping you conserve and save money. Content management is made simple with Samsung LYNK REACH® 4.0, while our LYNK DRM technology protects your content.
- Direct-lit LED provides uniform brightness and energy savings
- Conveniently manage content with Samsung LYNK REACH® 4.0
- Get maximum security with Samsung LYNK® HD Content Decryption DRM
- Versatile viewing thanks to a swivel stand that rotates 20, 60 and 90 degrees in both directions
Features:

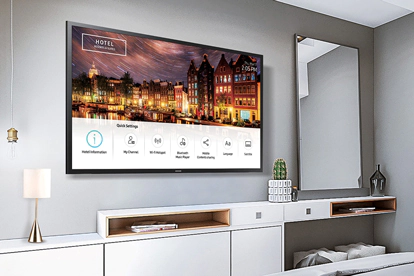

Direct-Lit LED Technology
Direct-lit LED technology provides the brilliance and energy savings advantages of LED technology, along with the uniform brightness typical of CCFL displays. And it's possible to upgrade your rooms to LED technology for a cost comparable to CCFL technology.
Samsung LYNK® HD Content Decryption DRM
Samsung’s software-based DRM technology is integrated into the entire Samsung Hotel TV line. Samsung LYNK® offers a robust solution to unlock premium HDTV content from content providers such as cable, satellite and VOD providers, with maximum efficiency and security.

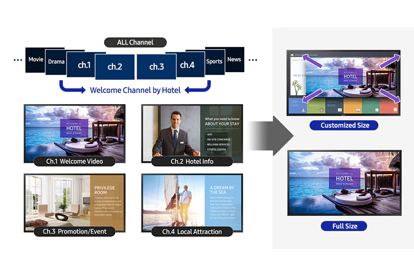

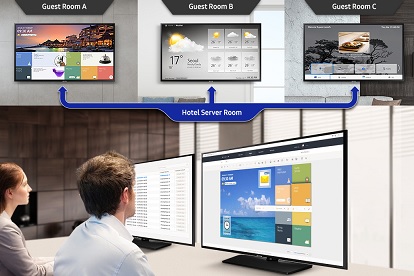

Samsung LYNK REACH® 4.0 Content Management Solution
Enabled by Tizen, H-Browser is a true SMART TV solution that allows exceptional flexibility for content development, so that certified system integrators can create smart hospitality solutions. It features both free and video on demand (VOD) content, and is able to interface directly with the head end without a set top box.

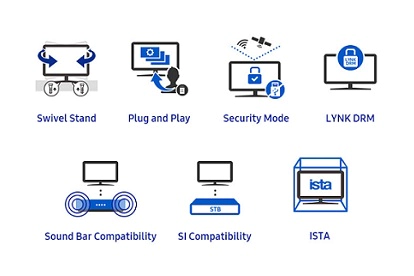

A Host of Features
The display pedestal stand rotates with 20/20, 60/60 and 90/90 degree stops, for easy adjustability. Other features of the 470 Series include: Home Menu, RJ12 IR PASS, Volume Limiters, Rear Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control.
Specifications:
NJ470 Series Key Specifications |
|||||
|---|---|---|---|---|---|
|
|
32" - HG32NJ470NFXZA |
40" - HG40NJ470MFXZA |
43" HG43NJ470MFXZA |
49" HG49NJ470MFXZA |
Display |
Backlight |
LED |
LED |
LED |
LED |
Screen Size (Diagonal) |
32" |
40" |
43" |
49" |
|
HD/FHD |
HD |
FHD |
FHD |
FHD |
|
Resolution |
1366 x 768 |
1920 x 1080 |
1920 x 1080 |
1920 x 1080 |
|
Video |
Picture Engine |
HyperReal |
HyperReal |
HyperReal |
HyperReal |
Dynamic Contrast Ratio |
Mega Contrast |
Mega Contrast |
Mega Contrast |
Mega Contrast |
|
Wide Color Enhancer (Plus) |
Yes |
Yes |
Yes |
Yes |
|
Film Mode |
Yes |
Yes |
Yes |
Yes |
|
Audio |
Dolby Digital Plus |
Yes |
Yes |
Yes |
Yes |
Sound Output (RMS) |
10W (L:5W, R:5W) |
20W (L:10W, R:10W) |
20W (L:10W, R:10W) |
20W (L:10W, R:10W) |
|
Speaker Type |
2CH (Down Firing w/Base Reflex) |
2CH (Down Firing w/Base Reflex) |
2CH (Down Firing w/Base Reflex) |
2CH (Down Firing w/Base Reflex) |
|
SMART TV |
Smart TV Type |
Non Smart |
Non Smart |
Non Smart |
Non Smart |
Features |
Accessibility |
Voice Guide |
Voice Guide |
Voice Guide |
Voice Guide |
Clean View |
Yes |
Yes |
Yes |
Yes |
|
Analog Clean View |
Yes |
Yes |
Yes |
Yes |
|
Digital Clean View |
Yes |
Yes |
Yes |
Yes |
|
Auto Channel Search |
Yes |
Yes |
Yes |
Yes |
|
Auto Power Off |
Yes |
Yes |
Yes |
Yes |
|
Caption (Subtitle) |
Yes |
Yes |
Yes |
Yes |
|
ConnectShare™ (USB 2.0) |
Yes |
Yes |
Yes |
Yes |
|
EPG |
Yes |
Yes |
Yes |
Yes |
|
Game Mode |
Yes |
Yes |
Yes |
Yes |
|
OSD Language |
English, Spanish, French |
English, Spanish, French |
English, Spanish, French |
English, Spanish, French |
|
Picture-In-Picture |
Yes |
Yes |
Yes |
Yes |
|
V-Chip |
Yes |
Yes |
Yes |
Yes |
|
System |
Digital Broadcasting |
ATSC / Clear QAM |
ATSC / Clear QAM |
ATSC / Clear QAM |
ATSC / Clear QAM |
Analog Tuner |
Yes |
Yes |
Yes |
Yes |
|
Hospitality Features |
Samsung LYNK™ REACH (RF) |
REACH 4.0 |
REACH 4.0 |
REACH 4.0 |
REACH 4.0 |
Hospitality Home Menu |
Home Menu 2015 |
Home Menu 2015 |
Home Menu 2015 |
Home Menu 2015 |
|
Hospitality Plug&Play (Easy Setup) |
Yes |
Yes |
Yes |
Yes |
|
Auto Source Mode |
Yes |
Yes |
Yes |
Yes |
|
Power On Mode |
Yes |
Yes |
Yes |
Yes |
|
Hotel Channel List |
Yes |
Yes |
Yes |
Yes |
|
Channel Menu Display |
Yes |
Yes |
Yes |
Yes |
|
Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) |
Yes |
Yes |
Yes |
Yes |
|
My Channel |
Yes |
Yes |
Yes |
Yes |
|
Energy Saving Mode (BLU Control) |
Yes |
Yes |
Yes |
Yes |
|
Logo Display with Timer Out Setting (BMP/Movie) |
Yes |
Yes |
Yes |
Yes |
|
Welcome Message |
Yes |
Yes |
Yes |
Yes |
|
RJ12 / IR Pass Through |
Yes |
Yes |
Yes |
Yes |
|
Clock Back Up Power Supply |
Yes |
Yes |
Yes |
Yes |
|
Software Clock |
Yes |
Yes |
Yes |
Yes |
|
Multi Code Remote Control |
Yes |
Yes |
Yes |
Yes |
|
Screwed Battery Cover |
Yes |
Yes |
Yes |
Yes |
|
Sound Bar Compatibility |
Yes |
Yes |
Yes |
Yes |
|
Music Mode (Input: PC/AV/Component/HDMI) |
Yes |
Yes |
Yes |
Yes |
|
Music Mode Backlight On/Off |
Yes |
Yes |
Yes |
Yes |
|
USB Cloning |
Yes |
Yes |
Yes |
Yes |
|
Smoovie Compatibility |
Yes |
Yes |
Yes |
Yes |
|
On/Off Timer (Schedule) |
Yes |
Yes |
Yes |
Yes |
|
Wake-up Timer (Alarm) |
Yes |
Yes |
Yes |
Yes |
|
Samsung LYNK™ DRM |
Yes |
Yes |
Yes |
Yes |
|
Security Mode |
Yes |
Yes |
Yes |
Yes |
|
S/W EPG (Solution EPG) |
Yes |
Yes |
Yes |
Yes |
|
Input and Output |
HDMI (Side/Rear) |
2/0 |
2/0 |
2/0 |
2/0 |
USB (Side/Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
Composite In (AV) (Side/Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
Audio Out (Mini Jack / LR) (Side/Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
RF In (Terrestrial / Cable input / Satellite Input) (Side/Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
Ex-Link (RS-232C) |
Common (RJP) |
Common (RJP) |
Common (RJP) |
Common (RJP) |
|
HDMI A / Return Ch. Support |
Yes |
Yes |
Yes |
Yes |
|
Anynet+ (HDMI-CEC) |
Yes |
Yes |
Yes |
Yes |
|
RJ12 (Side/Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
RJP Jack (For Remote Jackpack) (Side/Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
Design |
Front Color |
Black Hairline |
Black Hairline |
Black Hairline |
Black Hairline |
Bezel Type |
Semi-Slim |
Semi-Slim |
Semi-Slim |
Semi-Slim |
|
Stand Type |
Square |
Square |
Square |
Square |
|
Swivel (Left/Right) |
Yes (20/20, 60/60, 90/90) |
Yes (20/20, 60/60, 90/90) |
Yes (20/20, 60/60, 90/90) |
Yes (20/20, 60/60, 90/90) |
|
Dimensions (W x H x D) |
Set Size without Stand - (WxHxD) (mm/in) |
737.4 x 438.0 x 74.1 / 29.0" x 17.2" x 2.9" |
917.1 x 527.7 x 77.0 / 36.1" x 20.8" x 3.0" |
979.9 x 571.9 x 77.3 / 38.6" x 22.5" x 3.0" |
1112.8 x 646.5 x 78.3 / 43.8" x 25.5" x 3.1" |
Set Size with Stand (WxHxD) (mm/in) |
737.4 x 484.6 x 192.6 / 29.0" x 19.1" x 7.6" |
917.1 x 578.3 x 226.5 / 36.1" x 22.8" x 8.9" |
979.9 x 623.4 x 226.5 / 38.6" x 24.5" x 8.9" |
1112.8 x 698.0 x 226.5 / 43.8" x 27.5" x 8.9" |
|
Package Size (WxHxD) (mm/inch) |
914.0 x 541.0 x 140.0 / 36.0" x 21.3" x 5.5" |
1120.0 x 638.0 x 172.0 / 44.1" x 25.1" x 6.8" |
1210.0 x 680.0 x 175.0 / 47.6" x 26.8" x 6.9" |
1349.0 x 770.0 x 177.0 / 53.1" x 30.3" x 7.0" |
|
Weight |
Set Weight without Stand (kg / lbs) |
4.0 / 8.8 |
7.0 / 15.4 |
8.0 / 17.6 |
10.3 / 22.7 |
Set Weight with Stand (kg / lbs) |
5.6 / 12.3 |
10.0 / 22.0 |
11.0 / 24.2 |
13.4 / 29.5 |
|
Package Weight (kg / lbs) |
7.7 / 17.0 |
13.3 / 29.3 |
14.5 / 32.0 |
17.5 / 38.6 |
|
Power |
Power Supply (V) |
AC110-120V 60Hz |
AC110-120V 60Hz |
AC110-120V 60Hz |
AC110-120V 50/60Hz |
Accessory |
Remote Controller Model |
TM1240A |
TM1240A |
TM1240A |
TM1240A |
Batteries (for Remote Control) |
Yes |
Yes |
Yes |
Yes |
|
Mini Wall Mount Support |
N/A |
Yes |
Yes |
Yes |
|
Vesa Wall Mount Support |
Yes |
Yes |
Yes |
Yes |
|
Power Cable |
Yes |
Yes |
Yes |
Yes |
|
Quick Install Guide |
Yes |
Yes |
Yes |
Yes |
|
Data Cable |
Yes |
Yes |
Yes |
Yes |
|
Stand Mount Kit |
No |
Yes |
Yes |
Yes |
|
Security Screws |
Yes |
Yes |
Yes |
Yes |
|
VESA Standard |
VESA Size (mm) |
100 x 100 |
200 x 200 |
200 x 200 |
200 x 200 |
Wall Mount Screw Size |
M4 |
M8 |
M8 |
M8 |
|
|
|||||
