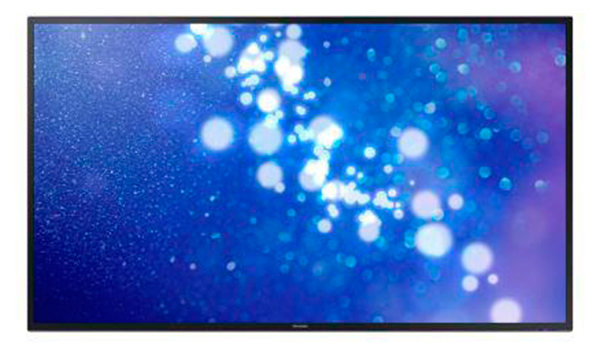

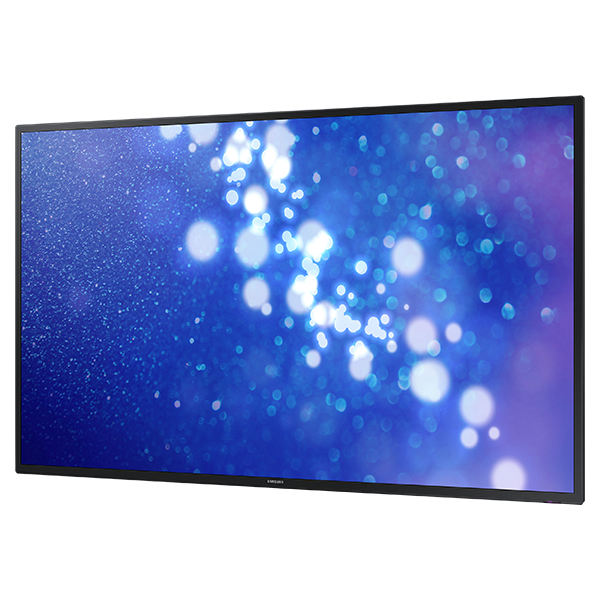

Samsung DM65E - DM-E Series 65" Slim Direct-Lit LED Display
Display content without an external PC.
Overview:
Samsung's DM65E delivers 24/7 reliability on a large 65" screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 2.2" chassis depth.
- Reliable 24/7 operation and enhanced System-on-Chip performance with a quad core CPU
- Built-In Wi-Fi® for expanded connectivity and simple content mirroring from mobile devices
- Transform your display with an optional touch overlay for a PC-less touch solution
- Slim 2.2" chassis depth with slim direct-lit LED technology
Features
Large Signage With Reliable 24/7 Operation
Innovative Samsung cooling technologies on these large-size displays allow your message to be displayed with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
Enhanced System-on-Chip Performance with a Quad Core CPU
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.
Easy Content Control
The Samsung SMART Signage platform eliminates the need for an external media player. With Samsung MagicInfo content management software, selecting and scheduling software is simple to control with either an RS232 or LAN connection. Additionality connectivity includes HDMI, USB and D-Sub (analog).

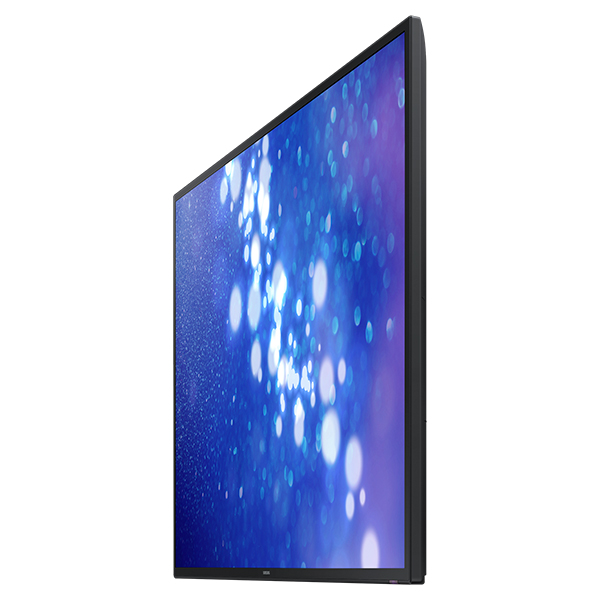

Sleek Industrial Design With Slim Direct-Lit LED Technology
Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit display featuring 1920 x 1080 Full HD resolution with 450 nits brightness and a 5,000:1 contrast ratio. A 2.2" chassis depth provides a sleek, elegant look. And LED technology reduces power consumption and heat ouput.
Optional Touch Overlay
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Specifications:
| Samsung DM65E - DM-E Series 65" Slim Direct-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 65" |
| Panel Technology | 60Hz Slim D-LED BLU |
| Resolution | 1920x1080 (16:9) |
| Brightness | 450 nits |
| Contrast Ratio | 4000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Orientation | Landscape / Portrait |
| Response Time (G-to-G) | 6.5ms |

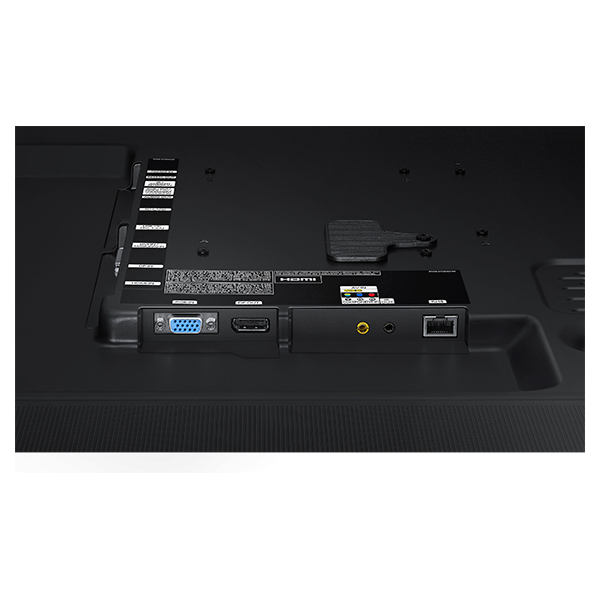

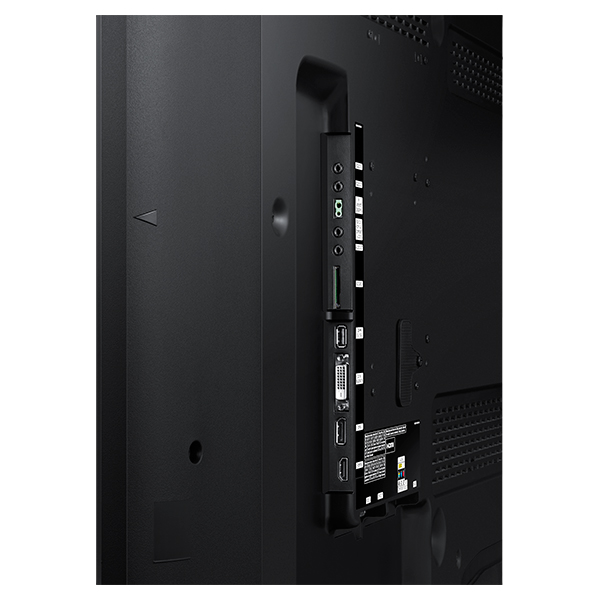

| Connectivity | |
| Input | Analog D-SUB, DVI-D (HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component (CVBS Common) Stereo Mini Jack, USB 2.0 x 1 |
| Output | DisplayPort 1.2 (Loop-Out), Stereo Mini Jack |
| External Control | RS232C (In/Out) thru Stereo Jack, RJ45 |
| External Sensor | IR, Ambient Light |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 110W / 264W |
| Power Consumption (Standby) | < 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Slim and Light LFD with Built-in MagicInfo Player S3 | |
| Special | Hardware Super Clear Coating, Temperature Sensor, Video Wall (15x15), Portrait Mode, Clock Battery (168hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot Software Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, 1 Button Lock, DP 1.2 Digital Display Chain (HDCP Support), Built-in MagicInfo S3, Firmware Update by Network, LFD New Home Screen, PC-Less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter |
| Tuner | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB |
| SMART Signage Platform Compliant | Yes |
| Internal Media Player | Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux) |

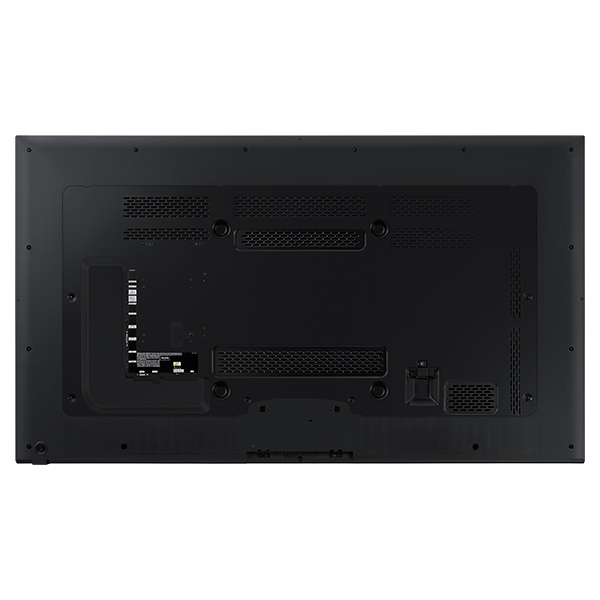

| VESA Standard Wall Mount Interface | 400 x 400mm |
| 24/7 Operation | Yes |
| Dimensions | |
| Product Dimensions (without stand) | 57.8" x 33.4" x 2.2" |
| Packaging Dimensions | 63.0" x 38.6" x 8.5" |
| Bezel Width | 18.0mm (Top, Left), 23.5mm (Right, Bottom) |
| Weight | |
| Product Weight | 60.4 lbs. |
| Shipping Weight | 78 lbs. |
| Service | |
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | |
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C (IN) Adapter, Cover-Jack |
| Optional Mount | WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount) |
| Optional Stand | STN-L6500E |
| External Media Player | SBB (Optional), PIM (Optional) |
| Optional Touch Overlay | TE65ECD |
| Green Management | |
| Emission Standard | EMC |
| ENERGY STAR® 6.0 Compliant | N/A |
| RoHS Compliant | Yes |
| Packaging Recyclability | Packing Materials Recyclable |
Compare:
| Samsung DM65E - DM-E Series 65" Slim Direct-Lit LED Display | |||
|---|---|---|---|
| Model Number | DM65E | DM75E | |
| Display | |||
| Screen Size | 65" | 75" | |
| Panel Technology | 60Hz Slim D-LED BLU | 60Hz Slim D-LED BLU | |
| Resolution | 1920x1080 (16:9) | 1920x1080 (16:9) | |
| Brightness | 450 nits | 450 nits | |
| Contrast Ratio | 4000:1 | 5000:1 | |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° | 178° / 178° | |
| Orientation | Landscape / Portrait | Landscape / Portrait | |
| Response Time (G-to-G) | 6.5ms | 4ms | |
| Connectivity | |||
| Input | Analog D-SUB, DVI-D (HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component (CVBS Common) Stereo Mini Jack, USB 2.0 x 1 | ||
| Output | DisplayPort 1.2 (Loop-Out), Stereo Mini Jack | DisplayPort 1.2 (Loop-Out), Stereo Mini Jack | |
| External Control | RS232C (In/Out) thru Stereo Jack, RJ45 | RS232C (In/Out) thru Stereo Jack, RJ45 | |
| External Sensor | IR, Ambient Light | IR, Ambient Light | |
| Sound | |||
| Speaker Type | Built in Speaker (10W + 10W) | Built in Speaker (10W + 10W) | |
| Power | |||
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption (Typical/Max) | 110W / 264W | 110W / 308W | |
| Power Consumption (Standby) | < 0.5W | < 0.5W | |
| Environmental Conditions | |||
| Operating Temperature | 0°C - 40°C | 0°C - 40°C | |
| Operating Humidity | 10%~80% | 10%~80% | |
| Features | |||
| Slim and Light LFD with Built-in MagicInfo Player S3 | Slim and Light LFD with Built-in MagicInfo Player S3 | ||
| Special | Hardware | Super Clear Coating, Temperature Sensor, Video Wall (15x15), Portrait Mode, Clock Battery (168hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot | |
| Software | Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, 1 Button Lock, DP 1.2 Digital Display Chain (HDCP Support), Built-in MagicInfo S3, Firmware Update by Network, LFD New Home Screen, PC-Less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter | ||
| Tuner | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB | |
| SMART Signage Platform Compliant | Yes | Yes | |
| Internal Media Player | Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux) | ||
| VESA Standard Wall Mount Interface | 400 x 400mm | 400 x 400mm | |
| 24/7 Operation | Yes | Yes | |
| Dimensions | |||
| Product Dimensions (without stand) | 57.8" x 33.4" x 2.2" | 66.0" x 37.8" x 2.3" | |
| Packaging Dimensions | 63.0" x 38.6" x 8.5" | 71.3" x 42.7" x 9.8" | |
| Bezel Width | 18.0mm (Top, Left), 23.5mm (Right, Bottom) | 12.0mm (Top, Left), 17.3mm (Right, Bottom) | |
| Weight | |||
| Product Weight | 60.4 lbs. | 75.2 lbs. | |
| Shipping Weight | 78 lbs. | 97.2 lbs. | |
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) | ||
| Accessories | |||
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C (IN) Adapter, Cover-Jack | ||
| Optional Mount | WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount) | WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount) | |
| Optional Stand | STN-L6500E | STN-L7585F (New Stand) | |
| External Media Player | SBB (Optional), PIM (Optional) | SBB (Optional), PIM (Optional) | |
| Optional Touch Overlay | TE65ECD | CY-TD75LDAF | |
| Green Management | |||
| Emission Standard | EMC | EMC | |
| ENERGY STAR® 6.0 Compliant | N/A | N/A | |
| RoHS Compliant | Yes | Yes | |
| Packaging Recyclability | Packing Materials Recyclable | Packing Materials Recyclable | |
Images:
Documentation:
Download the Samsung DM-E 65"/75" Commercial LED LCD Displays Datasheet (.PDF)
