Samsung PM43F-BC - PMF-BC Series 43” Edge-Lit LED Multi-Point Capacitive Touch Display
High brightness commercial displays feature an ultra-slim and narrow design
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Samsung's PMF-BC is an all-in-one signage solution including an integrated media player and content management tools, plus multi-point capacitive touch technology with up to 10 simultaneous touchpoints. It's built for 24/7 run-time, features IP5X certified dust protection and the bright, non-glare panel offers enhanced readability.
- Capacitive touch technology makes up to 10 different touch points available simultaneously
- All-in-one signage package includes integrated media player and content management tools
- Powerful Tizen operating system ensures seamless operations and captivating graphic performance
- Bright, non-glare design enhances readability regardless of surrounding lighting
- IP5x certification signifies displays’ resistance to dust and dirt exposure
- Durable, 24/7 performance ensures continuous interactivity and content sharing
- Easy, flexible display control possible through a centralized infrared receiver (IR)

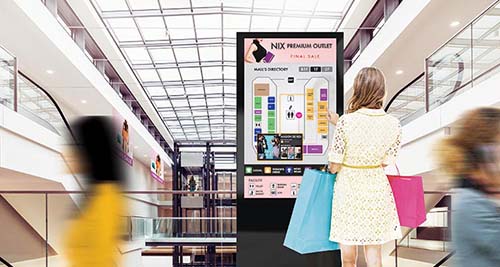

Samsung’s PMF-BC displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. The displays allow consumers to seamlessly navigate a range of relevant content without interference from surrounding light or environmental conditions. The integrated, powerful Tizen operating system grants PMF-BC users exciting capabilities to deliver rich, engaging content with minimal operational burden required. Beyond a potential uptick in sales and engagement, businesses also benefit from the reduced total operational costs that come with a low-maintenance, hassle-free visual display upgrade.
As today’s businesses seek new ways to stand out among increasingly crowded competition, interactivity and convenience have become more a critical component of day-to-day operations. Today’s tech-savvy consumers have come to expect a touch-driven experience with access to more relevant information and higher quality content than static alternatives provide. Likewise, these consumers are growing more accustomed to self-service, and the convenience that comes with placing and fulfilling their own orders for items ranging from train tickets to fast food. For businesses, an upgrade to kiosk displays delivers engagement, simplicity and speed that customers will remember, while simultaneously enabling more cost-efficient management.
As the world’s leading digital display company, Samsung Electronics maintains a commitment to innovation that responds to industry trends and allows businesses of all varieties to operate smarter – and better. This includes being a pioneer in the touch-interactive display space, ranging from small-screen kiosk signage to large-format interactive white boards. Regardless of the environment, Samsung offers total solutions signage technologies that ease implementation and maintenance. Through a sleek, elegant design and extended performance, Samsung’s interactive displays also overcome common limitations and enhance customer interaction without disrupting overall operations.
Features:
Achieve compelling customer engagement through all-in-one touchscreen displays
Samsung’s PMF-BC displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. The displays allow consumers to seamlessly navigate a range of relevant content without interference from surrounding light or environmental conditions. The integrated, powerful Tizen operating system grants PMF-BC users exciting capabilities to deliver rich, engaging content with minimal operational burden required.

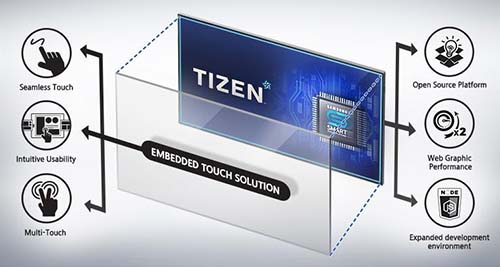

Powerful, Convenient Management through an All-in-One Composition
Samsung’s PMF-BC displays condense several vital signage components – including a powerful operating system, embedded media player and capacitive touch technology – into an all-in-one solution. Backed by the versatile Tizen OS, the PMF-BC displays deliver dynamic, touch-enabled content without requiring external PCs or devices. An intuitive interface further drives quick and convenient navigation across essential applications and content.

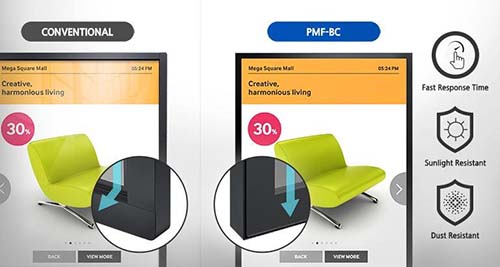

Comfortable, Multi-Point Capacitive Touch Communication
Through capacitive touch technology and a user-friendly design, Samsung’s PMF-BC displays foster a comfortable, easy-to-navigate digital writing experience. The interactive displays can accommodate up to 10 unique touch points while maintaining the smooth, familiar feel of analog board or pen-and-paper writing, and without interference from dust, sunlight or other natural variables.
Brilliant, Glare-Free Visual Quality
Featuring elevated contrast ratios and 400nit brightness, the PMF-BC displays showcase highly visible content even in environments subject to variable lighting conditions. A non-glare, glass touch front panel further reduces the impact of natural and ambient light interference and guarantees consistent readability, while a complementary anti-haze coating drives smooth, uninterrupted on-screen navigation.

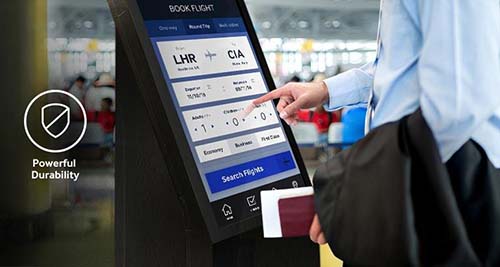

Reliable, Dust-Resistant Design for Continuous Content Delivery
Designed for continuous operation, Samsung’s PMF-BC displays build trust for users looking to deliver unwavering messaging without ongoing maintenance. Each PMF-BC display has strong resistance to dust and dirt making the displays a welcome addition to environments frequently subject to these elements.
Convenient Display Control through a Centralized Receiver
The PMF-BC displays drive user convenience through a centralized infrared receiver (IR). Contrary to standard displays which place their IR in a hard-to-access - and thus hard-to-control - location, the PMF-BC displays receive IR signals across their individual panels. As a result, users can activate IR functionalities from various locations and further augment quick and uninterrupted management.
Full Connectivity
Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Specifications:
Samsung PM43F-BC - PM-F Series 43” Edge-Lit LED Multi-Point Capacitive Touch Display Specifications | |
---|---|
Display | |
Screen Size | 43” |
Panel Technology | 60Hz E-LED BLU |
Resolution | 1920x1080 (Full HD) |
Aspect Ratio | 16:9 |
Pixel Pitch (mm) | 0.49(H) x 0.49(V) |
Active Display Area (mm) | 940.89(H) x 529.25(V) |
Brightness | 350 nit |
Contrast Ratio (Typical) | 3000:1 |
Viewing Angle (H/V) | 178º/178º |
Response Time (G-to-G) | 8ms |
Display Colors | 10bit Dithering - 1.07 Billion |
Color Gamut | 72% |
Haze | 44% (Panel), 15% (Glass) |
Display | |
Dynamic C/R | Mega |
H-Scanning Frequency | 30 ~ 81kHZ |
V-Scanning Frequency | 48 ~ 75HZ |
Maximum Pixel Frequency | 148.5MHz |
Sound | |
Speaker Type | Built in Speaker(10W + 10W) |
Connectivity | |
Input | RGB: DVI-I(D-Sub Common), Display Port 1.2 (1) Video: HDMI 2.0 (2) HDCP: HDCP 2.2 Audio: Stereo Mini Jack, RGB/DVI/HDMI USB: USB 2.0 x 2 (1 Used for touch) |
Output | RGB:
DP1.2 (Loop-out) Video: N/A Audio: Stereo mini Jack USB: USB Type-B x 2 (Touch Sensor Data, PC 1 / SoC 1) Power Out: N/A External Control: RS232C(In/Out) thru Stereo Jack, RJ45 External Sensor: N/A Tuner: N/A |
Power | |
Type | Internal |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption |
|
Mechanical Spec | |
Product Dimensions | 983.9 X 582.3 X 62.8 mm |
Packaging Dimensions | 983.9 X 582.3 X 62.8 mm |
Product Weight | 15.9 lbs |
Shipping Weight | 19.8 lbs |
VESA Mount (mm) | 200 x 200 mm |
Protection Glass | 3.2T Semi-Tempered Touch Glass |
Stand Type | Foot Stand (Optional) |
Bezel Width | 25.0 / 20.0 / 25.0 |
Environmental Conditions | |
Recommended Usage Hours | 24/7 |
Operating Temperature | 0℃~ 40℃ |
Operating Humidity | 10%~80% |
Features | |
Key Features | Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0, Cap-Touch |
Special Features | H/W : Non Glare Touch Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP(Only for NA), Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player |
Internal Player |
|
Certification | |
Safety | CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE |
EMC | FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 |
Accessories | |
Included | Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) Gender, Cover Jack, USB Cable |
Optional |
|
Media Player | SBB |
Images:

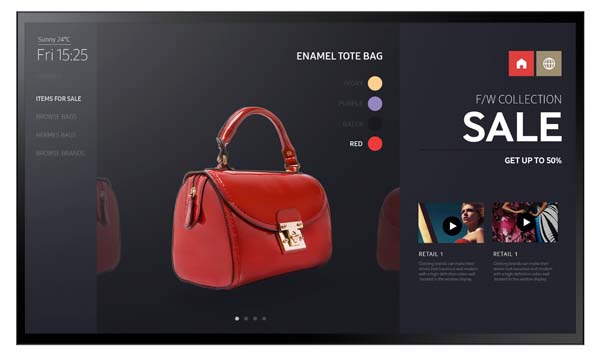

Front View |

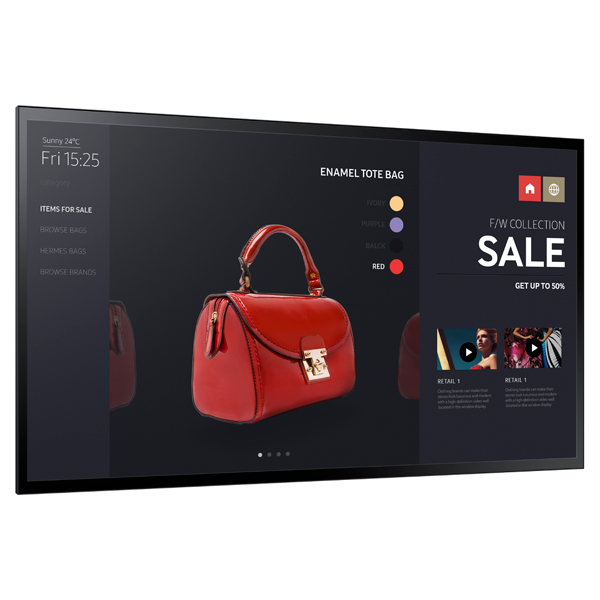

Left Perspective |

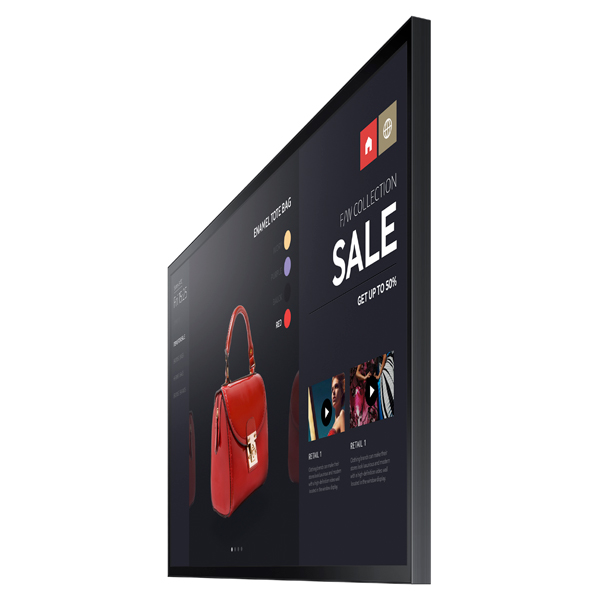

Right Dynamic |

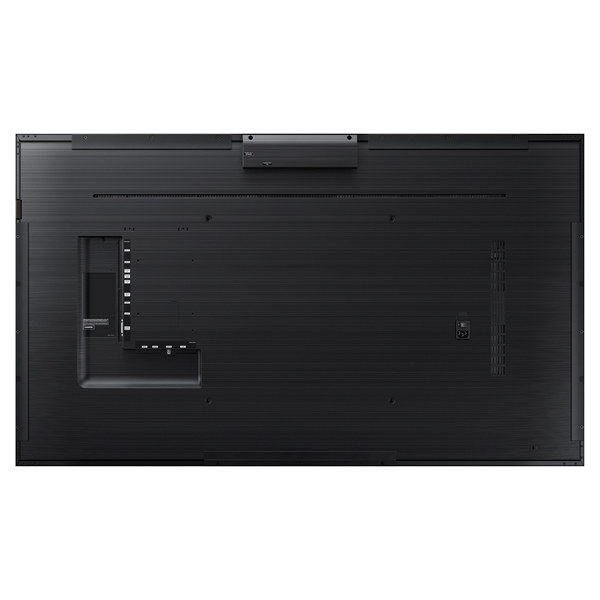

Rear View |

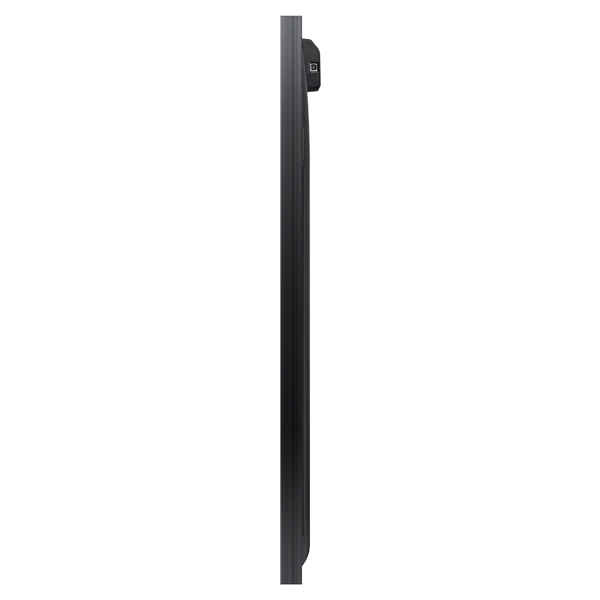

Side View |

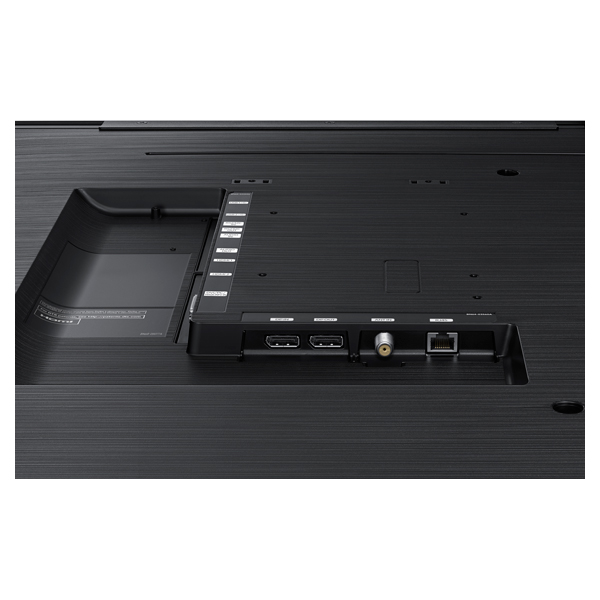

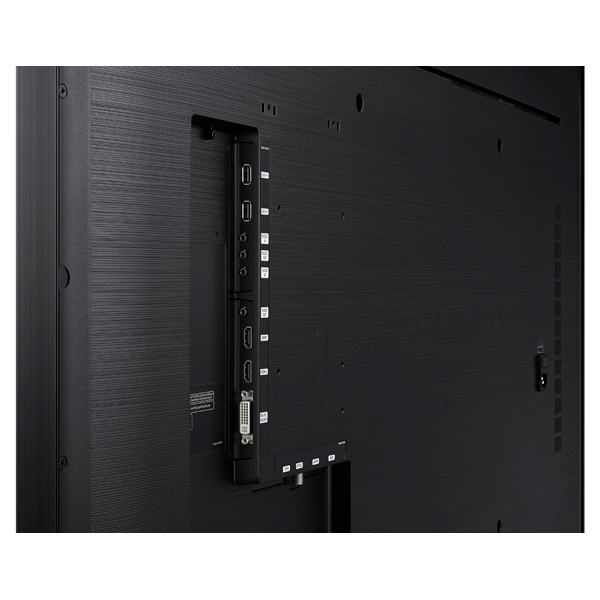

In/Out Detail |
In/Out Detail |

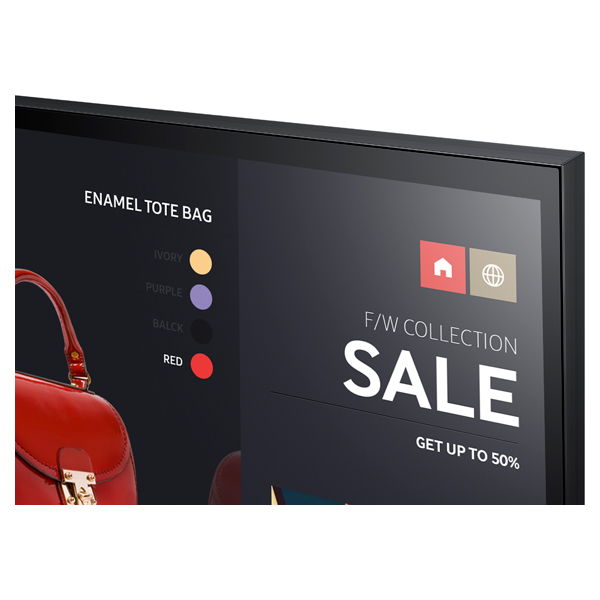

Touch Detail |

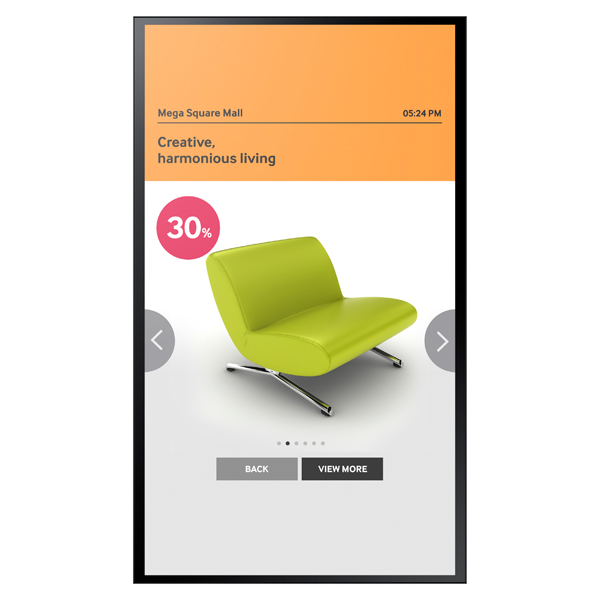

Portrait |
Documentation:
Download the Samsung PMF-BC Series Edge-Lit LED Multi-Point Capacitive Touch Display Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
