Samsung UH46N-E - UHN-E Series 46" Extreme Narrow Bezel Videowall Display for Business
Premium video wall displays featuring deeper visual impact and thinner bezel width of 1.7mm

Features:

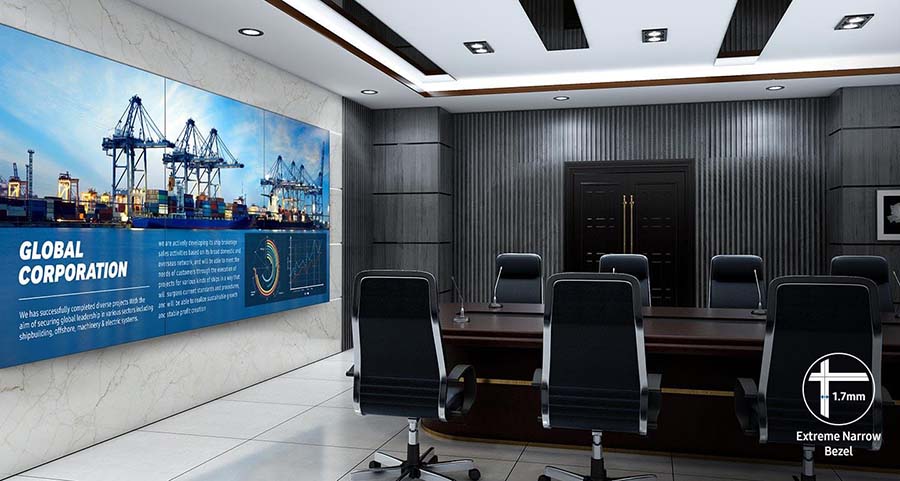

Deliver deeper visual impact

Samsung’s narrow bezel video wall features bezel–to-bezel width of 1.7mm that minimizes the visual distraction of video walls to elicit impacting imagery of products. The display produces a near-seamless picture across multiple screens without interruption, captivating and impressing customers.

---

Amplify image clarity in any environment

Combined with a non-glare panel, the extreme narrow bezel video wall display is designed to help businesses create memorable content presentation even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy.

---

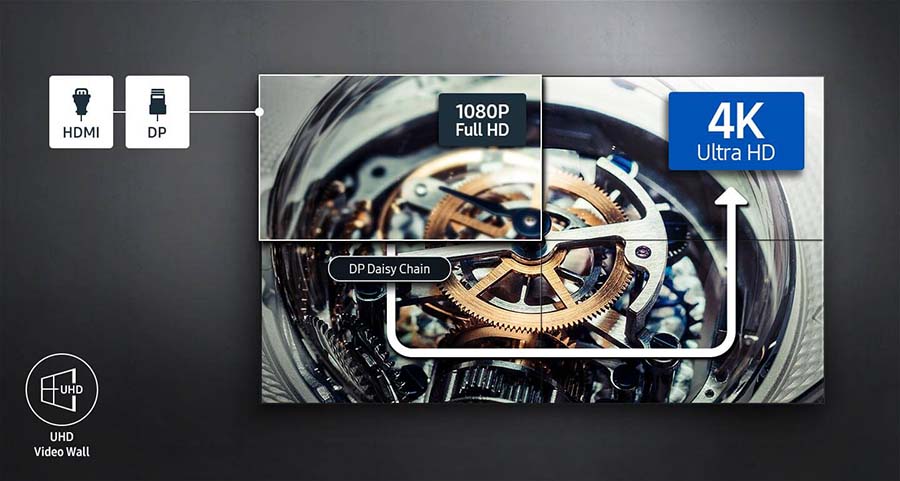

Extend content presentation capabilities

Samsung's video wall offers a powerful UHD viewing experience with minimal effort or additional equipment. As the first in the industry to have up to 5x5 wall configuration based on the use of DisplayPort 1.2 and HDMI ports, the display can project UHD content across multiple screens simultaneously.

---

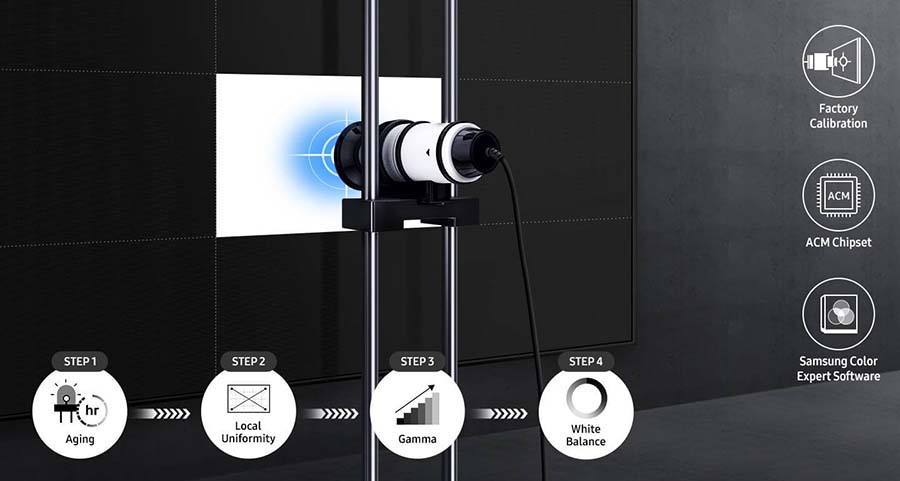

Share accurate and uniform content

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung's Color Expert Pro, a powerful free software program.

---

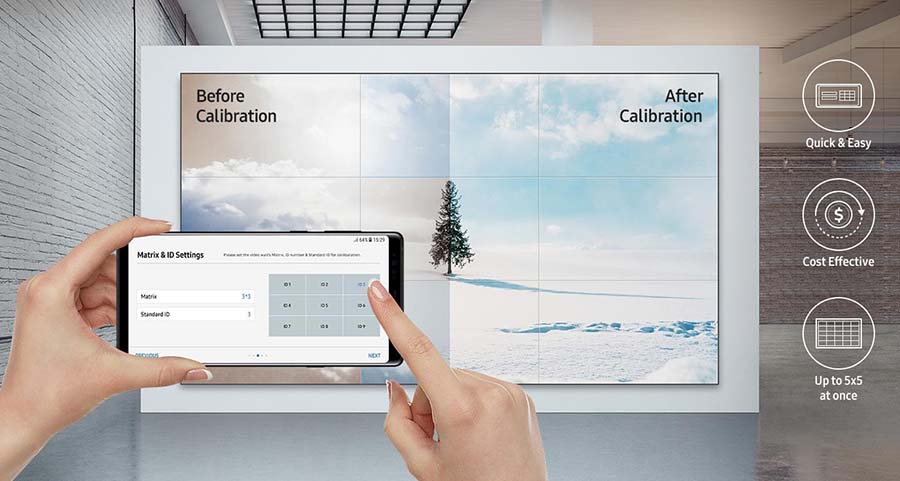

Cost saving mobile calibration with ease

Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment.

---

Enjoy continuous, long-term performance

Samsung’s extreme narrow bezel video walls are engineered for long-term performance, eliminating maintenance expenses for users. The display features durable panels that offset backlight discrepancies while simultaneously protecting the display against heat and dust exposure.

---

Reliable content delivery for business

Designed to maintain performance in various indoor environment conditions, Samsung's video wall produces an engaging viewing experience with the elevated contrast ratios and brightness. With continuous 24/7 operations, the display enables vivid and reliable content delivery for every business need.

---

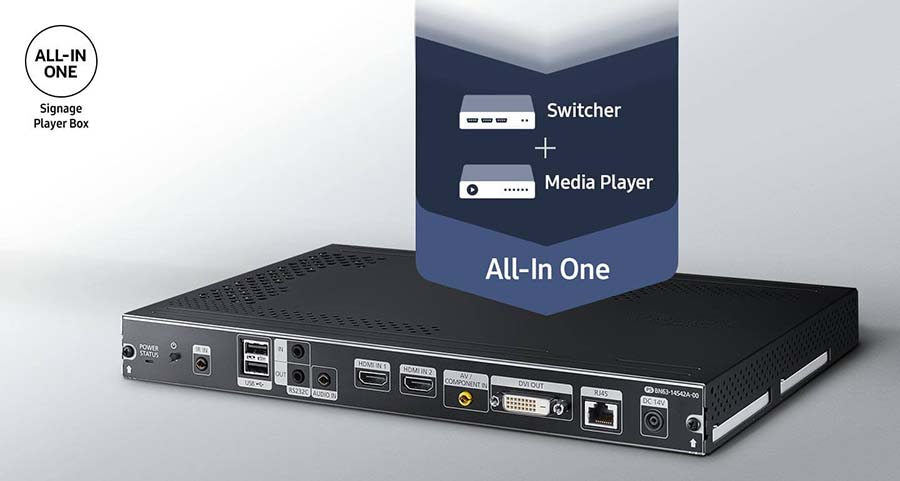

All-in-one box with versatile usability

Backed by a Quad Core CPU, Signage Player Box allows for multi-source switching and a media player to coexist in a single box. Leveraging the embedded Samsung SMART Signage Platform, the box transforms video walls for faster information processing and easy content management with MagicINFO solution.

---

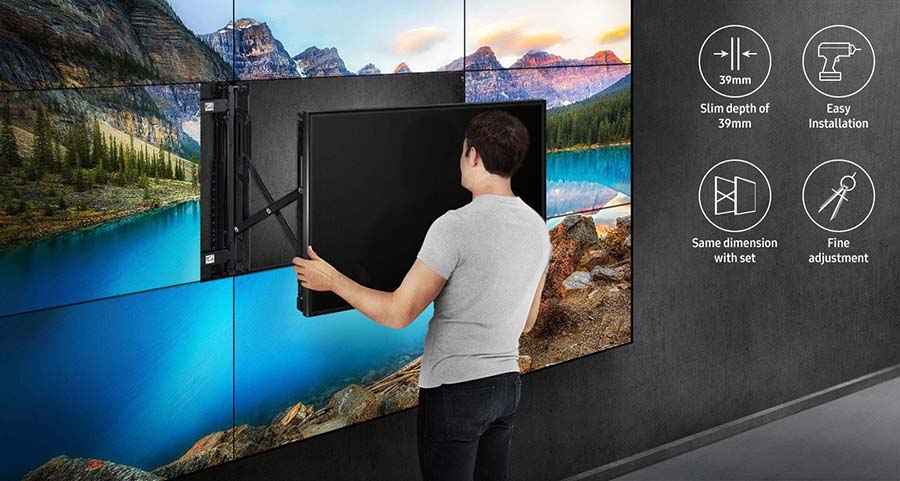

Highly configurable wall mounts

The user-friendly special wall mounts ensure easy installation of video walls through minimal steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit into the video wall, eliminating tedious efforts to measure and adjust the wall mount size.

Specifications:

Samsung UH46N-E - UHN-E Series 46" Extreme Narrow Bezel Videowall Display Specifications
Display
Screen Size	46"
Panel Technology	D-LED DID
Resolution	1920 x 1080 (Full HD)
Pixel Pitch (mm)	0.53025mm(H) x 0.53025mm(V)
Active Display Area (mm)	1018.08mm x 572.67mm
Brightness	700nit
Contrast Ratio (Typical)	4000:1
Viewing Angle (H/V)	178º/178º
Response Time	8ms
Display Colors	8 bit - 16.7M
Color Gamut	72%
Haze	25% (Outer Haze 23%)
Display
Dynamic C/R	MEGA DCR
H-Scanning Frequency	30 ~ 81kHZ
V-Scanning Frequency	48 ~ 75Hz
Maximum Pixel Frequency	148.5MHz
Sound
Speaker Type	N/A
Connectivity
Input	RGB: Analog D-SUB, DVI-D, Display Port 1.2 Video: HDMI 2.0 (2) HDCP: HDCP2.2 Audio: Stereo mini Jack USB: Only F/W upgrade
Output	RGB: DP1.2(Loop-out) Audio: Stereo mini Jack
External Control	RS232C(in/out), RJ45
Sensor	Detachable type (IR, Ambient)
Power
Type	Internal
Power Supply	AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption	Max [W/h]: 187 Typical [W/h]: 102 BTU (Max): 638 Sleep mode: less than 0.5W Off mode: less than 0.5W
Environmental Conditions
Operating Temperature	0℃~ 40℃
Operating Humidity	10~80%
Recommended Usage Hours	24/7
Mechanical Specs.
Without Stand (W x H x D)	40.15" x 22.6" x 3.8" in
Package (WxHxD)	45.4" x 28.3" x 11.6" in
Product Weight	34.6 lbs
Package Weight	47.6 lbs
VESA Mount (mm)	600 x 400 (mm)
Bezel Width	1.15mm(U/L), 0.55mm(R/B)
Features
Special Features	Extreme Narrow Bezel
Special	ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
Certification
Safety	UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1
EMC	FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012
Accessory
Included in Box	Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries
Optional	Mount: WMN-46VD

Images:

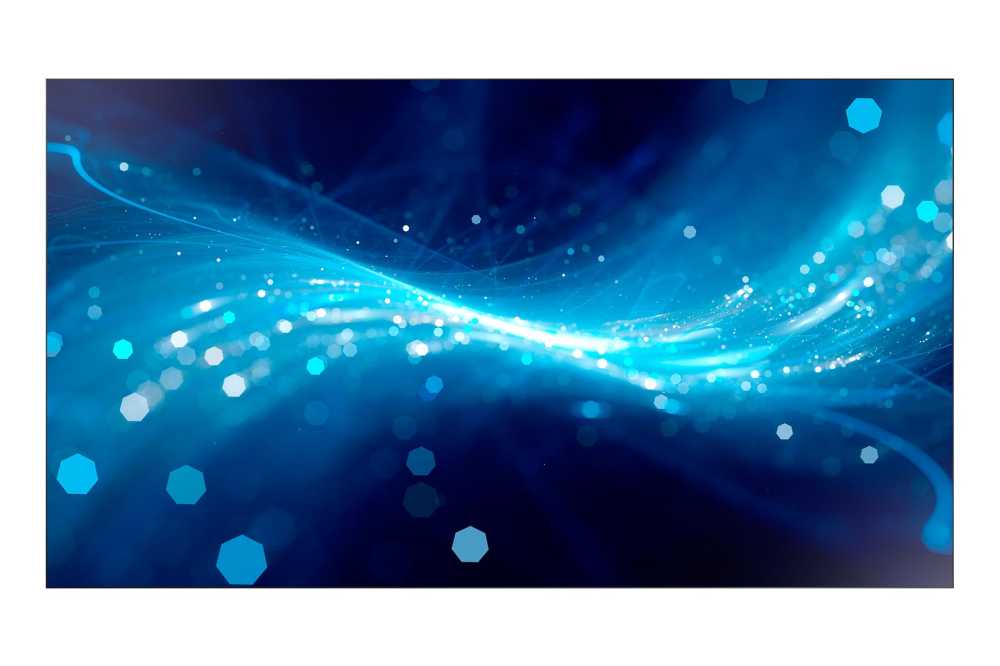

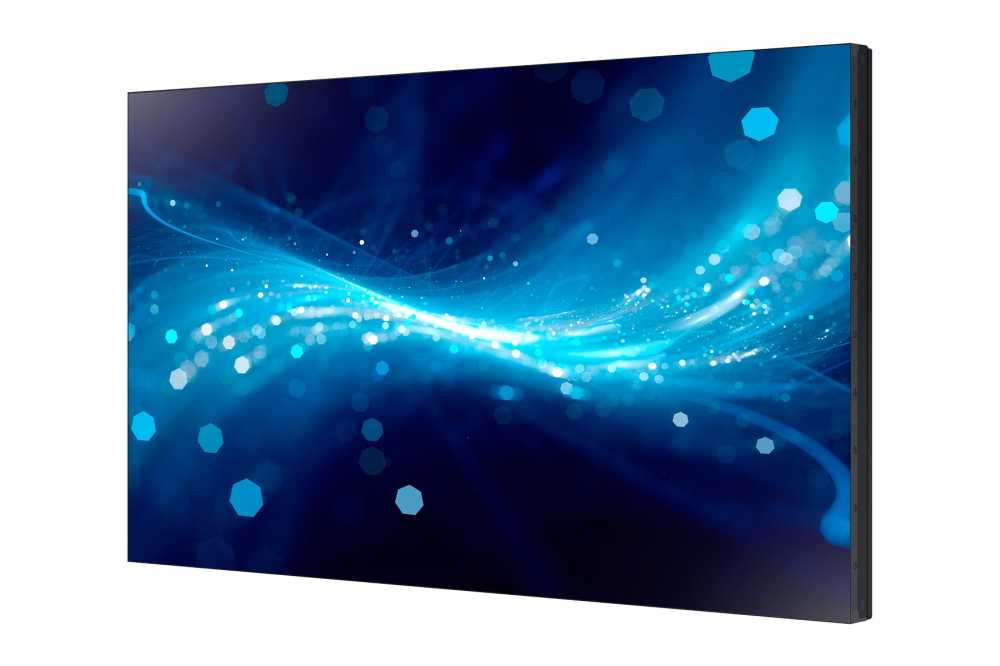

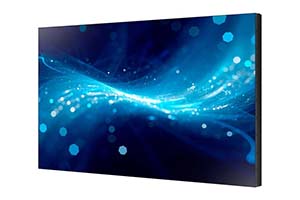

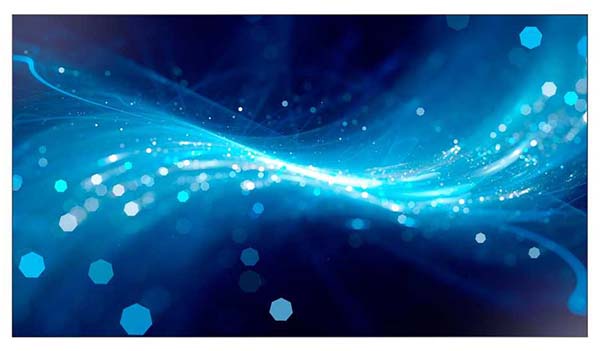

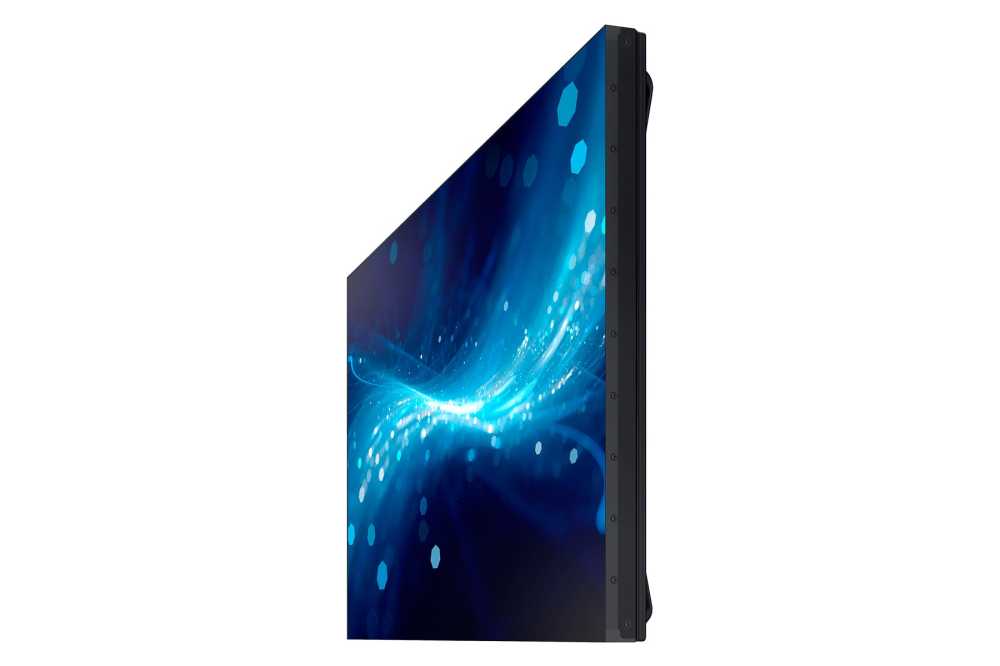

Front View	Right Perspective	Right Dynamic

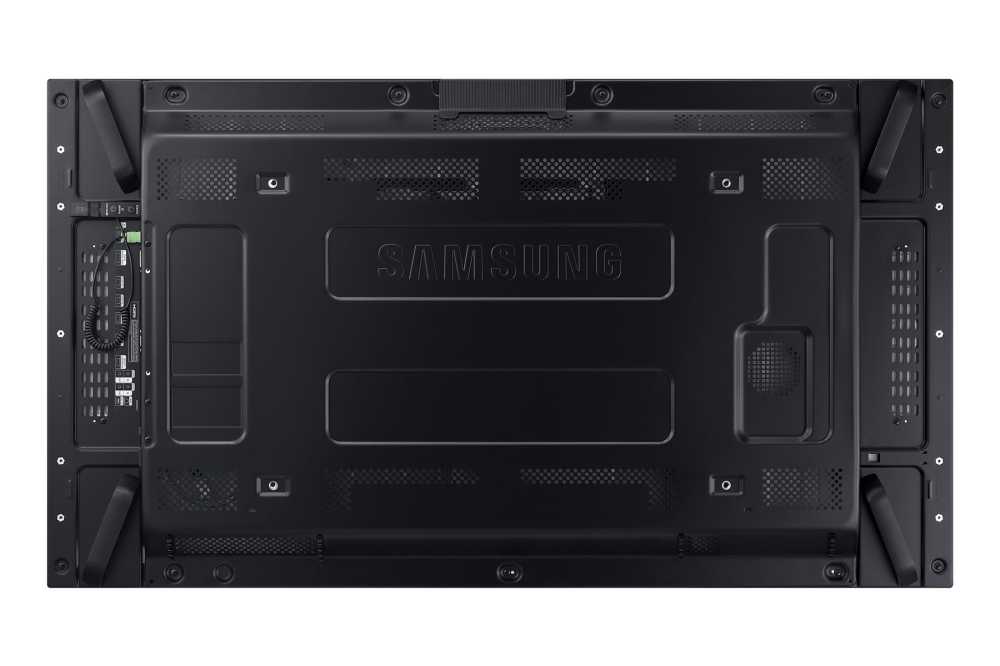

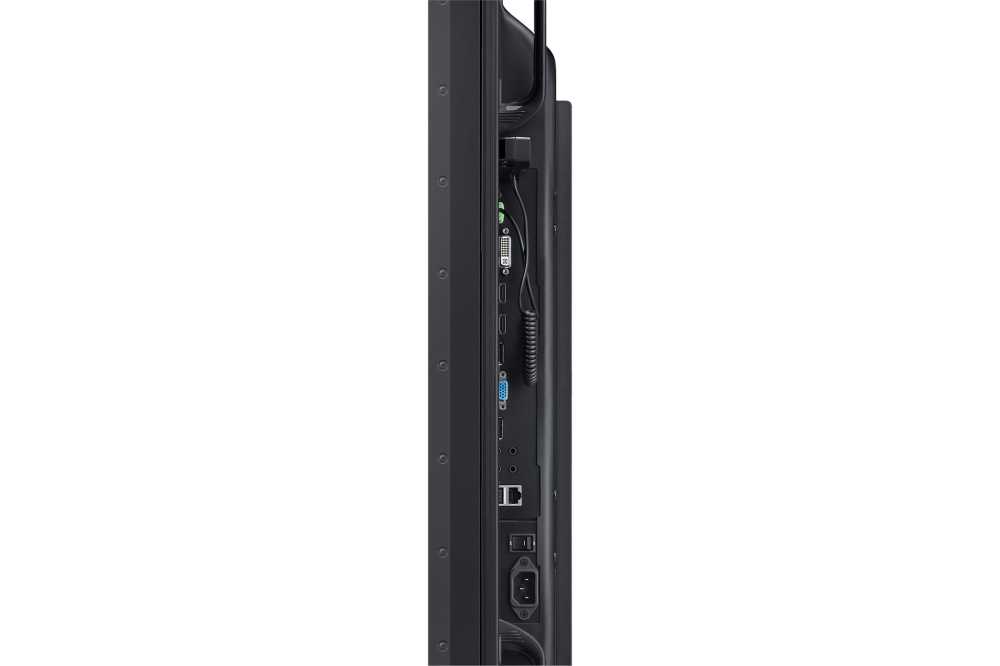

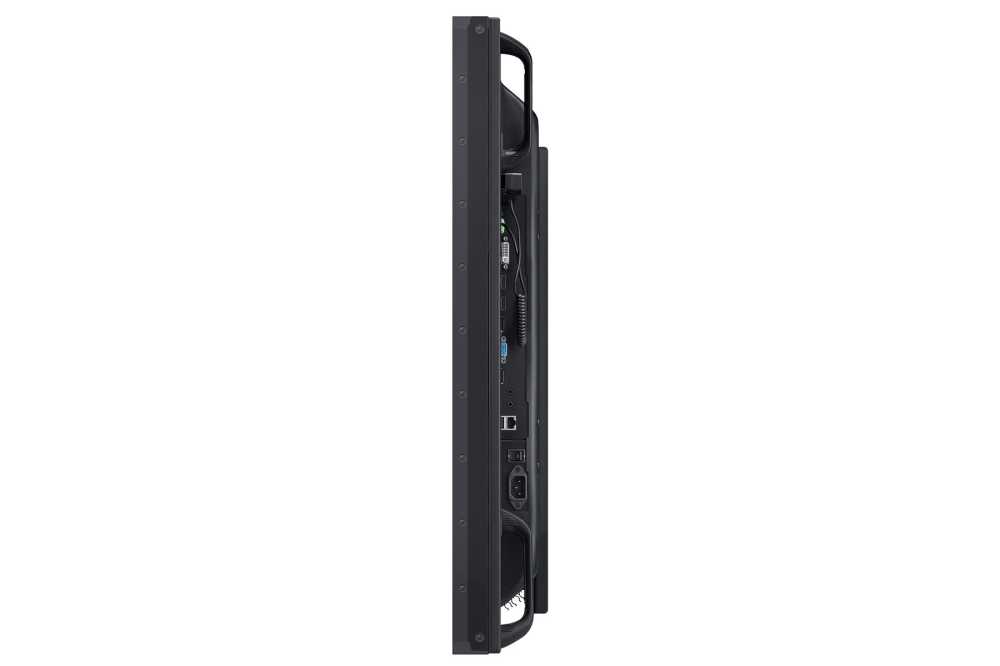

Rear View	Side View	In/Out Detail

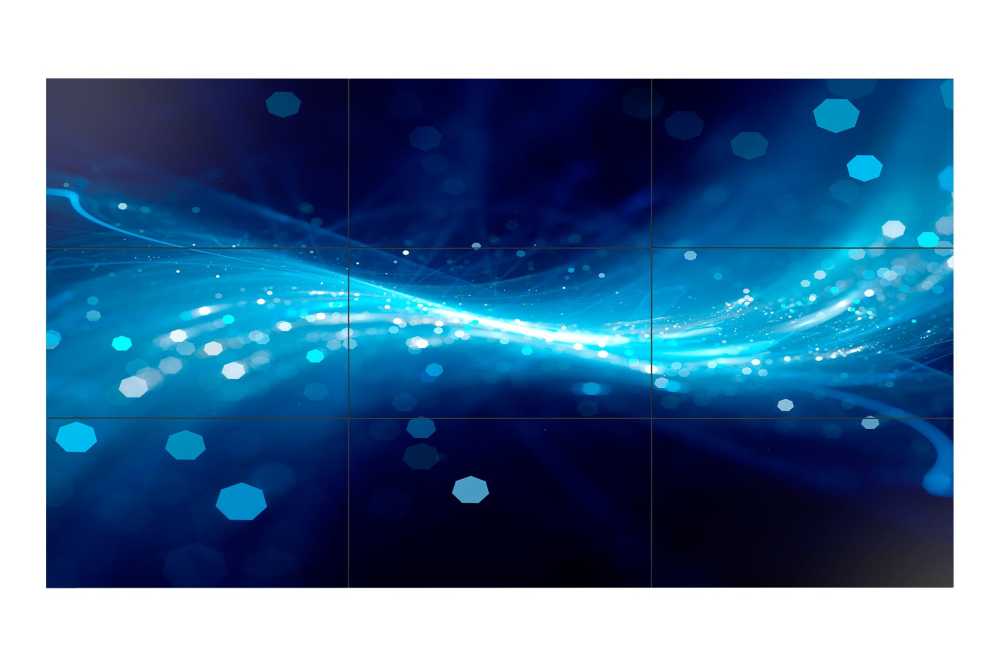

Set

Documentation:

Download the Samsung UHF-E/UMH-E Series Extreme Narrow Bezel Videowall Display Datasheet (.PDF)
