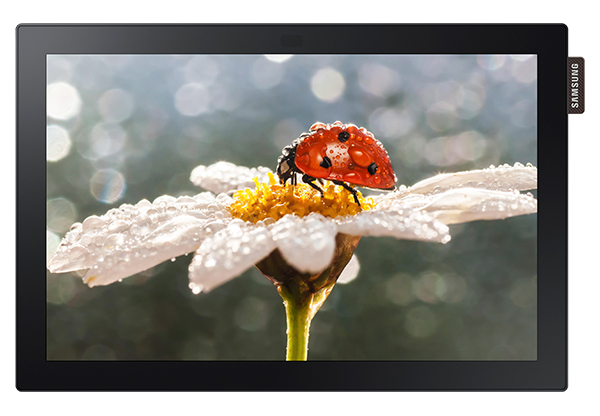

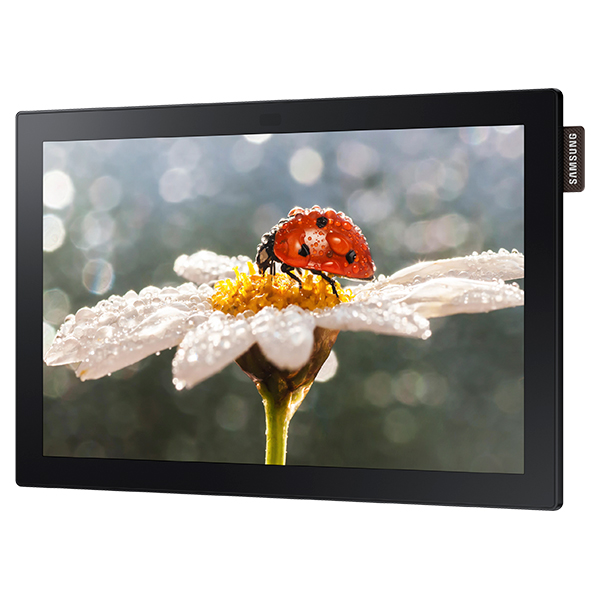

Samsung DB10E-T - DB-E Series 10.1" Edge-Lit LED Touchscreen Display
The sleek 10.1" touchscreen display is perfect for small placements.

Samsung DB10E-T - DB-E Series 10.1" Edge-Lit LED Touchscreen Display

This product is no longer available, Contact us for Custom Units Available

Overview:

Samsung's DB10E-T provides an all-in-one solution to manage digital signage content without connecting external devices. The sleek 10.1" touchscreen display is perfect for small placements. It also includes a built-in power supply. And with 5 simultaneous touch points, you can create a dynamic customer experience.

  • Touchscreen interactivity with 5 simultaneous touch points on the 10.1" display with 400 nits brightness
  • Samsung SMART Signage Platform (SSP) enabled with System-on-Chip (SoC) media player functionality
  • Samsung MagicInfo software for content management with included templates
  • Reliable with a 2-year onsite warranty and 16/7 operating runtime

Features

All-in-One Solution

Manage and control digital signage content without the need for external devices. This fully embedded, SMART Signage Plaform (SSP) enabled display solution includes System-on-Chip (SoC) media player functionality and MagicInfo content management software with included templates. So you can effectively and efficiently coordinate your business' signage.

Engage Customers With an Interactive Touchscreen

The 10.1" embedded touchscreen display on the DB10E-T has 5 simultaneous touchpoints and dual drawing capability, so your customers can interact with your business in new, dynamic ways.

Enhanced System-on-Chip Performance with a Quad Core CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

Versatile Connectivity and Control

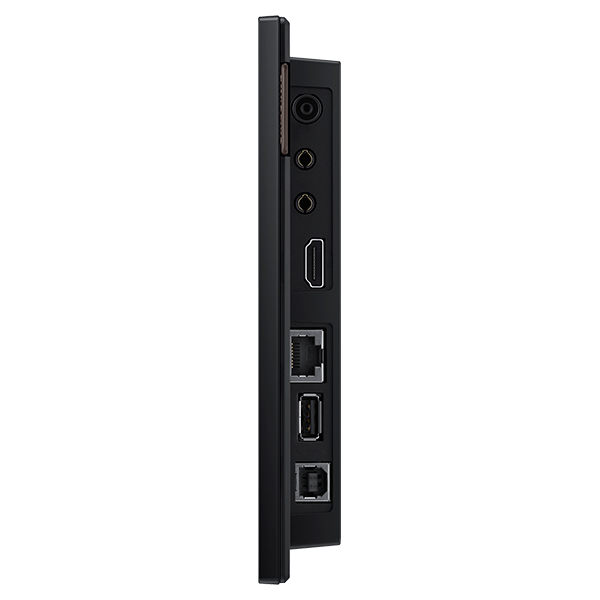

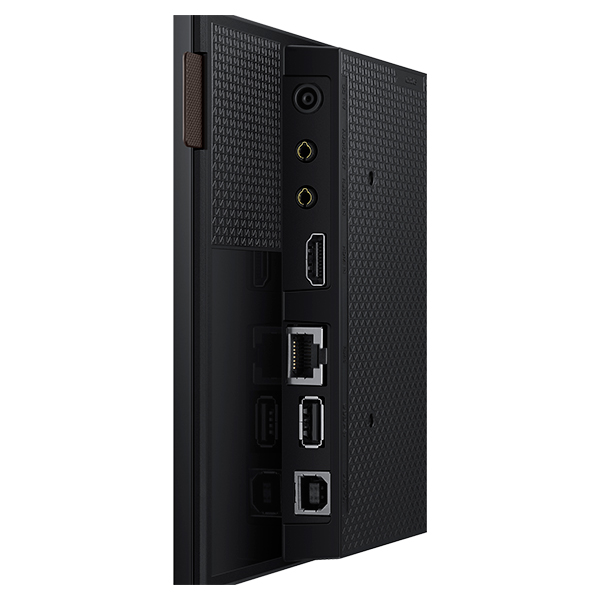

A range of connectivity options to power and control your signage content include embedded Wi-Fi®, USB 2.0, HDMI, an SD Card slot, RJ45 and RS232C. The built-in Wi-Fi® allows you to eliminate LAN cables to simplify installation. And with RS232C, the display can be externally controlled to power on/off or change inputs.

Elegant and Bright

Edge-Lit LED technology delivers a sleek industrial design with a 1.1" chassis depth combined with a 10.1" form factor to create an elegant look in small placements. And with 400 nits brightness the display is easy to read.

Adapts to Your Business

Small shops, shopping malls and large chain stores can utilize the DB10E-T as a shelf-level or endcap solution. Enterprises can share agenda or meeting room information outside of conference rooms. In public spaces, advertising or floor level information can be displayed on the inside of an elevator. All with a touch of interactivity thanks to the touchscreen display. And these are just some ideas on how this display can work for your business.

Specifications:


Samsung DB10E-T - DB-E Series 10.1" Edge-Lit LED Touchscreen Display Specifications
Display
Screen Size 10.1"
Contrast Ratio (Typical) 900:1
Panel Technology 60Hz E-LED BLU
Viewing Angle (H/V) 178:178
Resolution 1280x800
Response Time 30ms
Brightness 400 cd/m2
Connectivity
Input HDMI1, USB 2.0 x 2 (Up x 1, Down x1)
Output Audio
External Control RS232C(in) thru stereo jack, RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 19 W/h / 20.9 W/h
Features
Special Hardware: Temperature Sensor, Portrait Installation Support, Button Lock, Clock Battery(80hrs Clock Keeping), Built in Speaker, WiFi Module Embedded, SD Card Slot, Touch(5 Point, 2 Drawing)

Software: Magic Clone(to USB), Auto Source Switching & Recovery,RS232C/RJ45 MDC,Plug and Play (DDC2B), Image Rotation, Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, Predefined Templates for Vertical Usage,Mobile Control, Event Schedule, Backup Player
Smart Signage Platform Yes
Wi-Fi Yes
Built-In Speakers Yes
Storage 8GB
Dimensions
Without Stand (W X H X D) 9.7" x 6.5" x 1.1"
Packaging (W X H X D) 11.8" x 8.1" x 3.1"
Bezel Width 14.1mm
Weight
Product Weight 1.5 lb.
Package Weight 3.3 lb.
Included in Box
Included in Box Quick Setup Guide, Warranty Card,Regulatory guide, Power Cord, Adapter, Remote Controller, Batteries, RS232C-Stereo cable, Stand Bar
Optional Stand Simple stand
Operation
Operating Temperature 0℃~ 40℃
Operating Humidity 10% ~ 80%

Compare:


Samsung DB10E-T - DB-E Series 10.1" Edge-Lit LED Touchscreen Display
Model Number DB10E-POE DB10D DB10E-T (Touchscreen) DB22D-P
Display
Screen Size 10.1" 10.1" 10.1" 21.5"
Resolution 1280x800 1280x800 1280x800 1920 x 1080 (16:9)
Brightness 450 cd/m2 450 nits 450 cd/m2 250 nits
SMART Signage Platform Yes Yes Yes Yes
WiFi N/A N/A Yes Yes
Built-in Speakers N/A N/A Yes N/A
