Samsung OM75A - Ultra High Brightness Window Display Promote content with exceptional clarity in any storefront window

This product is Built to Order, please Contact Us for more details

Samsung OM75A - Ultra High Brightness Window Display for Business

Samsung Products

Ultra High Brightness Window Display for Business

Samsung OM75A - Ultra High Brightness Window Display for Business
This product is Built to Order, please Contact Us for more details

#OM75A
Our Price: $13,847.00

Overview:

Thoughtful, engaging content in a storefront window has the power to engage customers and ultimately lead them into the store. Samsung’s OMR Series displays not only deliver an image with fl awless clarity, but also are designed to maintain its superior picture quality even when exposed to direct sunlight – a common challenge for conventional in-window displays. In addition, with a slim and sleek design, the OMR Series is compatible with any window layout and highlights the sophisticated and modern style of the brand. The OMR Series also delivers bright and clear images while consuming a low amount of power, which positions businesses to reduce overall costs and optimize effi ciency considerably.

Ultra-high brightness emphasizing content, regardless of the lighting conditions
Slim and contemporary design that seamlessly integrates into any display window
Easy content management with a built-in management solution
Two options – one or double-sided screen – available to fi t the businesses needs

The Samsung OMR Series was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit. With a modern configuration, the display has a slim design and is compatible with any store widow without disrupting a customer’s shopping experience. Included in the OMN series is an embedded software solution for operational efficiency and content management, ensuring retailers can manage its displays effortlessly.

Industry Trends

Rich, digital content is the new norm. Static, printed billboards and signs lack the dynamic motion necessary to quickly attract the attention of passersby. As retailers are trying to win the attention of the consumer, it is vital to stand out amongst the competition. That is why a growing trend in the retail industry is the introduction of digital signage into window storefronts. Retail organizations have a very narrow window to impress, so it is critical that a customer’s first impression is immediately dazzling. Retailers need digital displays with high visibility and easy-to-manage software to deliver highly impactful content that remains bright and crisp even in the face of direct sunlight – a challenge many stores face.

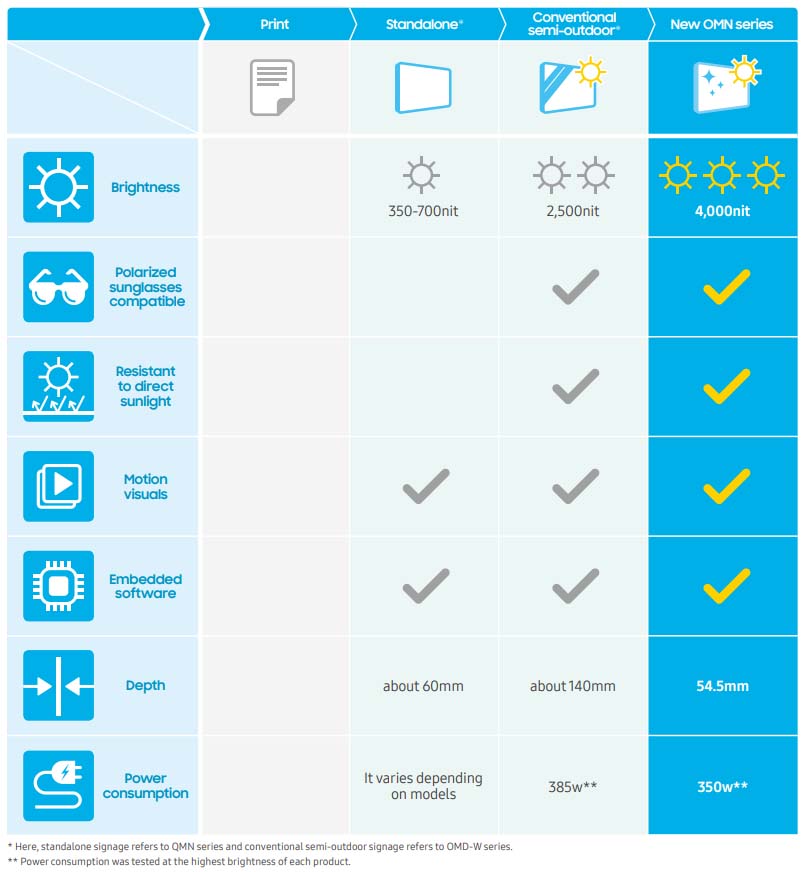

Storefront optimization with OMR Series

The evolution of advertising displays in retailer’s windows has dramatically changed over the years, as well as the expectations of the consumers passing by a store. Marketing began with static, printed banners, but quickly moved to digital signage as consumers became more responsive to engaging videos and images. However, early digital signage was not created for outdoor usage or direct sunlight and produced content with low visibility. Retailers then began to incorporate semi-outdoor signage, which allowed for better visibility than the alternatives, but they were still not powerful enough to display high-quality content. Although more cost-efficient than the printed materials, the display did not perform as expected. Realizing the need for more innovative semi-outdoor digital signage, Samsung designed the OMR Series. Intended for retailers to deliver the most visually appealing content in any environment, the OMR Series surpasses the traditional signage and engages audiences like never before.

Storefront optimization with OMR Series

Features:

Promote content in any storefront window

Samsung’s OMR Series was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

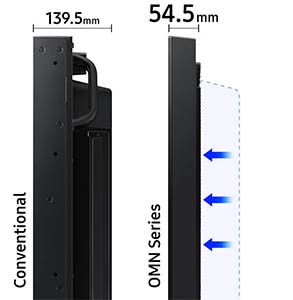

Modernize space with slim design

The OMR Series delivers an immersive content with a remarkably slim 54.5mm depth. Its compact size makes the display a natural extension of the store, as opposed to an addition that ties up valuable space.

Foster brilliant presentation for all

Featuring 4,000nit brightness and a high contrast ratio of 5,000:1, the OMR Series’ display remains bright and clear, delivering an uncompromised picture that will capture the attention of potential customers – even in direct sunlight.

Streamline content management

The OMR Series’ embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allowing for easy content management and ensuring seamless content transition and playback.

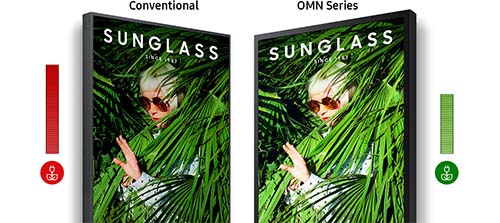

Deliver vibrant content with efficiency

The OMR Series addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.

* Conventional displays refer to Samsung’s OMD-W series.

Specifications:

Download the OMR Series Specifications (.PDF)

				OM46N	OM75A	OM46N-D	OM75R-D
Panel	Diagonal Size		Class	46"	75"	46"	75"
	Diagonal Size		Measured	45.9" / 116.8 cm	54.6" / 138.7 cm	45.9" / 116.8 cm	54.6" / 138.7 cm
	Type			120Hz E-LED BLU	120Hz E-LED BLU	120Hz E-LED BLU	120Hz / 60Hz E-LED BLU
	Resolution			1920 x 1080 (16:9)	1920 x 1080 (16:9)	1920 x 1080 (16:9)	1920 x 1080 (16:9)
	Brightness (Typ.)			4,000 nits	4,000 nits	3,000 / 1,000 nits	3,000 / 1,000 nits
	Contrast Ratio (Typ.)			5,000:1	4,000:1	5,000:1	4,000:1
	Viewing Angle (H / V)			178 / 178	178 / 178	178 / 178	178 / 178
	Response Time (G-to-G)			6ms	6ms	6ms	6ms (3,000 nits), 8ms (1,000 nits)
	Display Colors			8 bit - 16.7M	8 bit - 16.7M	8 bit - 16.7M	8 bit - 16.7M
	Color Gamut			72%	72%	72%	72%
	Operation Hours			24/7	24/7	24/7	24/7
	Panel Orientation			Landscape / Portrait	Landscape / Portrait	Portrait	Portrait
	Special Certification			IP5X	IP5X	IP5X	IP5X
Connectivity	Input	RGB		DisplayPort 1.2 (1)	DisplayPort 1.2 (1)	N/A	N/A
		Video		HDMI2.0 (2)	HDMI2.0 (2)	HDMI2.0 (2)	HDMI2.0 (2)
		HDCP		HDCP 2.2	HDCP 2.2	HDCP 2.2	HDCP 2.2
			USB	USB 2.0 (1)	USB 2.0 (1)	USB 2.0 (2)	USB 2.0 (2)
			RGB	HDMI 2.0	HDMI 2.0	N/A	N/A
	Output	Video		Yes	Yes	N/A	N/A
	Output	Audio		Stereo Mini Jack	Stereo Mini Jack	N/A	N/A
	External Control			RS232C (In / Out), RJ45 (In / Out)	RS232C (In / Out), RJ45 (In / Out)	RS232C (In), RJ45 (In)	RS232C (In), RJ45 (In)
	External Sensor			Detachable Type (IR, Ambient)	Detachable Type (IR, Ambient)	Detachable Type (IR, Ambient (Outdoor Only))	Detachable Type (IR, Ambient (Outdoor Only))
	Wi-Fi			Yes	Yes	Yes	Yes
Power	Type			Internal	Internal	Internal	Internal
	Power Supply			AC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz	AC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz	AC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz	AC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz
	Power Consumption	Max		350 W	450 W	380 W	500 W
		Typical		330 W	420 W	380 W	470 W
		Sleep Mode		< 0.5 W	< 0.5 W	< 1 W	< 1 W
		Off Mode		< 0.5 W	< 0.5 W	< 0.5 W	< 0.5 W
Mechanical Specs	Dimensions	Set (W x H x D)		1062 x 616.6 x 54.5 mm / 41.8" x 24.28" x 2.15"	1253.4 x 724.2 x 54.5 mm / 49.35" x 28.51" x 2.15"	619.1 x 1107.5 x 69.5 mm / 24.37" x 43.60" x 2.74"	726.8 x 1299 x 69.5 mm / 28.61" x 51.14" x 2.74"
	Dimensions	Package (W x H x D)		1189 x 757 x 158 mm / 46.81" x 29.8" x 6.22"	1420 x 879 x 178 mm / 55.9" x 34.61" x 7"	796 x 1255 x 327 mm / 31.34" x 49.41" x 12.87"	940 x 1466 x 367 mm / 37.0" x 57.72" x 14.45"
	Weight	Set		18.2 kg / 40.12 lbs	22.1 kg / 48.72 lbs	32 kg / 70.55 lbs	42 kg / 92.6 lbs
	Weight	Package		23 kg / 50.71 lbs	28 kg / 61.73 lbs	39.5 kg / 87.08 lbs	52 kg / 114.64 lbs
	VESA Mount (mm)			400 x 400 mm	400 x 400 mm	N/A	N/A
	Bezel Width (mm)			19.9 (even)	19.9 (even)	22.8 (even)	22.8 (even)
Environmental Conditions	Operating Temperature			0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight	0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)	0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)	0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)

	Operating Humidity			10~80%	10~80%	10~80%	10~80%
Features	Special			IP 5X Rated, Polarized Sun Glasses Viewable in Any Direction, Portrait / Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery (80 Hrs Clock Keeping), Kensington Lock, Wi-Fi Module Embedded		IP 5X Rated, Polarized Sun Glasses Viewable in Any Direction, Portrait Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery (80 Hrs Clock Keeping), Wi-Fi Module Embedded (2 Ea, One Per Each Display)
	Internal Player (Embedded H/W)	Processor		Coretex A72 1.7GHz Quad-Core CPU	Coretex A72 1.7GHz Quad-Core CPU	Coretex A72 1.7GHz Quad-Core CPU	Coretex A72 1.7GHz Quad-Core CPU
		On-Chip Cache Memory		L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB	L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB	L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB	L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB
		Clock Speed		1.7GHz	1.7GHz	1.7GHz	1.7GHz
		Main Memory Interface		2.5GB LPDDR4 1.5GHz 64 bit	2.5GB LPDDR4 1.5GHz 64 bit	2.5GB LPDDR4 1.5GHz 64 bit	2.5GB LPDDR4 1.5GHz 64 bit
		Graphics		Graphic Resolution: 1920 x 1080 Output Resolution: 3840 x 2160 (Scale Up From Graphic Processing Result) - Supports OpenGL ES	Graphic Resolution: 1920 x 1080 Output Resolution: 3840 x 2160 (Scale Up From Graphic Processing Result) - Supports OpenGL ES	Graphic Resolution: 1920 x 1080 Output Resolution: 3840 x 2160 (Scale Up From Graphic Processing Result) - Supports OpenGL ES	Graphic Resolution: 1920 x 1080 Output Resolution: 3840 x 2160 (Scale Up From Graphic Processing Result) - Supports OpenGL ES
		Storage (FDM)		8GB (3.88GB Occupied by O/S, 4.12GB Available)	8GB (3.88GB Occupied by O/S, 4.12GB Available)	8GB (3.88GB Occupied by O/S, 4.12GB Available)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
		Multimedia		Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG	Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG	Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG	Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG
		IO Ports		USB 2.0	USB 2.0	USB 2.0	USB 2.0
		Operating System		Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)
Accessories	Included			Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient Sensor
Certification	Safety			UL(USA): cUL60950-1	UL(USA): cUL60950-1	UL(USA): cUL60950-1	UL(USA): cUL60950-1
Certification	EMC			FCC (USA) Part 15, Subpart B Class A	FCC (USA) Part 15, Subpart B Class A	FCC (USA) Part 15, Subpart B Class A	FCC (USA) Part 15, Subpart B Class A
Service	Standard Warranty			3 Years Onsite (Parts / Labor / Backlight)	3 Years Onsite (Parts / Labor / Backlight)	3 Years Onsite (Parts / Labor / Backlight)	3 Years Onsite (Parts / Labor / Backlight)
