Samsung VHR-R Series 55" VH55R-R
Razor Thin Video Wall Display for Business

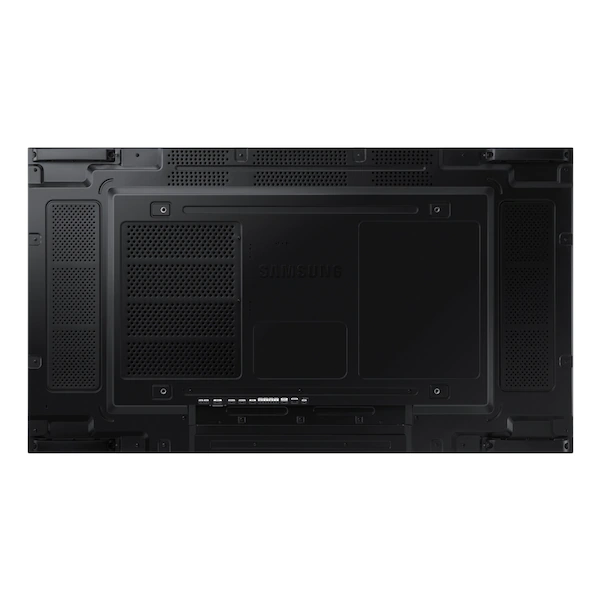

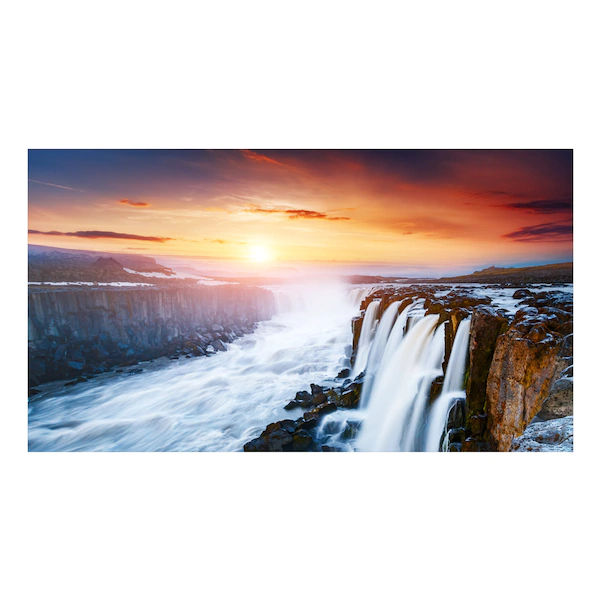

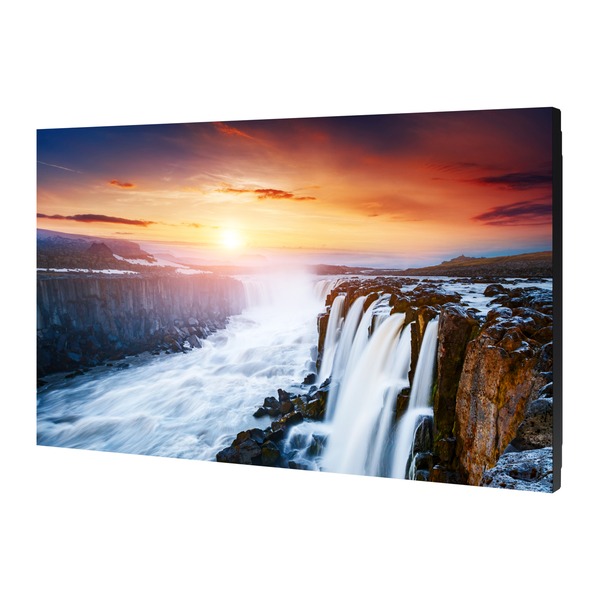

Samsung VH55R-R



Samsung Products
Samsung Digital Signage
VH55R-R - VHR-R Series 55 in. Ultra Narrow Bezel Videowall Display
#VH55R-R
Our Price: $5,231.00

Overview:

Create virtually seamless video walls thanks to the VHR-R Series' razor-thin bezels, measuring just 0.44mm. Equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, these video wall displays deliver an impactful experience. And the modern, slim design allows the display to blend into virtually any business environment.
  • Nearly invisible 0.44mm even bezel enables content to be delivered as one virtually seamless image
  • Bright, non-glare picture quality lets you deliver your message 24/7 regardless of ambient light
  • Advanced picture enhancement technology helps to ensure all content is vibrant and clear
  • Backed by a 3-year onsite warranty plus ISTA-certified packaging that helps to reduce product damage in transit

Features:


Samsung VHR-R Series feature nearly invisible

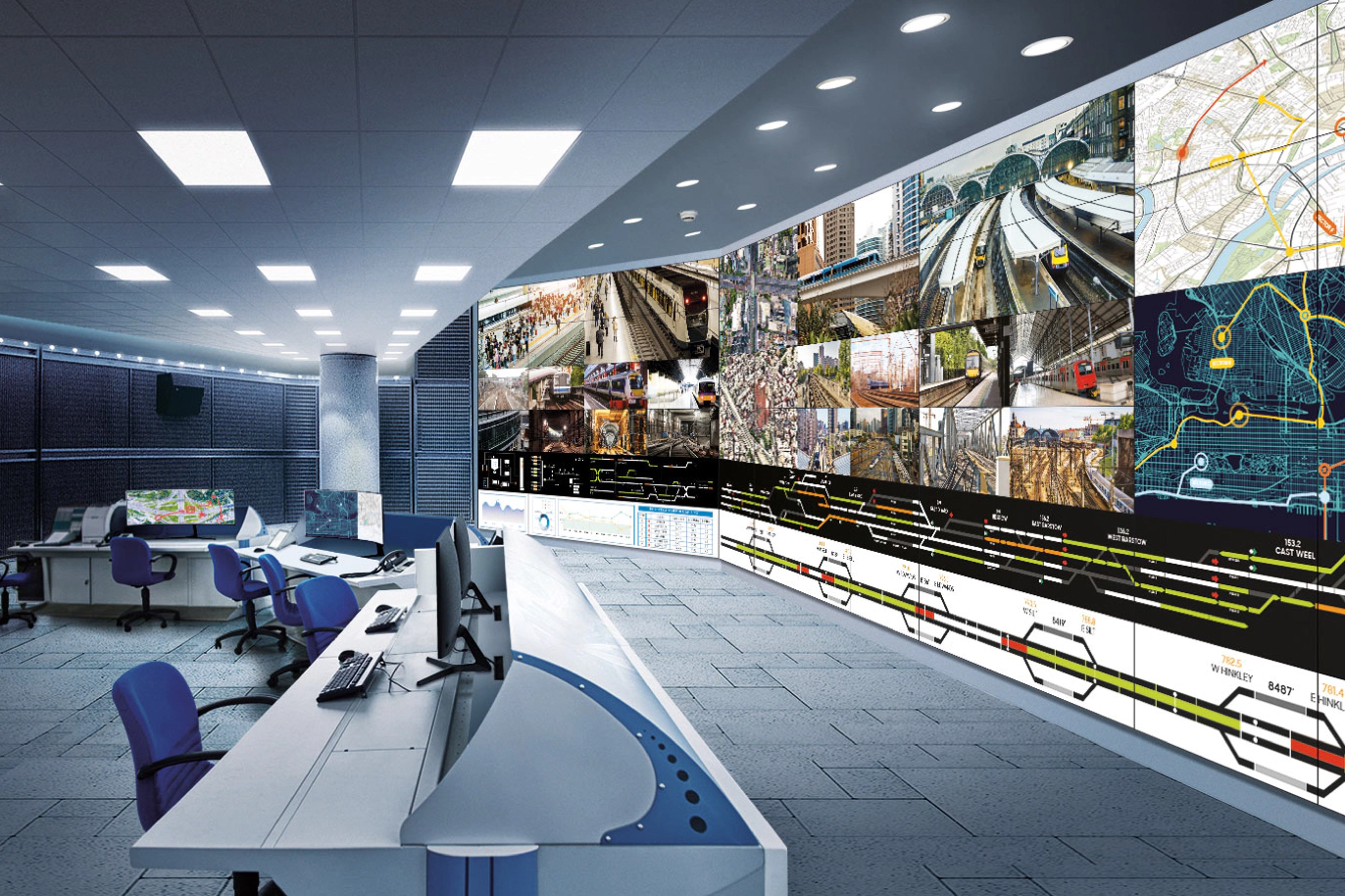

Nearly Invisible 0.44mm Bezel

The VHR-R Series features an exceptionally thin 0.44mm even bezel—a 0.88 mm bezel-to-bezel depth—that enables content to be delivered as one virtually seamless image. Additionally, the display helps to eliminate any potential image distortion and provides an immersive viewing experience.

Samsung VHR-R Series feature bright

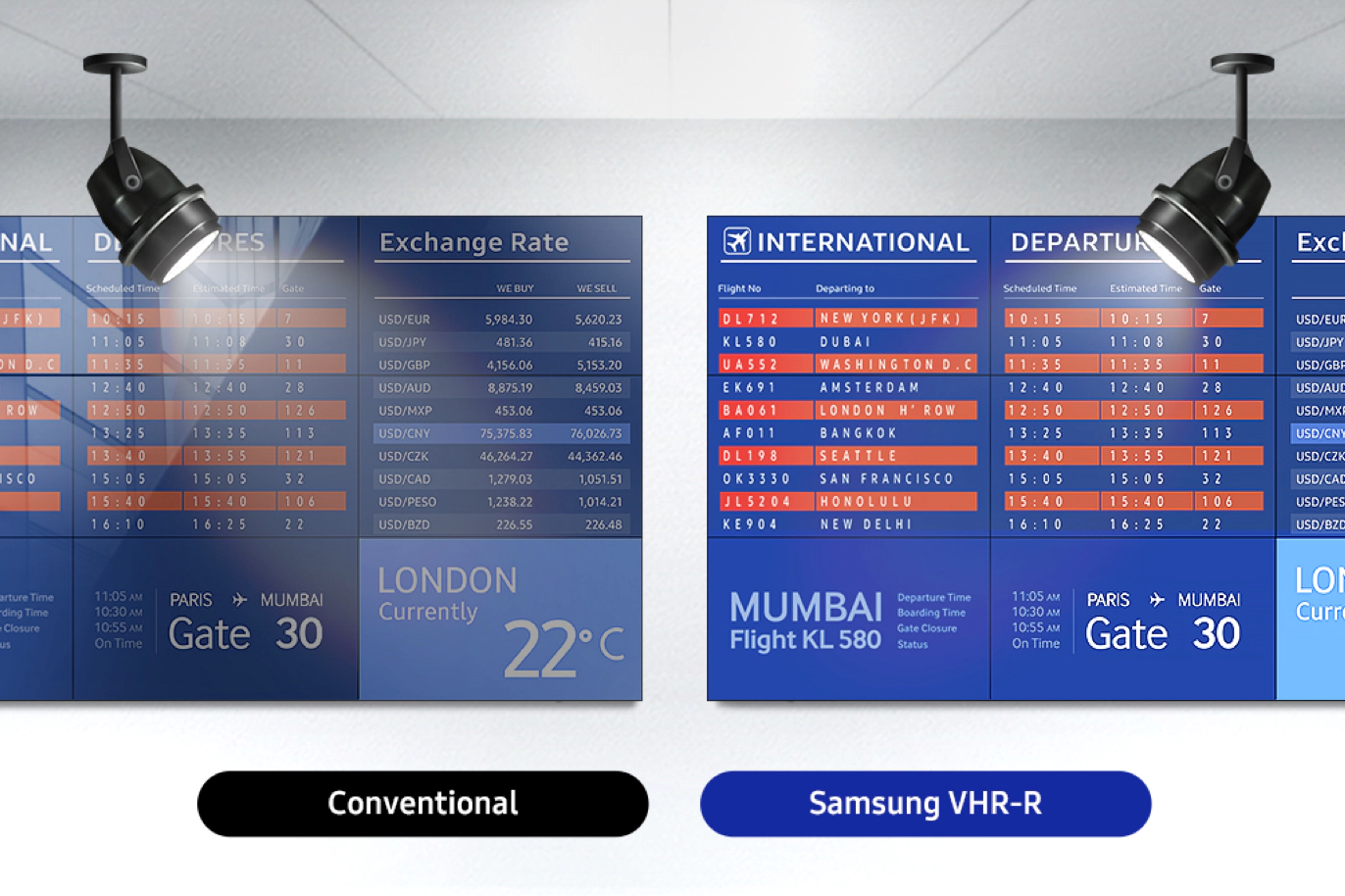

Bright 4K UHD Non-Glare Picture Around the Clock

Experience brilliant image presentation with an impressive 700-nit brightness empowering your business to deliver clear information 24/7. The display’s non-glare panels provide excellent visibility regardless of ambient light, helping to ensure critical information is always visible.


Samsung VHR-R Series feature advanced

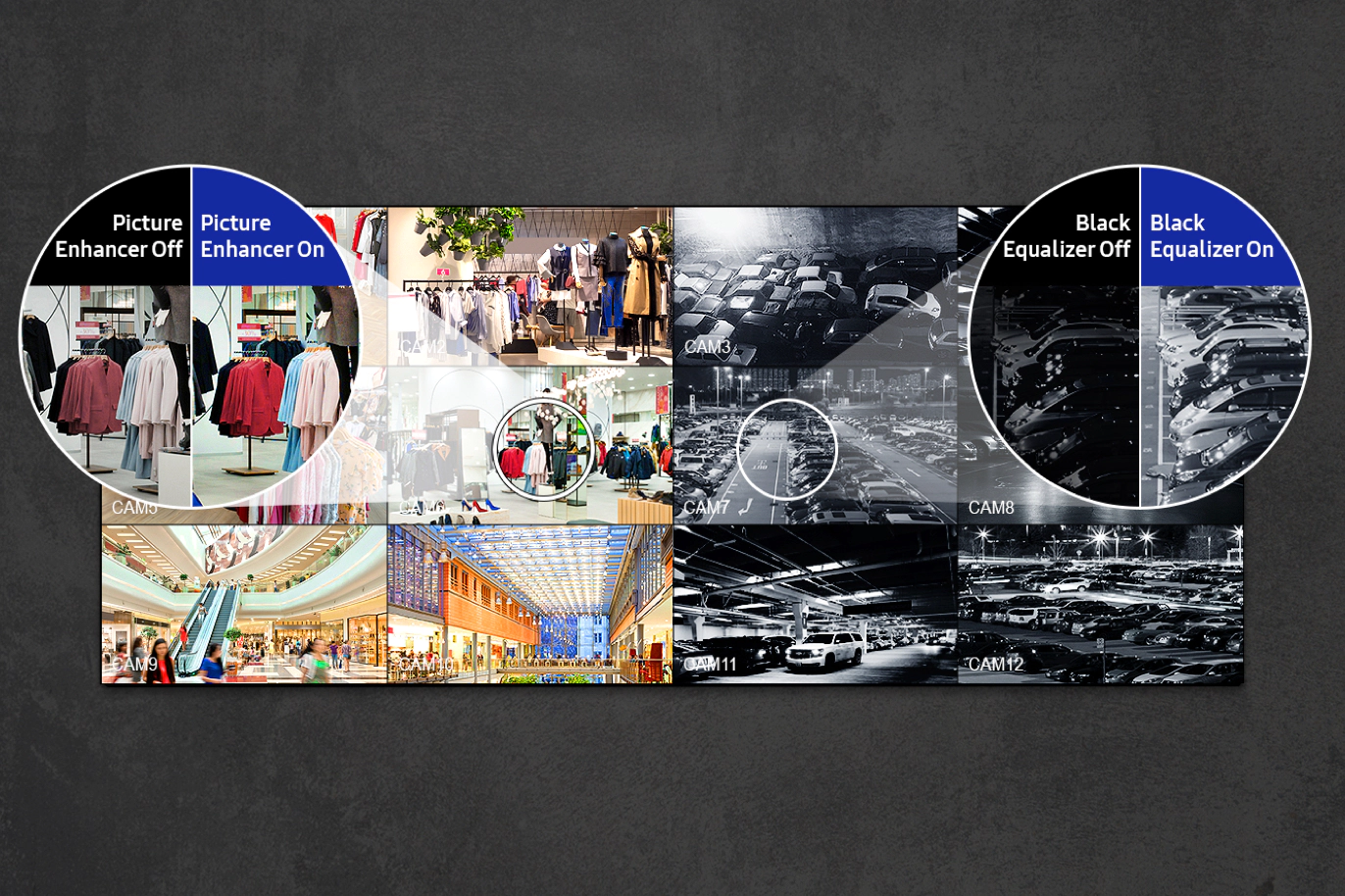

Advanced Picture Enhancement Technology

Samsung’s powerful picture enhancement technology helps to ensure all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.

Samsung VHR-R Series feature view from any angle

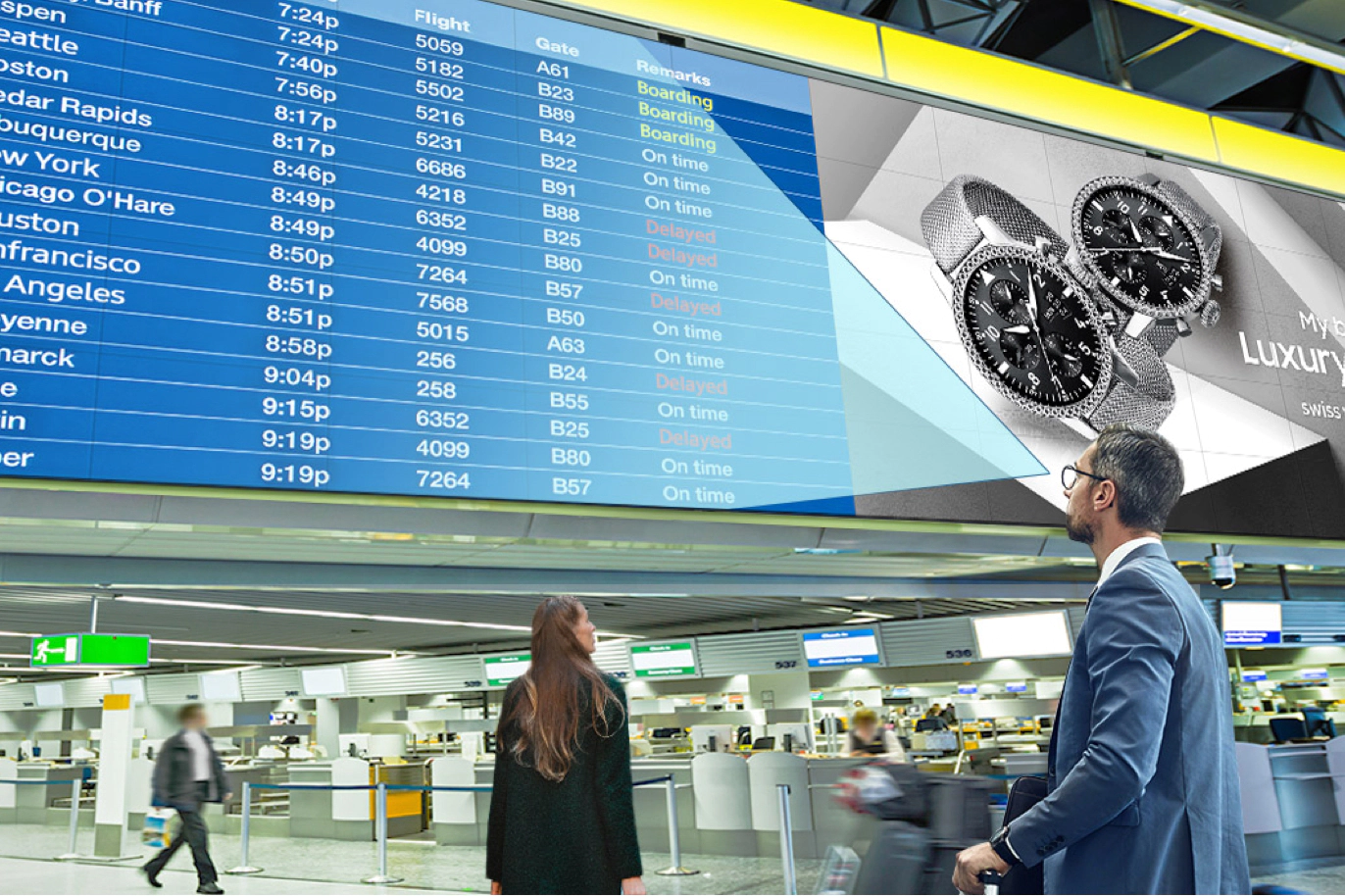

View Content From Any Angle

The VHR-R Series' wide viewing angles mean your content is easily visible even if your viewers aren’t standing directly in front of the display. So you can deliver clear and accurate information regardless of video wall layout or location.

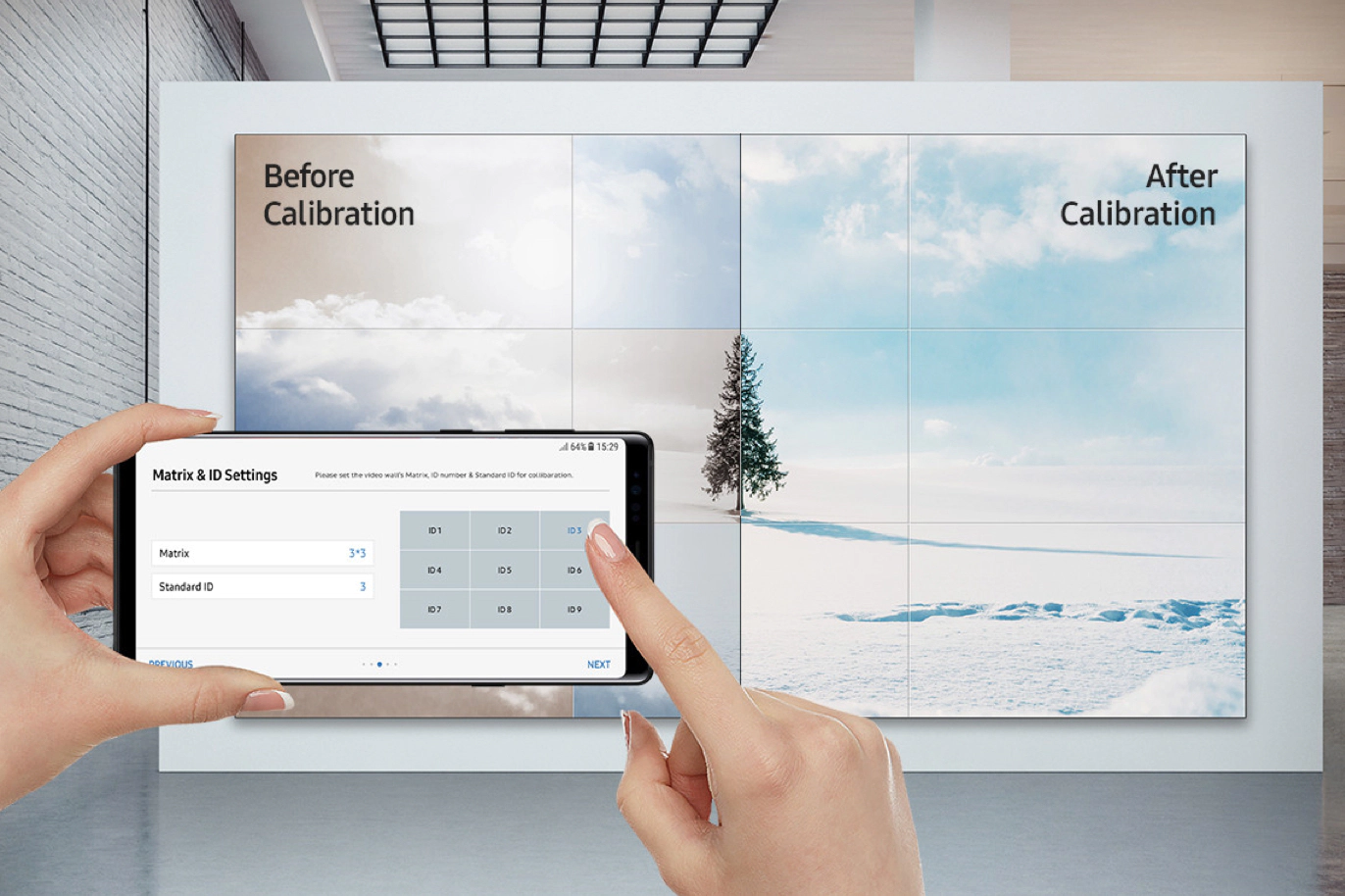

Samsung VHR-R Series feature easy calibration

Easy, Cost-Effective Mobile Calibration

Samsung’s Color Expert Pro Mobile solution provides quick and easy video wall calibration through a mobile camera. With an intuitive UI, even non-experts can adjust the white balance on all displays of a video wall simultaneously—up to 5x5—without the need for additional equipment.

Samsung VHR-R Series feature modern

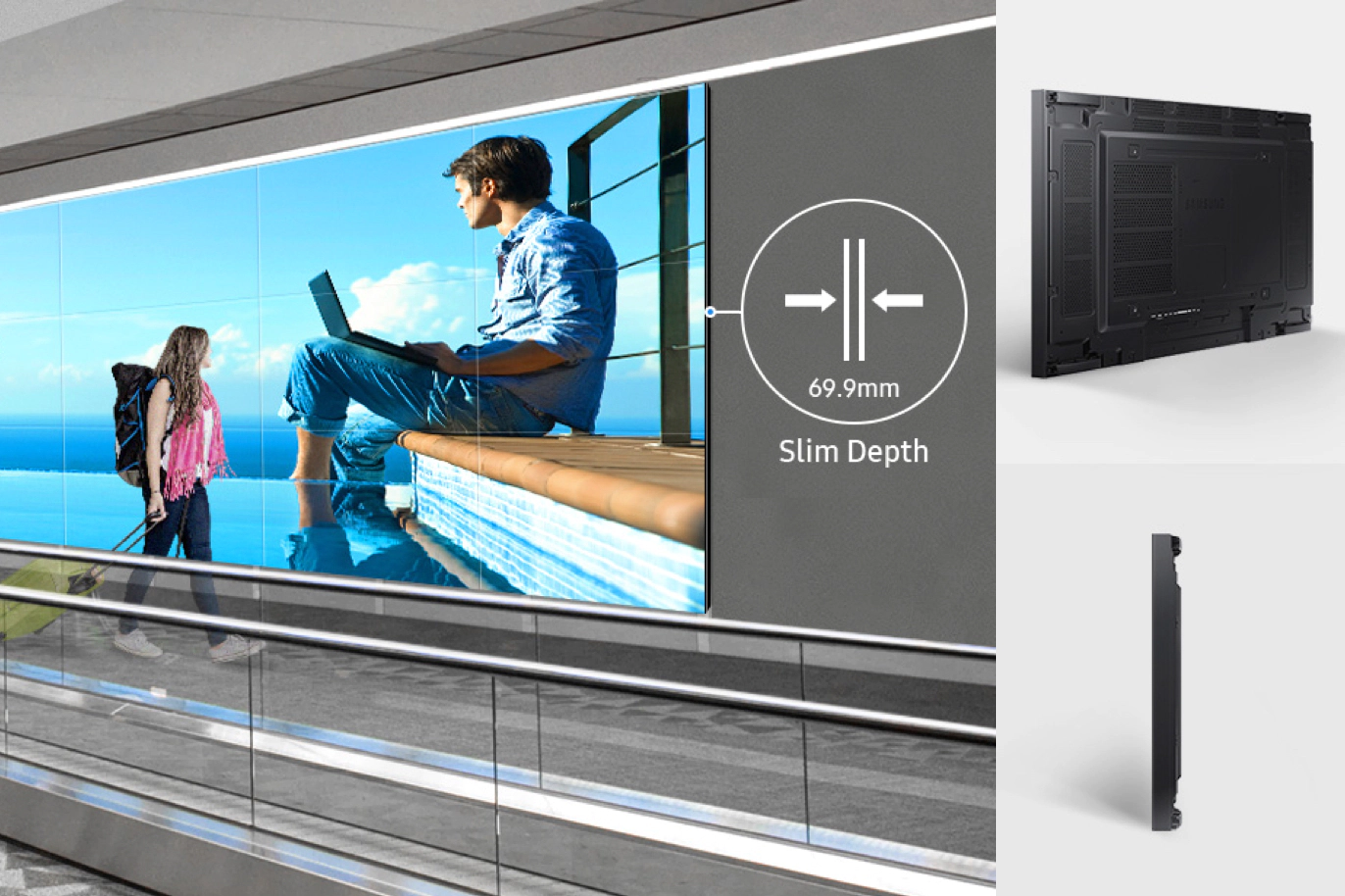

Modern, Slim Design

VHR-R Series displays feature an elevated design aesthetic with an ultra-slim depth of less than 2.75". This allows you to save space and create a clean, modern look for retail environments or other public spaces.

Specifications:

Download the Samsung VHR-R Series Datasheet (.PDF)



VH55R-R

Panel

Screen Size

55"

Panel Type

IPS

Resolution

1920 x 1080

Brightness (Typ.)

Max 700 nits

Contrast Ratio (Typ.)

1000:1

Viewing Angle (H / V)

178˚ / 178˚

Response Time (G-to-G)

8ms

Display Colors

8 bit - 16.7M

Color Gamut

72%

Operation Hour

24 / 7

Anti-Glare Panel

Yes

Panel Orientation

Landscape / Portrait

Special Certifications

Special Certification

N/A

Cisco Compatible

N/A

Crestron Certified

N/A

Sound

Speaker Type

N/A

Connectivity:

Input

RGB

DVI-D, DisplayPort 1.2

Video

HDMI 2.0 (2)

HDCP

HDCP 2.2

Audio

Stereo Mini Jack

USB

Only F/W Upgrade

Connectivity:

Output

RGB

DP1.2 (Loop-out)

Video

N/A

Audio

Stereo Mini Jack

Power Out

N/A

External Control

External Control

RS232C (In / Out), RJ45

External Sensor

Detachable Type (IR, Ambient)

Other Connectivity

Tuner

N/A

Wi-Fi

N/A

Bluetooth

N/A

Power/Operation

Type

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption Max (Watts/Hour)

270

Power Consumption Typical (Watts/Hour)

153

Power Consumption Typical BTU (Max)

921

Power Consumption Typical Sleep Mode

Less than 0.5W

Power Consumption Typical Off Mode

Less than 0.5W

Mechanical Specifications

Set Dimensions

47.67" x 26.84" x 2.75" / 1211.0 x 681.7 x 69.9mm

Package Dimensions

55.67" x 33.2" x 10.12" / 1414.0 x 844.0 x 257.0mm

Set Weight

37.0 lbs. / 16.8kg

Package Weight

55.3 lbs. / 25.1kg

VESA Mount

600 x 400mm

Protection Glass

N/A

Stand Type

N/A

Environmental Conditions

Operating Temperature

32˚F ~ 104˚F / 0℃~ 40℃

Humidity

10~80%

Special Features

Hardware / Software

ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C / RJ45 MDC, Plug and Play (DDC2B), Video Wall (15 x 15 [OSD]), Video Wall Daisy Chain (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP Support), Smart F/W Update, Clock Battery (80 Hrs Clock Keeping)

Safety and Environmental Certifications

Safety

UL 60950-1, CSA

EMC

FCC Part 15, Subpart B Class A

Environment

N/A

Accessories

Included

Quick Setup Guide, Warranty Card, DP Cable, Stereo to DB9 Cable, Power Cord, Remote Controller, Batteries

Optional Stand

N/A

Optional Mount

WMN-55VD

Service

Standard Warranty

3 Years
