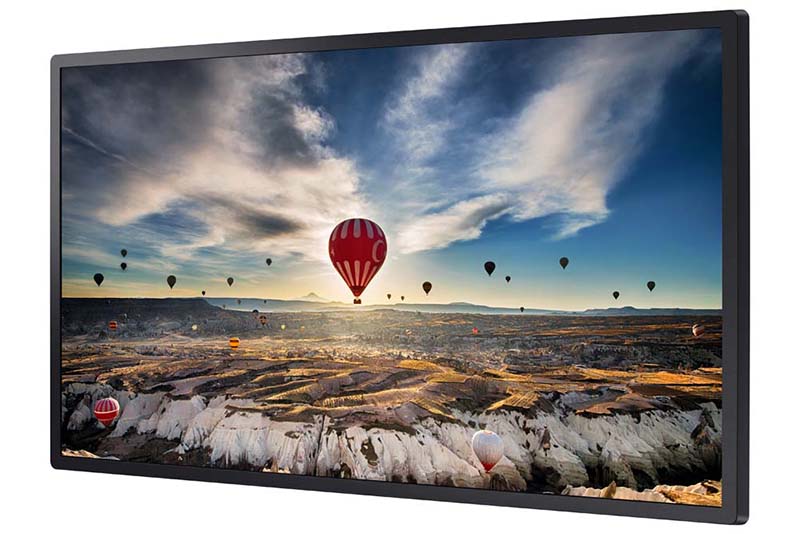

Samsung OM32H - OMH Series 32" Smart Signage
Deliver Clear and Compelling Messaging wih Excellent Visibility

Samsung OM32H - OMH Series 32" Smart Signage

Samsung Products
Samsung Digital Signage
OM32H - OMH Series 32" Smart Signage
#OM32H
List Price: $2,412.00
Our Price: $1,865.00

More pricing below, click here!

Overview:

Samsung's versatile OMH Series displays expand content-sharing possibilities and deliver clear and intriguing messaging for businesses in semi-outdoor environments. The displays' reinforced design ensures continuous visibility and tolerance against intense lighting exposure, while convenient all-in-one management reduces operational burden.

  • Ensure continuous visibility in bright settings exposed to sunlight
  • Deter sunlight exposure damage with a reinforced, high-TNI panel composition
  • Simplify operations through an all-in-one design
  • Connect external devices across a variety of dedicated ports
  • Configure displays in portrait or landscape orientations to suit dimensional needs

Industry Trends

As competition increases, retailers need new ways to engage and inform customers...even before they enter the venue. Given this demand, storefront windows, drive-thrus and even gas pumps have become prized spaces, as these locations offer unparalleled opportunities to connect with captive audiences.

Features:


Deliver Clear and Compelling Messaging

Deliver Clear and Compelling Messaging

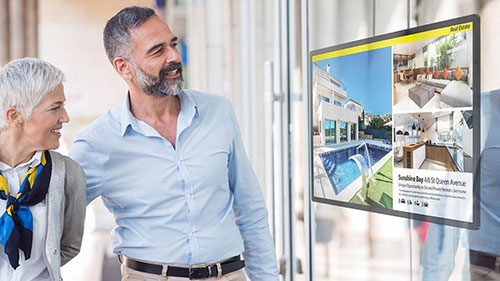

Deliver messaging with continuous visibility in semi-outdoor and outdoor environments, and reduce operational burden through the highly durable and convenient all-in-one OMH Series displays.

Foster Brilliant Presentation for All

Foster Brilliant Presentation for All

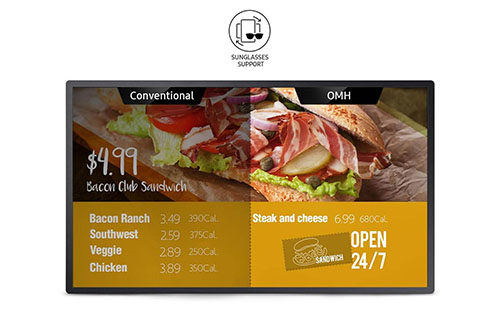

Provide uninterrupted visibility against natural and ambient lighting conditions with high brightness and against display blindness from polarized sunglasses with circular polarizing technology.


Eliminate Unnecessary Distractions

Eliminate Unnecessary Distractions

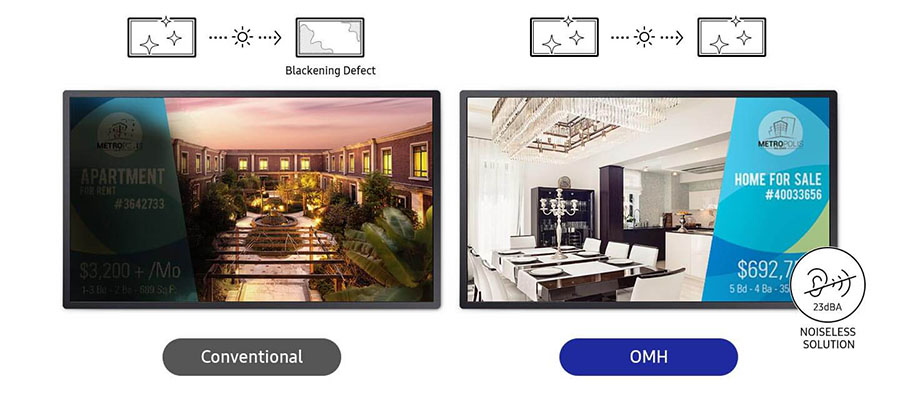

Deliver content without disrupting the customer experience. A high-TNI panel prevents blackening of the screen from sunlight exposure and a fan-less design ensures minimal noise emission.


Leverage Advanced Connectivity

Leverage Advanced Connectivity

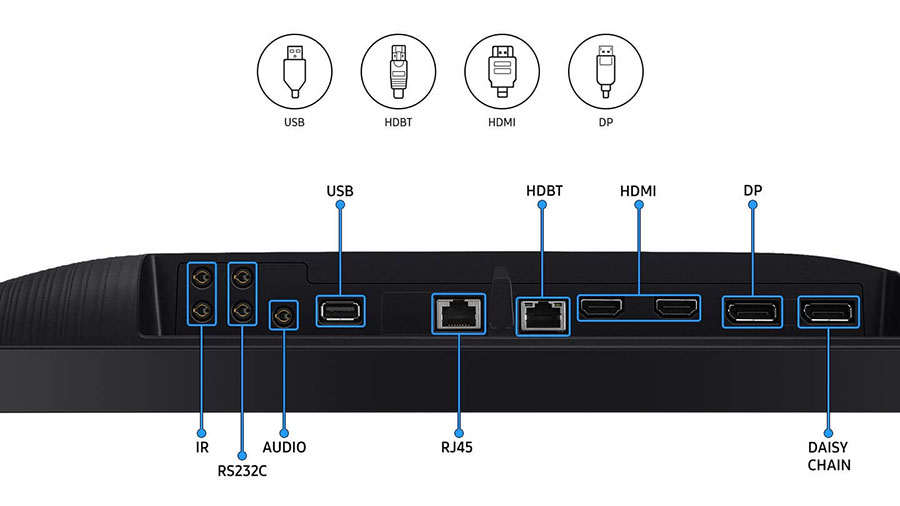

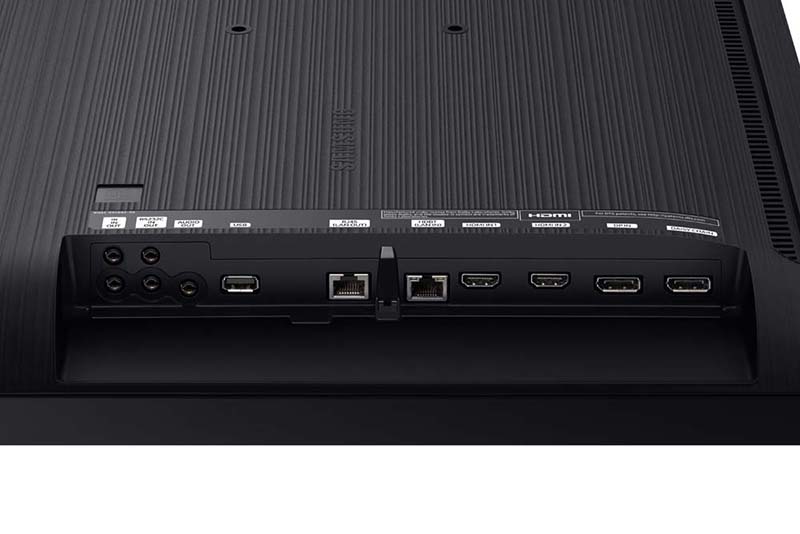

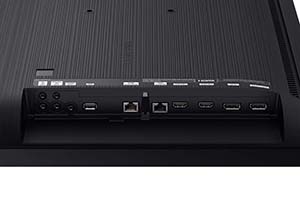

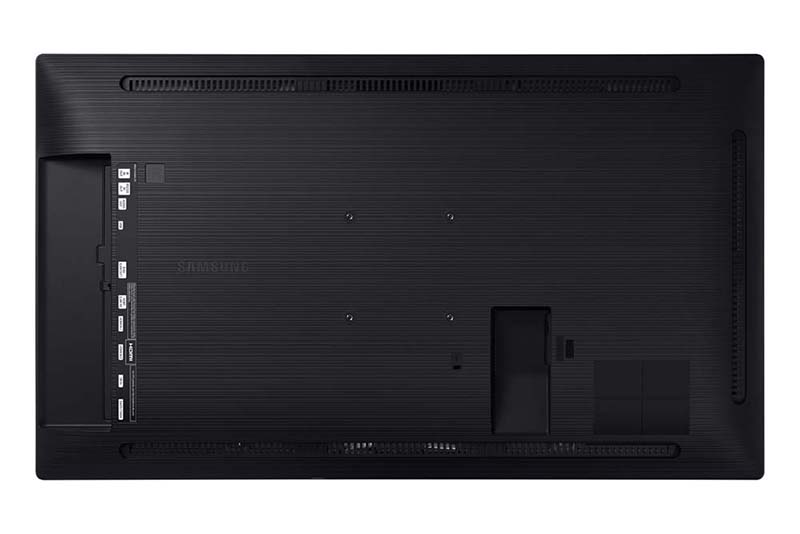

Through dedicated input (DP, HDMI, HDBT and USB), external control (RJ45, RS232C and IR) and network (RJ45 LAN) ports, users can connect multiple compatible sources without complication.


Streamline Operational Efficiency

Streamline Operational Efficiency

The embedded MagicInfo Player S4, backed by the powerful TIZEN operating system, boosts the displays overall performance, allows for painless content management and ensures seamless content transition and playback.

Optimize Display Orientation

Optimize Display Orientation

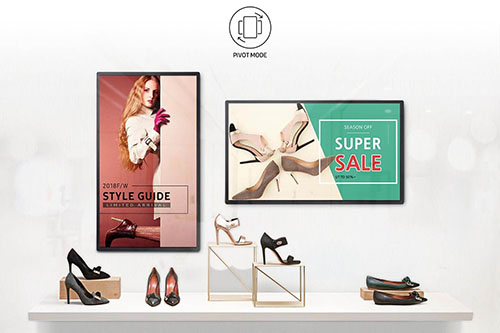

With pivot mode, users can install the OMH Series displays in both a landscape or portrait orientation to suit environmental and usage needs.


Specifications:


Samsung OM32H - OMH Series 32" Smart Signage Specifications
Display
Screen Size 32"
Panel Technology LED BLU
Resolution 1920x1080 (Full HD)
Pixel Pitch (mm) 0.3637 x 0.3637
Active Display Area (mm) 698.4(H) x 392.85(V)
Brightness (Typ.) 1000 nit
Contrast Ratio 3000:1
Viewing Angle (Horizontal/Vertical) 178° / 178°
Response Time(G-to-G) 8ms
Display Colors 8 bit - 16.7M
Color Gamut 72%
Operation Hour 16/7
Haze 0%
Display
Dynamic C/R 100,000:1
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 148.5MHz
Sound
Speaker Type N/A
Connectivity
Input
  • RGB: Display Port (1)
  • Video: HDMI (2)
  • HDCP: HDCP 2.2
  • Audio: N/A
  • USB: USB x 1
Output
  • RGB: DP1.2 (Daisy Chain)
  • Video: Yes
  • Audio: Stereo Mini Jack
  • External Control: RS232C (In/Out), RJ45 (In/Out), HDBaseT (In)
  • External Sensor: Detachable Type (IR)
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]: 110
  • Typical[W/h]: W/W(EU) : 103 US : 105
  • BTU(Max): 376
  • Sleep mode: less than 0.5W
  • Off mode :Less than 0.5W
Mechanical Spec
Product Dimensions 734.7 x 429.2 x 55.3 mm
Packaging Dimensions 829 x 141 x 518 mm
Product Weight 7.9 kg
Shipping Weight 9.7 kg
VESA Mount (mm) 100 x 100 mm
Bezel Width 14 / 14 / 14 / 14 mm
Environmental Conditions
Recommended Usage Hours 16/7
Operating Temperature 0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)
Operating Humidity 10%~80%
Features
Key Features MagicInfo Player S4, SSSP 4.0, HD Base T
Special Features Polarized Sun Glasses Viewable, Noise-less, Internal Temperature Sensor, Portrait / Landscape Installation
Internal Player
  • Processor: Cortex-A12 1.3GHz Quad Core CPU
  • On-Chip Cache Memory: L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed: 1.3GHz CPU Quad
  • Main Memory: Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
  • Graphics: 2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES
  • Storage (FDM): 8GB (3.75GB Occupied by O/S, 4.25GB Available)
  • Multimedia: Video Decoder & Audio DSP (Decoder)
  • IO Ports: USB 2.0
  • Tizen 2.4 (VDLinux)
Certification
Safety 60950-1
EMC Class A
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, External IR Sensor

Documentation:

Download the Samsung OMH 32" Smart Signage Datasheet (.PDF)

Pricing Notes:

Samsung Products
Samsung Digital Signage
OM32H - OMH Series 32" Smart Signage
#OM32H
List Price: $2,412.00
Our Price: $1,865.00
Samsung On-site Warranty with SLA
On-site Warranty includes: Next Business Day exchange of the display, on-site tech-assisted exchange of display, Technician removes original unit, installs replacement, and ships non-working unit to Samsung, Coverage for mechanical/electrical breakdown
3 Years On-site Warranty with SLA for 32" Display
#32MN3
Our Price: $175.00
4 Years On-site Warranty with SLA for 32" Display
#32MN4
Our Price: $265.00
5 Years On-site Warranty with SLA for 32" Display
#32MN5
Our Price: $350.00
