Samsung ED40C - ED-C Series 40" Direct-Lit LED Display
Direct-lit LED Technology To Deliver Bright, Beautiful Imagery Affordably.
This product is no longer available, please contact us for a replacement.
Overview:
Samsung's ED-C Series displays feature direct-lit LED technology to deliver bright, beautiful imagery affordably. Using up to 50% less energy than traditional CCFL, LED can save you money while showcasing a sharp, high-resolution picture with uniform brightness on the 40" screen. And you get the commercial reliability you expect from Samsung along with simple connectivity options for ease of use.
- Direct-Lit LED Screen
- Simple Connectivity
- Commercial Reliability
- High Resolution
Features
Direct- Lit LED Display
Direct-lit LED technology delivers sharp, high-resolution images, along with the uniform brightness typical of traditional CCFL-backlit displays. It also uses less energy, with savings of up to 50% over CCFL. Step up to the performance and efficiency benefits of LED.
Single Connectivity
Inputs on the ED-C Series displays include VGA, HDMI, Stereo mini, and RS232C through the stereo jack. Outputs include Stereo mini, and RS232C through the stereo jack. You’ll be able to output sound to an external sound system (if you don’t want to use the built-in 10W x 2 stereo speakers).
Commercial Reliability
Samsung is the largest manufacturer of LED panels in the world. So while the ED-C Series displays are affordable, they’re also every bit as reliable as our most expensive display panels. It’s why we back them with a 3-year onsite warranty.
Specifications:
Samsung ED32C - ED-C Series 32" Direct-Lit LED Display | |
---|---|
Display | |
Screen Size | 40" |
Panel Technology | 60Hz (Direct-LED Backlight) |
Native Resolution | 1920 x 1080 (16:9) |
Brightness (Max) | 350 nits |
Contrast Ratio (Typical) | 5000:1 |
Viewing Angle | 178:178 |
Orientation | Landscape / Portrait |
Response Time | 8ms |
Connectivity | |
Input | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) |
Output | Stereo Mini Jack, RS232C (thru Stereo Jack) |
External Control | RS232C (in/out) (thru Stereo Jack) |
External Sensor | N/A |
Power | |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption (Typical / Max) | 76W / 110W |
Power Consumption (Standby) | < 0.5W |
Environmental Conditions | |
Operating Temperature | 0ºC~ 40ºC |
Operating Humidity | 10~80% |
Features | |
Special | Built-in Speaker (10W + 10W), PIP/PBP, Narrow Beze |
Tuner | N/A |
Internal Media Player | N/A |
VESA Standard Wall Mount Interface | 200 x 200mm |
Dimensions | |
Without Stand (W x H x D) | 36.4" x 21.3" x 3.7" |
Packaging Dimension (W x H x D) | 39.6" x 24.2" x 5.9" |
Bezel Width | 17.4mm (Bottom 20.4mm) |
Weight | |
Product Weight | 20.5 lbs. |
Shipping Weight | 25.1 lbs. |
Service | |
Standard Warranty | 3 Year Onsite Parts/Labor |
Accessories | |
Included | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries |
Optional Stand | STN-L32D |
Optional Mount | WMN-4070SD, WMN-250MD |
Optional Media Player | N/A |
Optional Touch Overlay | N/A |
Green Management | |
Emission Standard | EMC |
ENERGY STAR® 5.0 Compliant | Yes |
RoHS Compliant | Yes |
Packaging Recyclability | Yes |
Connectivity | |
|
Compare:
Samsung ED-C Series Commercial Displays | ||||||
---|---|---|---|---|---|---|
Model Number | ED32C | ED40C | ED46C | ED55C | ED65C | ED75C |
Display | ||||||
Screen Size | 32" | 40" | 46" | 55" | 65" | 75" |
Panel Technology | 60Hz (Direct-LED Backlight) | 60Hz (Direct-LED Backlight) | 60Hz (Direct-LED Backlight) | 120Hz (Direct-LED Backlight) | 120Hz (Direct-LED Backlight) | 240Hz (Direct-LED Backlight) |
Native Resolution | 1366 x 768 (16:9) | 1920 x 1080 (16:9) | 1920 x 1080 (16:9) | 1920 x 1080 (16:9) | 1920 x 1080 (16:9) | 1920 x 1080 (16:9) |
Brightness (Max) | 330 nits | 350 nits | 350 nits | 350 nits | 320 nits | 320 nits |
Contrast Ratio (Typical) | 4000:1 | 5000:1 | 5000:1 | 5000:1 | 4000:1 | 4000:1 |
Viewing Angle | 178:178 | 178:178 | 178:178 | 178:178 | 178:178 | 178:178 |
Orientation | Landscape / Portrait | Landscape / Portrait | Landscape / Portrait | Landscape / Portrait | Landscape / Portrait | Landscape / Portrait |
Response Time | 8ms | 8ms | 8ms | 8ms | 6.5ms | 4ms |
Connectivity | ||||||
Input | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) | VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) |
Output | Stereo Mini Jack, RS232C (thru Stereo Jack) | Stereo Mini Jack, RS232C (thru Stereo Jack) | Stereo Mini Jack, RS232C (thru Stereo Jack) | Stereo Mini Jack, RS232C (thru Stereo Jack) | Stereo Mini Jack, RS232C (thru Stereo Jack) | Stereo Mini Jack, RS232C (thru Stereo Jack) |
External Control | RS232C (in/out) (thru Stereo Jack) | RS232C (in/out) (thru Stereo Jack) | RS232C (in/out) (thru Stereo Jack) | RS232C (in/out) (thru Stereo Jack) | RS232C (in/out) (thru Stereo Jack) | RS232C (in/out) (thru Stereo Jack) |
External Sensor | N/A | N/A | N/A | N/A | Yes | Yes |
Power | ||||||
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption (Typical / Max) | 47W / 77W | 76W / 110W | 88W / 121W | 120W / 165W | 180W / 290W | 247W / 360W |
Power Consumption (Standby) | < 0.5W | < 0.5W | < 0.5W | < 0.5W | < 1W | < 1W |
Environmental Conditions | ||||||
Operating Temperature | 0ºC~ 40ºC | 0ºC~ 40ºC | 0ºC~ 40ºC | 0ºC~ 40ºC | 0ºC~ 40ºC | 0ºC~ 40ºC |
Operating Humidity | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% |
Features | ||||||
Special | Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel | Built-in Speaker (10W + 10W), PIP/PBP, Narrow Beze | Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel | Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel | Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, OPS Compliant | Built-in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, OPS Compliant |
Tuner | N/A | N/A | N/A | N/A | N/A | N/A |
Internal Media Player | N/A | N/A | N/A | N/A | N/A | N/A |
VESA Standard Wall Mount Interface | 200 x 200mm | 200 x 200mm | 400 x 400mm | 400 x 400mm | 400 x 400mm | 400 x 400mm |
Dimensions | ||||||
Product Dimension Without Stand (W x H x D) | 29.0" x 17.1" x 3.7" | 36.4" x 21.3" x 3.7" | 41.6" x 24.2" x 3.7" | 49.1" x 28.5" x 3.7" | 57.8" x 33.4" x 2.6" | 65.9" x 37.8" x 2.5" |
Packaging Dimension (W x H x D) | 32.5" x 20.9" x 6.4" | 39.6" x 24.2" x 5.9" | 45.4" x 28.5" x 6.5" | 54.4" x 33.0" x 6.7" | 63.0" x 38.6" x 8.5" | 72.9" x 43.3" x 19.2" |
Bezel Width | 16.3mm (Bottom 20.4mm) | 17.4mm (Bottom 20.4mm) | 17.4mm (Bottom 20.8mm) | 17.0mm (Bottom 21.5mm) | 18.0mm (Bottom 23.5mm) | 10.9mm (Bottom 16.9mm) |
Weight | ||||||
Product Weight | 13.2 lbs. | 20.5 lbs. | 26.2 lbs. | 40.3 lbs. | 59 lbs. | 63.4 lbs. |
Shipping Weight | 16.7 lbs. | 25.1 lbs. | 32.1 lbs. | 51.5 lbs. | 73.9 lbs. | 107.4 lbs. |
Service | ||||||
Standard Warranty | 3 Year Onsite Parts/Labor | 3 Year Onsite Parts/Labor | 3 Year Onsite Parts/Labor | 3 Year Onsite Parts/Labor | 3 Year Onsite Parts/Labor | 3 Year Onsite Parts/Labor |
Accessories | ||||||
Included | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries |
Optional Stand | STN-L32D | STN-L32D | STN-L4055AD | STN-L4055AD | STN-L4055AD | STN-L75E |
Optional Mount | WMN-4070SD, WMN-250MD | WMN-4070SD, WMN-250MD | WMN-4270SD, WMN-250MD | WMN-4270SD, WMN-250MD | WMN-4270SD (Landscape Only) WMN-4675MD (Portrait Only) |
WMN-4277S (Landscape Only) WMN-4675MD (Portrait Only) |
Optional Media Player | N/A | N/A | N/A | N/A | PIM-BD7, PIM-BQ7P (OPS compliant) | PIM-BD7, PIM-BQ7P (OPS compliant) |
Optional Touch Overlay | N/A | N/A | N/A | N/A | CY-TE65LCC | CY-TE75LCC |
Green Management | ||||||
Emission Standard | EMC | EMC | EMC | EMC | EMC | EMC |
ENERGY STAR® 5.0 Compliant | Yes | Yes | Yes | Yes | N/A | N/A |
RoHS Compliant | Yes | Yes | Yes | Yes | Yes | Yes |
Packaging Recyclability | Yes | Yes | Yes | Yes | Yes | Yes |
Connectivity | ||||||
|

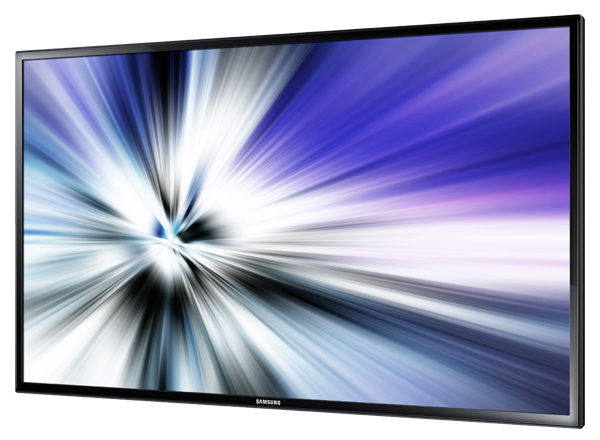

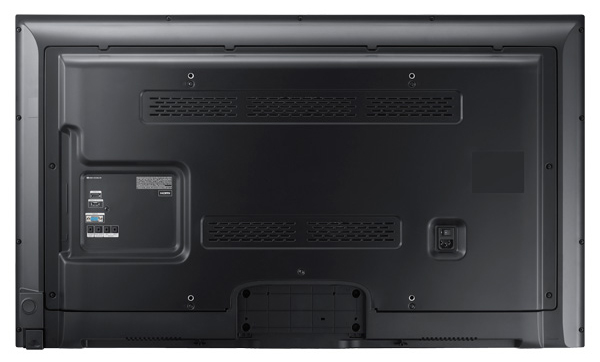

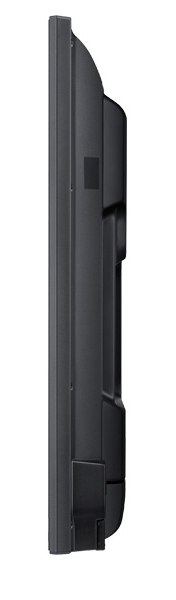

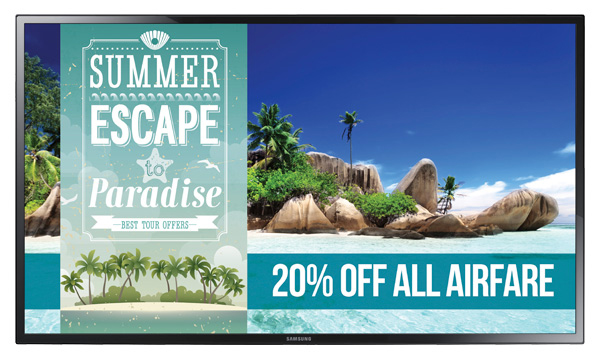

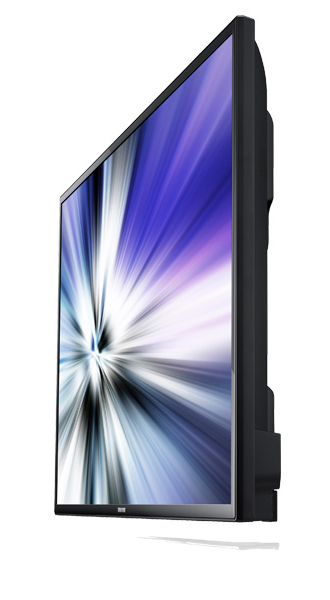

Images:
Documentation:
Download the Samsung ED-C Series Commercial Displays Datasheet (.PDF)
