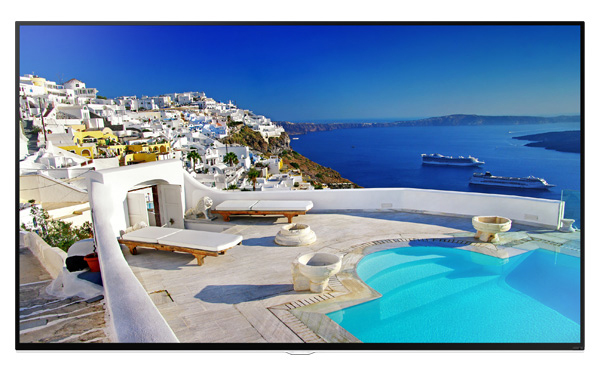

Samsung 40" 693 Series Slim Direct-Lit LED Healthcare TV
SMART TV Offers Interactive Patient Engagement Systems.
This product is no longer available, please contact us for a replacement.
Overview:
Discover advanced TV solutions designed specifically for today's healthcare industry. Samsung's Healthcare TVs have been manufactured with hospital-specific features, such as an interchangeable pillow speaker interface and compatibility with many interactive patient education systems. Facility managers can benefit from up to 50% less energy use with slim direct-lit LED and an on-site warranty program.
- UL-Listed for Hospital Use
- Universal Pillow Speaker Interface
- Samsung LYNK™ SINC 3.0 Interactive Content Management System
- SMART TV Offers Interactive Patient Engagement Systems
Features
UL-Listed for Hospital Use
Samsung Healthcare TVs are specifically engineered to meet the stringent requirements for use in hospital environments.
Universal Pillow Speaker Interface
An easy-to-use interface for multiple styles of pillow speakers is built right into the TV. This eliminates the hassle of lost remotes and changing batteries.
Samsung LYNK™ SINC 3.0
This IP-based content management system communicates between our TVs and hotel property management software. Customize entertainment with EPG (Electronic Program Guide), Weather API, Flight Info, Real Time Messaging and our Hospitality Widget Library (Facebook, Twitter, AccuWeather, Google Maps™).
Samsung LYNK REACH 3.0
The Samsung LYNK REACH 3.0 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).
Specifications:
| Samsung 40" 693 Series Slim Direct-Lit LED Healthcare TV Specifications | |
|---|---|
| Display | |
| Backlight | Slim Direct-Lit LED |
| Screen Size (Diagonal) | 40" |
| HD/FHD | FHD |
| Resolution | 1920 x 1080 |
| Video | |
| Picture Engine | HyperReal Engine |
| Micro Dimming | N/A |
| Wide Color Enhancer Plus | Yes |
| Auto Motion Plus | N/A |
| Film Mode | Yes |
| Audio | |
| Dolby | Dolby MS10 |
| DTS Studio Sound / DNSe+ | DTS Studio Sound |
| DTS Premium Sound / DTS Premium Sound 5.1 | DTS Premium Sound 5.1 |
| 3D Sound | N/A |
| Auto Volume Leveler | Yes |
| Speaker Type | Down Firing + Full Range |
| Sound Output (RMS) | 10W x 2 |
| Woofer | N/A |
| Variable Speaker Output | 4W (Mono, 8Ω) |
| Features | |
| Smart Hub | Yes |
| Apps | Yes |
| Web Browser | Yes |
| Samsung SMART View | Yes |
| Wireless LAN Built-in | Yes |
| AllShare - Contents Sharing | Yes |
| AllShare - Screen Mirroring | Yes |
| ConnectShare™ (USB 2.0) | Movie |
| Wake On LAN | Yes |
| Soft AP | Yes |
| USB HID Support | Yes |
| OSD Language | English, Spanish, French |
| Digital Clean View | Yes |
| HDMI 1.4 A / Return Ch. Support (ARC) | Yes |
| Auto Channel Search | Yes |
| Auto Power Off | Yes |
| EPG | Yes |
| Caption (Subtitle) | Yes |
| Wake-up Timer | Yes |
| Game Mode | Yes |
| Picture-In-Picture | Yes |
| Sleep Timer | Yes |
| Healthcare Features | |
| Hospitality Home Menu | Yes |
| Samsung LYNK™ REACH Server Compatibility | Yes |
| Samsung LYNK™ SINC Compatibility | Yes |
| H.Browser Compatibility | Yes |
| Hospitality Plug&Play (Easy Set-up) | Yes |
| RJ 12 / IR Pass Through | Yes |
| Power on Mode | Yes |
| USB Cloning | Yes |
| Logo Display with Time Out Setting (BMP/Movie) | Yes |
| Welcome Message | Yes |
| Music Mode (Input : PC/AV/Component/HDMI) | Yes |
| Music Mode BackLight on/off | Yes |
| Auto Source Mode | Yes |
| Energy Saving Mode(BLU control) | Yes |
| Clock Back Up Supply | Yes |
| Software Clock | Yes |
| Multi Code Remote Control | Yes |
| Smoovie Compatibility | Yes |
| Samsung LYNK™ DRM | Yes |
| Pro:Idiom | Yes |
| Input & Output | |
| HDMI (Side/Rear) | 2/2 |
| USB (Side/Rear) | 1/0 |
| Component In (Y/Pb/Pr) (Side/Rear) | 0/1 |
| Composite In (AV) (Side/Rear) | 0/1 (Common Use for Component Y) |
| Ethernet (LAN) (Side/Rear) | 1/0 |
| Digital Audio Out (Optical) (Side/Rear) | 0/1 |
| Audio Out (Mini Jack) (Side/Rear) | 1/0 |
| RF In (Terrestrial/Cable input) (Side/Rear) | 0/1 |
| RS232C | Yes Common Use for Component RJ12) |
| Pillow Speaker Jack (Side/Rear) | Yes |
| Variable Audio Out (Side/Rear) | No |
| Variable Audio Out Volume Control (Side/Rear) | No |
| RJ12 for External Control (Side/Rear) | 0/1 |
| RJP Jack (Remote Jack Pack) (Side/Rear) | 0/1 |
| System | |
| DTV Tuner | ATSC / Clear QAM |
| Analog Tuner | Yes |
| Design | |
| Front Color | Black |
| Stand Type | N/A |
| Swivel (Left/Right) | N/A |
| Dimensions | |
| Set Dimension (WxHxD) (mm / inches) | 906.6 x 532.9 x 65.1 / 35.69" x 20.98" x 2.56" |
| Package Dimension (WxHxD) (mm / inches) | 1100 x 616 x 120 / 43.31" x 24.25" x 4.72" |
| Weight | |
| Set Weight (kg / lbs.) | 7.8 / 17.19 lbs. |
| Package Weight (kg / lbs.) | 9.4 / 20.72 lbs. |
| VESA | |
| VESA Mount (mm) | 200 x 200 |
| VESA Screw Size | M8 |
| Power | |
| Power Supply (V) | AC110-120V 60Hz |
| Multi Voltage | AC110-220V |
| UPC | |
| UPC | 887276684413 |
| Accessory | |
| Remote Controller Model | N/A |
| Battery (for Remote Control) | N/A |
| Mini Wall Mount Support | Yes |
| Vesa Wall Mount Support | Yes |
| Power Cable (Hospital Grade) | Yes |
| Quick Install Guide | Yes |
Compare:
| Samsung Healthcare Series TVs Comparison | ||||
|---|---|---|---|---|
| Model Number | HG28NC673AF | HG32NB673BF | HG32NC693DF | HG40NC693DF |
| Display | ||||
| Backlight | Slim Direct-Lit LED | Slim Direct-Lit LED | Slim Direct-Lit LED | Slim Direct-Lit LED |
| Screen Size (Diagonal) | 28" | 32" | 32" | 40" |
| HD/FHD | HD | HD | FHD | FHD |
| Resolution | 1366 x 768 | 1368 x 768 | 1920 x 1080 | 1920 x 1080 |
| Video | ||||
| Picture Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine |
| Micro Dimming | N/A | N/A | N/A | N/A |
| Wide Color Enhancer Plus | Yes | Yes | Yes | Yes |
| Auto Motion Plus | N/A | N/A | N/A | N/A |
| Film Mode | Yes | Yes | Yes | Yes |
| Audio | ||||
| Dolby | Dolby MS10 | Dolby MS10 | Dolby MS10 | Dolby MS10 |
| DTS Studio Sound / DNSe+ | DTS Studio Sound | DTS Studio Sound | DTS Studio Sound | DTS Studio Sound |
| DTS Premium Sound / DTS Premium Sound 5.1 | DTS Premium Sound 5.1 | DTS Premium Sound 5.1 | DTS Premium Sound 5.1 | DTS Premium Sound 5.1 |
| 3D Sound | N/A | N/A | N/A | N/A |
| Auto Volume Leveler | Yes | Yes | Yes | Yes |
| Speaker Type | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range |
| Sound Output (RMS) | 5W x 2 | 10W x 2 | 10W x 2 | 10W x 2 |
| Woofer | N/A | N/A | N/A | N/A |
| Variable Speaker Output | 4W (Mono, 8Ω) | 4W (Mono, 8Ω) | 4W (Mono, 8Ω) | 4W (Mono, 8Ω) |
| Features | ||||
| Smart Hub | No | No | Yes | Yes |
| Apps | No | No | Yes | Yes |
| Web Browser | No | No | Yes | Yes |
| Samsung SMART View | No | No | Yes | Yes |
| Wireless LAN Built-in | No | No | Yes | Yes |
| AllShare - Contents Sharing | No | No | Yes | Yes |
| AllShare - Screen Mirroring | No | No | Yes | Yes |
| ConnectShare™ (USB 2.0) | Movie | Movie | Movie | Movie |
| Wake On LAN | No | No | Yes | Yes |
| Soft AP | No | No | Yes | Yes |
| USB HID Support | No | No | Yes | Yes |
| OSD Language | English, Spanish, French | English, Spanish, French | English, Spanish, French | English, Spanish, French |
| Digital Clean View | Yes | Yes | Yes | Yes |
| HDMI 1.4 A / Return Ch. Support (ARC) | Yes | Yes | Yes | Yes |
| Auto Channel Search | Yes | Yes | Yes | Yes |
| Auto Power Off | Yes | No | Yes | Yes |
| EPG | No | Yes | Yes | Yes |
| Caption (Subtitle) | Yes | Yes | Yes | Yes |
| Wake-up Timer | Yes | Yes | Yes | Yes |
| Game Mode | Yes | Yes | Yes | Yes |
| Picture-In-Picture | Yes | Yes | Yes | Yes |
| Sleep Timer | Yes | Yes | Yes | Yes |
| Healthcare Features | ||||
| Hospitality Home Menu | Yes | No | Yes | Yes |
| Samsung LYNK™ REACH Server Compatibility | Yes | Yes | Yes | Yes |
| Samsung LYNK™ SINC Compatibility | No | No | Yes | Yes |
| H.Browser Compatibility | No | No | Yes | Yes |
| Hospitality Plug&Play (Easy Set-up) | Yes | Yes | Yes | Yes |
| RJ 12 / IR Pass Through | Yes | Yes | Yes | Yes |
| Power on Mode | Yes | Yes | Yes | Yes |
| USB Cloning | Yes | Yes | Yes | Yes |
| Logo Display with Time Out Setting (BMP/Movie) | Yes | Yes | Yes | Yes |
| Welcome Message | Yes | Yes | Yes | Yes |
| Music Mode (Input : PC/AV/Component/HDMI) | Yes | Yes | Yes | Yes |
| Music Mode BackLight on/off | Yes | Yes | Yes | Yes |
| Auto Source Mode | Yes | Yes | Yes | Yes |
| Energy Saving Mode(BLU control) | Yes | Yes | Yes | Yes |
| Clock Back Up Supply | Yes | Yes | Yes | Yes |
| Software Clock | Yes | Yes | Yes | Yes |
| Multi Code Remote Control | Yes | Yes | Yes | Yes |
| Smoovie Compatibility | Yes | Yes | Yes | Yes |
| Samsung LYNK™ DRM | Yes | Yes | Yes | Yes |
| Pro:Idiom | Yes | Yes | Yes | Yes |
| Input & Output | ||||
| HDMI (Side/Rear) | 2/1 | 2/2 | 2/2 | 2/2 |
| USB (Side/Rear) | 1/0 | 1/0 | 1/0 | 1/0 |
| Component In (Y/Pb/Pr) (Side/Rear) | No | 0/1 | 0/1 | 0/1 |
| Composite In (AV) (Side/Rear) | 1/0 (Common Use for Component Y) | 0/1 (Common Use for Component Y) | 0/1 (Common Use for Component Y) | 0/1 (Common Use for Component Y) |
| Ethernet (LAN) (Side/Rear) | N/A | N/A | N/A | 1/0 |
| Digital Audio Out (Optical) (Side/Rear) | No | 0/1 | 0/1 | 0/1 |
| Audio Out (Mini Jack) (Side/Rear) | 0/1 | 1/0 | 1/0 | 1/0 |
| RF In (Terrestrial/Cable input) (Side/Rear) | 0/1 | 0/1 | 0/1 | 0/1 |
| RS232C | Yes Common Use for Component RJ12) | Yes Common Use for Component RJ12) | Yes Common Use for Component RJ12) | Yes Common Use for Component RJ12) |
| Pillow Speaker Jack (Side/Rear) | Yes | Yes | Yes | Yes |
| Variable Audio Out (Side/Rear) | No | No | No | No |
| Variable Audio Out Volume Control (Side/Rear) | No | No | No | No |
| RJ12 for External Control (Side/Rear) | 0/1 | 0/1 | 0/1 | 0/1 |
| RJP Jack (Remote Jack Pack) (Side/Rear) | 0/1 | 0/1 | 0/1 | 0/1 |
| System | ||||
| DTV Tuner | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM |
| Analog Tuner | Yes | Yes | Yes | Yes |
| Design | ||||
| Front Color | Black | Black | Black | Black |
| Stand Type | N/A | N/A | N/A | N/A |
| Swivel (Left/Right) | N/A | N/A | N/A | N/A |
| Dimensions | ||||
| Set Dimension (WxHxD) (mm / inches) | 643.4 x 396.5 x 62.9 / 25.33" x 15.61" x 2.48" | 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" | 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" | 906.6 x 532.9 x 65.1 / 35.69" x 20.98" x 2.56" |
| Package Dimension (WxHxD) (mm / inches) | 815 x 463 x 108 / 32.09" x 18.23" x 4.25" | 899 x 506 x 113 / 35.39" x 19.92" x 4.45" | 899 x 506 x 113 / 35.39" x 19.92" x 4.45" | 1100 x 616 x 120 / 43.31" x 24.25" x 4.72" |
| Weight | ||||
| Set Weight (kg / lbs.) | 3.7 / 8.16 lbs. | 5 / 11.02 lbs. | 5 / 11.02 lbs. | 7.8 / 17.19 lbs. |
| Package Weight (kg / lbs.) | 4.8 / 10.6 lbs. | 6.6 / 14.55 lbs. | 6.6 / 14.55 lbs. | 9.4 / 20.72 lbs. |
| VESA | ||||
| VESA Mount (mm) | 100 x 100 | 200 x 200 | 200 x 200 | 200 x 200 |
| VESA Screw Size | M4 | M8 | M8 | M8 |
| Power | ||||
| Power Supply (V) | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz |
| Multi Voltage | AC110-220V | AC110-220V | AC110-220V | AC110-220V |
| UPC | ||||
| UPC | 887276689166 | 887276684406 | 887276684406 | 887276684413 |
| Accessory | ||||
| Remote Controller Model | N/A | N/A | N/A | N/A |
| Battery (for Remote Control) | N/A | N/A | N/A | N/A |
| Mini Wall Mount Support | No | Yes | Yes | Yes |
| Vesa Wall Mount Support | Yes | Yes | Yes | Yes |
| Power Cable (Hospital Grade) | Yes | Yes | Yes | Yes |
| Quick Install Guide | Yes | Yes | Yes | Yes |
Images:
Documentation:
Download the Samsung Healthcare Series TVs Datasheet (.PDF)
