Samsung OM55D-W - OMD-W Series 55" High Brightness Display
Handle High Ambient Light Conditions with 2500 Nits Brightness and an Auto Brightness Sensor.
This product is no longer available, please contact us for a replacement.
Overview:
Samsung OMD-W Series High Brightness Displays are a fully embedded digital signage solution designed for high ambient light indoor environments where brightness and visibility are the main requirements. And with our SMART Signage Platform, you can manage your content without external devices.
- Handle High Ambient Light Conditions with 2500 Nits Brightness and an Auto Brightness Sensor
- LED Backlit Panel, SMART Signage Platform and MagicInfo Software
- Connectivity Options Including VGA, Display Port, HDMI, DVI, Embedded Wi-Fi, RS232C, RJ45 LAN and an SD Card Slot
- 3-Year Onsite Warranty and 24/7 Operating Runtime
Features
High Brightness
At 2500 nits, our OMD-W Series LED displays deliver high brightness for excellent legibility and visibility, even in high ambient light environments.
Engineered for High Ambient Light Indoor Environments
These displays are designed for high ambient light indoor environments where brightness and visibility are the main requirements, such as a retail storefront window.
Circular Polarizing Technology
Samsung’s circular polarizing technology allows for viewing content on the display while wearing polarized sunglasses.
SMART Signage Platform
SMART Signage Platform offers a fully embedded solution that eliminates the need for additional external devices. System on Chip (SoC) delivers media player functionality, and content is easily controlled through Samsung MagicInfo software.

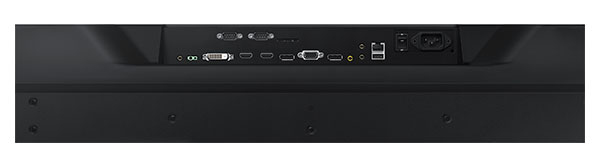

Flexible Connectivity
Get access to content from a variety of sources. Connections include PC (VGA), Digital (Display Port, HDMI and DVI), embedded Wi-Fi, RS232C for external control capability and an SD card slot.
Commercial Reliability
Built to handle 24/7 continuous operation, you’ll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.
Built-In Speaker
A built-in speaker provides audio messaging to reach your audience even in adverse weather conditions, eliminating the hassle and cost of adding a separate sound system.
Perfect for Various Industries
Samsung OMD-W Series High Brightness Displays are perfect for transportation hubs, banking offices, retail storefront windows, sports arenas, convention centers and many more applications.
Specifications:
| Samsung OM55D-W - OMD-W Series 55" High Brightness Display Specifications | |
|---|---|
| Display | |
| Screen Size | 55" |
| Brightness | 2,500 nits |
| Panel Technology | Direct Lit |
| Contrast Ratio (Typical) | 5,000:1 |
| Resolution | 1920x1080 |
| Viewing Angle (H/V) | 178°/178° |
| Aspect Ratio | 16:9 |
| Response Time | 8ms |
| Connectivity | |
| Input | VGA (D-sub 15 pin), DVI-D, Display Port 1.2 HDMI (2), Component/Composite, Stereo Mini Jack |
| Output | Display Port 1.2 (Loop-out) Stereo Mini Jack |
| External Control | RS232C(In/Out), RJ45 |
| Sensor | Detachable Type (IR, Ambient) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 370 |
| Power Consumption (Standby) | < 1W |
| Environmental Conditions | |
| Operating Temperature | 32ºF ~ 86ºF |
| Operating Humidity | 10~80% |
| Features | |
| Special | H/W: Temperature Sensor, Pivot Display, Button Lock, Built in Speakers, Wifi Embedded, Slide-in media player option S/W: Plug and Play, MagicInfo, Digital Daisy Chains, Lamp Error Detection, Anti Image Retention,, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Smart Scheduling |
| 24/7 Operation | Yes |
| SMART Signage Platform | Yes |
| Built-In Speakers | Built-in Speaker (10W + 10W) |
| Media Player Type | Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS |
| Vesa Standard Wall-Mount Interface | 600 x 400 mm |
| Dimensions | |
| Without Stand (W x H x D) | 48.3" x 27.5" x 5.5" |
| Packaging (W x H x D) | 52.6" x 31.8" x 10.4" |
| Bezel Width | 9.3mm (L/R 7.9mm, Bottom 6.5mm) |
| Weight | |
| Set | 65 lb. |
| Service | |
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | |
| Optional Media Player | SBB-CF7, SBB-DA, SBB-DI |
| Green Management | |
| ROHS Compliant | Yes |
| Packaging Recyclability | Packing Materials Recyclable |
