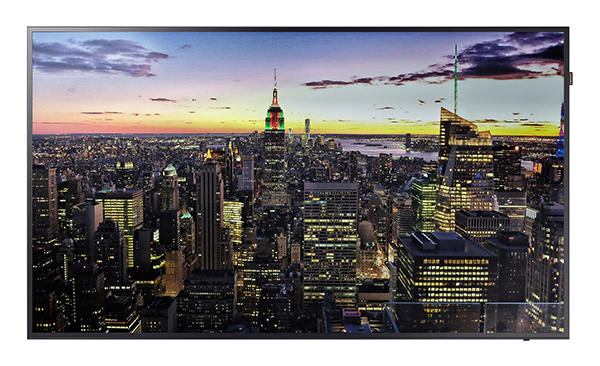

Samsung QB65H - QBH-N Series 65" Edge-Lit 4K UHD LED Display for Business (Non Wi-Fi)
Exceed expectations while meeting your budget with large panels, 4K UHD resolution and an integrated media player

Samsung QB65H - QBH-N Series 65" Edge-Lit 4K UHD LED Display for Business

Samsung Products
Samsung Digital Signage
QB65H-N - QBH-N Series 65" Edge-Lit 4K UHD LED Display for Business
#QB65H-N
Our Price: $1,532.00

More pricing below, click here!

Overview:

With stunning 4K UHD quality and large-panel displays, Samsung's QBH-N Series digital signage delivers a big, beautiful picture to impress your audience, while keeping it affordable. State-of-the-art graphic performance and operational versatility combine in an all-in-one digital signage solution. Installation and content management are greatly simplified with the integrated internal CPU. And no external set-back box or PC is needed, so there’s nothing extra to purchase or install.

  • Stunning 4K UHD picture quality at an affordable price
  • All-in-one digital signage solution featuring an integrated media player
  • Reliable 16/7 operation backed by a 3-year onsite warranty
  • Versatile connectivity options to display a full range of exceptional content

Features:

Deliver Impactful Content through an All-Inclusive Display

Deliver Impactful Content through an All-Inclusive Display

Samsung’s QBH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.


Enliven Commercial Content with UHD Picture Quality

Enliven Commercial Content with UHD Picture Quality

Featuring state-of-the-art UHD picture quality, the QBH Series displays empower users to deliver more impactful messaging. Each QBH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QBH Series ideal for any commercial setting.


Enjoy Greater Operational Flexibility with the TIZEN OS

Enjoy Greater Operational Flexibility with the TIZEN OS

The QBH Series displays are among the first in Samsung’s lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management. Not only do the QBH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.


Protect Business and Customer Data through Extensive Security

Protect Business and Customer Data through Extensive Security

For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung’s QBH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.


Enjoy a Consistent, Accelerated Refresh Rate through Versatile Connectivity

Enjoy a Consistent, Accelerated Refresh Rate through Versatile Connectivity

An upgrade on more limited alternatives, the QBH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source.

Specifications:

Samsung QB65H-N - QBH-N Series 65" Edge-Lit 4K UHD LED Display Specifications
Display
Screen Size 65"
Panel Technology 60Hz E-LED BLU
Resolution 3840 x 2160 (4K UHD)
Aspect Ratio 16:9
Pixel Pitch (mm) 0.105 x 0.315 (mm)
Active Display Area (mm) 1428.48(H) x 803.52(V)
Brightness 300nit
Contrast Ratio (Typical) 4000:1
Viewing Angle (H/V) 178º/178º
Response Time 8ms (Typ)
Display Colors 16.7M (True Display) 1.07B (Ditherd 10bit)
Color Gamut 72%
Haze 2%
Display
Dynamic C/R Mega
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 594MHz
Sound
Speaker Type Built in Speaker (10W + 10W)
Connectivity
Input RGB: DVI-D, Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2
Output Audio: Stereo mini Jack
External Control RS232C(in/out), RJ45
Sensor IR
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption Max [W/h]: 122
Typical [W/h]: 165
BTU (Max): N/A
Sleep mode: less than 0.5W
Off mode: less than 0.5W
Environmental Conditions
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
Recommended Usage Hours 16/7
Features
Special Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0
Special Hardware: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi
Software: Auto Source Switching & Recovery,LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed: 1.7GHz Quad-Core CPU
  • Main Memory Interface: 3GB 3ch 64bit LPDDR4 1.6GHz
  • Graphics: 2D & 3D Graphic Accelerator, Data Format : 32bpp, Output resolution : 3840x2160p
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: Video Decoder
    - MPEG 1/2/4, H.263, H.264/AVC
    - UHD H.264/AVC, VC-1, AVS/AVS+, MVC
    - VP8, VP9, HEVC, JPEG
    Audio DSP(Decoder)
    - MPEG, AC3, AC4, DD, MP3 and etc
  • IO Ports: USB 2.0
  • Tizen 3.0 (VDLinux)
Dimensions
Without Stand (W x H x D) 57.3" x 33" x 1.5" in
Package (WxHxD) 61.8" x 37.6" x 8.3" in
Bezel Width Top: 12.2 mm, Side: 12.2 mm, Bottom: 12.2 mm
Weight
Product Weight 50.2 lbs
Package Weight 71.4 lbs
Service
Standard Warranty 3 Years Onsite (Parts/Labor/Backlight)
Included in Box
Included in Box Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional Wall Mount Kit WMN6575SD
Optional Stand STN-L6500E
Optional Media Player SBB
Green Management
ENERGY STAR Certified ENERGY STAR 7.0
Emission Standard EMC Class A
Packaging Recyclability Packing Materials Recyclable
Mechanical Specs
VESA Mount 400x400

Pricing Notes:

Samsung Products
Samsung Digital Signage
QB65H - QB-H Series 65" Edge-Lit 4K UHD LED Display
#QB65H
Our Price: $1,959.00
Samsung On-site Warranty with SLA
On-site Warranty includes: Next Business Day exchange of the display, on-site tech-assisted exchange of display, Technician removes original unit, installs replacement, and ships non-working unit to Samsung, Coverage for mechanical/electrical breakdown
3 Years On-site Warranty with SLA for 55" - 65" Display
#65MN3
Our Price: $250.00
4 Years On-site Warranty with SLA for 55" - 65" Display
#65MN4
Our Price: $400.00
5 Years On-site Warranty with SLA for 55" - 65" Display
#65MN5
Our Price: $525.00
