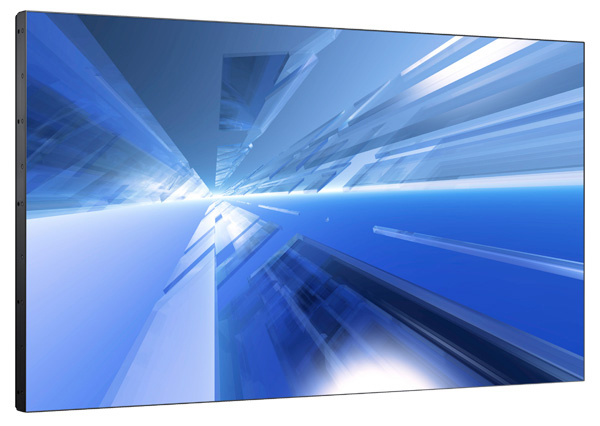

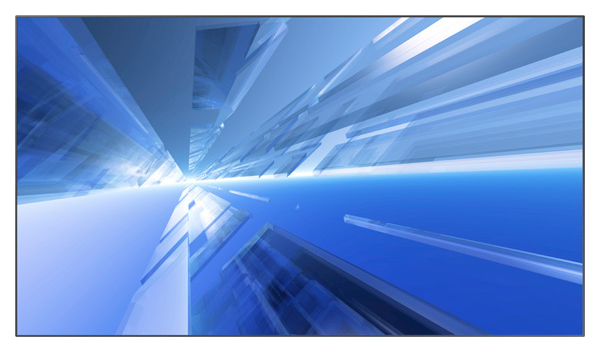

Samsung UD46C-B - UD-C-B Series 46" Direct-Lit LED Display
Thinner Bezels. Larger Impact.
This product is no longer available, replaced by the UD46E-B - UD-E-B Series 46" Direct-Lit LED Display
Overview:
Samsung's UD-C Series delivers sharp, bright, impactful messages with ultra high-image quality and easy content sharing across multiple devices. Factory tuned with advanced color calibration, enjoy optimal uniformity and an impressive picture on the 46" display. And 1920 x 1080p full HD resolution with brightness levels of 450 nits enlightens a clear, vibrant video wall for your messaging needs.
- Advanced Color Calibration
- DisplayPort 1.2
- Sharp, Bright, Impactful
- Direct-Lit LED
Features
Advanced Color Calibration
UD-C Series displays are factory tuned for Brightness, Color Temperature and Gamma. They deliver optimal uniformity and impressive images right out of the box.
Sharp, Bright, Impactful
Full HD 1920 x 1080 resolution and brightness levels of 450 nits ensure a clear, vibrant video wall that’s easy to look at and hard to ignore.
Direct-Lit LED
Direct-lit LED technology with a new backlight dimming solution allows the UD-C Series display to achieve deeper blacks, higher contrast ratio of 3500:1, and power savings of up to 30%.
Specifications:
| Samsung UD46C - UD-C Series 46" Direct-Lit LED Display | |
|---|---|
| Display | |
| Screen Size | 46" Direct-lit LED Backlit LCD |
| Panel Technology | S-PVA (60Hz) |
| Resolution | 1920 x 1080 Full HD |
| Brightness | 450 nits |
| Contrast Ratio (Typical) | 3500:1 |
| Viewing Angle (Horizontal/Vertical) | 178˚/178˚ |
| Orientation | Landscape/Portrait |
| Response Time | 6.5ms |
| Connectivity | |
| Input | VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack |
| Output | DVI-D (Loop out), Stereo Mini Jack |
| External Control | RS232C (in/out), RJ45 |
| Response Time | Detachable Type (IR, Ambient) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 113W / 130W |
| Power Consumption (Standby) | < 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Special | Auto Source Switchinig & Recovery, Lamp Error Detection, Anti Retention (Haze 11%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Button Lock, DVI Digital Daisy Chain, Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping) |
| Tuner | N/A |
| Internal Media Player | N/A |
| VESA Standard Wall Mount Interface | 600 x 400mm |
| Dimensions | |
| Product Dimensions (without stand) | 40.3" x 22.8" x 3.8" |
| Packaging Dimensions | 49.4" x 31.4" x 14.0" |
| Bezel Width | 3.7mm (U/L), 2.0mm (R/B) |
| Weight | |
| Product Weight | 40 lbs. |
| Shipping Weight | 68.6 lbs. |
| Service | |
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | |
| Included | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries |
| Optional Mount | WMN-4675MD |
| Optional Stand | MID-UD46FS |
| Optional Media Player | SBB-C, SBB-CD7, SBB-CQ7 |
| Green Management | |
| Emission Standard | EMC |
| ENERGY STAR® 6.0 Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Recyclability | Packing Materials Recyclable |
| Connectivity | |
|
 |
Compare:
| Samsung UDC Series Commercial LED LCD Displays | ||||
|---|---|---|---|---|
| Model Number | UD46C | UD55C | UD46C-B | UD55C-B |
| Display | ||||
| Screen Size | 46" Direct-lit LED Backlit LCD | 55" Direct-lit LED Backlit LCD | 46" Direct-lit LED Backlit LCD | 55" |
| Panel Technology | S-PVA (60Hz) | S-PVA (60Hz) | S-PVA (60Hz) | 60Hz (Direct-LED Backlight) |
| Resolution | 1920 x 1080 Full HD | 1920 x 1080 Full HD | 1920 x 1080 Full HD | 1920 x 1080 |
| Brightness | 700 nits | 700 nits | 450 nits | 500 nits |
| Contrast Ratio (Typical) | 3500:1 | 3500:1 | 3500:1 | 3,500:1 |
| Viewing Angle (Horizontal/Vertical) | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Orientation | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait |
| Response Time | 8ms | 8ms | 6.5ms | 8ms |
| Connectivity | ||||
| Input | VGA (D-sub 15 pin), DVI-D, DisplayPort 1.2, Composite, HDMI (x2), Component, Stereo Mini Jack | VGA (D-sub 15 pin), DVI-D, DisplayPort 1.2, Composite, HDMI (x2), Component, Stereo Mini Jack | VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack | VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack |
| Output | DisplayPort 1.2, Stereo Mini Jack | DisplayPort 1.2, Stereo Mini Jack | DVI-D (Loop out), Stereo Mini Jack | DVI-D (Loop out), Stereo Mini Jack |
| External Control | RS232C (In/Out), RJ45 | RS232C (In/Out), RJ45 | RS232C (in/out), RJ45 | RS232C (in/out), RJ45 |
| Response Time | Detachable Type (IR, Ambient) | Detachable Type (IR, Ambient) | Detachable Type (IR, Ambient) | Detachable Type (IR, Ambient) |
| Power | ||||
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 120W / 165W | 160W / 220W | 113W / 130W | 150W / 165W |
| Power Consumption (Standby) | < 0.5W | < 0.5W | < 0.5W | < 0.5W |
| Environmental Conditions | ||||
| Operating Temperature | 0°C - 40°C | 0°C - 40°C | 0°C - 40°C | 0°C - 40°C |
| Operating Humidity | 10%~80% | 10%~80% | 10%~80% | 10%~80% |
| Features | ||||
| Special | Advanced Color Management, Magic Clone, Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention (Haze 44%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping), Built-in MagicInfo (Lite, Premium-S, VideoWall-S) | Advanced Color Management, Magic Clone, Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention (Haze 44%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping), Built-in MagicInfo (Lite, Premium-S, VideoWall-S) | Auto Source Switchinig & Recovery, Lamp Error Detection, Anti Retention (Haze 11%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Button Lock, DVI Digital Daisy Chain, Smart Scheduling, Smart F/W update, Clock Battery (80 hrs. Clock Keeping) | ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update |
| Tuner | N/A | N/A | N/A | N/A |
| Internal Media Player | Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB (2) | Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB (2) | N/A | N/A |
| VESA Standard Wall Mount Interface | 600 x 400mm | 600 x 400mm | 600 x 400mm | 600 x 400mm |
| Dimensions | ||||
| Product Dimensions (without stand) | 40.3" x 22.8" x 3.8" | 47.8" x 27" x 3.8" | 40.3" x 22.8" x 3.8" | 47.8" x 27.0" x 4.5" |
| Packaging Dimensions | 49.4" x 31.4" x 14.0" | 57.1" x 35.6" x 15.2" | 49.4" x 31.4" x 14.0" | 56.7" x 34.3" x 14.8" |
| Bezel Width | 3.5mm (U/L), 1.8mm (R/B) | 3.7mm (U/L), 1.8mm (R/B) | 3.7mm (U/L), 2.0mm (R/B) | 3.7mm(U/L), 1.8mm(R/B) |
| Weight | ||||
| Product Weight | 40 lbs. | 52.8 lbs. | 40 lbs. | 53.5 lbs. |
| Shipping Weight | 77 lbs. | 91.5 lbs. | 68.6 lbs. | 77.2 lbs. |
| Service | ||||
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | ||||
| Included | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, D-sub Cable, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Mount | WMN-4675MD | WMN-4675MD | WMN-4675MD | WMN-4675MD |
| Optional Stand | MID-UD46FS | MID-UD55FS | MID-UD46FS | MID-UD55FS |
| Optional Media Player | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 | SBB-C, SBB-CD7, SBB-CQ7 |
| Green Management | ||||
| Emission Standard | EMC | EMC | EMC | EMC |
| ENERGY STAR® 6.0 Compliant | Yes | Yes | Yes | Yes |
| RoHS Compliant | Yes | Yes | Yes | Yes |
| Packaging Recyclability | Packing Materials Recyclable | Packing Materials Recyclable | Packing Materials Recyclable | Packing Materials Recyclable |
| Connectivity | ||||
|
 |
|||

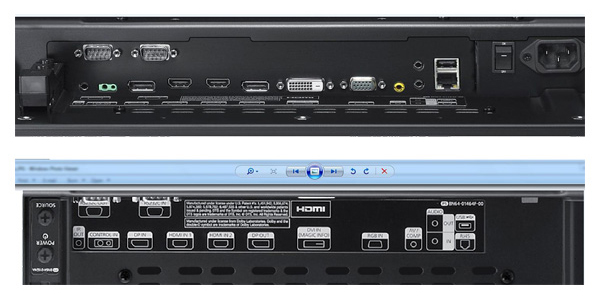

| Connectivity UD46C-B and UD55C-B Only |
|
 |
||
Images:
Documentation:
Download the Samsung UDC Series Commercial LED LCD Displays Datasheet (.PDF)
