Samsung UH46F5 - UHF Series 46" Slim Depth Videowall Display
Videowall Display featuring a slim 1.9in depth and 4K UHD capability

Samsung UH46F5 - UHF Series 46" Slim Depth Videowall Display

Sorry, this product is no longer available. Please Contact Us for a replacement.

Overview:

Create amazing, cost-effective videowalls to make your message stand out. The UH46F5 features a slim depth of just 1.9in for a lightweight, elegant design. The non-glare panel offers improved visibility and it's built for 24/7 runtime. Plus, you can achieve 4K UHD resolution when you daisy chain up to 25 displays with the Display Port 1.2 digital loop-out feature, without the cost of external processing scalers and distribution boxes.

  • Slim 1.9in depth, 5.5mm bezel-to-bezel spec, lightweight at just 29.1 lbs. and ADA-compliant if used with the Samsung WMN-46VD slim wall mount
  • Non-glare, 700nit high brightness panel offers improved visibility in bright ambient light
  • Reliable 24/7 continuous run-time to meet around the clock business operating requirements
  • Factory calibrated for uniform brightness and color across multiple displays

Features:

Slim, Lightweight Design

Slim, Lightweight Design

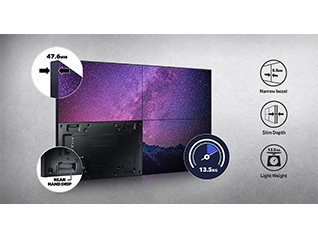

The UH46F5 features a slim depth at just 48mm and is lightweight at just 29.1 lbs. So you can easily install videowalls with elegance and sophistication.

Amazing, Cost-Effective Videowalls

Amazing, Cost-Effective Videowalls

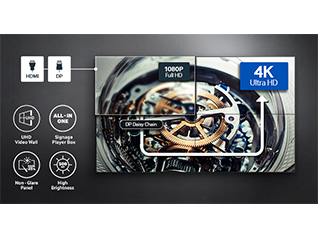

Create stunning, cost-effective videowalls. You can daisy chain up to 25 displays with the Display Port 1.2 digital loop-out feature to achieve 4K UHD (3840x2160) resolution. So you can deliver exceptional content with fine detail for an impactful experience, all at a cost that meets your business demands.


Non-Glare, High Brightness Panel for Improved Visibility

Non-Glare, High Brightness Panel for Improved Visibility

The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.

Built for 24/7 Use

Built for 24/7 Use

These displays are built for 24/7 continuous use. So you can meet around the clock operating requirements in venues ranging from retail storefronts to public spaces.


Advanced Color Management (ACM)

Advanced Color Management (ACM)

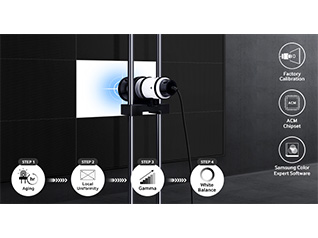

The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.

Image Rotation

Image Rotation

Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal, and vice versa, when you connect and split-screen multiple displays in a videowall matrix.


Specifications:

Samsung UH46F5 - UHF Series 46" Slim Depth Videowall Display Specifications
Display
Screen Size 46"
Panel Technology D-LED DID
Resolution 1920x1080
Aspect Ratio 16:9
Brightness 700nit
Contrast Ratio (Typical) 4000:1
Viewing Angle (H/V) 178º/178º
Response Time 8ms
Connectivity
Input RGB: DVI-D, Display Port 1.2
VIDEO: HDMI (2)
AUDIO: Stereo Mini Jack
USB: Only F/W upgrade
Output AUDIO: Stereo Mini Jack
External Control RS232C(in/out), RJ45
Sensor Detachable Type(IR)
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Standby) less than 0.5W
Environmental Conditions
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
Features
Special ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 11%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Videowall(15x15(OSD)), Videowall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
Media Player Type Cortex-A9 1GHz Quad Core CPU, 1.5GB DDR3, 8GB FDM, USB 2.0, Samsung Proprietary OS (VDLinux)
Plug & Play Yes
24/7 Operation Yes
Videowall/Thin Bezel Yes
Dimensions
Without Stand (W x H x D) 40.3" x 22.7" x 1.8"
Packaging (W x H x D) 46.1" x 28.8" x 10.9"
Bezel Width 0.13" (U/L), 0.08" (R/B)
Weight
Product Weight 29.1 lbs.
Package Weight 42.3 lbs.
Service
Standard Warranty 3yr Onsite (Parts/Labor/Backlight)
Included in Box
Included in Box Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries
Optional Wall Mounting Kit WMN-46VD
Optional Stand SBB-DA / SBB-DI / SBB-SS08E
Optional Media Player SBB-DA / SBB-SS08E
Green Management
ROHS Compliant Yes
Emission Standard EMC
Packaging Recyclability Packing Materials Recyclable
Mechanical Specs
VESA Mount 400x400 (mm)
