Samsung DC32E-M - DC-E Series 32" Direct-Lit LED Display for Business
Professional, cost-effective digital signage that reliably delivers rich content
This product is no longer available, replaced by the DC32E - DC-E Series 32" Slim Direct-Lit LED Display
Overview:
Simple and reliable, Samsung DC-E Series commercial grade digital signage showcases a slim, sleek design and excellent full HD image quality in an affordable fashion. It features enhanced connectivity options including DVI, Component and Composite inputs, while meeting your most demanding budget needs.
- Slim and sleek design with narrow bezels and chassis depth
- Direct-lit LED display delivering sharp images and energy savings
- Our most affordable commercial grade digital signage
- 3-Year onsite warranty to secure your investment
Features
High Image Quality and Energy-Saving
Direct-lit LED technology provides the brilliant image quality and energy savings advantages of LED technology, along with the uniform brightness typical of CCFL displays.
Enhanced Connectivity Options
DVI, Component and Composite inputs provide enhanced connectivity to meet your business' digital signage needs.
Commercial Reliability
While the DC-E Series displays are our most affordable commercial grade displays, they’re also every bit as reliable as our most expensive display panels. We demonstrate our confidence in the quality of our product with a 3-year onsite warranty.
Features:
Easily elevate business branding and messaging with brilliant and durable signage
DCE-M Series displays deliver industry-leading picture quality, proven Samsung technology and a wide array of sizing options for adaptable and dependable business usage to meet various business needs. These attributes make DCE-M Series the smart choice for any business or retail establishment. The displays offer durable and extended 24/7 usage to ensure that your business messages are conveyed whenever and wherever they are most impactful. Plus, 450 nit brightness and crystal clear image quality enable business owners to captivate their customers.

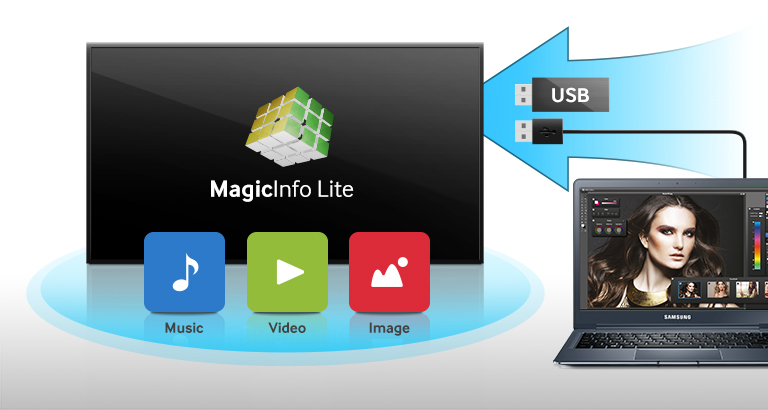

Content Auto Play in USB memory or internal memory
MagicInfo Lite Player uses a sophisticated technology to play a huge range of content including video, images, photos on demand, or from a schedule. Customers can easily play files from, or transfer between, the large internal memory or external USB devices plugged into the in-built port. The MagicInfoSlide folder on the USB memory has content that is listed in alphabetical order which is easier and convenient to use as it does not require separate schedules.
Control Displays in multiple locations easily and instantly
MagicInfo Lite solution that comes with the embedded media player extends the remote content management over network through MagicInfo server. Media contents of the USB memory stick plugged in to the back of the DCE Series displays can be scheduled to play from a remote PC.
The connection to MagicInfo server also allows remote monitoring and management of the DCE Series displays. Device information, content playback schedules, network data monitoring, time scheduling, alarms and various controls are all available remotely even without being in front of the displays.

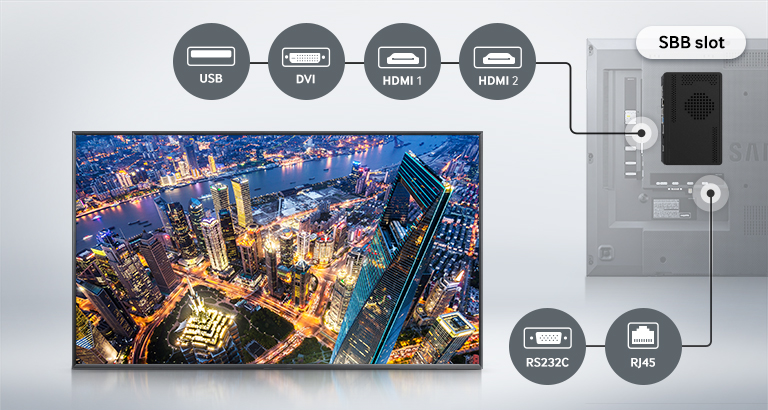

Easily Manage digital signage with a versatile connectivity
Connect the display to other digital signage easily with interfaces based on your specific needs. The displays provide not only the essential connections businesses use the most but support for a wide range of source device types. Interfaces include HDMI, DVI, D-sub, Component and Composite input as well as RS-232C and RJ45 for extensive connectivity.
In addition, DCE series has a space to attach SBB player, which can transform the signage into all-inclusive digital signage solutions.
Specifications:
| DC32E-M - DC-E Series 32" Direct-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 32" |
| Panel Technology | 60Hz D-LED BLU |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Brightness | 350nit |
| Contrast Ratio (Typical) | 5000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Response Time | 8ms |
| Direct Lit | Yes |
| Connectivity | |
| Input | RGB: Analog D-SUB, DVI-D VIDEO: HDMI1,HDMI2, CVBS AUDIO: Stereo mini Jack, USB: USB 2.0 x 1 |
| Output | Audio: Stereo mini Jack |
| External Control | RS232C(In) thru stereo jack, RJ45 |
| Sensor | IR, Ambient Light |
| Features | |
| Built-in Speakers | 10W + 10W |
| Dimensions | |
| Without Stand (W x H x D) | 42.3" x 24.4" x 2" |
| Packaging (W x H x D) | 46.7" x 28.1" x 5.8" |
| Bezel Width | 9.5mm (Top/Side), 15.0mm (Bottom) |
| Weight | |
| Product Weight | 24.5 lb. |
| Package Weight | 30.9 lb. |
| Service | |
| Standard Warranty | 3 years onsite parts/labor |
| Included in Box | |
| Included in Box | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN)/Audio(OUT)/IR(IN) Adapter |
| Optional Wall Mount Kit | WMN4270SD, WMN450MD, WMN4675MD |
| Optional Stand | STN-L4655E |
| Optional Media Player | Embbeded, SBB (Not attachable) |
| Mechancial Specs | |
| Vesa Mount | 400 x 400 mm |
| Operation | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10 - 80% |
| Recommended Run Time | 16/7 |
Compare:
| Samsung DC-E Series Direct-Lit LED Displays Comparison | |||
|---|---|---|---|
| Model Number | DC40E - 40" Direct-Lit LED Display | DC32E-M - 32" Direct-Lit LED Display | DC55E - 55" Direct-Lit LED Display |
| Screen Size | 40" | 32" | 55" |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Brightness | 350nit | 350nit | 350nit |
| Direct Lit | Yes | Yes | Yes |
| 24/7 Operation | N/A | N/A | N/A |
| Video Wall/Thin Bezel | N/A | N/A | N/A |
| Built-In Speakers | 10W + 10W | 10W + 10W | 10W + 10W |
Images:
Documentation:
Samsung SMART Signage DCE-H and DCE-M Series datasheet (.PDF)
